High-yield
Real Time precise MPPT algorithm for max power generation
Wide input voltage operateion range
Independent dual MPPT tracking, flexible solar roof system design
Intelligent grid management
Reactive power capbility
Limits AC output when grid grequency is too high or to low
Limits AC outpout when grid voltage is too high
Built in zero expoert function (optional)
Multiple working modes
PV & stroage all in one, increases self consumption to 80%+,decreases reliance on the electrical grid, decreases the electricity bill.
Stand alone mode (like UPS) avaliable, ensures safe operation of critical loads
Multiple operation modes selection: auto mode, time-of-use mode,timing mode, passive mode etc.
Reliable and Safe
High efficiency low energy loss, Low maintenance
High frequency isolation between battery & PV/grid
Advanced battery management technology to protect the battery life
Easier Operation
Free site selection due to IP65
4'LCD clear,easy-to-read display
Real Time Monitorin
|

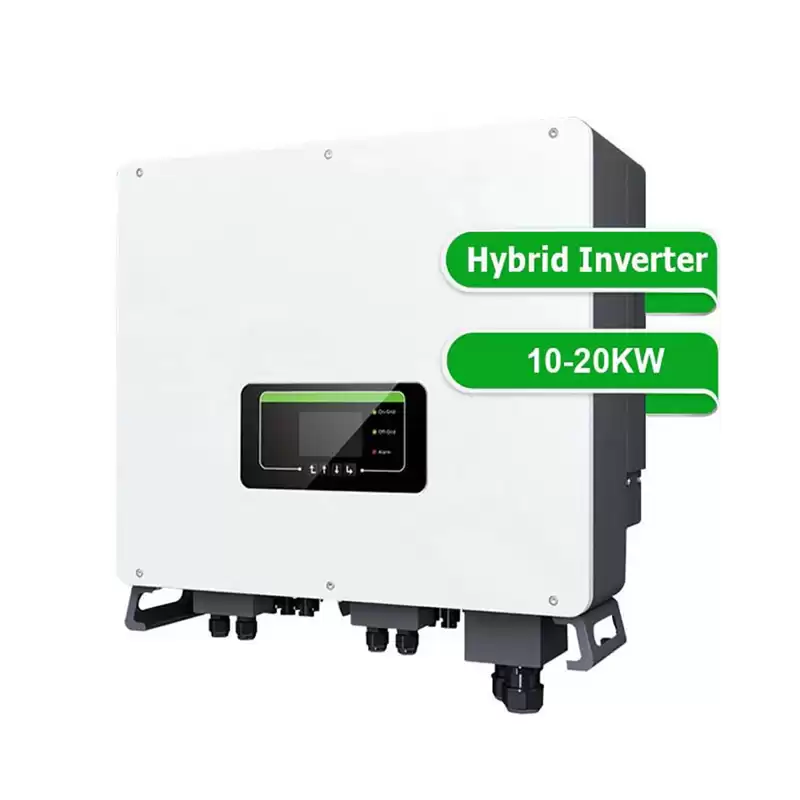

MODEL
|
HYD 10000TL-3PH
|
HYD 15000TL-3PH
|
HYD 20000TL-3PH
|
Battery
|
|
|
|
Battery Type
|
LI-ION
|
|
Battery Voltage Range
|
200-750V
|
Rated Charge/Discharge current
|
25A
|
Charging strategy
|
Follow BMS
|
DC Connector/Quality
|
MC PV Connector/2
|
|
PV Input
|
|
Recommended PV input power
|
13000W
|
18000W
|
26000W
|
|
MAX Input Voltage
|
1000V
|
Start-up voltage
|
180V
|
|
MPPT voltage range
|
160-960V
|
MPPT Number/ String number of each MPPT
|
2/1
|
2/2+2
|
2/2+2
|
|
Off Grid Output
|
Rate output voltage
|
230V/400V (+-10%)
|
Rated output power
|
10000W
|
15000W
|
20000W
|
|
Parallel connection
|
YES
|
On Grid Output
|
Max output current
|
3*16.5A
|
|
Grid type
|
3/N/PE
|
|
THDi@ full load
|
<3%
|
