Features
◆ SF-AHR80BL with mechanical driving rotary indexer, automatic loading & unloading systems and combined with PLC control system.
◆ Adopted main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical parts are made by CNC directly from CAD design.
◆ Adopted touch screen interface. Quick setup & quick toolings change over.
◆ Equipped with No-object No-printing system, auto counter, safety guard, out of order alarm device.
◆ Heat transfer unit with servo motor right-left registration, Automatic loading system,auto hoper for caps and other customizations due to order.
Technical Data

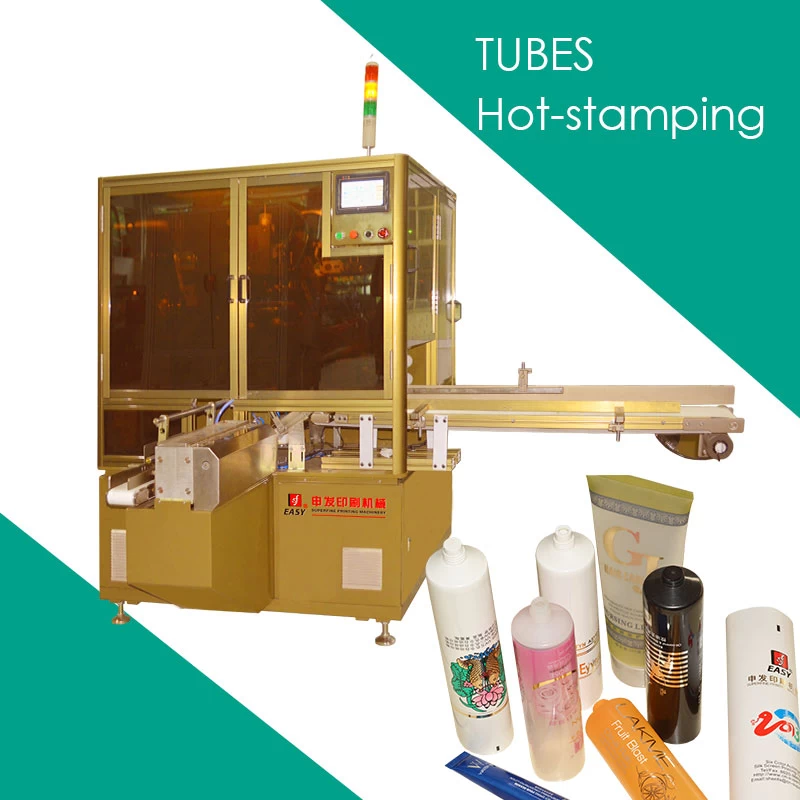

Model: SF-AHR80BL
Product size:φ（25-60）x (50-200)mm
Max. speed:60pcs/min
Air pressure:5-7bar
Power:AC380V 50/60Hz 6Kw
Dimensions:2430x1850x1800mm

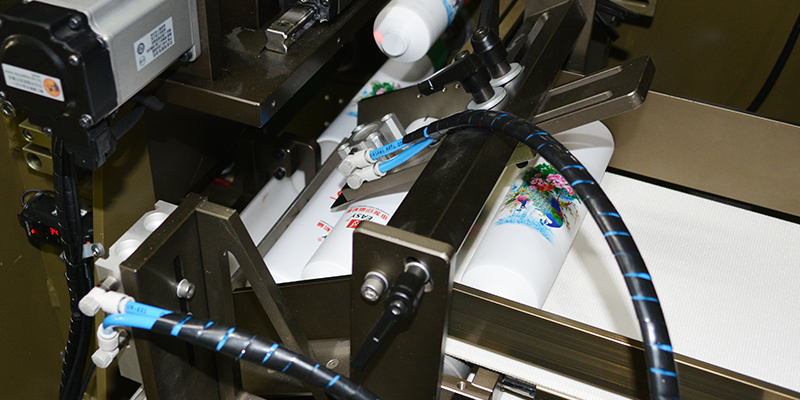

Loading Device

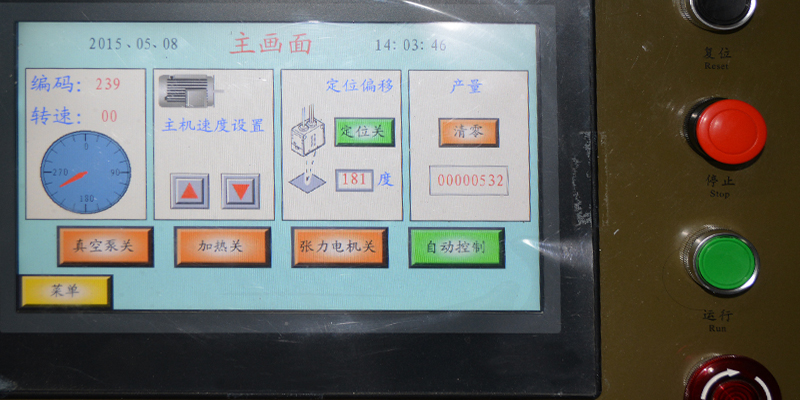

PLC

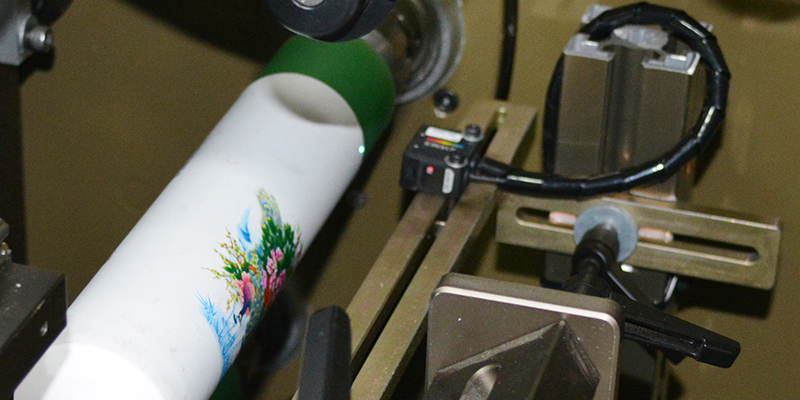

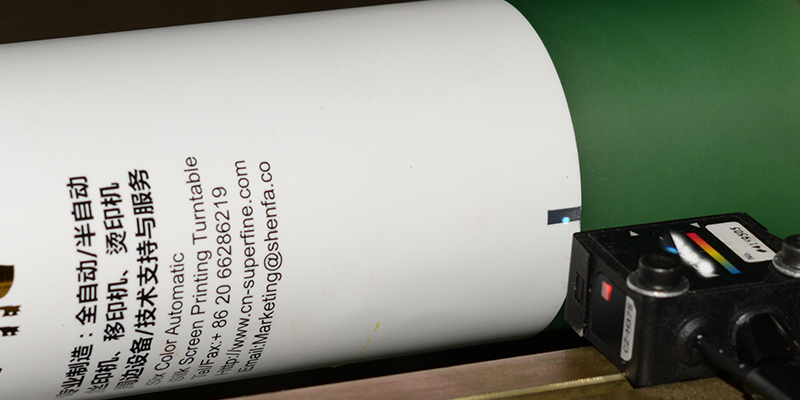

Auto optical registration device

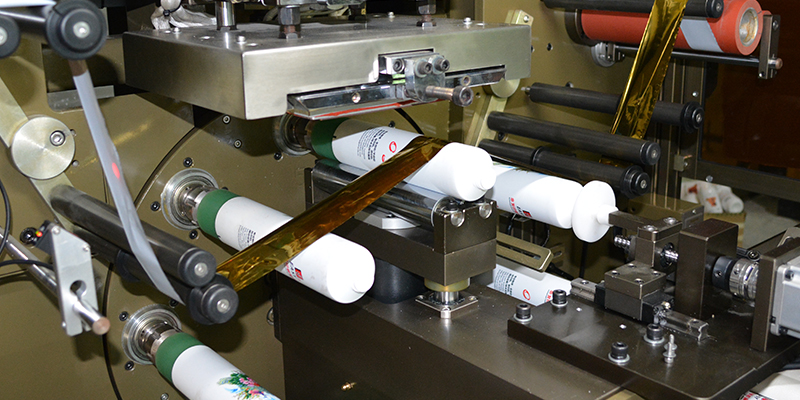

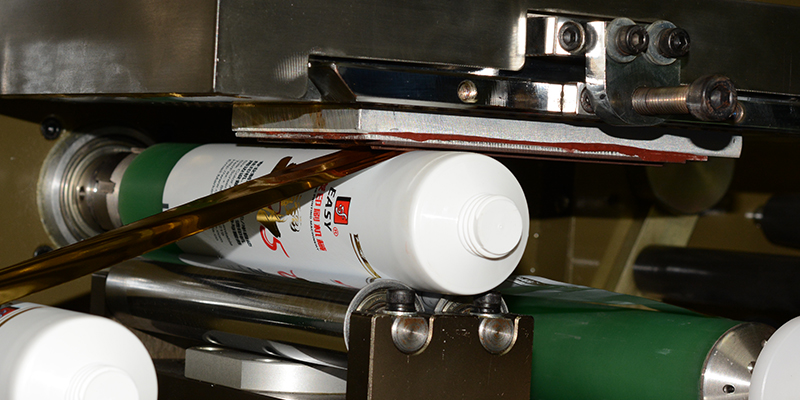

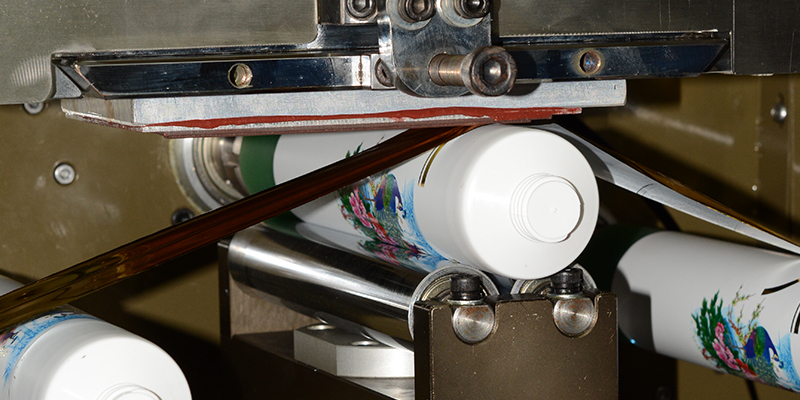

Stamping System
Video
