Product Name
OSN POWER Solar 10KWh 48Vdc 200AH Lithium Battery Pack for Energy ESS Using
Highlights
•Long lifetimes - 6000 cycles @85% DOD (dependant on actual DOD, usage & temp.) and low self-discharge rate
•Easily scalable and stackable 2.5kWh modules - up to 200kWh in a single installation
•2-tier protection & high quality engineered BMS with cell level monitoring
•Short circuit/Temperature/Balancing/Over Current/Over Voltage protection
•OSN-ESS-48200L model features RS485 ports for access to smart BMS ( protocol)
•Simple rack-based installation system

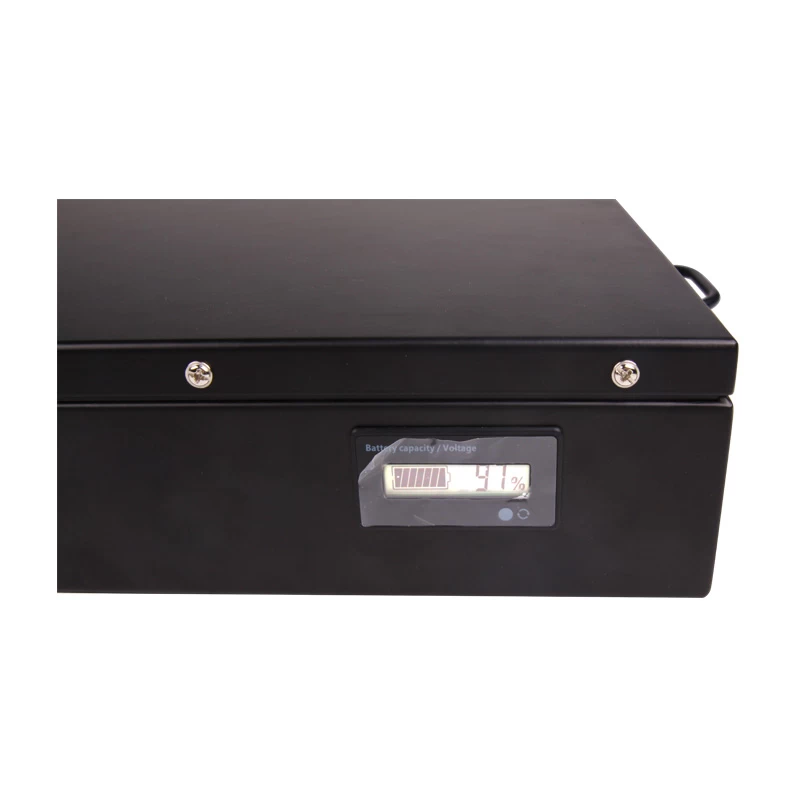

•LCD display available

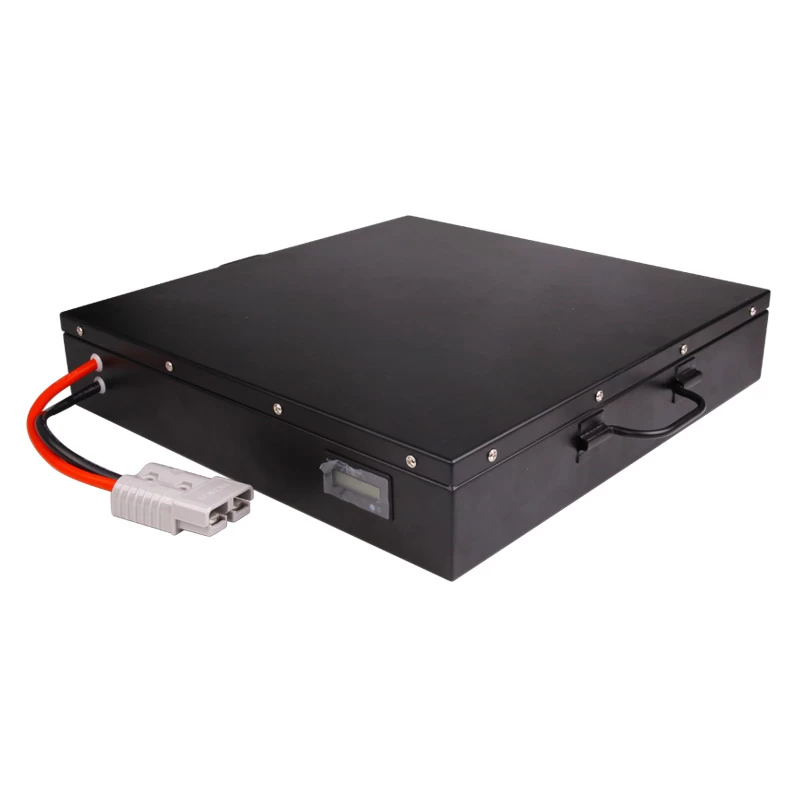

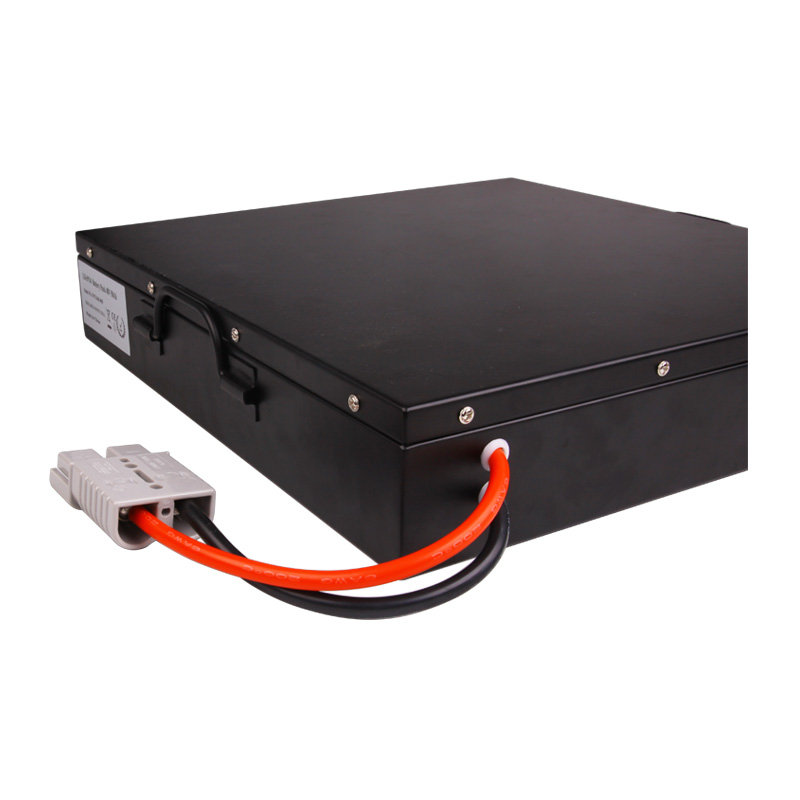

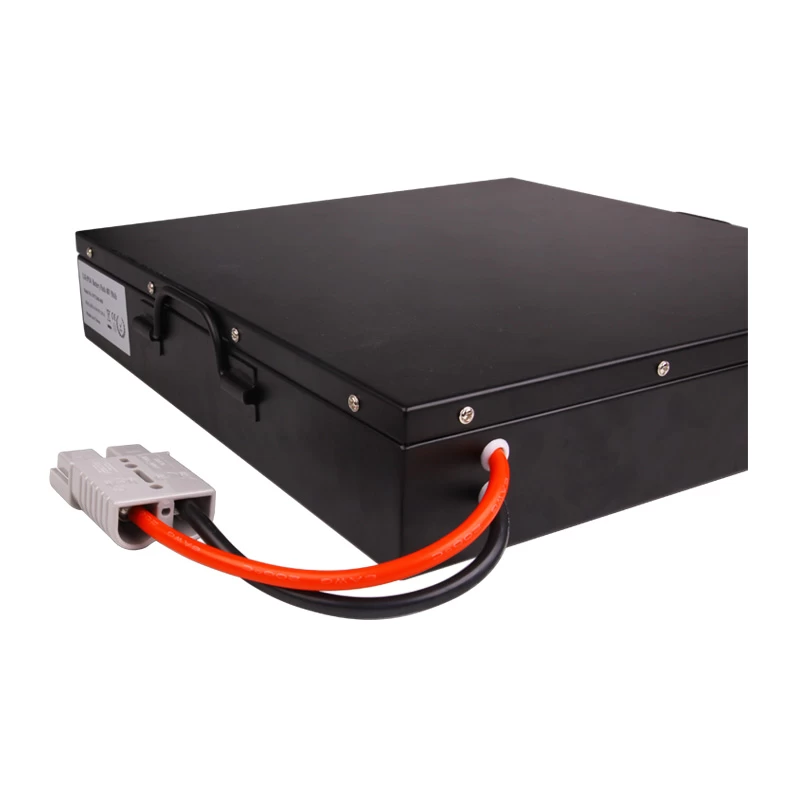

48V 200Ah 2010KWh ESS Solar Systems Picture as Below
Standard RS485 protocol port, can meet the requirement of several packages to connect in parallel. Master & Slave relationship, Monitor and and other prolongation functions.
Specification for LiFePO4 solar 48v 50Ah 2.5KWH System
|
MODEL
|
OSN-ESS-48200L
|
|
PERFORMANCE
|
|
Rated Capacity (5hr)
|
200 Ah
|
|
Nominal Voltage
|
51.2 V
|
|
Discharge Ending Voltage
|
43.2 V
|
|
Charging Limited Voltage
|
57.6 V
|
|
Max. Charging Current
|
100.0 A
|
|
Max. Continuous Discharging Current
|
100.0 A
|
|
Parallel Connection
|
Optional (up to 16P). When paralleling Max. charging current = 20A
|
|
Containing Cell
|
3.2V 50AH
|
|
Design Life
|
More than 10 years
|
|
Cycle Life
|
6000 cycles @85% DOD (dependant on actual DOD, usage & temp.)
|
|
Discharge Rate
|
1C
|
|
Response Time
|
> 1ms
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
Customized
|
|
Weight
|
150 Kg
|
|
Enclosure
|
3U steel enclosure with protection handles inside the container
|
|
Communication Ports (LFP-48-50S only)
|
RS485
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +60°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|
Warranty
|
5 years
|
Other Features
-Safe and scalable
OSN LFP battery modules are a practical and economical battery system based on Lithium-iron-phosphate technology (LFP or LiFePO4).
Available in standard 2.5kWh modules, the LFP battery modules can be easily scaled in multiples up to 200kWh in a single installation, making them suitable for a range of applications.
-Efficient
OSN's LFP battery modules feature a round-trip efficiency of 92%, low self discharge rate of 3+ years, and unlike traditional lead acid battery.
-Smart battery management system with RS485
Our ess solar storage has additional communication options that allow comprehensive access to the smart BMS using the RS485 communication protocol
