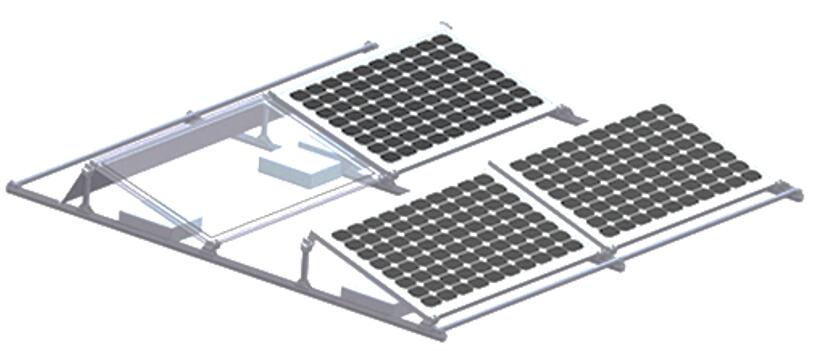

Solar Ballast Mounting System
Our Aluminum Ballasted Structure is specially designed for RC Flat roof projects. It is an adjustable Green Energy Power Station that provides a whole building's Power need.

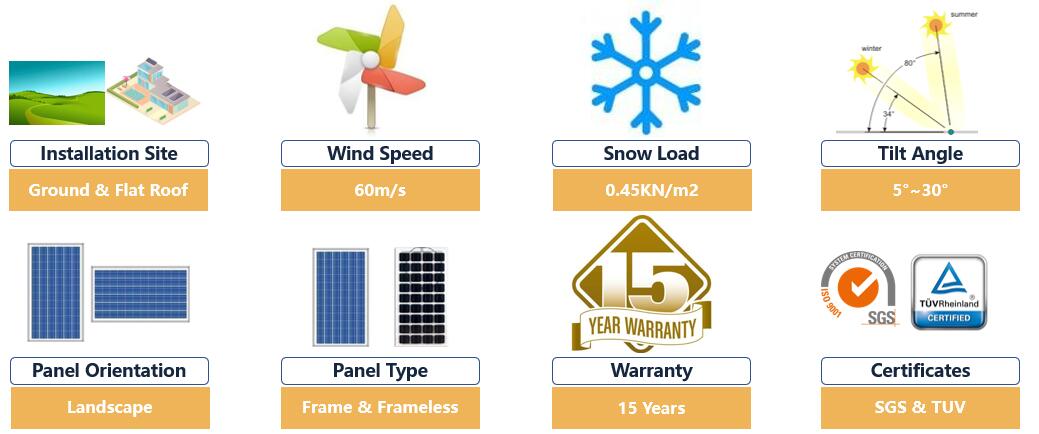

Material
|
AL 6005-T5/SUS304
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 12μm Average
|
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
0.45KN/m2
|
Panel Orientation
|
Landscape
|
Tilt Angle
|
5°~30°
|
Seismic Load
|
Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
AS/NZS 1170
DIN1055
ASCE/SEI 7-05
International Building Code: IBC 2009
|
Warranty
|
15years quality warranty, 25years life span warranty
|

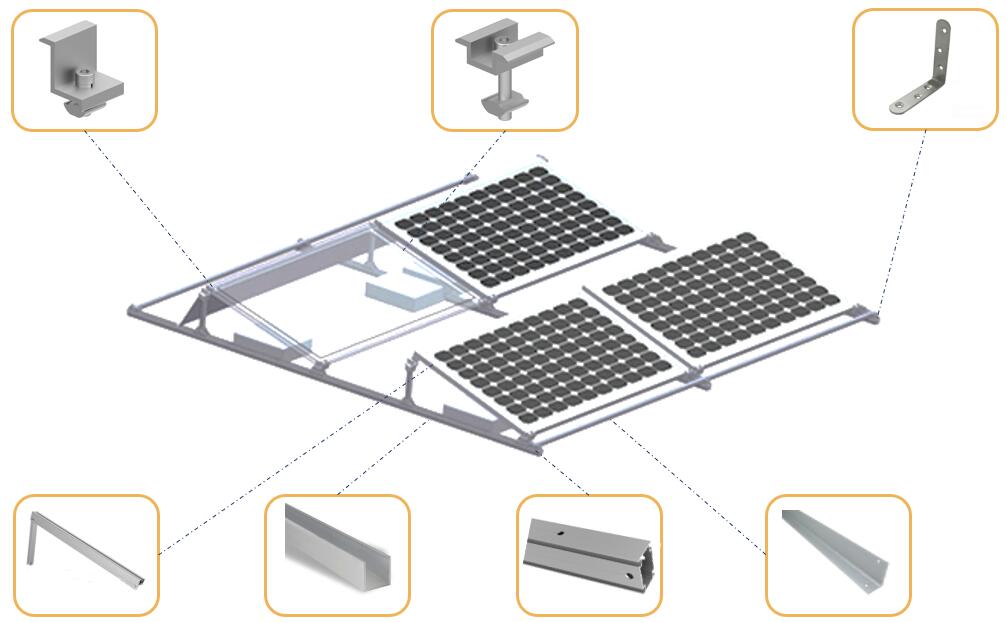

System Overview

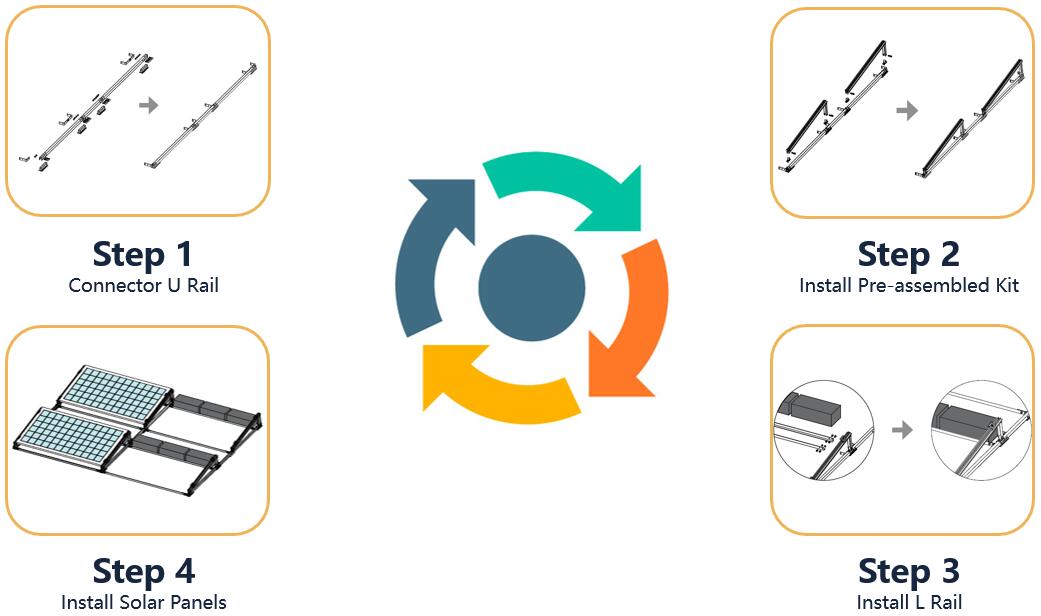

Highly pre-assembled before shipment, save your onsite labor cost

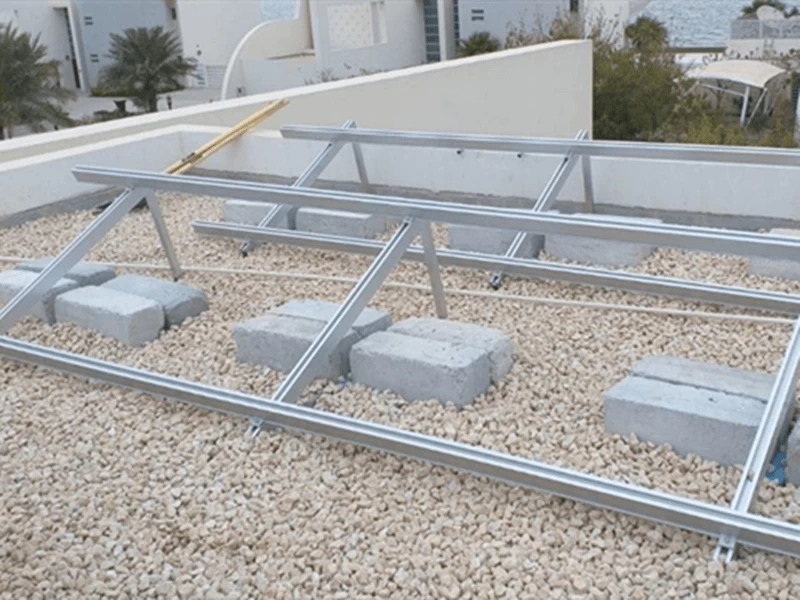

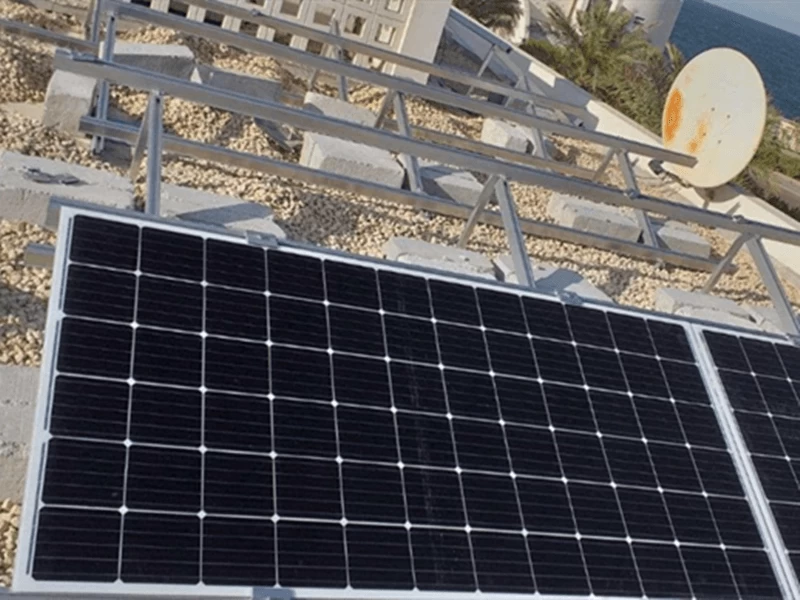

Can be well used on ground, flat roof
Check and test Structure strictly for the use in extreme weather and geographical conditions.
15 years' warranty, 25 years' life span
