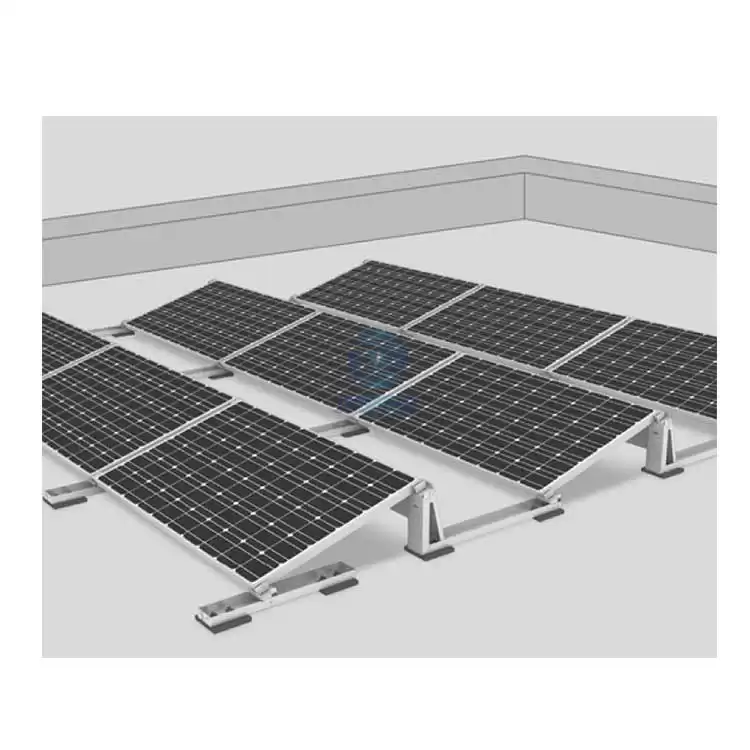

Solar Ballasted System Concrete Flat Roof Solar Mount
Ballasted Pv Mounting System is a highly engineered solution that secures the PV array without damaging the flat roof ,also we offer free customized design flexible and variety accessories can be chosen.
Solar System Features:
-
Suitable for any specifications of framed silicon module and part of the film module;
-
foundation installation can be applied to embedded anchor bolt or cement foundation, its can also be applied to load bearing way fixed;
-
Ballasted Pv Mounting System design the installation angle according to the clients' project requirment;
-
there is not destroy the original waterproof structure of the flat roof;
-
convenient and quick installation.
Technical Parameters
System Name
|
Solar Ballast Bracket System
|
Panel Layout
|
Landscape
|
Foundation
|
Concrete Roof
|
Material
|
Anodized AL6005-T5
|
Tilt Angle
|
5degree ,10degree
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed
|
Warranty
|
10 Years
|
|
Installation Site
|
Flat Roof ,Ground
|
Small Components
|
Anodized AL6005-T5
|
Project Case
Free Design Service
Regarding better service, please provide below detail before design.
1.What's your solar panel diameter and power? ___mm length x ___mm width x ___mm thick, ____watt.
2.How many pcs solar panel you want to install? total ___pcs.
3. What's your solar panel layout for each little unit? how many pcs in a row, and how many rows.
4. How about install angle ? angle= ____degree, ground clearance= ____mm height<between the lowest of solar panel and ground>.
5. How is wind load and snow load? ___m/s anti-wind speed and ___kn/m2 snow load.
6. How about material require? Aluminum6005-T5 or galvanized steel?
