Our solar panel roof mount is accurate designed,which could fastened many different metal roof.
The solar panel mounts for metal roof is various and customized. The various roof hooks all highly-assembled and make the installation easy and quick to save your labor cost and time.
Technical Parameters
|
Installation Angle
|
Flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|
Solar brackets for tile roof
Feature:
1. Erect
color steel tile fixture is suitable for a specific color steel tile,
such a
color steel tile has a convex part, which is fixed by clamping on the convex
part;
2. The clamp
clamps the two clamps on the color steel tile by bolts,
so it will not damage
the original color steel tile.
3. Light weight
and easy installation
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

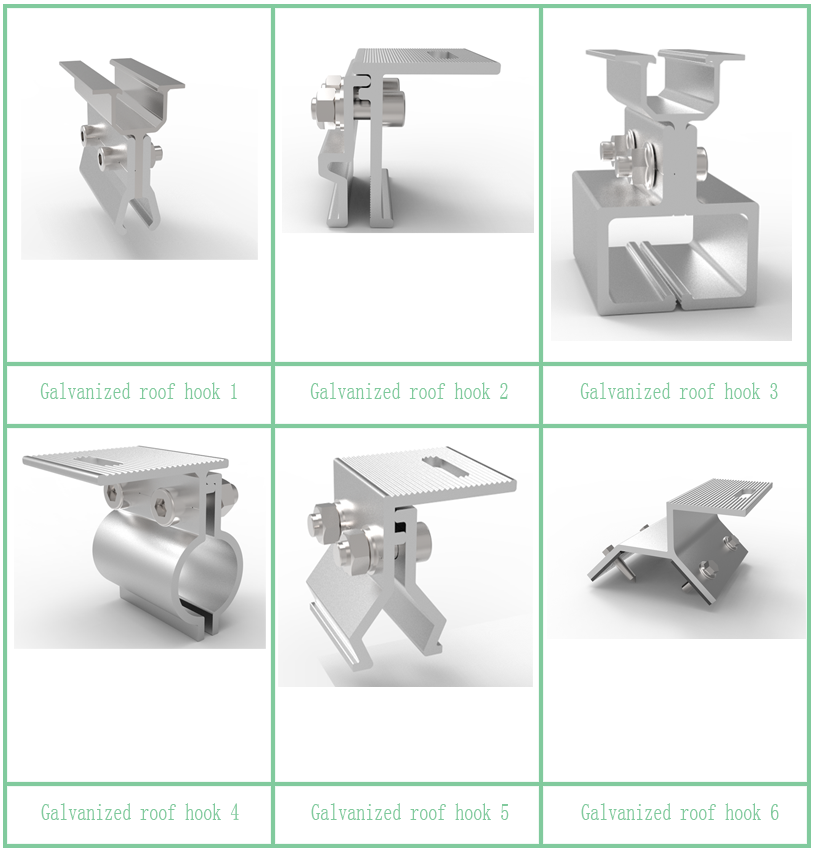

Component photos of solar brackets for tile roof

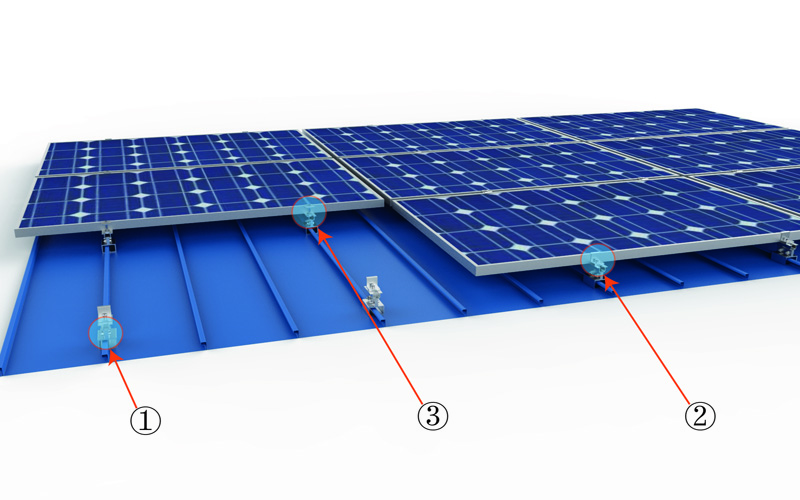

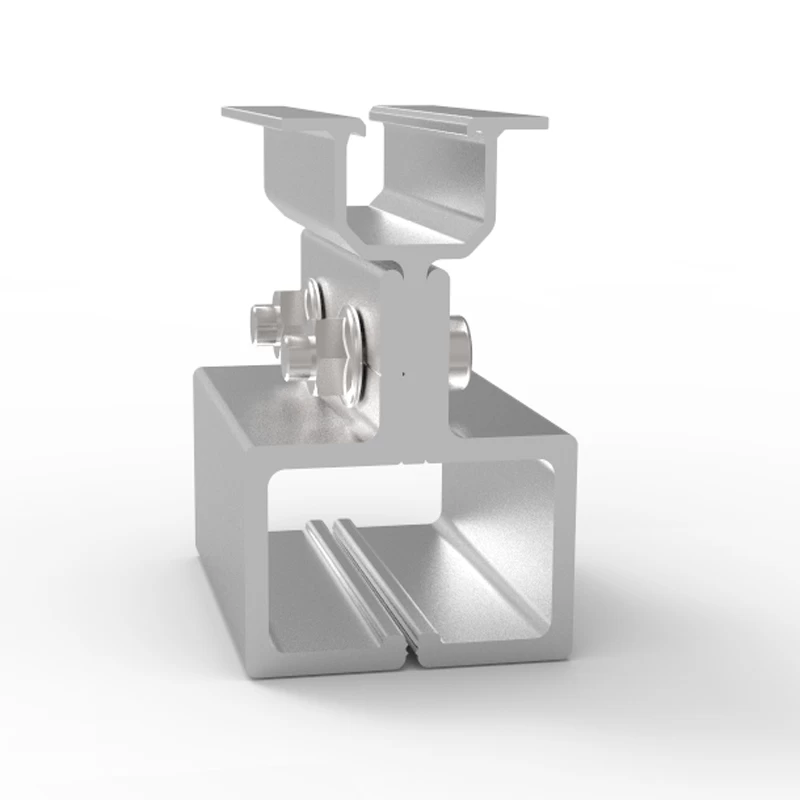

1. Solar galvanized roof hook 2. Solar end clamp 3.Solar inter clamp

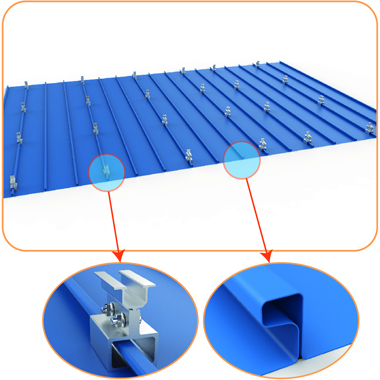

Installation steps of solar brackets for tile roof

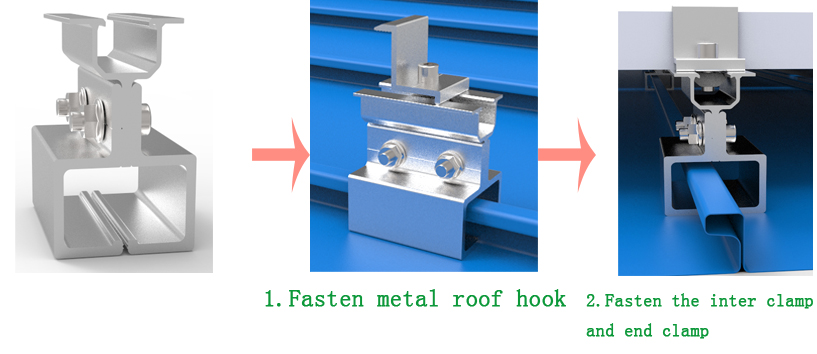

Step1：Install galvanized roof Step2：Install roof rails and rail splices
hook according to the drawing
Install galvanized Shape of galvanized roof Inter clamp End clamp
roof hook

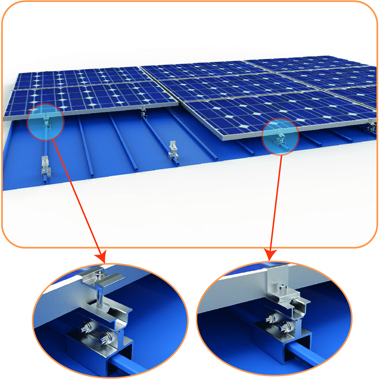

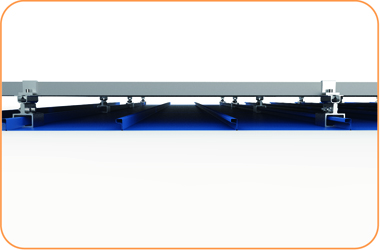

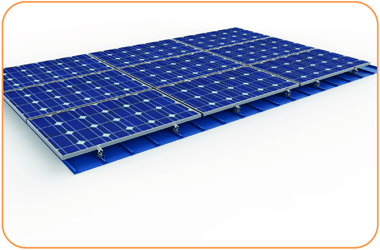

Step3：Installation completion diagram Step4：Installation completion diagram
Component photos-multiple design
Installation steps
Project photos
