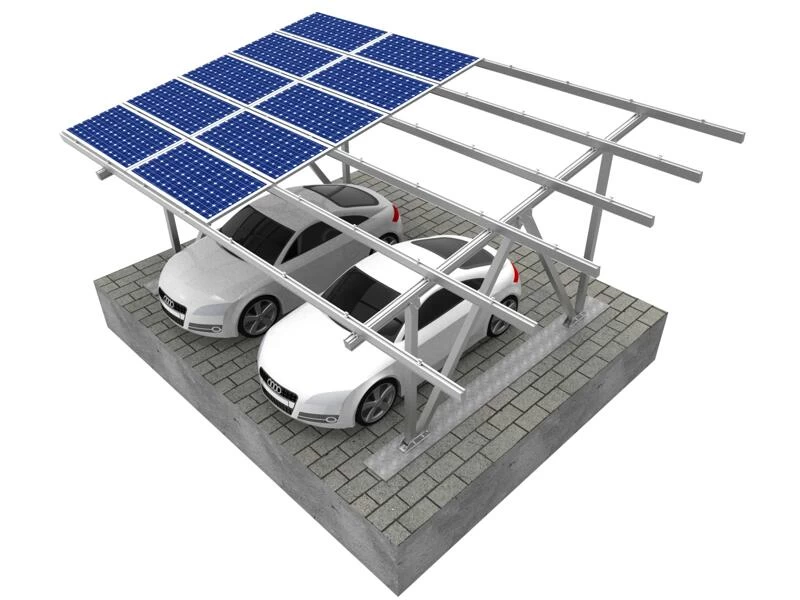

Solar Carport Mounting Systems

Solar Carport Mounting Systems provids both a shelter and clean energy for vechiles.

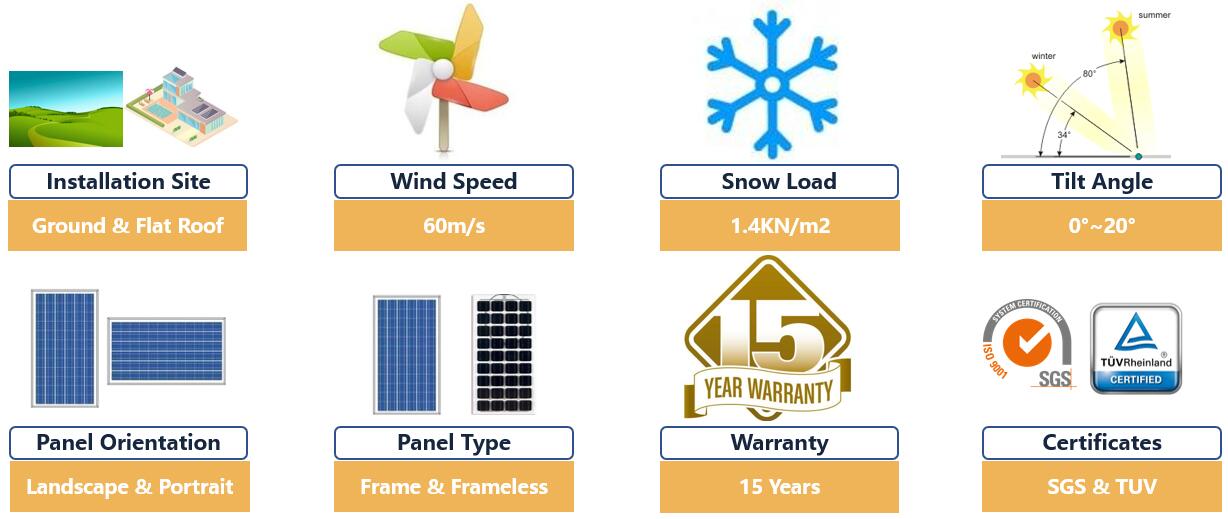

  • Installation SiteGround & Flat Roof
  • HS Code76109000
  • Panel TypeFramed & Frameless
  • FoundationConcrete base & Ground Screw
  • Tilt Angle0°~20°
Facebook Twitter Pinterest LinkedIn 分享

Solar Carport Mounting Systems

Solar Carport Mounting Systems provids both a shelter and clean energy for vechiles.

solar power carport design




Material
    AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
    Framed & Frameless
Wind Load
    ≤60m/s
Snow Load
    1.4KN/m2
 Panel Orientation
    Landscape/Portrait
 Tilt Angle
    0°~20°
Seismic Load
    Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty







commercial carport structure

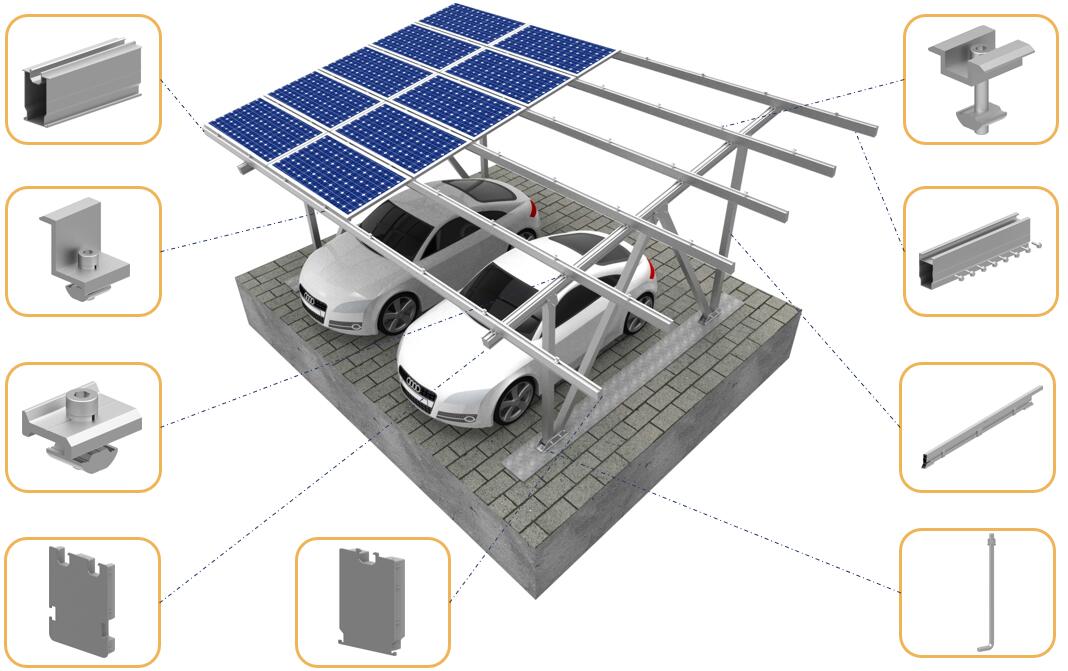

System Overview

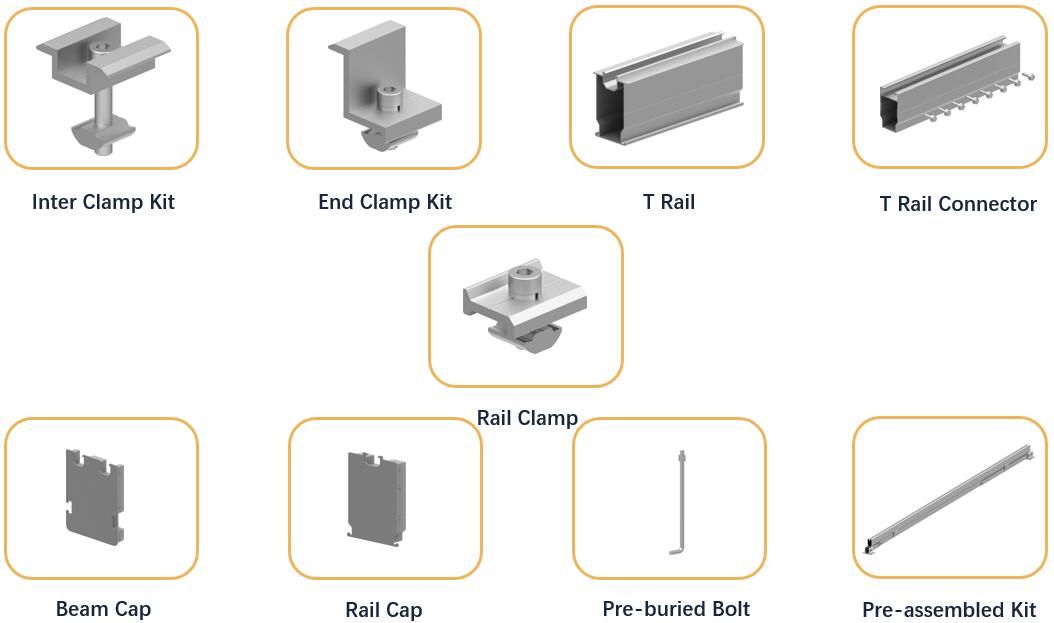

ground screw carport parts

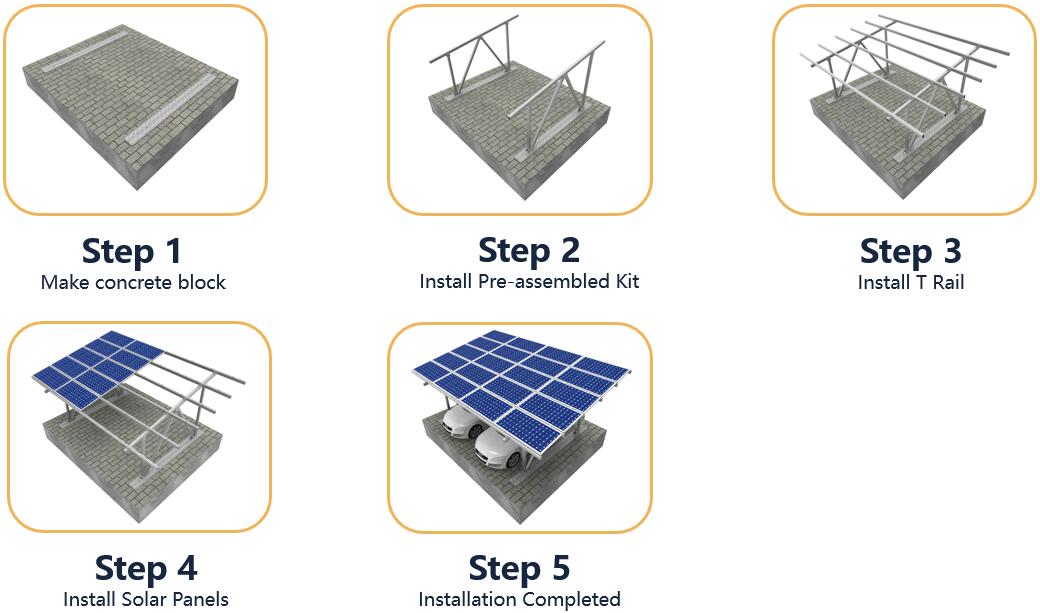

Highly pre-assembled before shipment, save your onsite labor cost


Serving as a charging station for electrical vehicle while develop a renewable energy for the installers.


Reserve enough sunshine(shading rate:30%-40%) to keep the normal grouth of plants.


Check and test Structure strictly for the use in extreme weather and geographical conditions.


15 years' warranty, 25 years' life span




precast concrete carport solution
