Solar Cells Bificial PERC Solar Cell For Solar Panel

The surface of the cell is uniform in color,the blue silicon nitride film locks the sunlight efficiently,the five-grid design has excellent adhesion and solderability, and the conductivity is strong,the extremely low fragmentation rate ensures extremely low component power loss.


  • Warranty25 Years
  • PaymentT/T, L/C, Paypal, Western Union
  • Lead time5 Days
  • CertificateTUV, CEC, CE, ISO
  • Module Efficiency22%
  • Solar cellPERC 156.75*156.75mm
  • Thickness190±30um

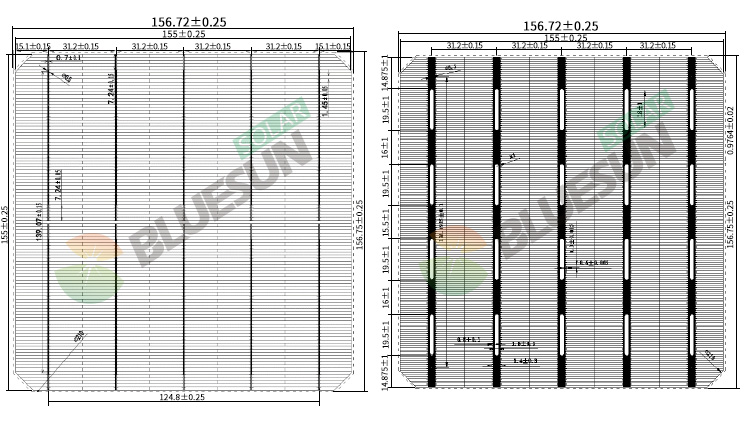

  • Frontwidth 0.7mm,108 finger grids
  • Product namePerc Bificial Solar Cell

Product Description

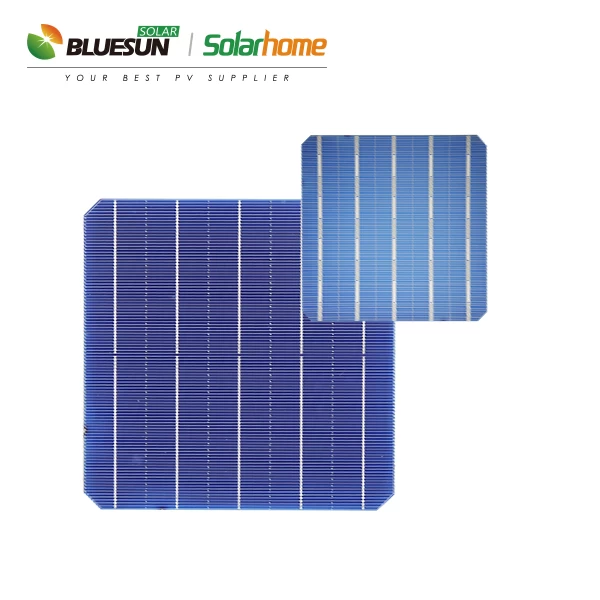

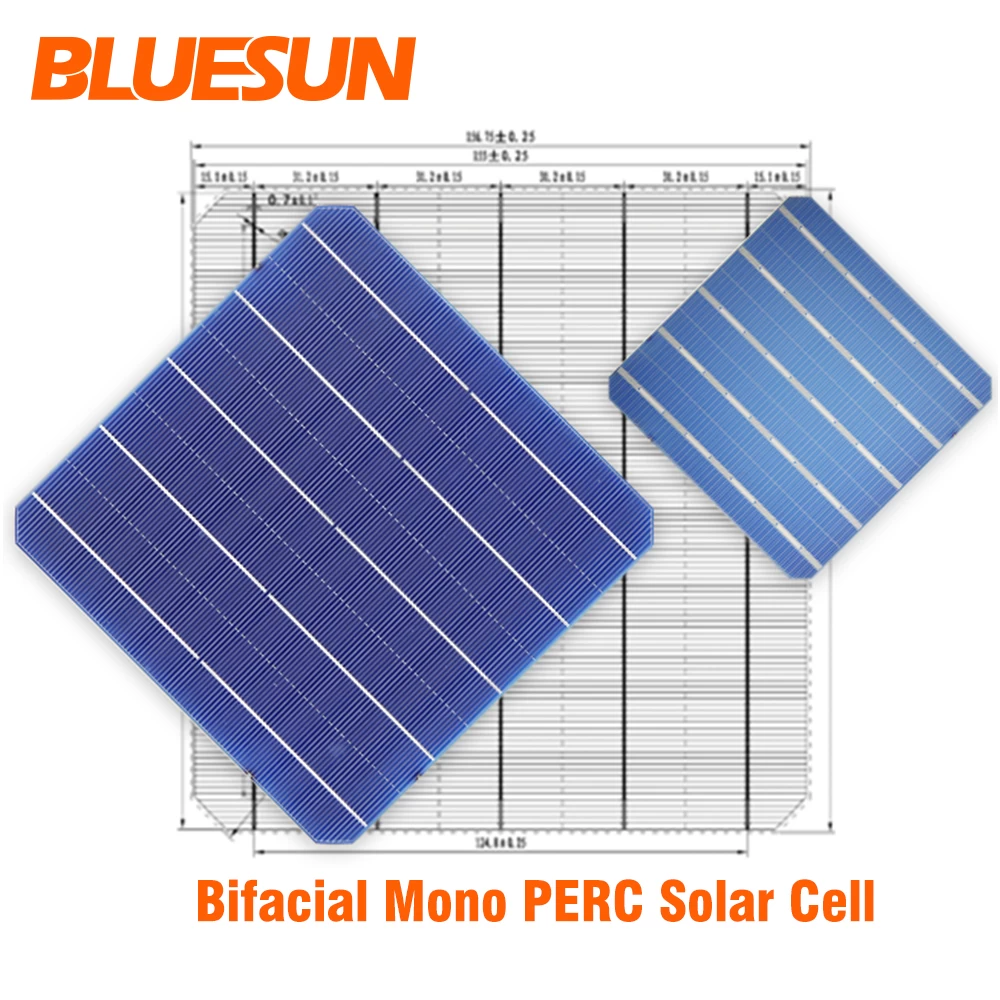

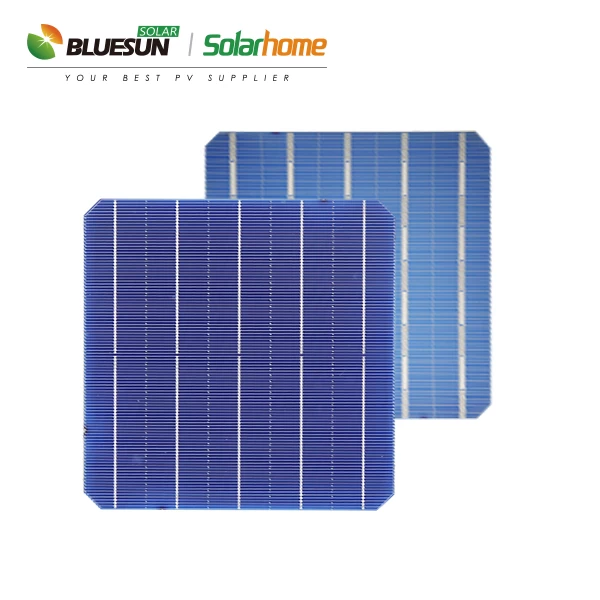

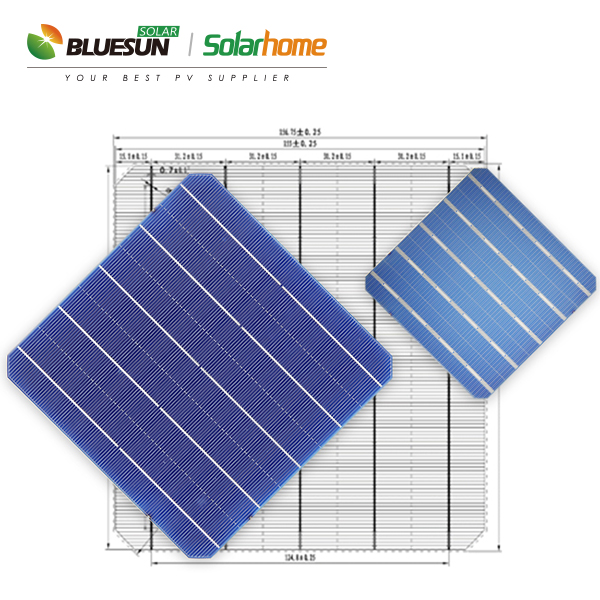

Bifacial Perc Solar Cell


The surface of the cell is uniform in color,the blue silicon nitride film locks the sunlight efficiently,the five-grid design has excellent adhesion and solderability, and the conductivity is strong,the extremely low fragmentation rate ensures extremely low component power loss.



Efficiency Code

Efficiency(%)

Pmp(W)

Umpp(V)

Impp(A)

Uoc(V)

Isc(A)

BSM-156.75M-220

22

5.38

0.578

9.342

0.679

9.847

BSM-156.75M-219

21.9

5.35

0.577

9.329

0.678

9.832

BSM-156.75M-218

21.8

5.33

0.576

9.316

0.677

9.818

BSM-156.75M-217

21.7

5.3

0.575

9.303

0.676

9.803

BSM-156.75M-216

21.6

5.28

0.574

9.291

0.675

9.788

BSM-156.75M-215

21.5

5.25

0.573

9.279

0.674

9.774

BSM-156.75M-214

21.4

5.23

0.571

9.269

0.673

9.759

BSM-156.75M-213

21.3

5.2

0.569

9.255

0.672

9.744

BSM-156.75M-212

21.2

5.18

0.567

9.244

0.671

9.73

BSM-156.75M-211

21.1

5.16

0.566

9.205

0.67

9.724

BSM-156.75M-210

21

5.13

0.565

9.18

0.669

9.709

BSM-156.75M-209

20.9

5.11

0.564

9.162

0.668

9.703

BSM-156.75M-208

20.8

5.08

0.562

9.14

0.667

9.681

BSM-156.75M-207

20.7

5.06

0.56

9.113

0.666

9.667

BSM-156.75M-206

20.6

5.03

0.558

9.089

0.665

9.652
