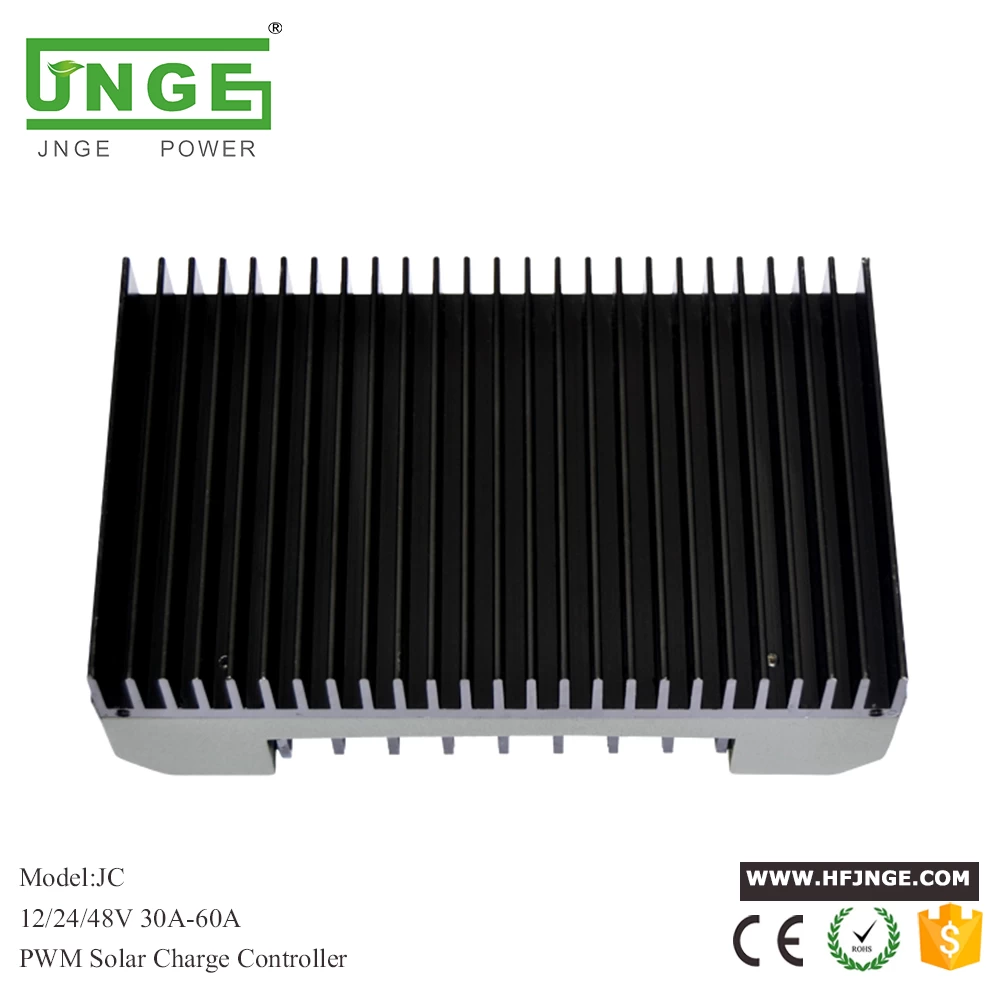

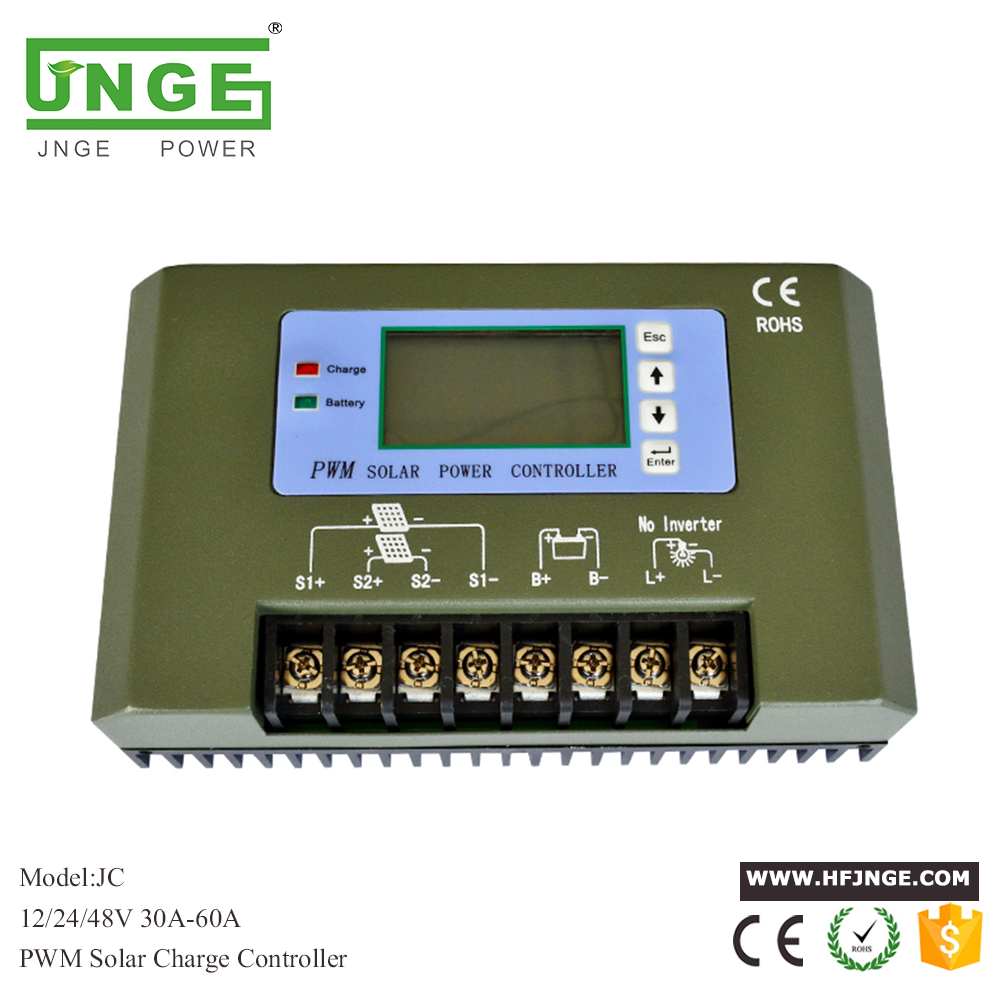

Solar charge controller 12V 24V 48V 30A 40A 50A 60A

The JC series solar charge controller is a very important part of the solar system. It is the heart of the solar power system. JC series controller. It is use intelligence and automatically to control the charge, discharge and load of the system to supply perfect protection functions for the battery. So pv battery controller can make the battery work reliability and longer.

Facebook Twitter Pinterest LinkedIn 分享

Description

The solar controller is called the solar charge and discharge controller. It is used in the solar power system to control the multi-channel solar cell array to charge the battery and the battery to supply power to the solar inverter load. It regulates the charging and discharging conditions of the battery, and controls the power output of the solar cell module and the battery to the load according to the power demand of the load, which is the core control part of the entire photovoltaic power supply system.

Technical parameters :

Model		JC4830	JC2430	JC1230
System rated voltage		48V	24V	12V
MAX. Input power		1500W	750W	360W
Current	Charge	30A	30A	30A
Current	Discharge	30A	30A	30A
Charge	Average charge	57.6V±1%	28.8V±1%	14.4V±1%
	Recover	53.2V±1%	26.6V±1%	13.3V±1%
	Float charge	(54.0-55.2V)±1%	(27.0-27.6V)±1%	(13.5-13.8V)±1%
	Temperature compensator	-72mV/℃	-36mV/℃	-18mV/℃
Start voltage		49.2±1%	24.6V±1%	12.3±1%
Over discharge	Switching off	44.4V±1%	22.2V±1%	11.1V±1%
Over discharge	Recover	52.8V±1%	26.4V±1%	13.2V±1%
Over voltage	Switching off	66V±1%	33V±1%	16.5V±1%
Over voltage	Recover	60V±1%	30V±1%	15V±1%
No-load current		≤10mA	≤10mA	≤10mA
Solar control open voltage		≤8V±1%	≤4V ±1%	≤2V±1%
Solar control shut voltage		≥28V±1%	≥14V±1%	≥7V±1%
Max open circuit voltage		100V	50V	25V
Display		LCD+LED
Work temperature		-25℃~+55℃
Using altitude		≤5500m(above 2000m need reduced the power)
Size and weight		180mmx107mmx55mm 0.95Kg
