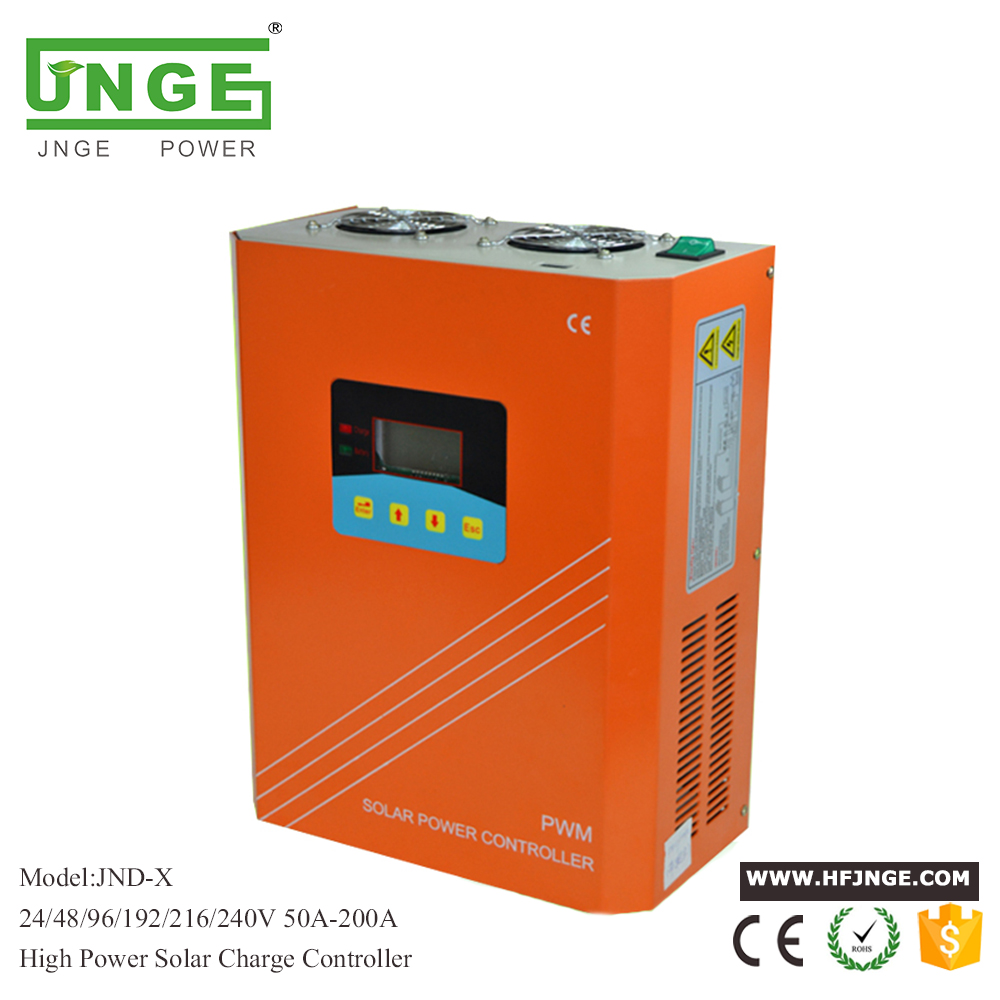

JNDX200A 24V to 240V photovoltaic battery charge regulator
Brief Introduction:
JNDX series controller is designed according to the latest
technology development, represents the latest photovoltaic technology level,and has many excellent performance:
·Excellent thermal design and air cooling control.
·High efficient PWM charging ways.
·Variety of load control method, enhanced the
flexibility of the system
·Battery charging parameters can be set up.
·Any combination of photovoltaic module and storage
battery reverse automatic protection function, no damage to any device.
·Adopt traditional LCD liquid crystal display and
keyboard design, convenient to view the running parameters of the controller.
·Provide
industrial generic RS232 communication interface, user can design PC
communication software, also can buy the company developed the upper machine
communication accessories.
Parameters:
|
Electrical parameter
|
parameter
|
|
rated system voltage
|
DC
240V
|
DC
220V
|
DC
216V
|
DC
192V
|
DC
120V
|
DC
110V
|
DC
96V
|
DC
48V
|
DC
24V
|
|
Rated charge current
|
200A
|
200A
|
200A
|
200A
|
200A
|
200A
|
200A
|
200A
|
200A
|
|
The maximum allowable voltage
|
DC
320V
|
DC
293V
|
DC
288V
|
DC
256V
|
DC
160V
|
DC
147V
|
DC
128V
|
DC
64V
|
DC
32V
|
|
Max input voltage
|
DC
450V
|
DC
430V
|
DC
430V
|
DC
400V
|
DC
250V
|
DC
230V
|
DC
200V
|
DC
100V
|
DC
50V
|
|
Min input voltage
|
DC
300V
|
DC
275V
|
DC
270V
|
DC
240V
|
DC
150V
|
DC
138V
|
DC
120V
|
DC
60V
|
DC
30V
|
|
Max input power
|
48000
|
44000
|
43200
|
38400
|
24000
|
22000
|
19200
|
9600W
|
4800W
|
|
Static loss
|
<0.2A
|
|
Charge loop drop
|
≤0.5V
|
|
Discharge circuit of pressure drop
|
≤0.3V
|
Table:8-2 Battery voltage（Temperature：25℃）
|
controls parameter
|
|
Over voltage switching off
|
320V
|
294V
|
288V
|
256V
|
160V
|
147V
|
128V
|
64V
|
32V
|
|
limited charge voltage
|
300V
|
275V
|
270V
|
240V
|
150V
|
138V
|
120V
|
60V
|
30V
|
|
Over voltage Recover
|
294V
|
270V
|
265V
|
235V
|
147V
|
135V
|
118V
|
59V
|
29.5V
|
|
Average voltage
|
290V
|
266V
|
261V
|
232V
|
145V
|
133V
|
116V
|
58V
|
29V
|
|
Boost voltage
|
276V
|
253V
|
248V
|
221V
|
138V
|
127V
|
110V
|
55.2V
|
27.6V
|
|
Float voltage
|
250V
|
229V
|
225V
|
200V
|
125V
|
115V
|
100V
|
50V
|
25V
|
|
undervoltage
recovery
|
216V
|
198V
|
194V
|
173V
|
108V
|
99V
|
87V
|
43.2V
|
21.8V
|
|
Under voltage disconnect
|
——
|
|
Duration of equilibrium
|
2 hours
|
Note:The table 8-2 can be set up on behalf of
this keypad and LCD Settings, all parameters can be set through the
communications software
