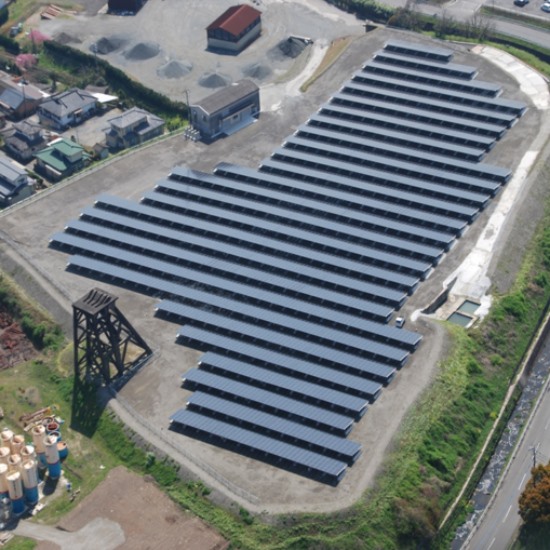

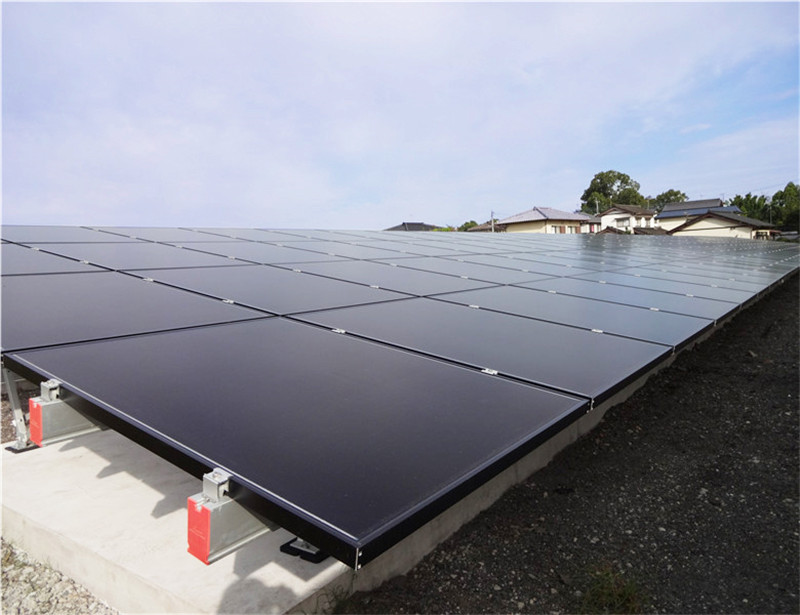

Where are solar concrete block mounting solution used？
SOEASY SOLAR CONCRETE BLOCK MOUNITNG SOLUTION is widely used in high corrosion area, rocky soil condition since
cement are more stable with corrosion area, fully made of SUS304 and Al6005 T5 material which has a good performance
in corrosive area, and ground screw & pile can not stick to the ground when the soil SPT value is high in rocky area.
Benefits:
1. Average 10 microns anodized thickness for aluminum parts
2. Structure are tested in extremely weather and geographical condition
3. Made of sus304 & al6005 t5
4. Preassemble structure for saving installation time
Material
|
AL 6005-T5/SUS304
|
Surface Treatment
|
Average Anodizing Coating Thickness≥ 10μm Average
|
Panel Type
|
Framed & Frameless
|
Wind Load
|
≤60m/s
|
Snow Load
|
1.4KN/m2
|
Panel Orientation
|
Landscape/Portrait
|
Tilt Angle
|
0°~60°
|
Seismic Load
|
Lateral Seismic Factor: Kp=1; Seismic Coefficient: Z=1; Use Coefficient: I=1
|
Standards
|
JIS C 8955 : 2017
|
AS/NZS 1170
|
DIN1055
|
ASCE/SEI 7-05
|
International Building Code: IBC 2009
|
Warranty
|
10 Years Quality Warranty, 25 Years Life Span Warranty
|
