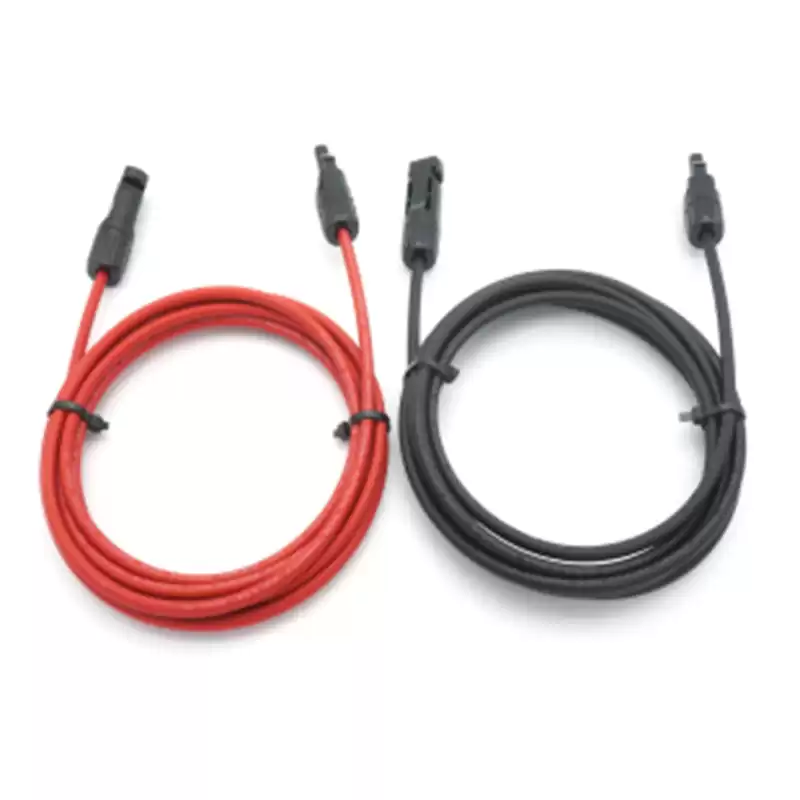

Solar DC-DC Double Ends PV Cable

DC SOLAR PV CABLE

Standard: TÜV/ EN50618:2014

Cross Section: 4mm²

Construction Tinned copper wire: 56x0.285( ±0.015）mm

Cable Od: 5.6±0.2 mm

Jacket Material:125℃ Electron-beam Irradiated XLPO

Cable Color: Male/red   Female/black

Cable Length: customized





Facebook Twitter Pinterest LinkedIn 分享
Connector
Type — PV004-EN
Insulation Materical — PC EXL9330
Contact materials   Tin plated copper
Number Pair 2
Type of termination     Crimping
Inspection items
Facade Surface should be clean and
smooth,without scratchs, burr and
deformation.
Conduction Whether the connection between the
positive and negative terminals of the
connector is conduction.
Assembly When assembling, both sides of the buckle
can be stuck in place, insertion force ≤50N,
pulling force ≥50N
Electrical Characteristics
Rated Voltage：  1000V/ 1500V DC
Rated Current：30A
Protection Degree： IP67
Contact Resistance： ≤0.5mΩ
Ambient Temperature：-40℃~+90℃
Flame Class：UL94V-O
Product features
1 、Excellent anti-aging and uv-resistant, to meet the using
under the outdoor harsh environmental conditions require.
2 、Snap-in Lock, easy to assemble,unbreakable
3 、  MC4 Connector
4 、Apply to high current, high votltage, with low contact
resistance, waterproof and dustproof design
