Solar Farm Ground Mounting System

  • Kseng independently designed solar agriculture bracket, stable.


  • Snow Load1.4KN/M2
  • Wind Load60M/S
  • StandardAS/NZS 1170
  • ApplicationAgriculture/Farm
  • CertificationISO9001/CE/UL/SGS
  • Service Life25 Years
  • Warranty10 Years
  • MaterialAluminum 6005-T5 & SUS 304 Stainless Steel

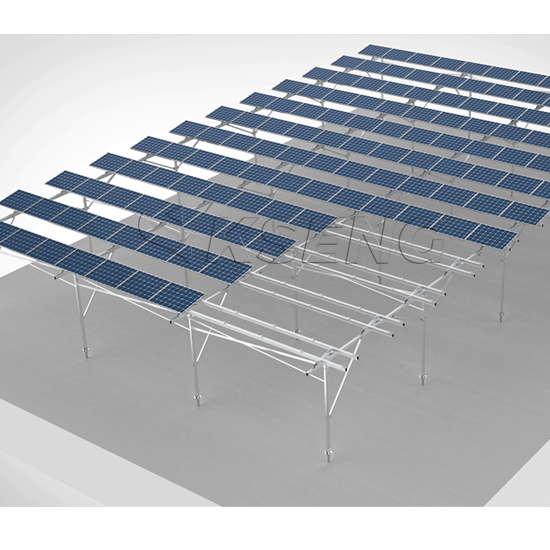

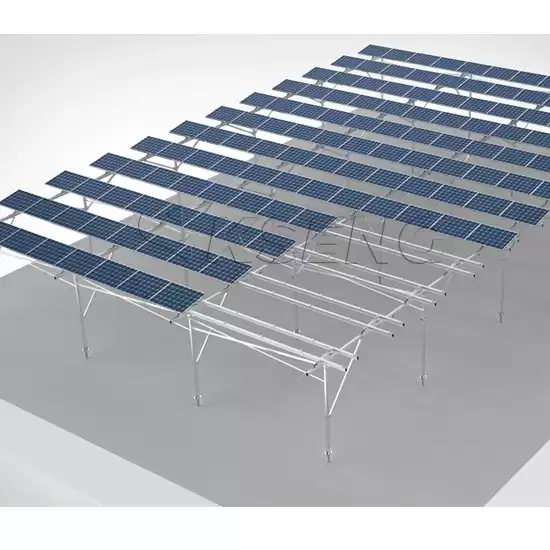

Solar Farm Ground Mounting System

A growing number of farms and agricultural businesses are looking to solar to power their daily operations.In the best of all possible worlds, solar panels could be raised just a few extra feet off the ground, which would enable farmers to benefit from the renewable energy income while also growing crops or raising livestock in among the PV.

Kseng agricultural ground PV mounting system is widely applied in farm land with ground screw foundation.Solar power agricultural support can make full use of light to generate electricity without affecting the growth of crops. The solar panels could be tilted at certain angle, leaving some gap from each side of the solar panels to meet the sunshine demands of crops.

Characteristic:

1.Lightweight, easy transportation and installation, safe construction.

2.High corrosion resistance, salt tolerance.

3.The maximum pre-assembly, save construction time and labor cost.

4.Support customized your agricultural solar mounting system.

5.Passed CE/SGS/ISO/TUV etc. certification


  Material:
  Aluminum 6005-T5 & SUS 304 Stainless Steel
  Application:   Agriculture/Farm/Open Terrain
  Wind Load:   1.4kn/m2
  Snow Load:   60m/s
  Standard:   AS/NZS 1170
  Certification:   ISO9001/CE/SGS/TUV
  Warranty:   10 Years
  Service Life:   25 Years
  Applicable Module:   Framed or Frameless
  Module Orientation:   Portrait or Landscape

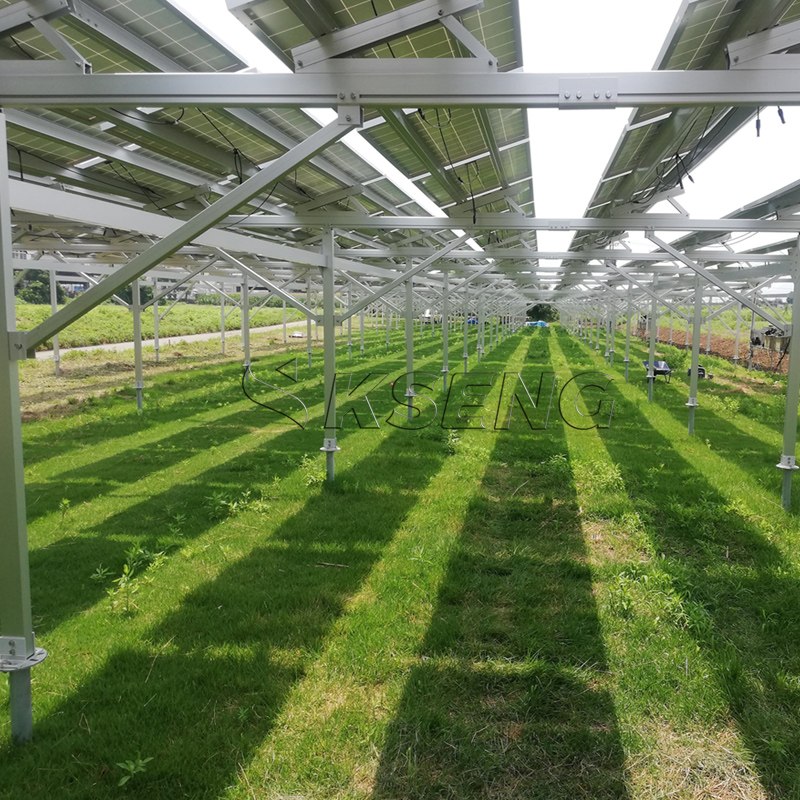

solar farm.jpg

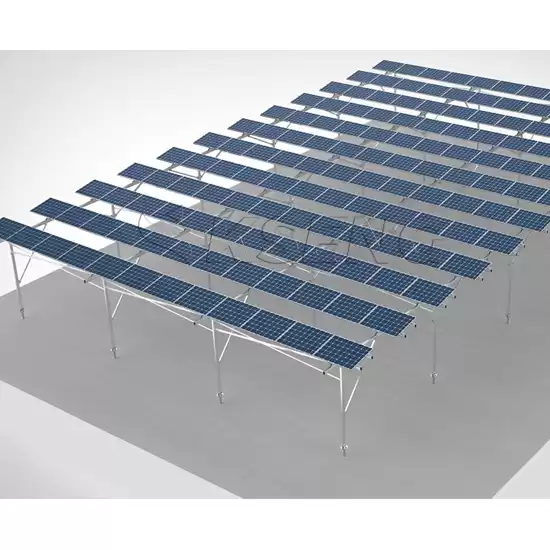

solar farm mounting bracket.jpg

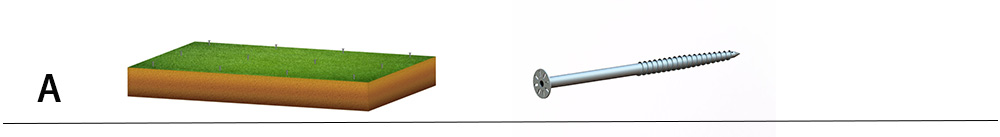

A: Ground screw Base.


solar mounting bracket.jpg

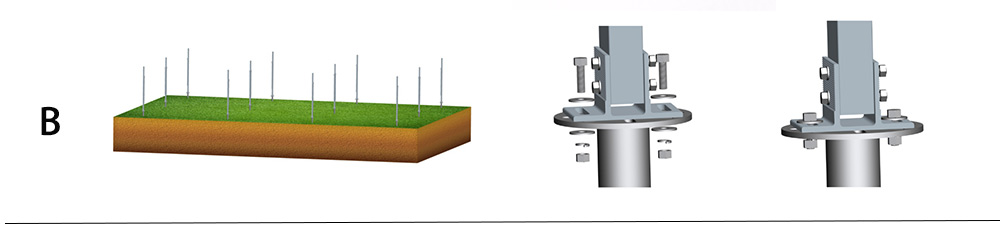

B: Installation Pillar.

solar bracket.jpg

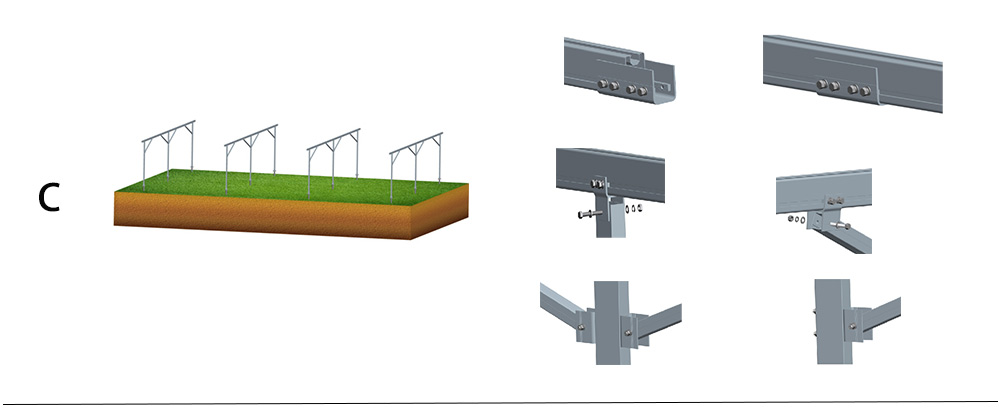

C: Installation Beam and pillar.

solar farm mounting bracket.jpg

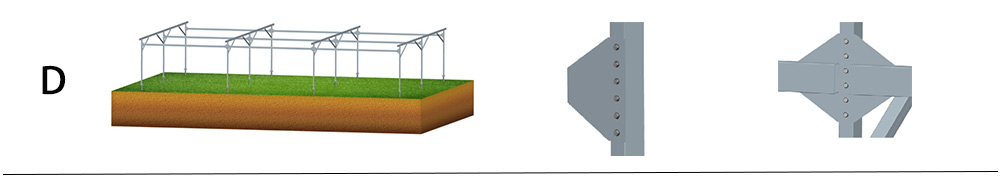

D: Installation strength cross-bar.

solar farm .jpg

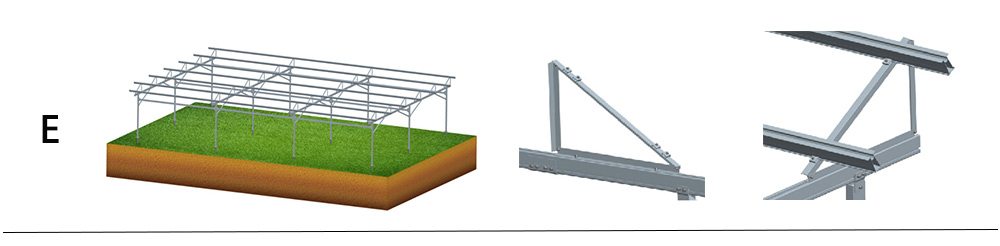

E: Installation triangular frame and solar aluminum rail.


solar farm mounting bracket.jpg

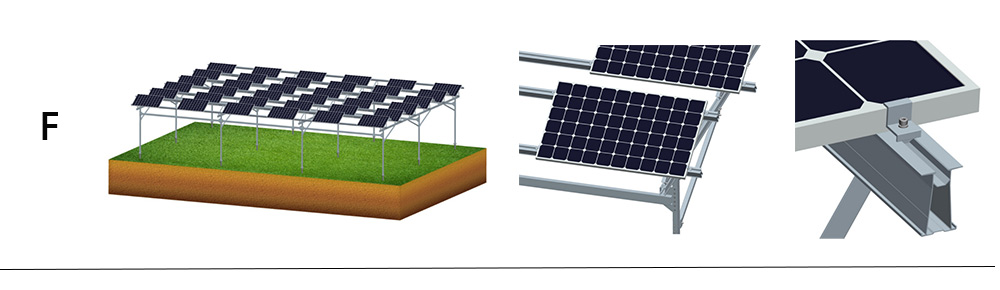

F: Installation solar panel(end clamp).

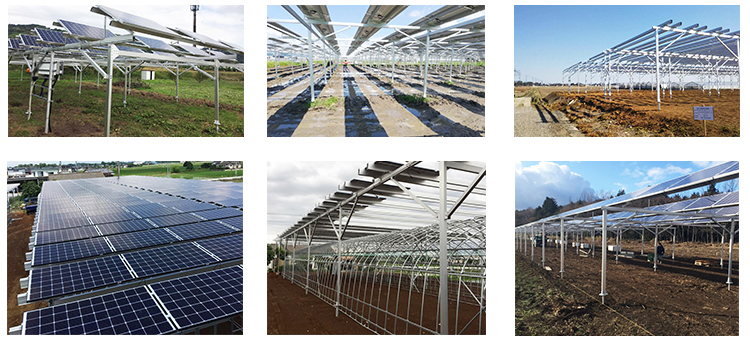

solar farm.jpg

solar agriculture.jpg
