Solar Flash Mount Kits for Composite Shingle Roof

Solar Flash Mount Kits for Composite Shingle Roof

Roof Attachment for Composite Shingle SoloFlash

SunModo is proud to introduce SoloFlash™, the most economical flashing on the market.

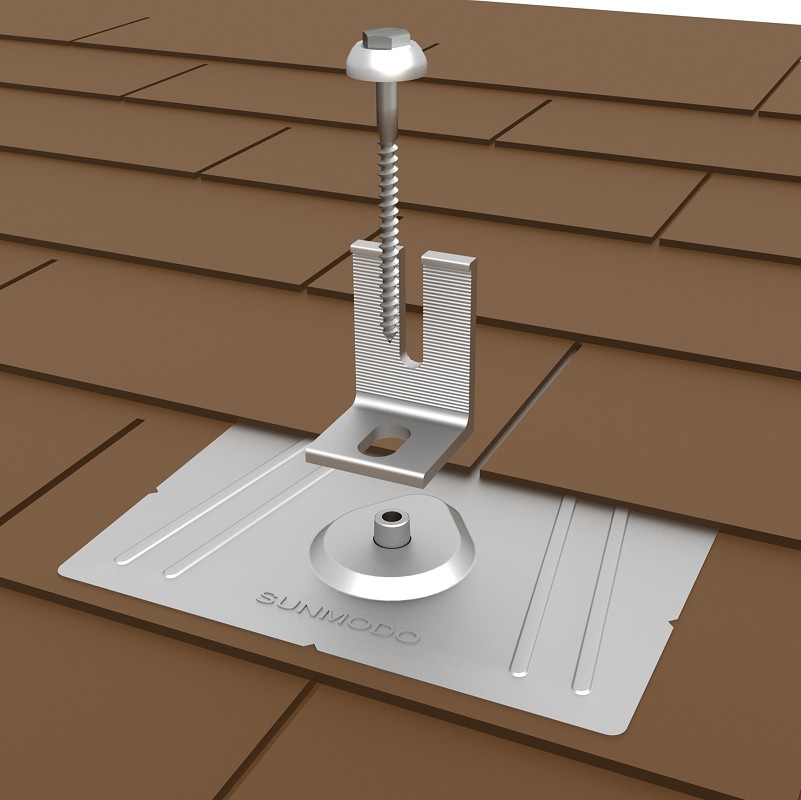

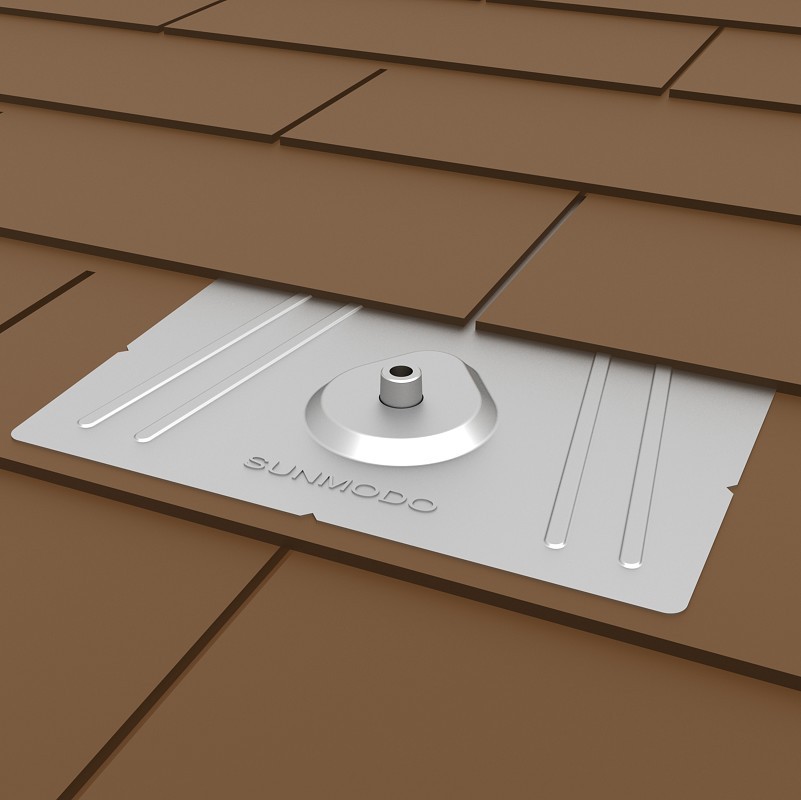

The cone-shaped flashing design diverts water from the roof penetration while the stamped emboss features stiffen the flashing to minimize bending.

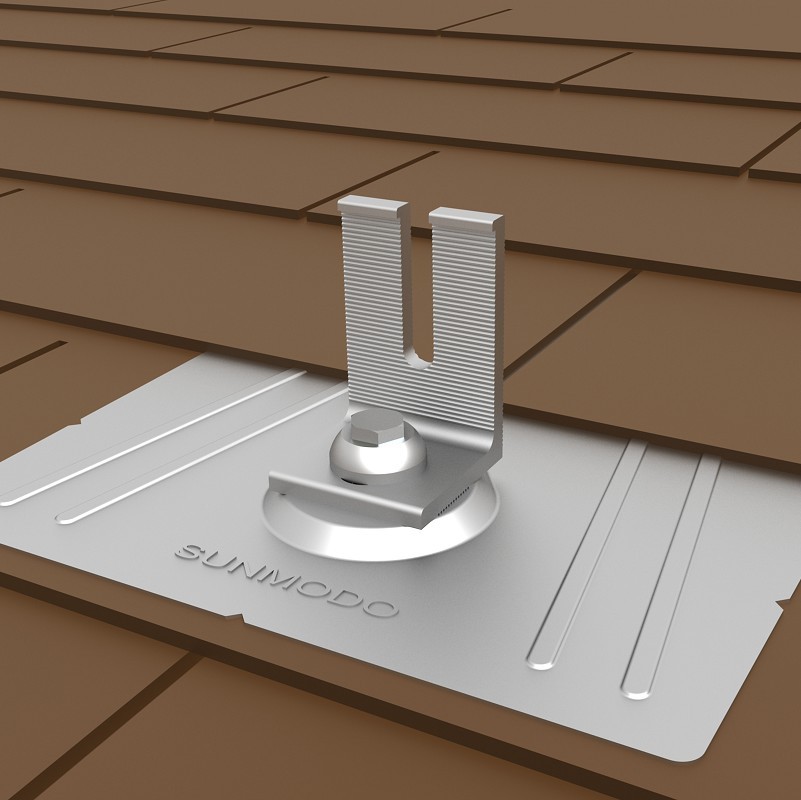

The L-foot has serrated surface on both sides for rail mounting. The Ultra Soft Weather Resistant gasket is integrated withthe L-Foot for maximum water protection.

The mount is High-Velocity Hurricane Zone Approved – Passed TAS 100 (a) Wind-Driven Rain Test.

The SoloFlash Advantage

•    The most economical flashing on the marke
•    Quick to install with only three components
•    6 levels of protection against water penetration
•    Exceptional resistance to corrosion and wear
•    One tool assembly

KEY FEATURES

•     6 levels of protections against water penetration

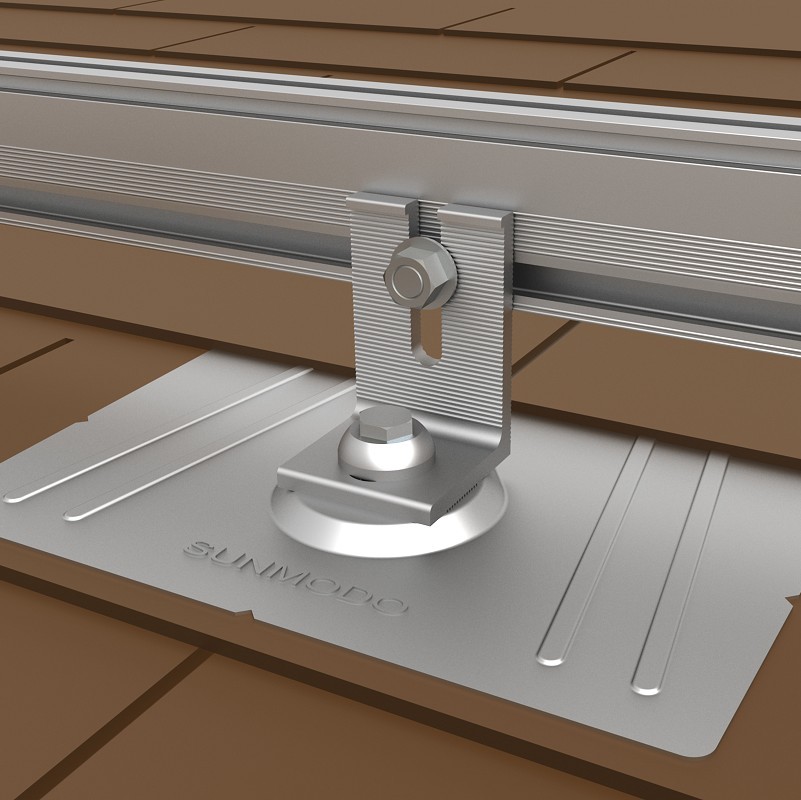

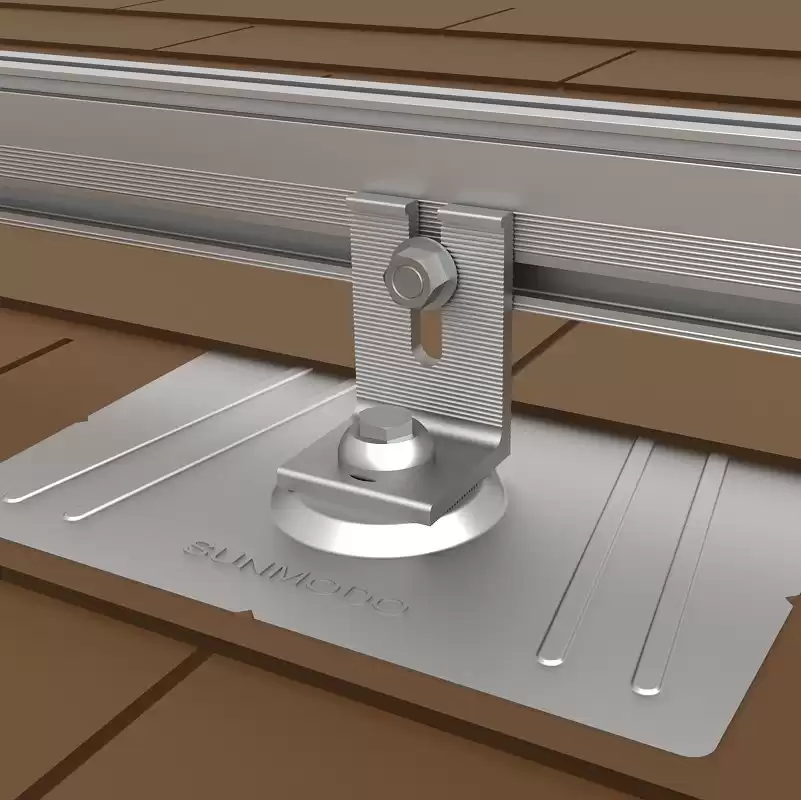

•     360-degree L foot positioning, serrated surface on both sides for rail mounting
•     Integrated Ultra Soft Weather Resistant EPDM gasket
•     Cone-shaped design diverts water from roof penetration
•     Stamped emboss feature stiffens the flashing to minimize bending
•     Alignment markers enable easy installation

TECHNICAL DATA

• Application: Composite shingle
• Material: High grade aluminum, 304 stainless steel hardware
• Finish: Silver or black powder coating
• Flashing Size: 9 x 12 inch
• Roof Attachment: Rafter only
• Structural integrity: IBC and IRC Compliant
• Warranty: 20 years
