Solar FRP Walkway POW-FRP
Product Description:
Walkway FRP Moded Grating are widely used on Rooftop Walkway for Solar power maintenance walkway.As the solar power maintenance walkway is used on the rooftop, it can not avoid long-term wind and rain. The solar rooftop walkway made of FRP has good corrosion resistance to acid, alkali, organic solvents, salts and many other gas and liquid media. At the same time, our FRP solar rooftop walkway has UV protection function, even in the sun, it will not fade.
Product Code:
POW-FRP
Product Details ：
When FRP gratings are used as solar walkways for rooftop, the main specifications are as follows:
|
Article No.:
|
POW‐FRP
|
|
Material:
|
Fiberglass Roving, Resin, Calcium Powder
|
|
Colour:
|
Black,White,Red, Green,Yellow, Blue,Grey or Customized
|
|
Technique:
|
Molded
|
|
Feature:
|
Aging‐Resistant, Insulation, Corrosion Resistance
|
|
Application:
|
Solar power maintenance walkway
|
|
Full Size:
|
3.66*1.22m
|
|
Height:
|
25mm, 30mm
|
|

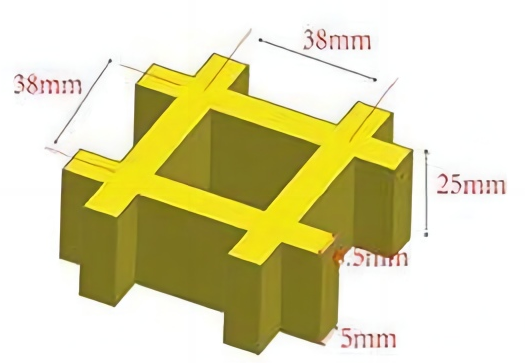

Mesh Size:
|
38*38mm
|
|
|
Type
|
FRP Molded Grating
|
|
Mesh Size
|
38×38mm
|
|
Grating Thickness
|
25mm,30mm
|
|
Load Bar Width
|
6.5/5.0mm
|
|
Weight
|
12.3kg/M2,15.5kg/M2
|
|
Application
|
Solar power maintenance walkway
|
|
Insulation Class
|
Strong
|
|
Withstand Voltage Rating
|
Strong
|
|
Custom Made
|
Yes
|

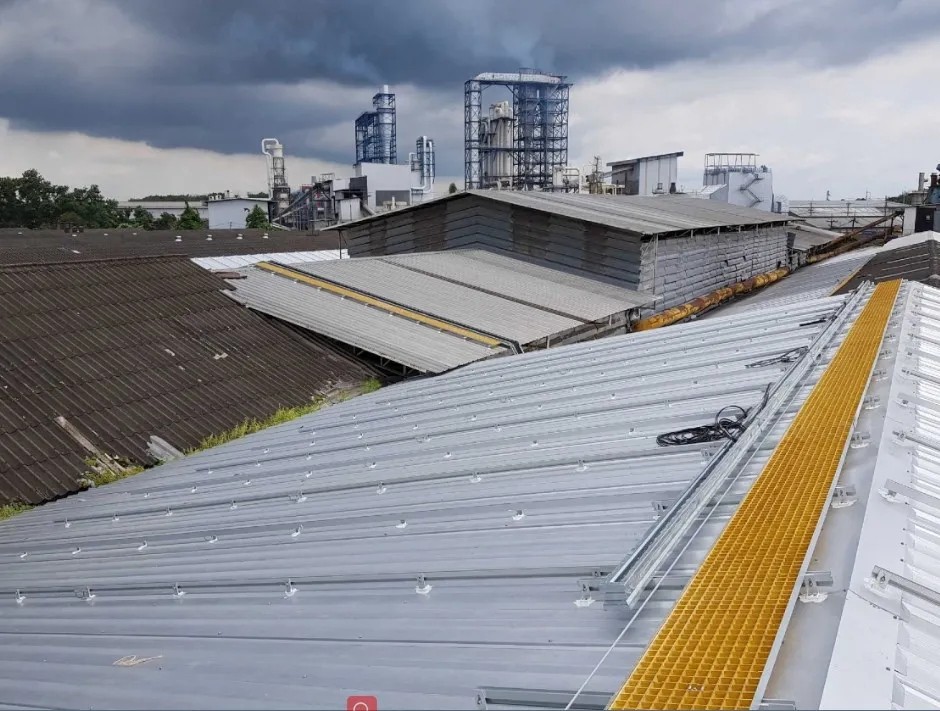

powerack Composite FRP grating used for the solar rooftop walkway, and it can be fixed with stainless steel fasteners (M-type, L-type, C-type). The fixing clip and the supporting structure can be connected by bolts and nuts or rivets.
Product Advantages:
1.Corrosion resistance, aging resistance, UV resistance, flame retardant, and insulation.
2.Integral, one-piece construction increases load-bearing capabilities.
3.Non-absorbent, non-slip, and anti-fatigue.
4.Strong designability, flexible size, and convenient cutting.
5.Low maintenance cost and long service life.
Suitable for:
Metal roof
One stop solution for Solar Walkway FRP Grating.
Please feel free to contact us, we are dedicated to provide you with the best buying experience.
