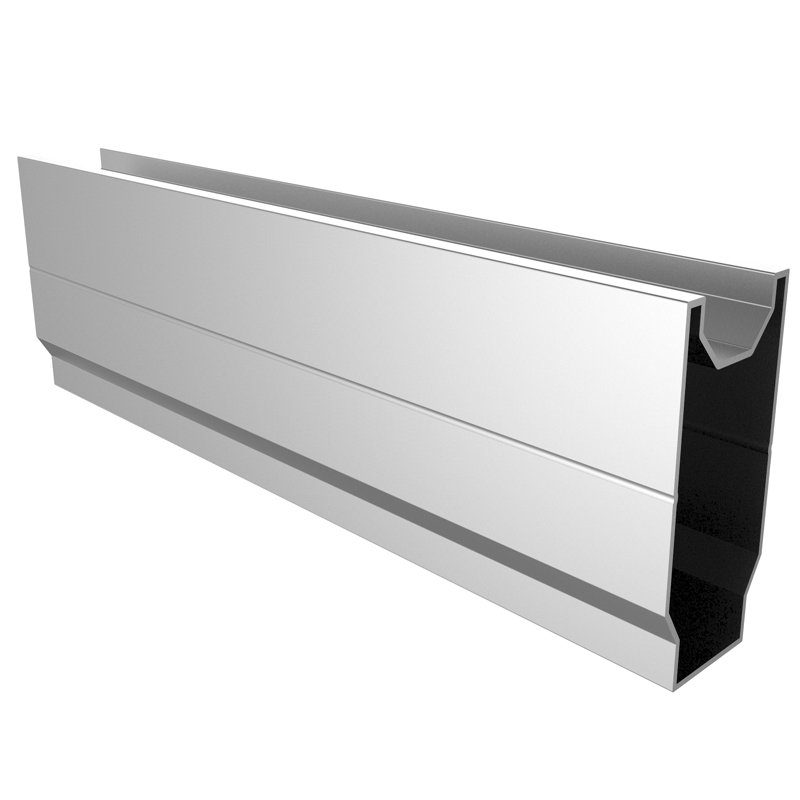

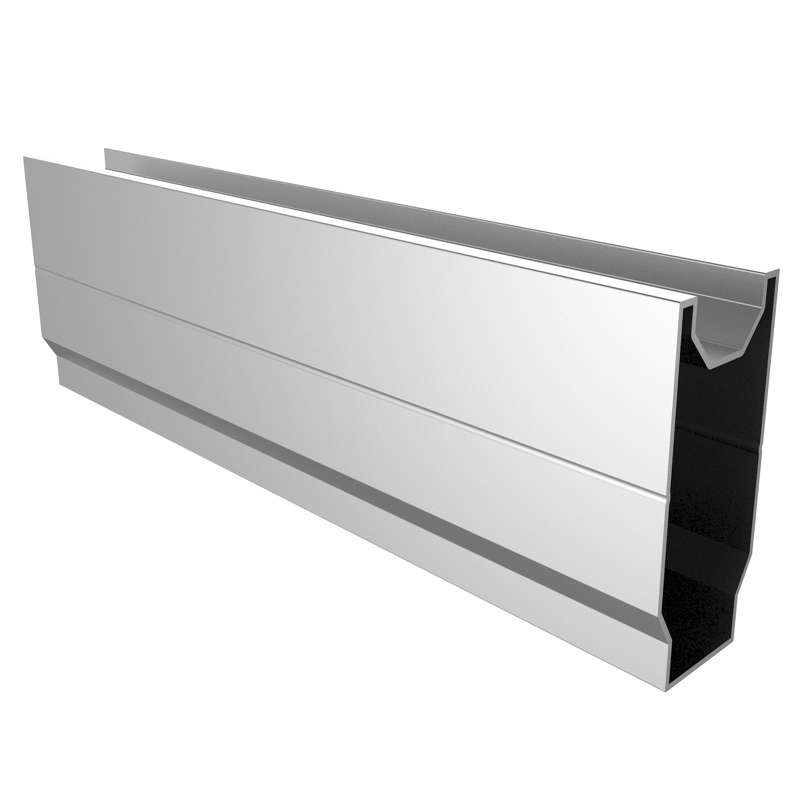

Rail splice is used to connect two rails, insert the connector into the two rails, and fix it with self-tapping screws from the outside.

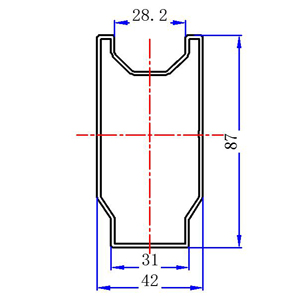

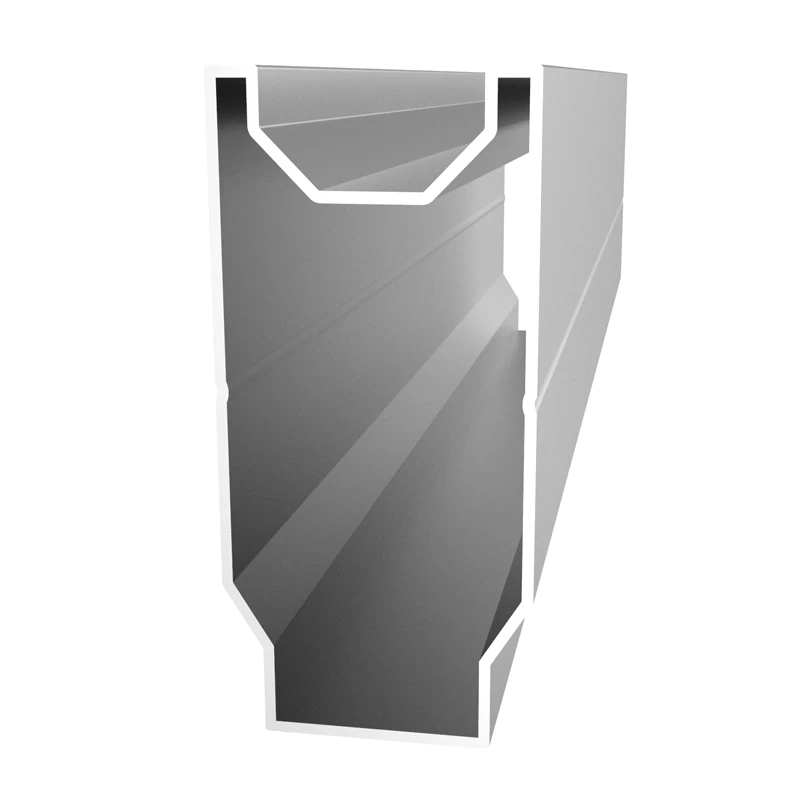

Drawing of component section
Parameter table of section
|
A |
396.7340 |
Ip |
463990.1139 |
|
Ix |
349067.7943 |
Iy |
114922.3196 |
|
ix |
29.6623 |
iy |
17.0197 |
|
Wx(Up) |
8584.0035 |
Wy(Left) |
5472.4914 |
|
Wx(Down) |
7533.5529 |
Wy(Right) |
5472.4914 |
|
Area moment around the X-axis |
5275.3781 |
Area moment around the Y-axis |
3188.8495 |
|
Distance from the center of the shape to the left edge |
21.0000 |
Distance from the center of the shape to the right edge |
21.0000 |
|
Distance from the center of the shape to the top edge |
40.6649 |
Distance from the center of the shape to the lower edge |
46.3351 |
|
Principal moment I1 |
349067.794 |
Direction of principal moment 1 |
(1.000,0.000) |
|
Principal moment I2 |
114922.320 |
Direction of principal moment 2 |
(0.000,1.000) |
Component composition
|
Item No. |
GT-CB3-SP | ||
|
Item Name |
3# Solar ground rail splice |
||
|
Component |
Component name |
Spec（mm） |
Qty |
|
3# Solar ground rail splice |
300 | 1 | |
|
Self-tapping screw |
St6.3*25 | 8 | |
|
|
|
|
|

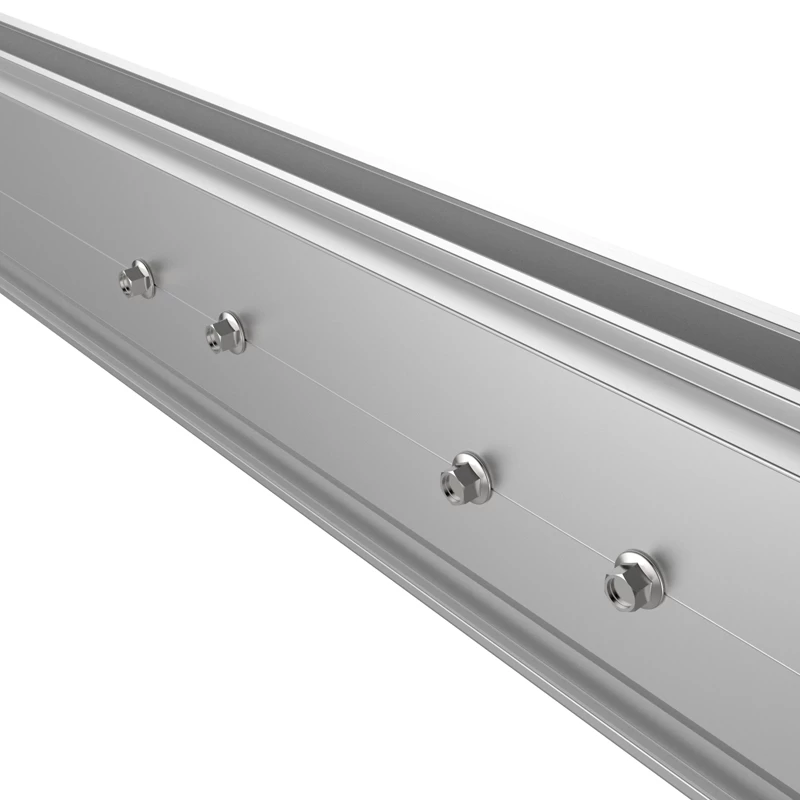

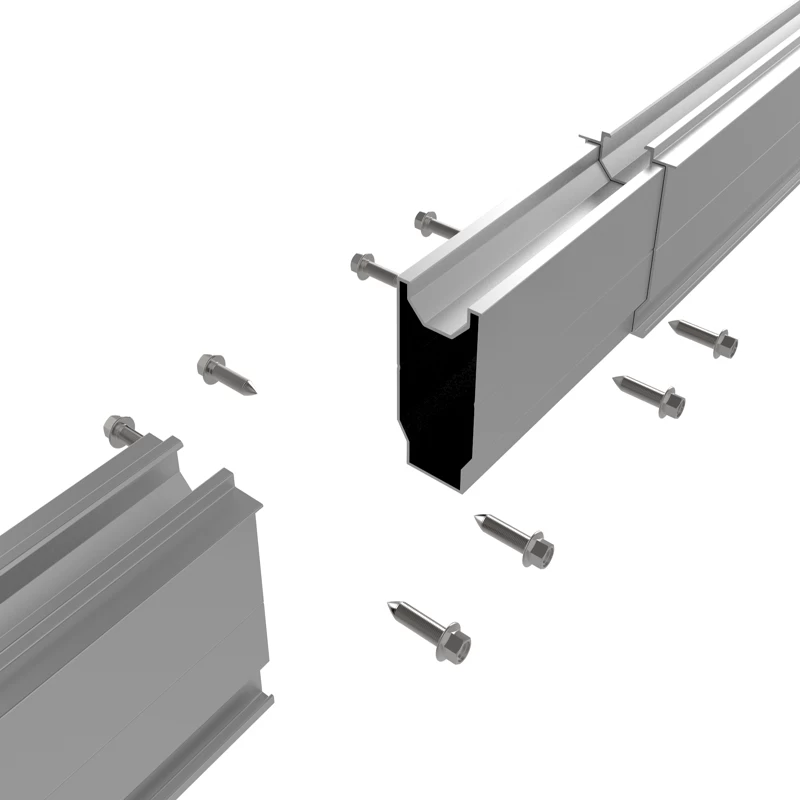

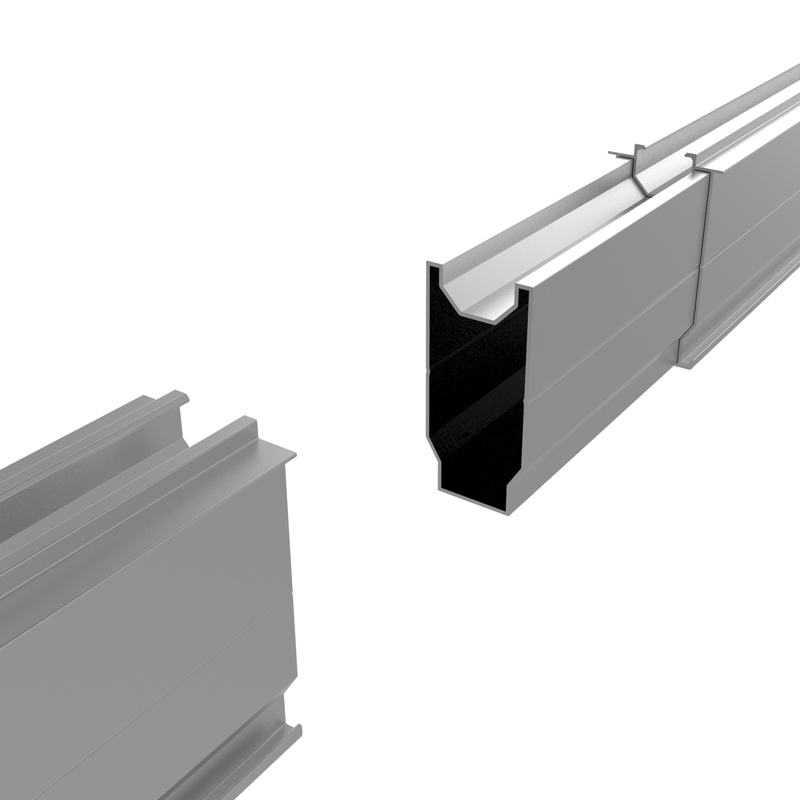

Detail drawing of component installation
