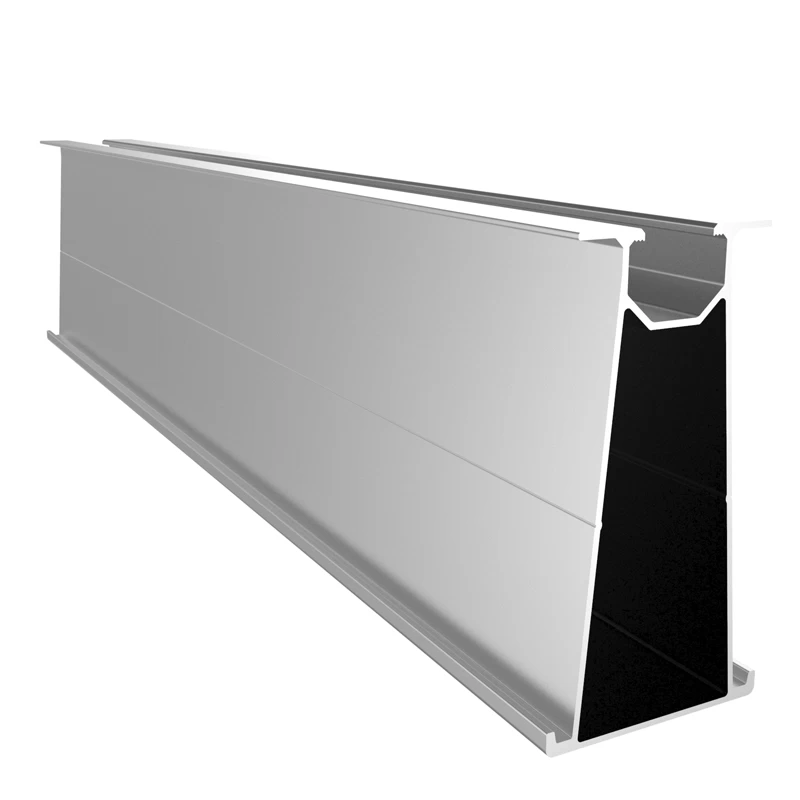

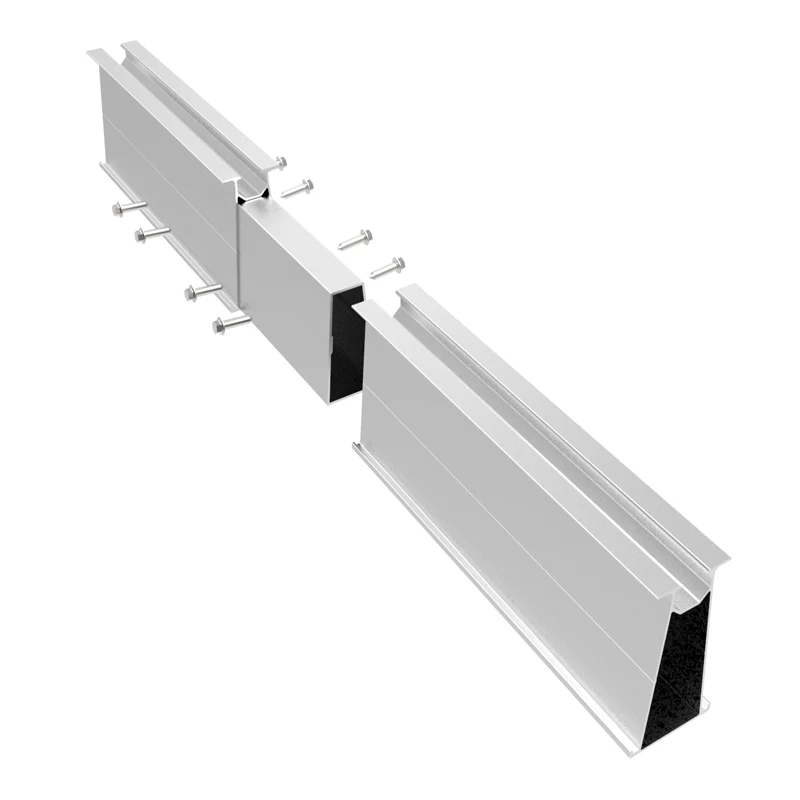

This rail is suitable for vertical placement of solar panels, and two rails are fixed under each solar panel.and the pressing blocks are fixed on both sides of the panel.

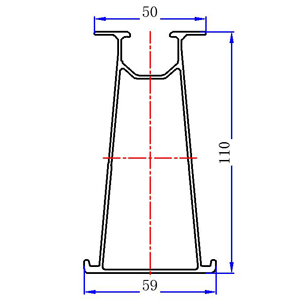

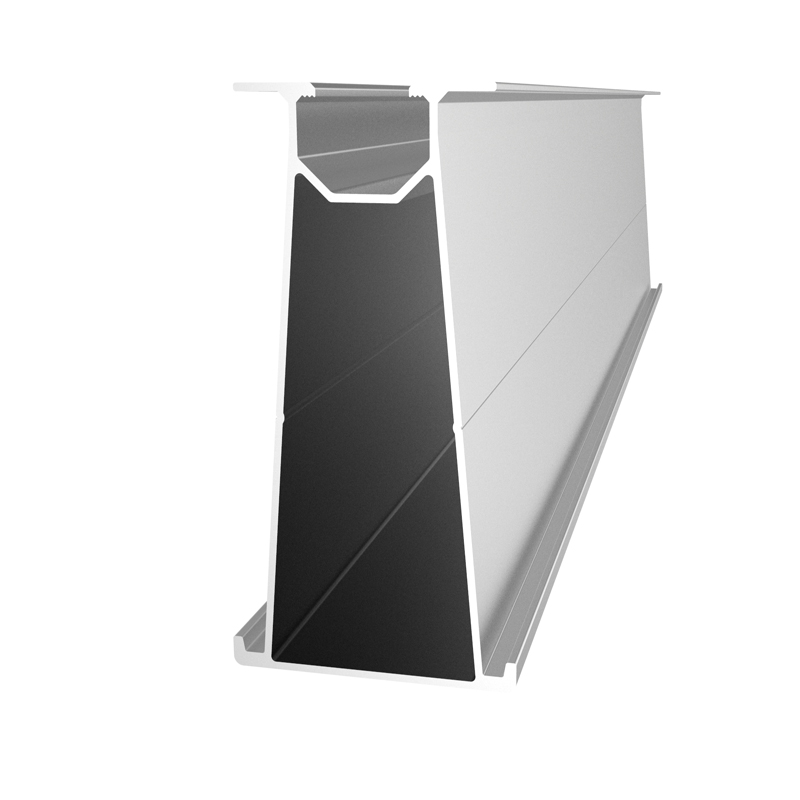

Drawing of component section
Parameter table of section
|
A
|
553.4511
|
Ip
|
1061312.3031
|
|
Ix
|
890421.1727
|
Iy
|
170891.1304
|
|
ix
|
40.1105
|
iy
|
17.5720
|
|
Wx(Up)
|
15447.0440
|
Wy(Left)
|
5792.9197
|
|
Wx(Down)
|
17006.7014
|
Wy(Right)
|
5792.9197
|
|
Area moment around
the X-axis
|
10062.2183
|
Area moment around
the Y-axis
|
4582.6059
|
|
Distance from the center of
the shape to the left edge
|
29.5000
|
Distance from the center of
the shape to the right edge
|
29.5000
|
|
Distance from the center of
the shape to the top edge
|
57.6435
|
Distance from the center of
the shape to the lower edge
|
52.3571
|
|
Principal moment I1
|
890421.173
|
Direction of principal
moment 1
|
(1.000,0.000)
|
|
Principal moment I2
|
170891.130
|
Direction of principal
moment 2
|
(0.000,1.000)
|
Component composition
|
Item No.
|
GT-CB2-(L)
|
|
Item Name
|
2# Solar ground rail
|
|
Component
|
Component name
|
Spec (mm)
|
Qty
|
2# Solar ground rail
|
According to demand
|
1
|
|
|
|
|
|
|

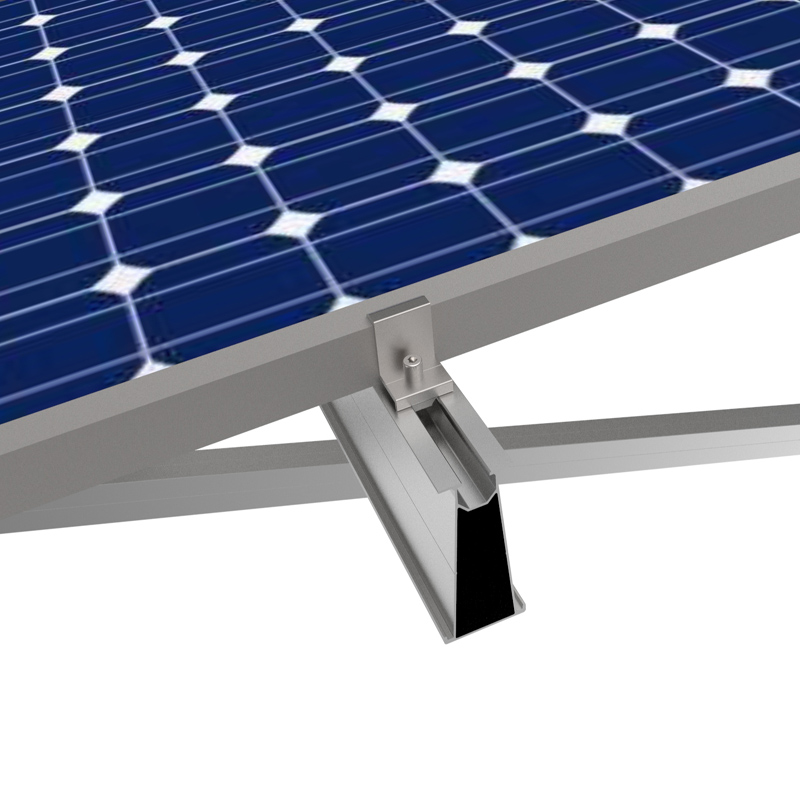

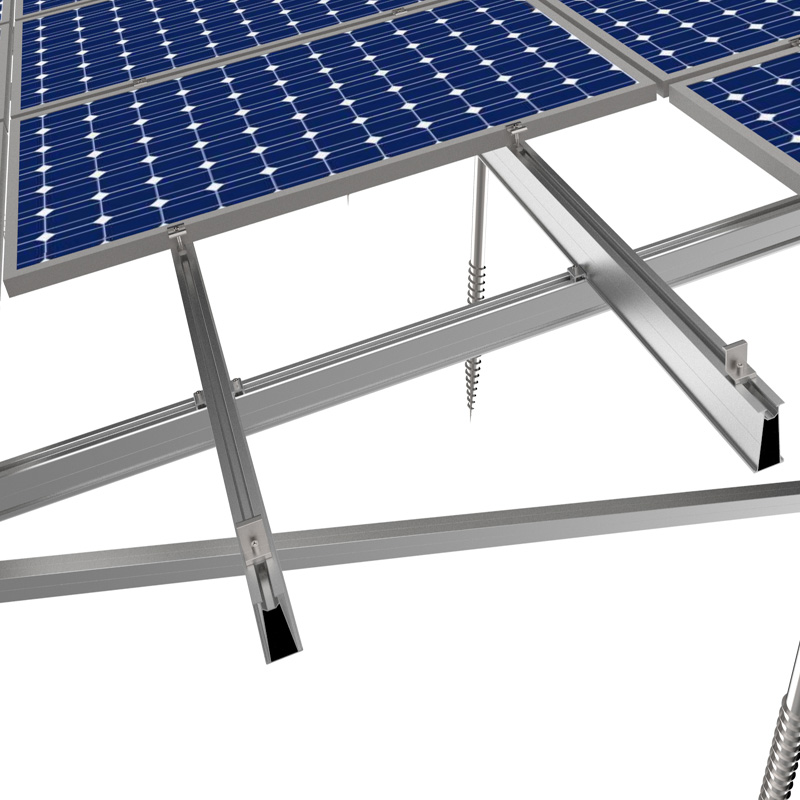

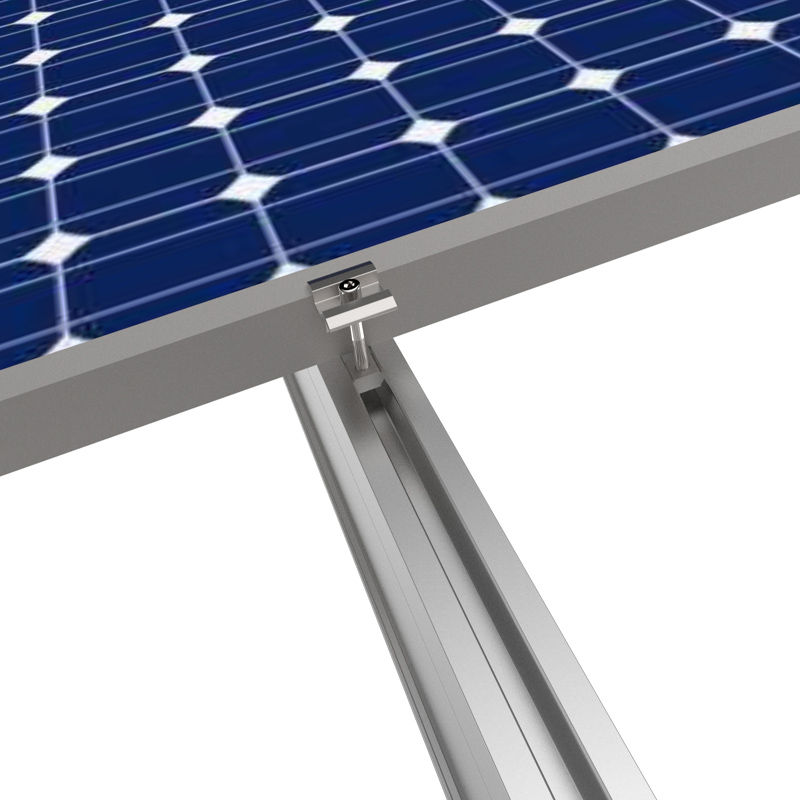

Detail drawing of component installation
