Overview

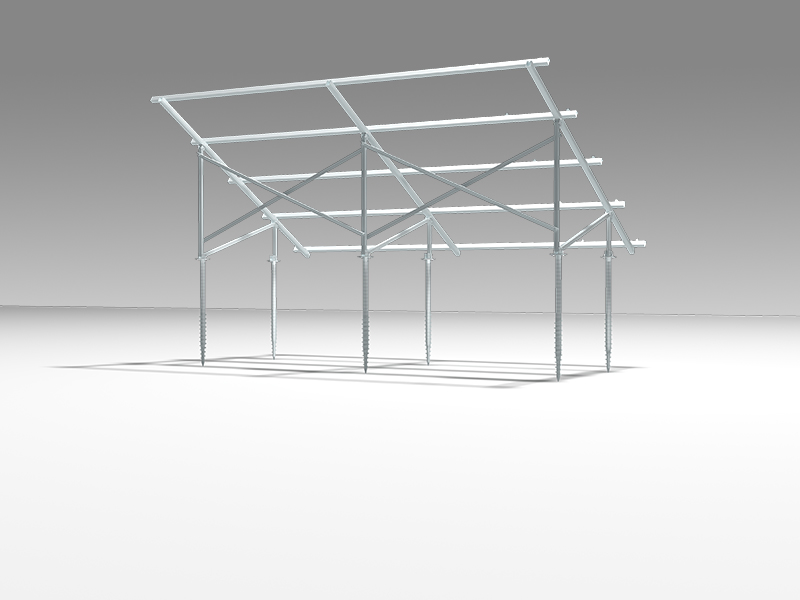

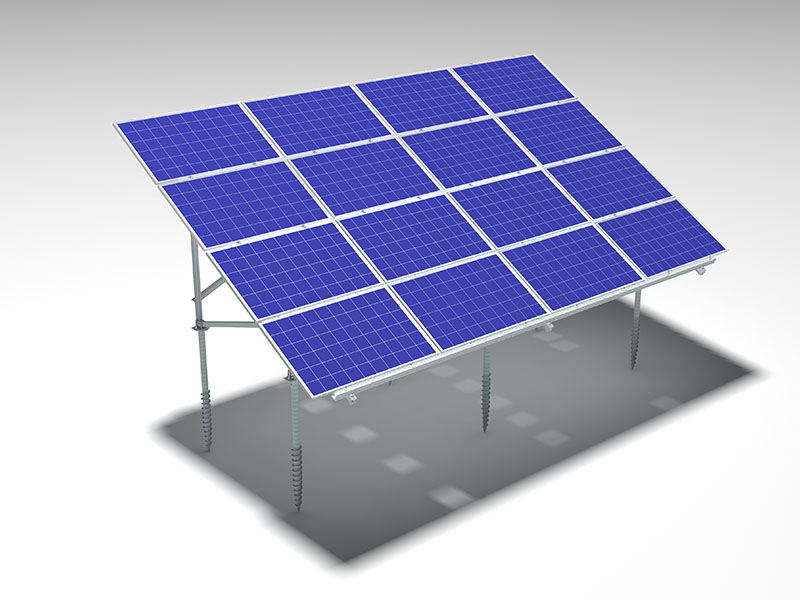

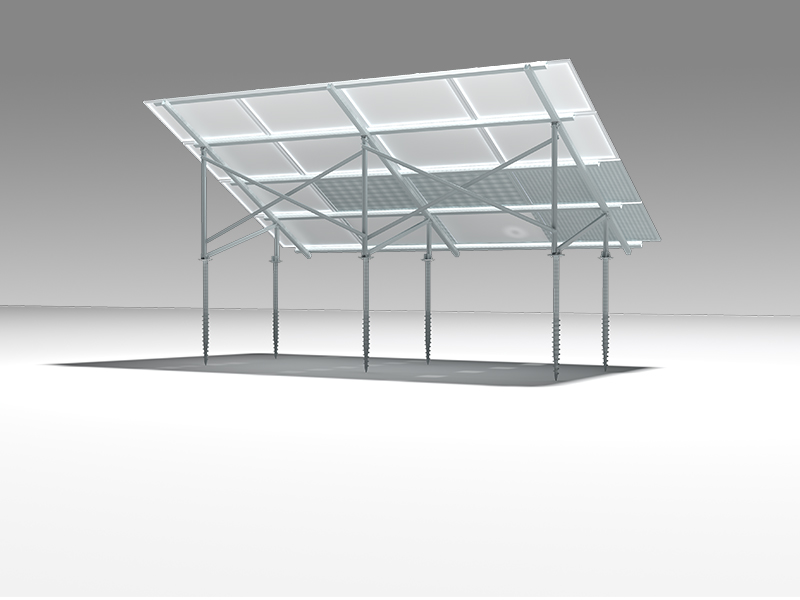

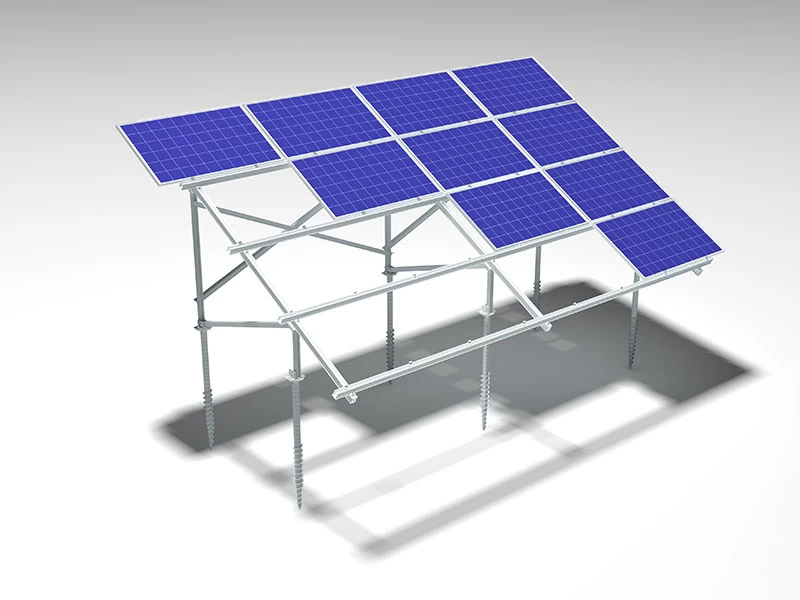

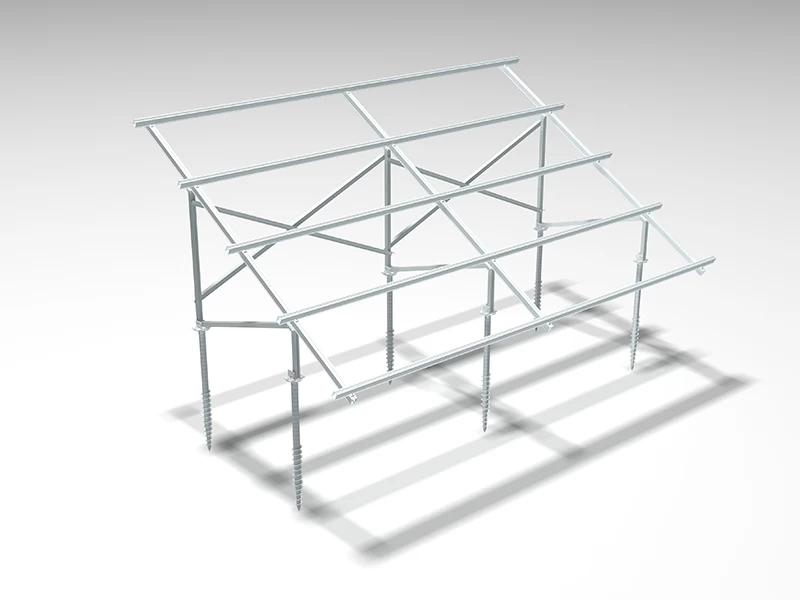

MRac Ground Terrace GT4 is a highly pre-assembled ground mounting system, with strong wind load and snow load resistance. The system can achieve minor adjustment onsite with special design of Anchor Plate to adapt to different sites, and is mainly applied to medium to large scale solar PV projects. Patented and certified system design ensure projects safety and quick installation.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
Concrete Base or Ground Screw
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.
Quick Modular Kit Fixatio
Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.
No Drill on Portrait Bea
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.
Technology Certification
