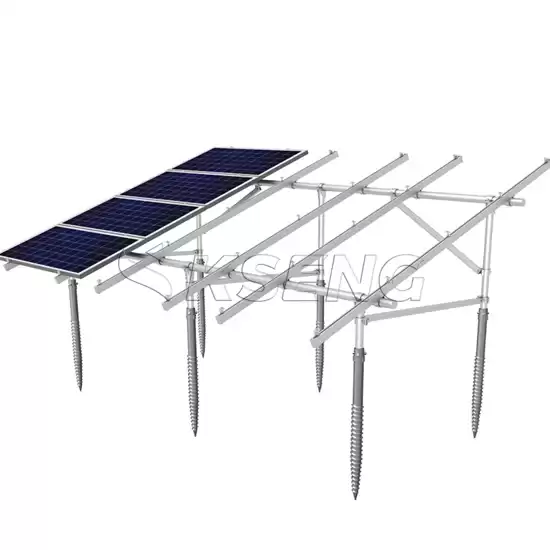

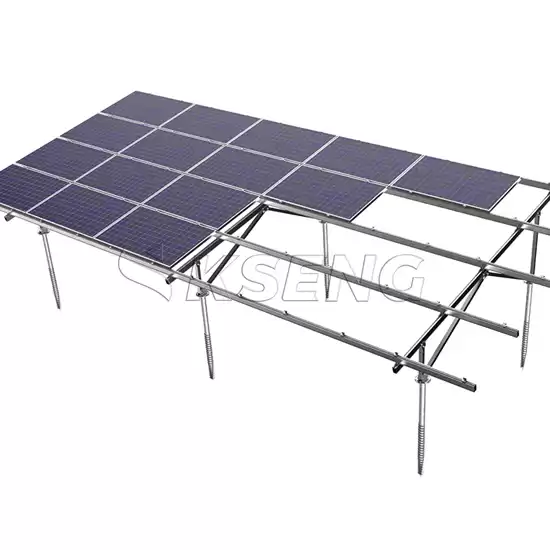

Solar ground mounting system with ground screw foundation

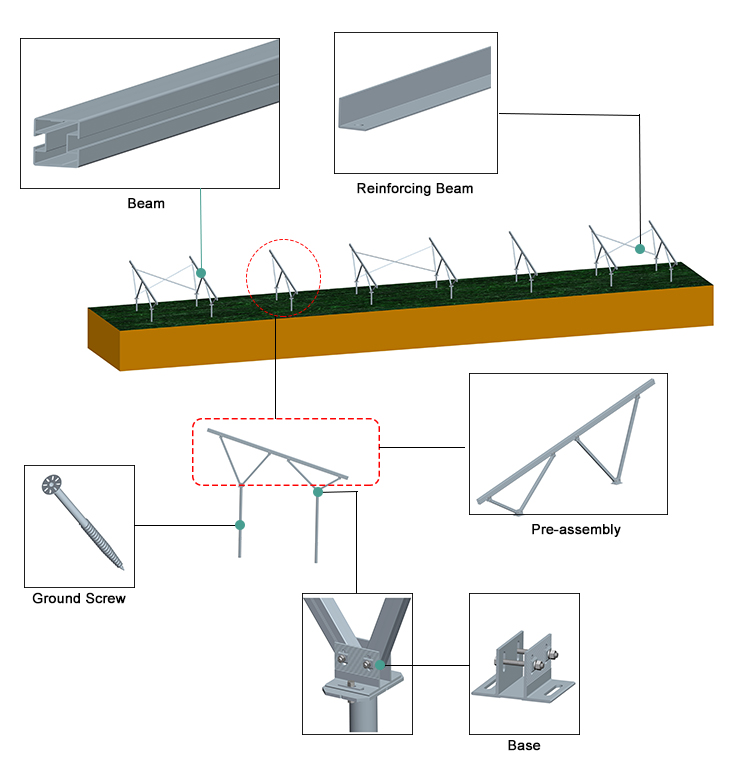

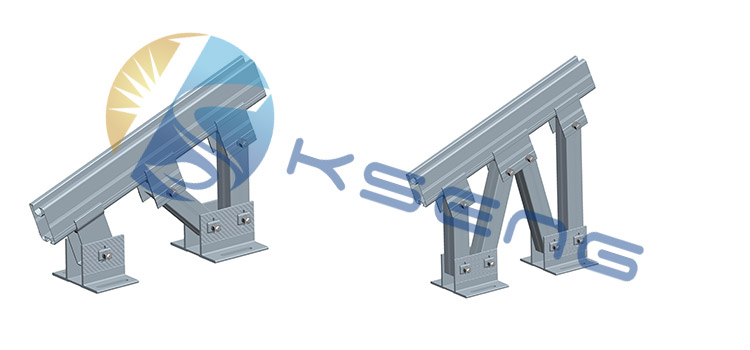

The solar ground mount bracket is mainly composed of KS2-W and KS2-A stand.
The solar ground mounting bracket can face in any direction and align at every optimal angle.it can install the solar panels in the best position under direct sunlight, and have flexible adjustment angles to maximize solar energy output.
Kseng`s ground solar mount brackets will make the maximum pre-assembly that can save construction time and labor cost.
Use ground screw as the foundation, the installation time is significantly shorter, and the installation can be done quickly and effectively without any major preparations being needed.
The solar ground mounting bracket is sturdy, durable, high-strength.
The ground-mounted solar panel system is a reliable choice for ground-mounted residential and commercial solar panel systems.
Material:
|
AL 6005-T5 High Strength Aluminum Alloy, Q235B Hot Dip Galvanizing
|
|
Foundation:
|
Ground Screw
|
|
Standard:
|
JISC8955-2017 Design Guide on Structures for Photovoltaic Array
|
|
Certification:
|
ISO9001/CE/SGS/UL etc.
|
Surface Treatment:
|
Anodized
|
|
Wind Load:
|
60m/s
|
|
Snow Load:
|
1.4KN/M2
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Applicable Module:
|
Framed or Frameless
|
|
Module Orientation:
|
Portrait or Landscape
|
