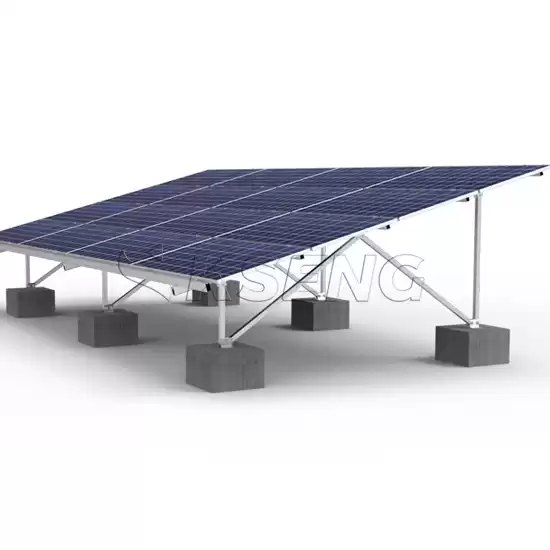

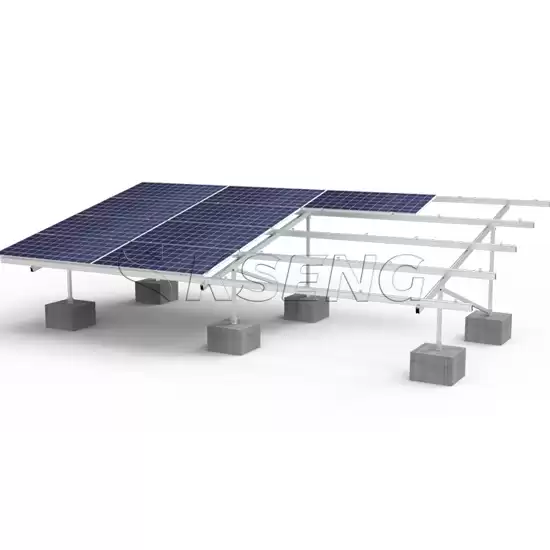

Solar Ground Mounting System with Concrete Base
Solar ground mounting system is typically applied on flat open field ground. The concrete base is easy to build regardless of various soil conditions.It is much easier to install. Main components of solar ground mount bracket are high pre-assembled in Kseng`s factory, which save lots of your on site installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.
Benefits of ground-mounted solar systems:
1.Material features with high strength superior corrosion resistance, self-repair, long lasting and easy processing.
2.No need for post-coated or smeared, reduce the cost of rust-proof or paint repair on site.
3.Conventional specification can be mass-produced to maximum control of production cycle.
4.Use our ground screw, the installation time is significantly shorter, and the installation can be done quickly and effectively without any major preparations being needed.
Material:
|
AL 6005-T5 High Strength Aluminum Alloy
|
|
Foundation:
|
Concrete Pile
|
|
Standard:
|
JISC8955-2017 Design Guide on Structures for Photovoltaic Array
|
|
Certification:
|
ISO9001/CE/SGS/UL etc.
|
Surface Treatment:
|
Anodized
|
|
Wind Load:
|
60m/s
|
|
Snow Load:
|
1.4KN/M2
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Applicable Module:
|
Framed or Frameless
|
|
Module Orientation:
|
Portrait or Landscape
|

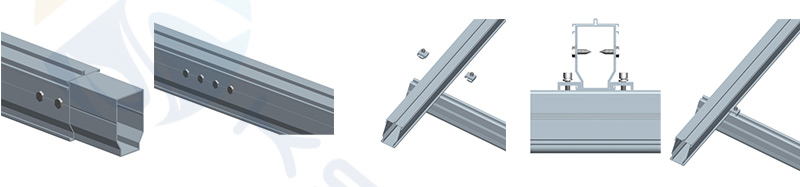

The solar gound mounting system components:
Solar ground mounting system installation:

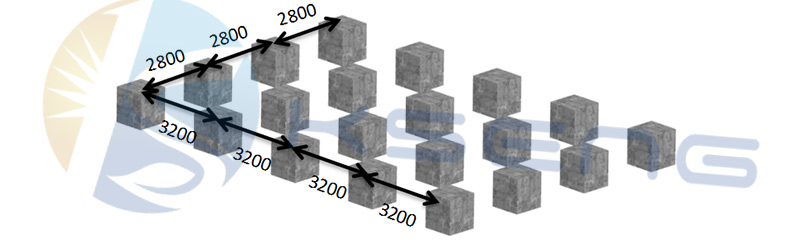

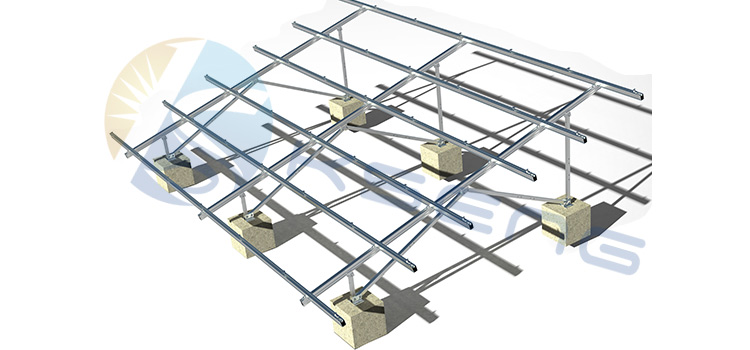

Step1: According to the drawing, place the concrete piles first!

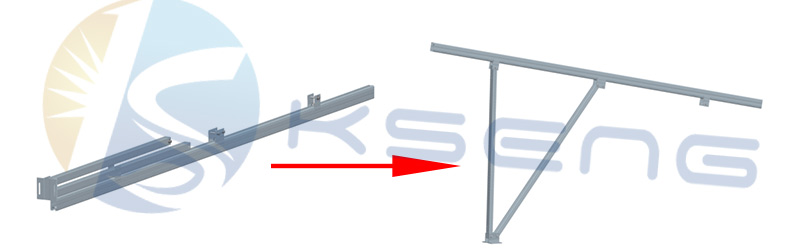

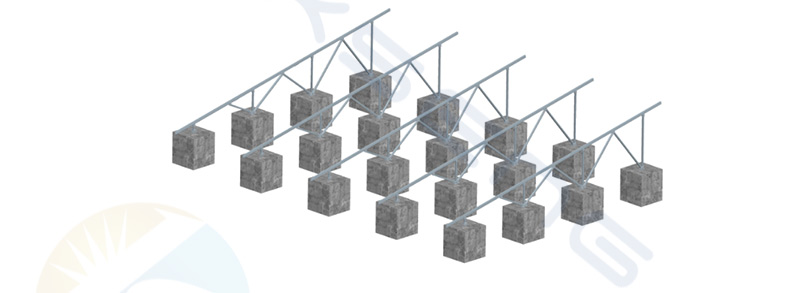

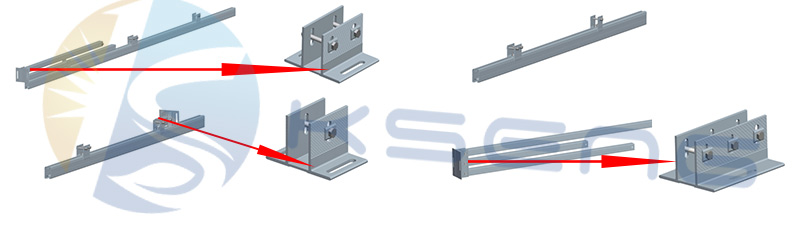

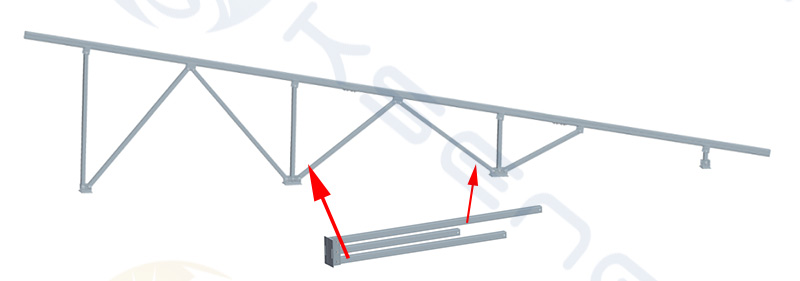

Step2:Open the solar preassembled bracket (Beams) and connect for installation.

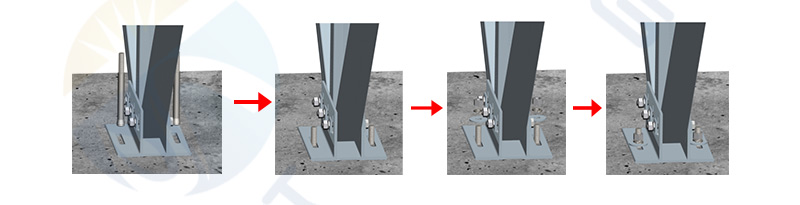

Step3:Secure the base to the concrete pile using expansion bolts.

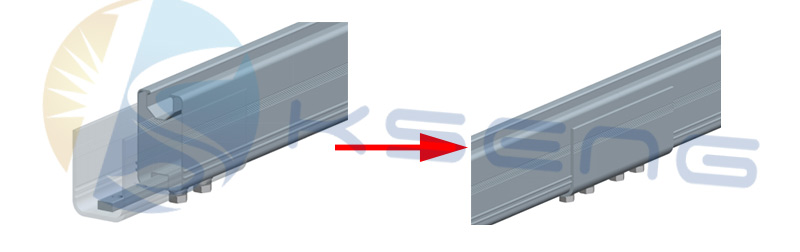

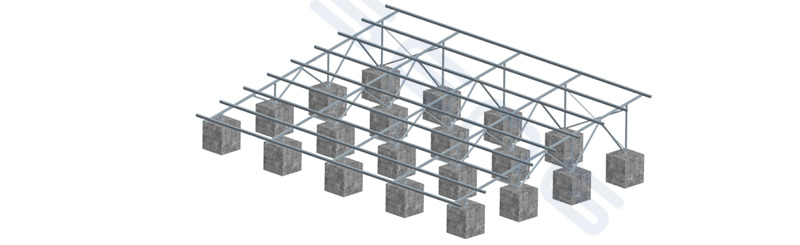

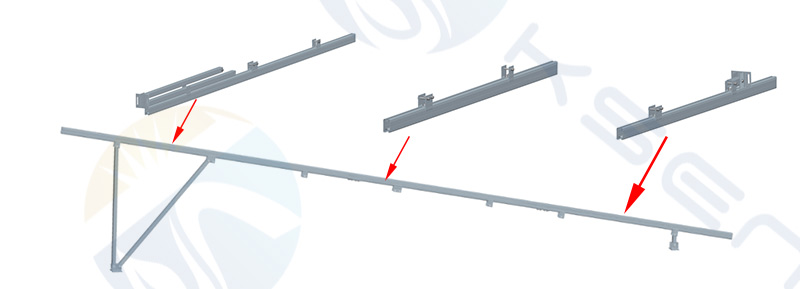

Step4:Installation the solar rails on the solar bracket beams.
