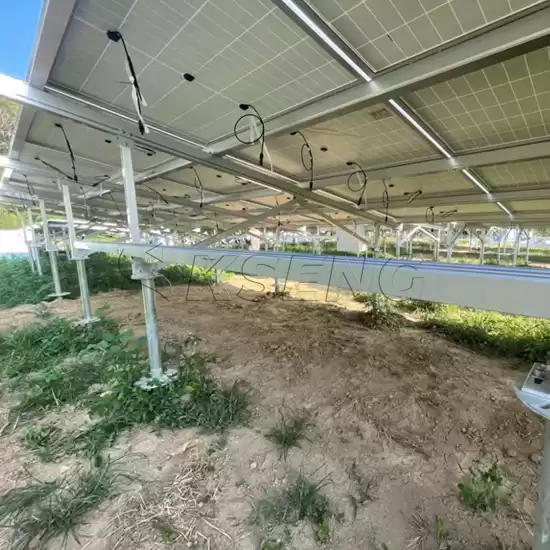

Solar Ground Mounting System with Double Flanged Tube
Ground-mount solar panels can be placed anywhere in a yard or field that sees the sun for the majority of the day. Solar solutions harness the sun's energy, convert it and store it. Companies use solar energy and sometimes return it to the main power grid for resale so they can generate renewable energy tax credits.

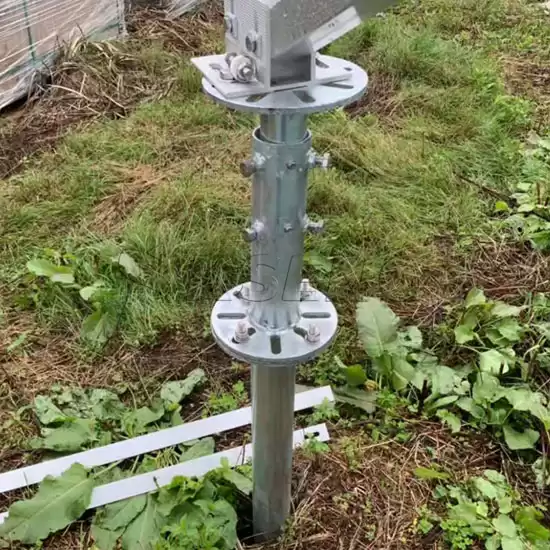

The ground mounting system use the double flanged tube to enable a certain distance between solar panel and ground.
Benefits of ground-mounted solar systems:
1.Material features with high strength superior corrosion resistance, self-repair, long lasting and easy processing.
2.No need for post-coated or smeared, reduce the cost of rust-proof or paint repair on site.
3.Conventional specification can be mass-produced to maximum control of production cycle.
4.Use our ground screw, the installation time is significantly shorter, and the installation can be done quickly and effectively without any major preparations being needed.
Material:
|
AL 6005-T5 High Strength Aluminum Alloy
|
|
Foundation:
|
Ground Screw
|
|
Standard:
|
JISC8955-2017 Design Guide on Structures for Photovoltaic Array
|
|
Certification:
|
ISO9001/CE/SGS/UL etc.
|
Surface Treatment:
|
Anodized
|
|
Wind Load:
|
60m/s
|
|
Snow Load:
|
1.4KN/M2
|
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Applicable Module:
|
Framed or Frameless
|
|
Module Orientation:
|
Portrait or Landscape
|
Solar ground mounting system installation:

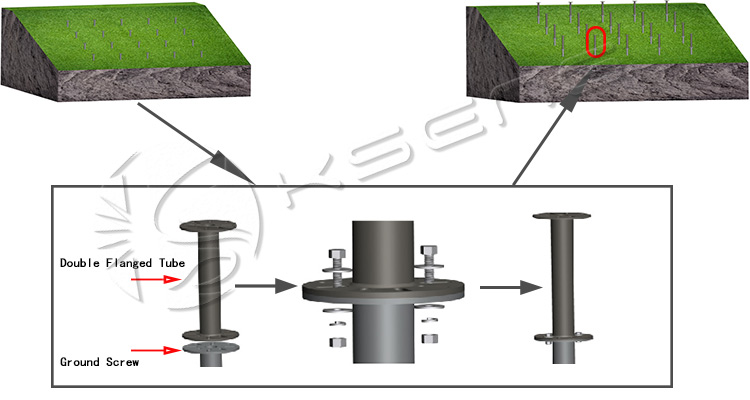

Step1: According to the drawing,Establish pile foundation and install doubel flanged tube!

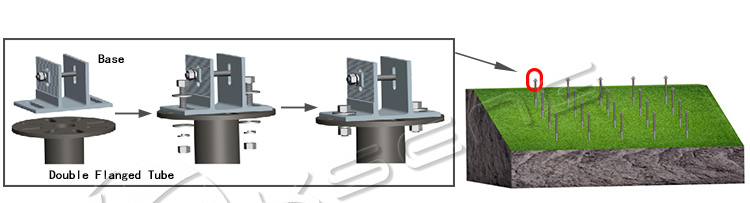

Step2:Install the solar base( M12*40 bolt and nut).

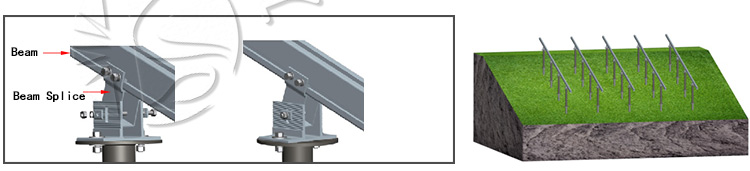

Step3: Install the solar beam.

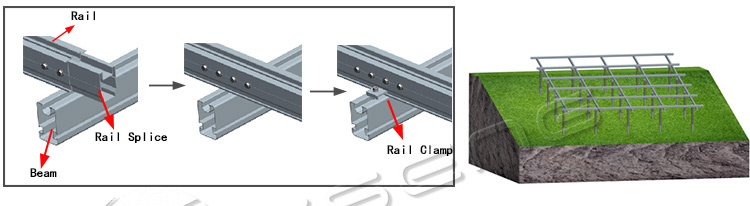

Step4:Install the solar rails on the solar bracket beams.

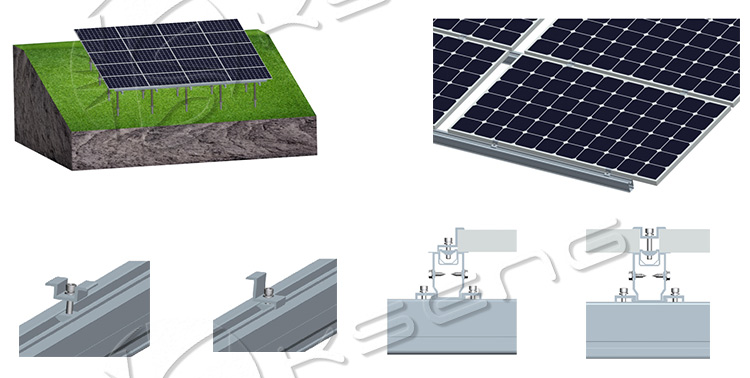

Step5:Install the solar panles on the solar bracket rails.
