Overview

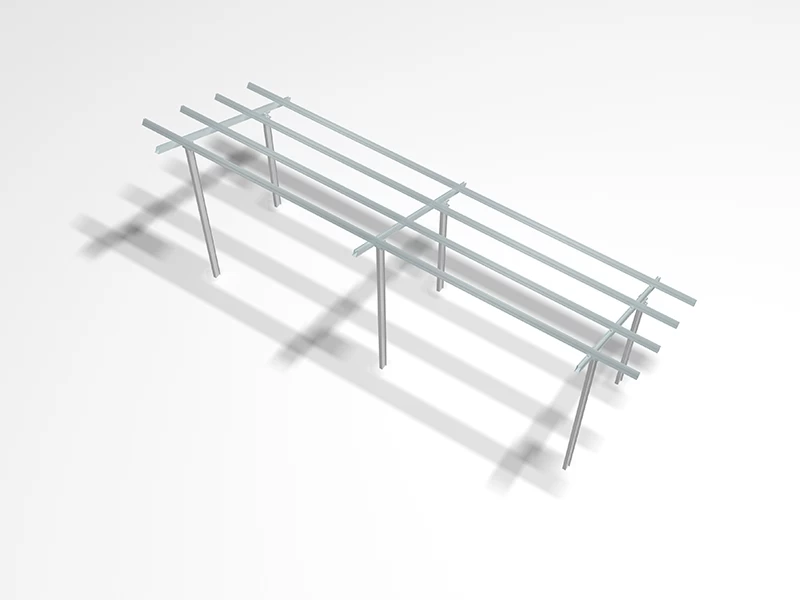

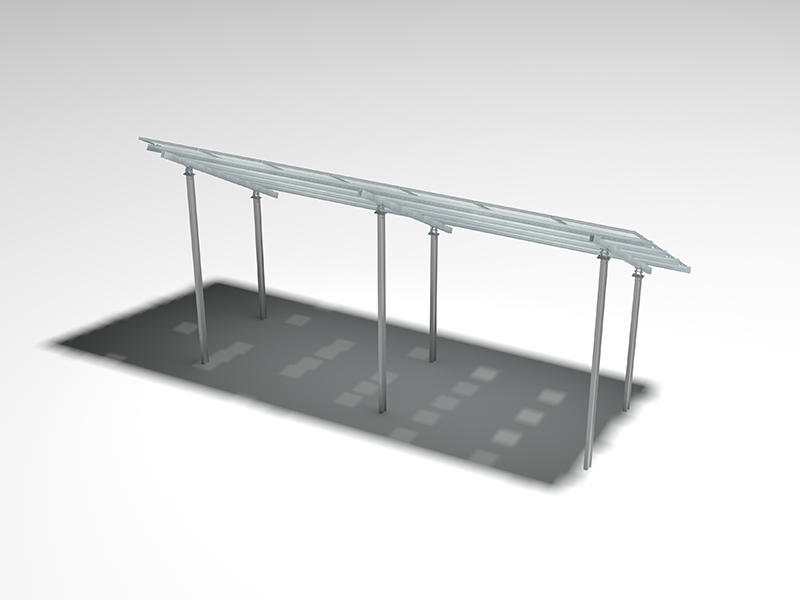

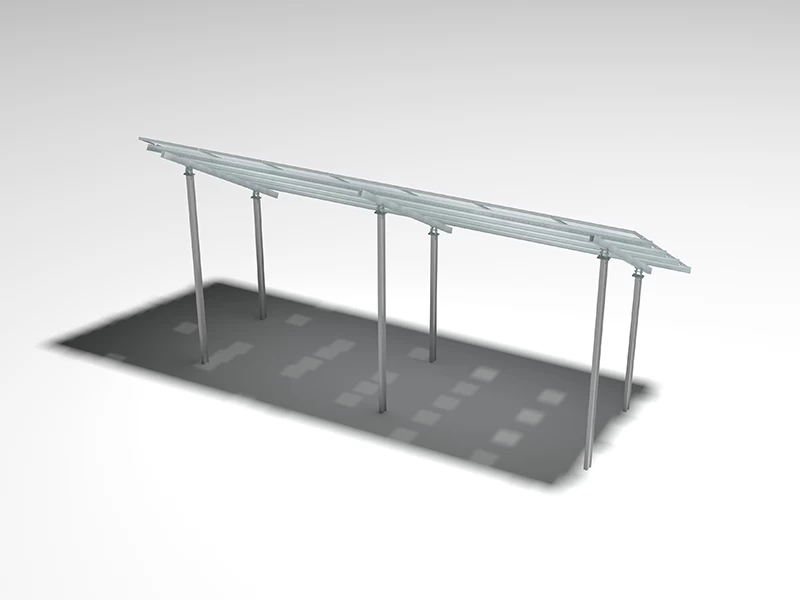

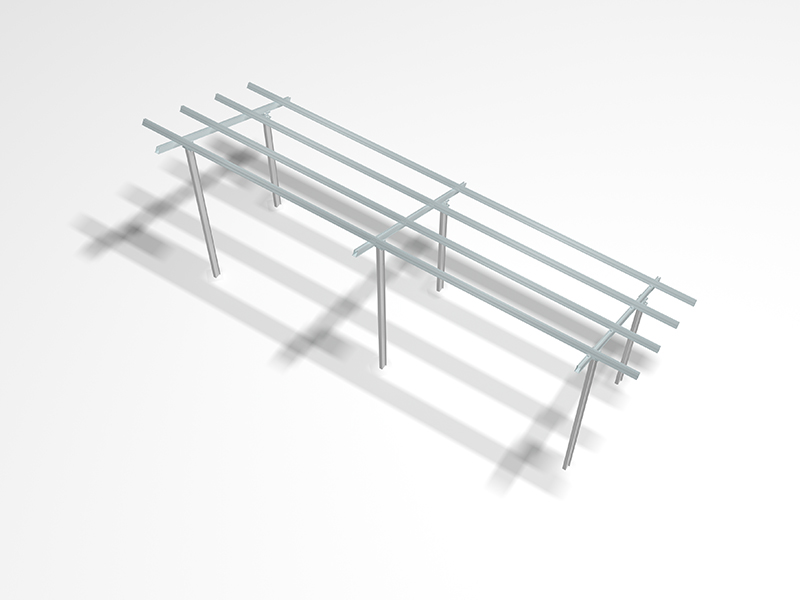

MRac Pro Ground Terrace PGT8 is optimized from GT8, a cost-effective solution applied for the installation of large-scale and
utility-scale solar PV power plant. Main components are made of
anodized aluminum with good performance of structure strength,
stability and anti-corrosion, compatible with varied solar modules.
Patented and certified system design ensure projects safety and
quick installation.
Features
1.Symmetrical Design of Tilt-in-Nut and Rail Channel
No direction limitation for the nut and rail channel, improving the
installation efficiency.

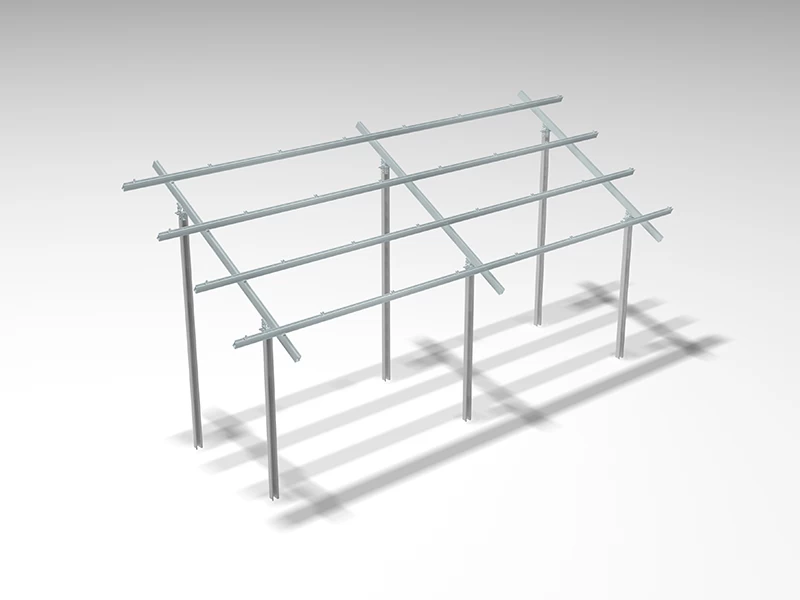

2.Dual-Pile Design
Dual-pile design, no embracing bar request, saving material
cost.
3.No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam
onto the post by special designed clamps, with force at the same
direction of the gravity

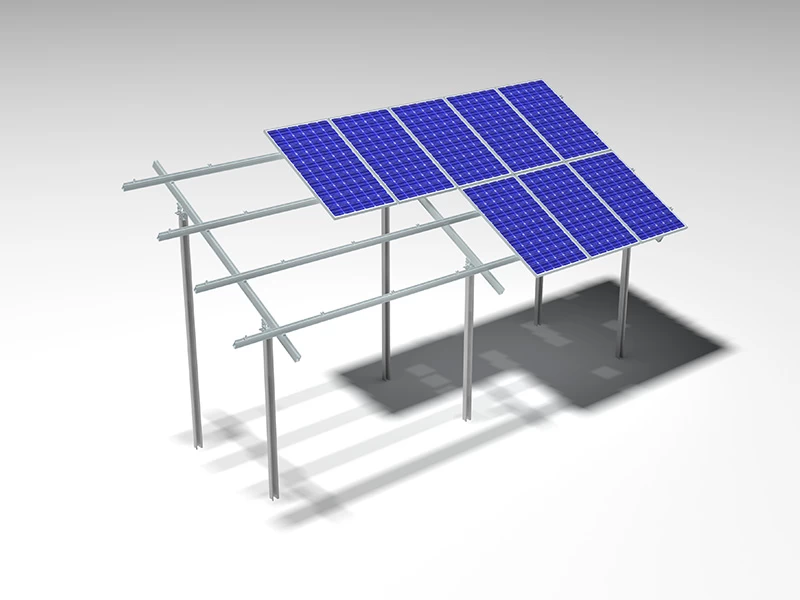

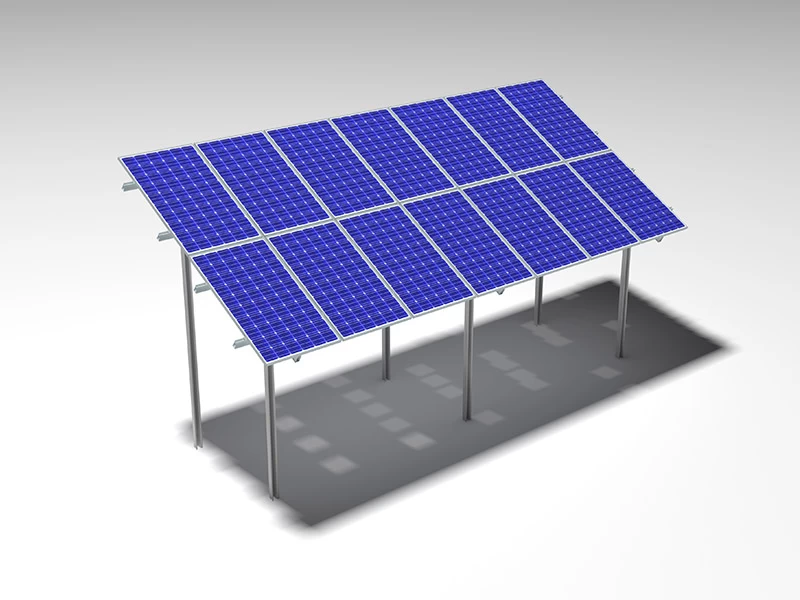

4.Compatible to Varied Solar Modules
With MRac module clamps, the system compatible with most
kinds of framed 60-cell, 72-cell, half-cut cells modules and
frameless modules.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
U Post
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized)&Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 & Zinc-Nickel Alloy Electroplated Steel
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Technology Certification
