Solar Ground Mounting

Aluminum solar panel mounting systems is strong enough to install the solar pv panel,cause it is accurate designed according to international standard.And we supply multiple choice-M shape,A shape,N shape etc.



Ground mount solar kit win great reputation all over the world. Not only because of the competitive price, but also the good quality.



Technical Parameters:

   Installation Angle

   5-60°

   Wind Load

   60m/s

   Snow Load

   1.6KN/m2

   PV Modules

   Framed, unframed

   Module Orientation

   Landscape

   Standards

   AS/NZS 1170



   DIN 1055



   JIS C 89552017



   International Building Code IBC 2009



   California Building Code CBC 2010

   Material

   Al6005-T5(Anodized)

   Color

   Silvery or according to customer requirements

   Warranty

   12 years

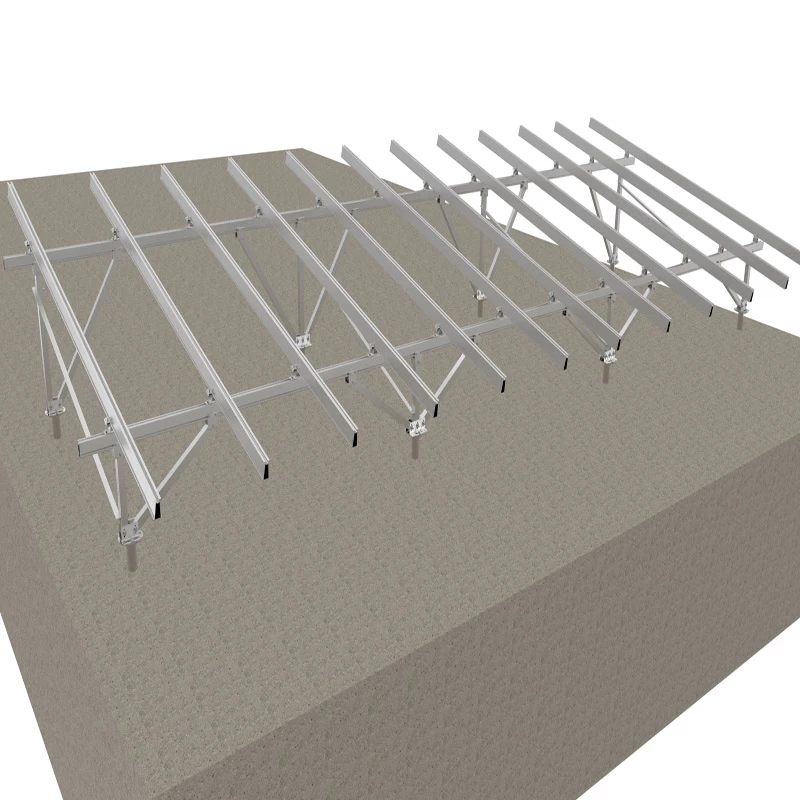

M type ground mounting system


Feature:

1. The height of the M-type stand can be adjusted from the ground.

2. The east and west directions of the gantry are supported by square tubes,

and the front and rear directions are connected by angle aluminum, and the structure is stable.




Advantage


1.Easy installation;

2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);

3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);

4.Max wind speed: up to 60m/s;

5.Anti-corrosive: anodized;

6.Duration: 25 years.



Component photos of M type ground mounting system

solar panel racks ground

 ground installed solar panelsGround screw solar pv mounting systemssolar ground screw manufacturers

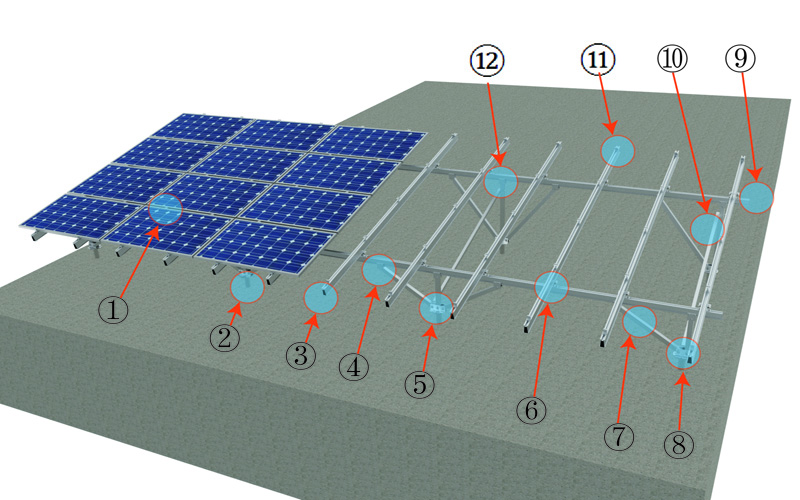

   1. Solar inter clamp          2. Solar ground screw                3.   2# Solar rail                 4Solar connecter 90


solar ground mounting systems solar ground screw suppliersground mount solar mountingground solar mounting system

   5Solar connecter 200     6. Solar revolve connecter      7. Solar aluminum alloy        8Solar connecter 140

                                                                                                               square tube

china racking systemsolar panel mounting systems from chinaground pv mounting systemssolar bracket system suppliers

 9. Solar support beam      11.  Angular aluminum        10. Solar end clamp         11. Solar support beam splice

Installation photos of M type ground mounting system

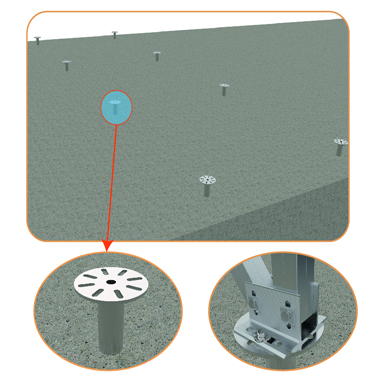

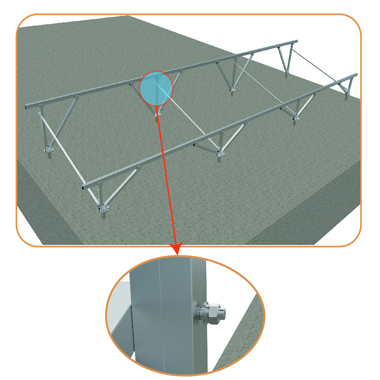

 Step1:Install ground screw according to                        Step2: Install the pre-assembled

              distance marked in drawing                                                 support beam on the ground screw



  ground mount solar racking manufacturers  solar bracket suppliers china

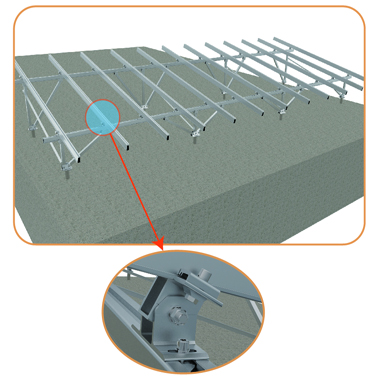

        Install ground screw        Solar connecter 140                                Solar connecter 200     Connect support beam

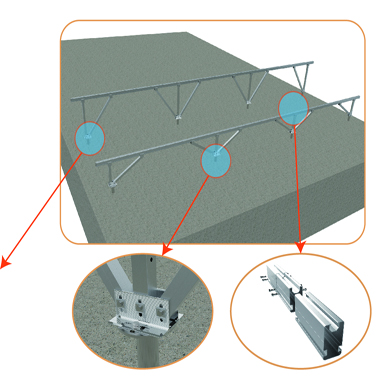

Step3:Install angular aluminums                                      Step4: Install revolve connecters and rails

ground mounted solar pv        aluminium solar mounting structure

                  Connect angular aluminum                                                         Revolve connecter

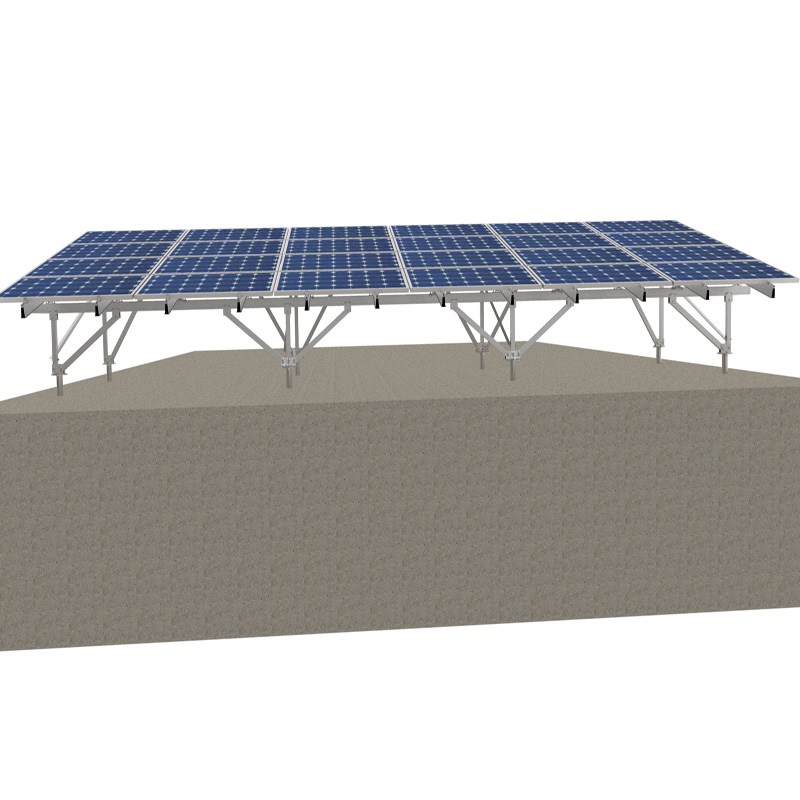

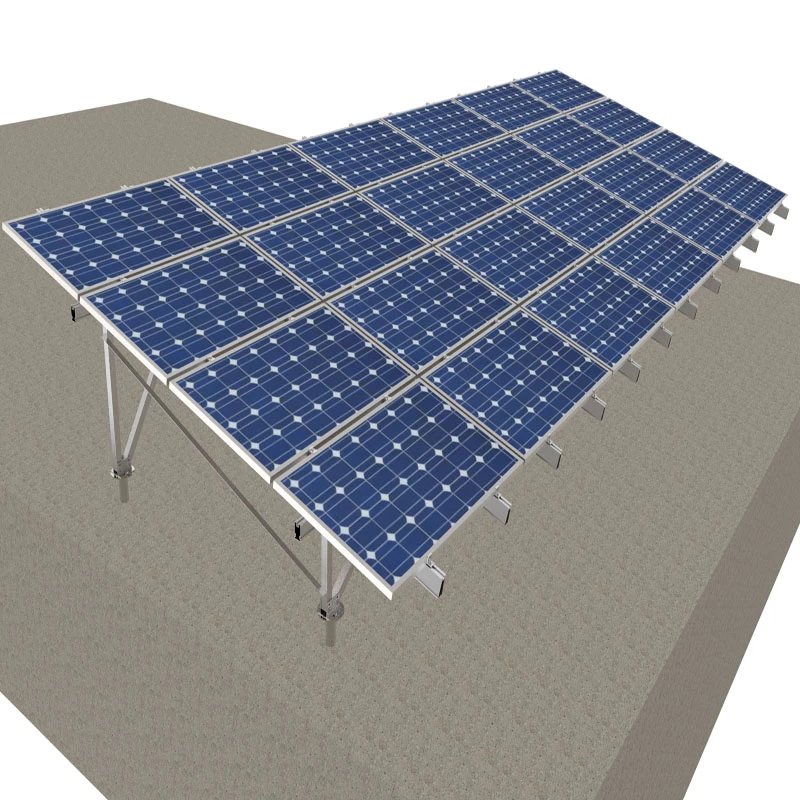

Step5:Fasten panel by inter                                               Step6:Installation completion diagram
              clamps and end clamps
