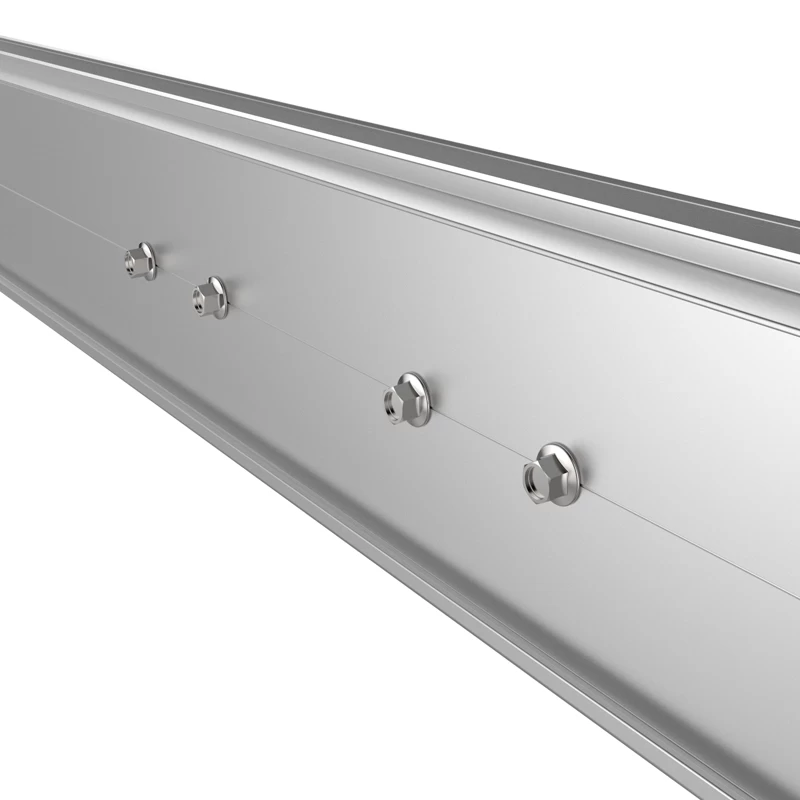

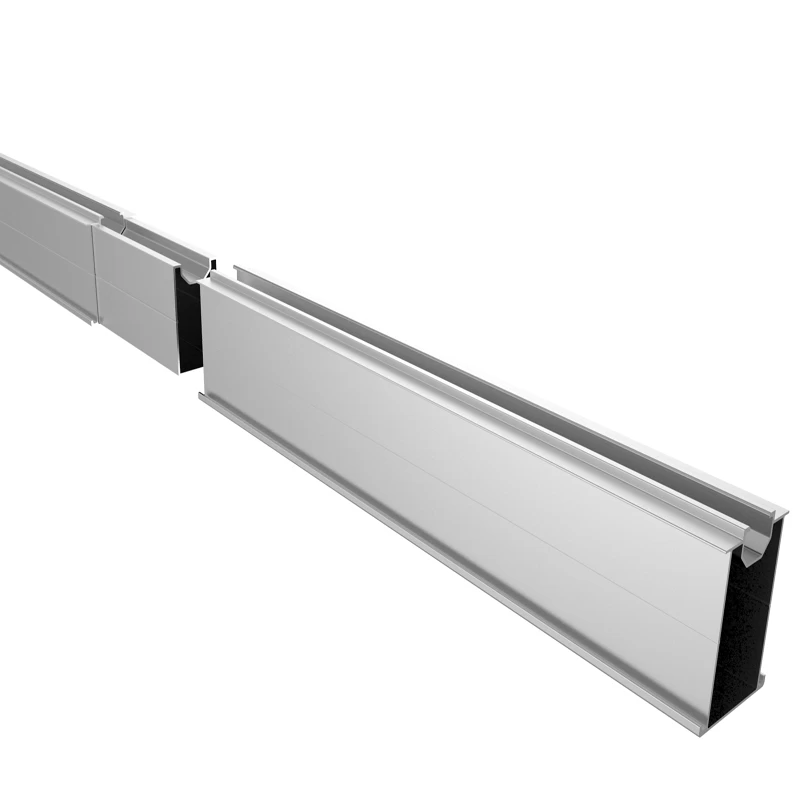

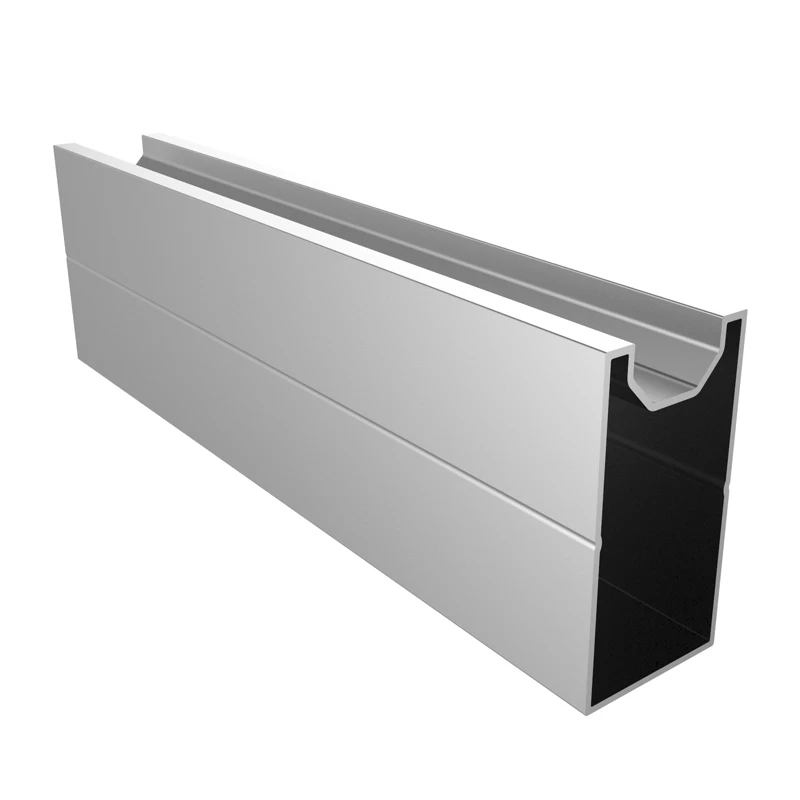

Rail splice is used to connect two rails, insert the connector into the two rails, and fix it with self-tapping screws from the outside.

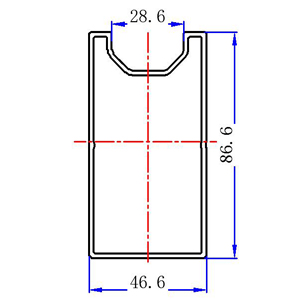

Drawing of component section
Parameter table of section
|
A
|
504.5153
|
Ip
|
659350.5373
|
|
Ix
|
471034.7656
|
Iy
|
188315.7718
|
|
ix
|
30.5555
|
iy
|
19.3200
|
|
Wx(Up)
|
11203.2305
|
Wy(Left)
|
8082.2220
|
|
Wx(Down)
|
10571.8772
|
Wy(Right)
|
8082.2220
|
|
Area moment around
the X-axis
|
6946.9179
|
Area moment around
the Y-axis
|
4594.8117
|
|
Distance from the center of
the shape to the left edge
|
23.3000
|
Distance from the center of
the shape to the right edge
|
23.3000
|
|
Distance from the center of
the shape to the top edge
|
42.0445
|
Distance from the center of
the shape to the lower edge
|
44.5555
|
|
Principal moment I1
|
471034.766
|
Direction of principal
moment 1
|
(1.000,0.000)
|
|
Principal moment I2
|
188315.772
|
Direction of principal
moment 2
|
(0.000,1.000)
|
Component composition
|
Item No.
|
GT-CB1-SP
|
|
Item Name
|
1# Solar ground rail splice
|
|
Component
|
Component name
|
Spec（mm）
|
Qty
|
1# Solar ground rail splice
|
300
|
1
|
Self-tapping screw
|
st6.3*25
|
8
|
|
|
|

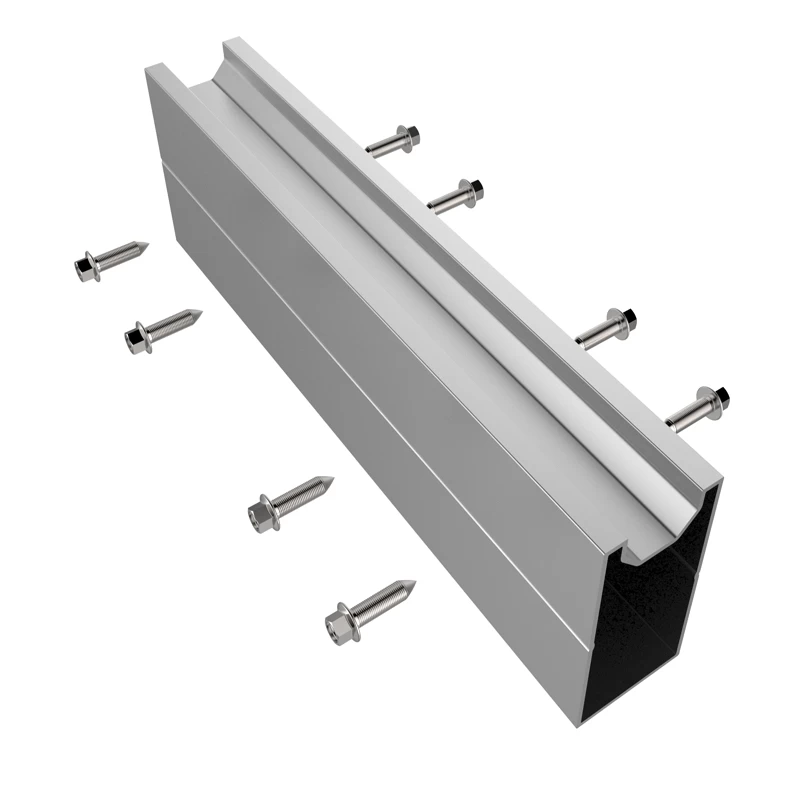

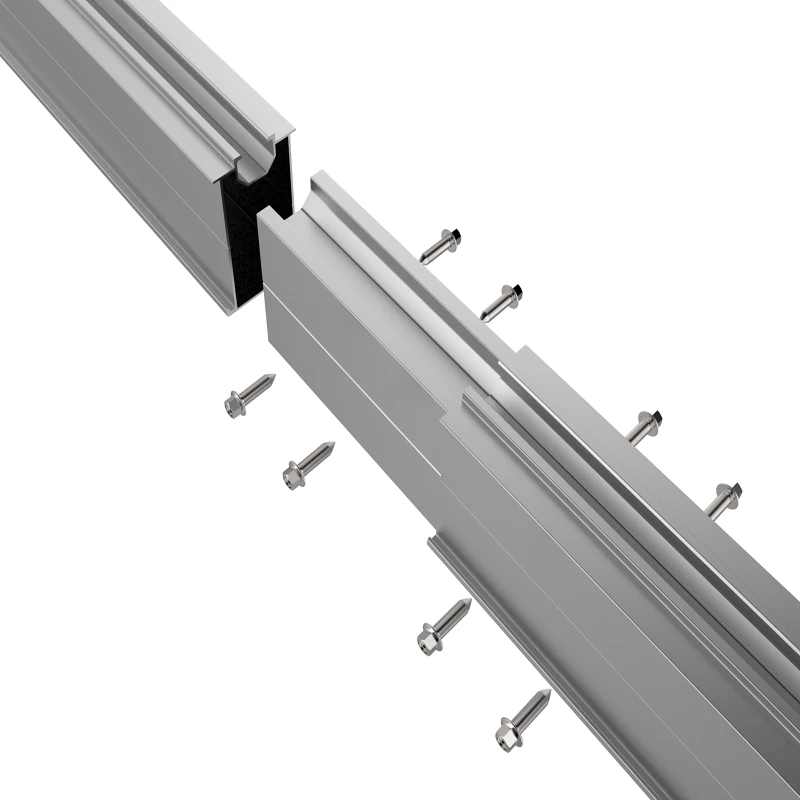

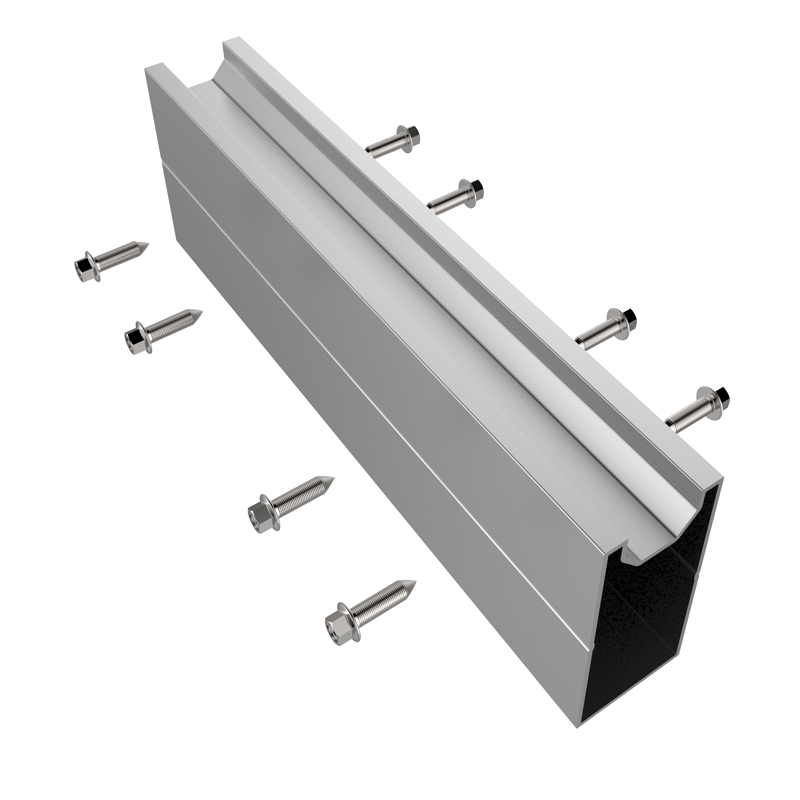

Detail drawing of component installation
