HQ-GM-GT1

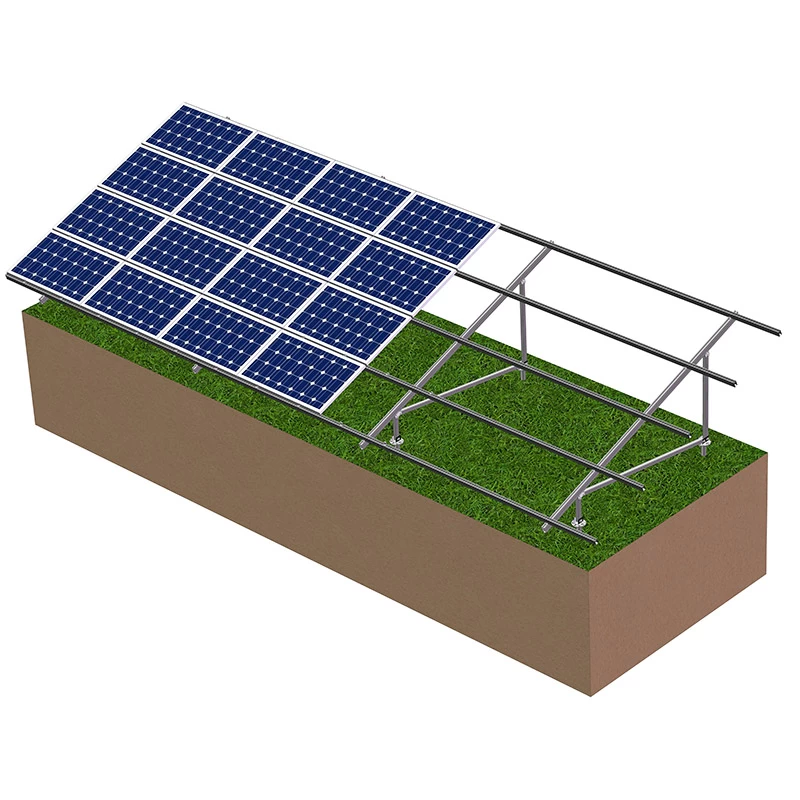

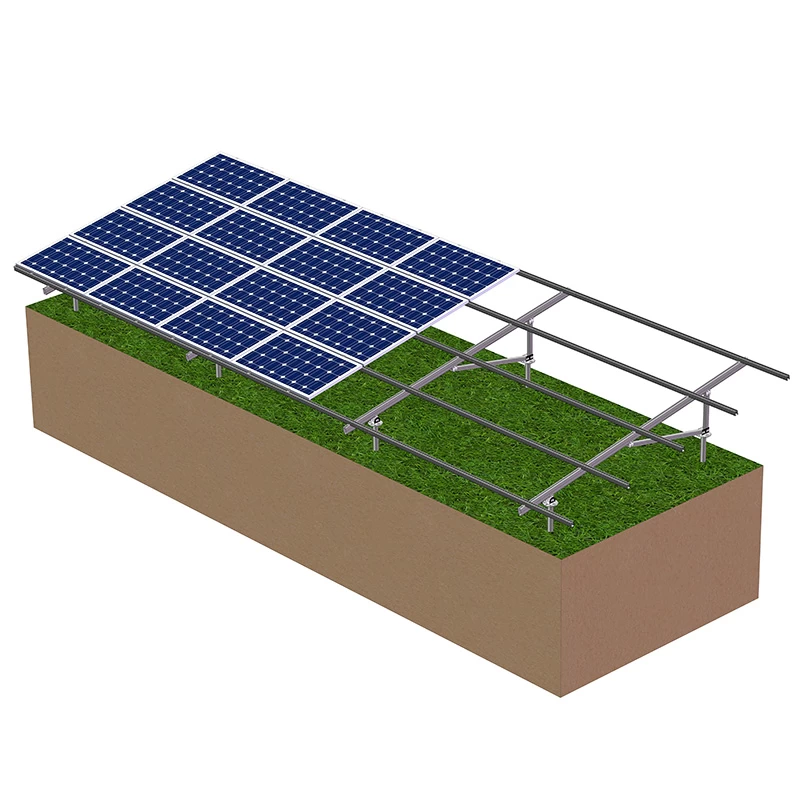

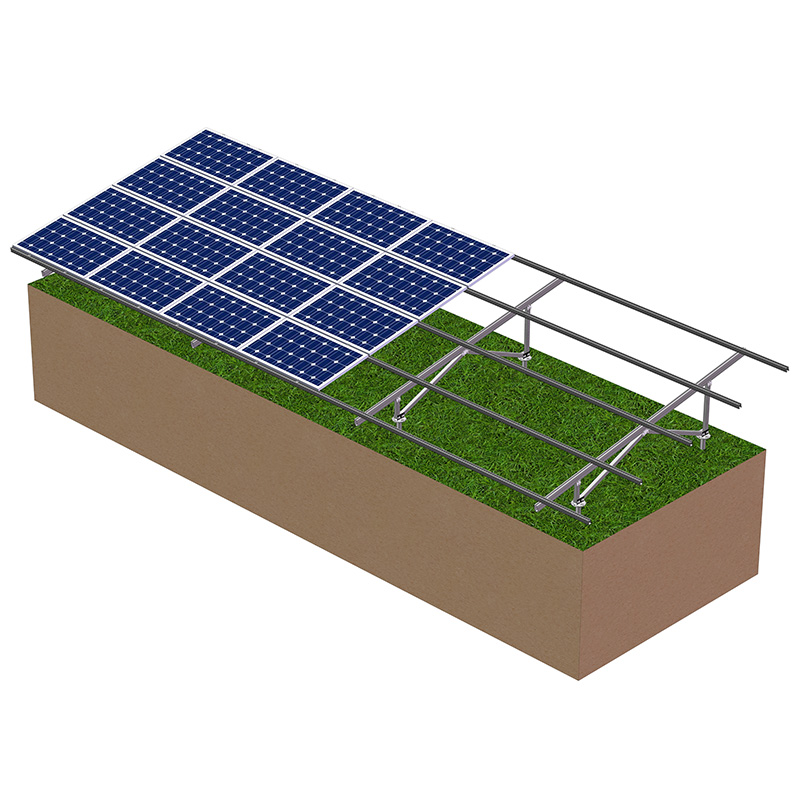

Solar Panel Ground Screw Anchor Mounting Brackets are made for photovoltaic ground systems which featured with light weight, high strength and recyclable material. Customized tilt angles meet complex requirements of construction site and use effectively energy of sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.
|
Installation Site
|
Flat & Open Field
|
|
Tilt Angle
|
0-60 degree
|
|
Max Wind Speed
|
0-80m/s
|
|
Max Snow Load
|
0-150cm
|
|
Applicable Panel
|
All kind of panels
|
|
Installation Direction
|
Landscape/Vertical
|
|
Material
|
Aluminum & SUS304
|
|
Design Criteria
|
AS/NAZ S1170,JIS C 8955:2011/2017,DIN1055
|
Component
The application of this solution is widely. It can minimize the impact on the environment; and it is simple and fast on installation, which saves installation time greatly, saves installation costs. Ground screw foundation has a unique oblique spiral design,which can greatly ensure the stability and robustness when with standing staic load.
Highly Pre-assemble

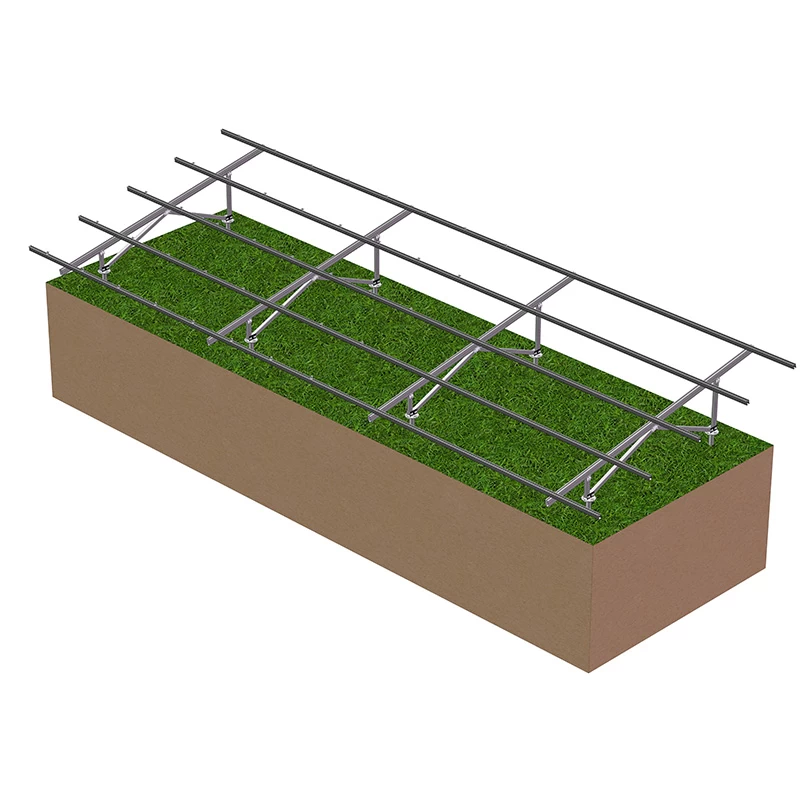

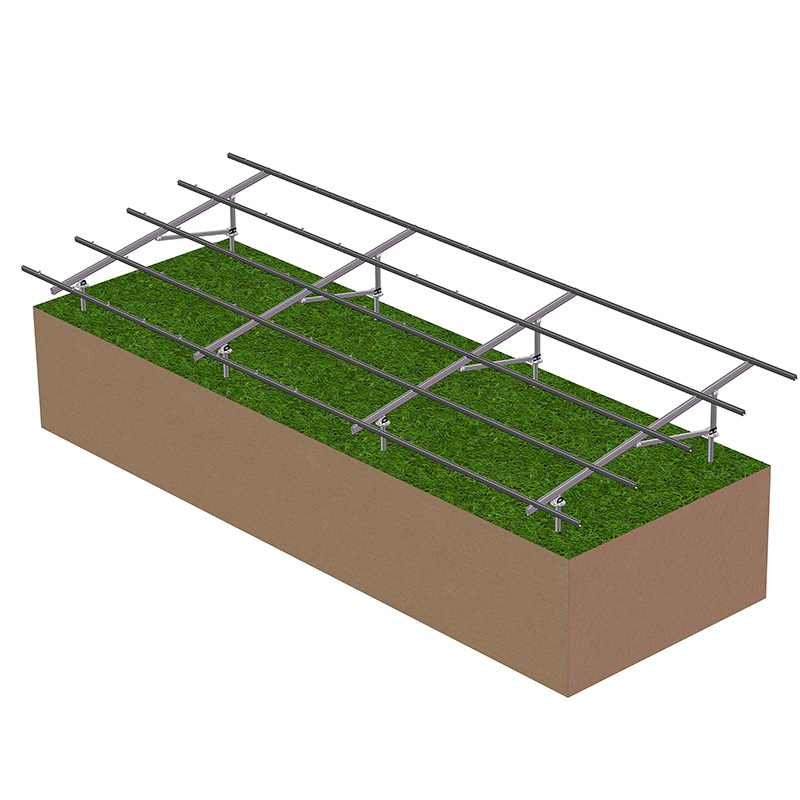

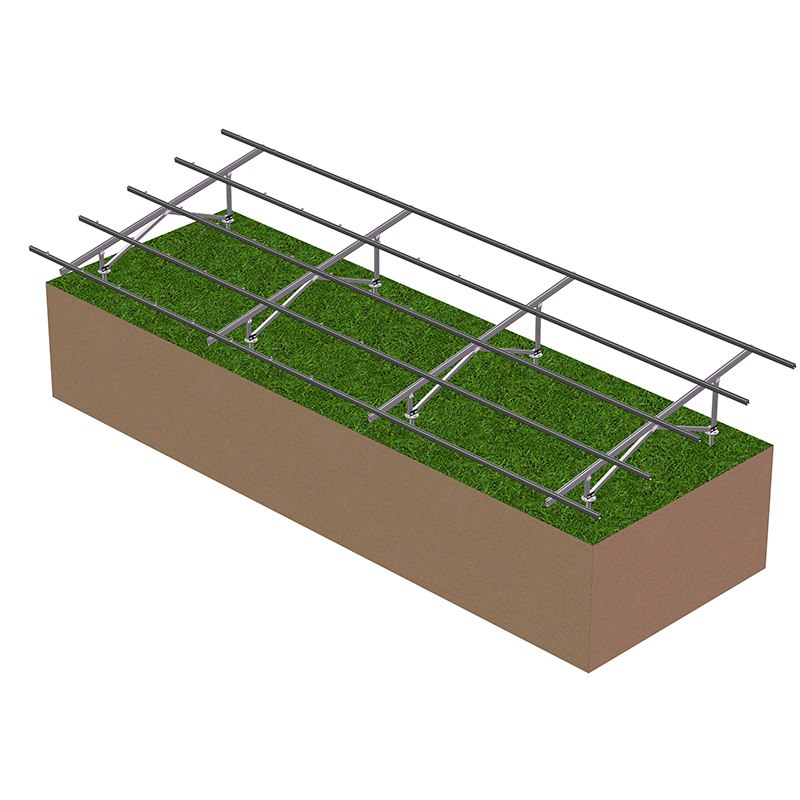

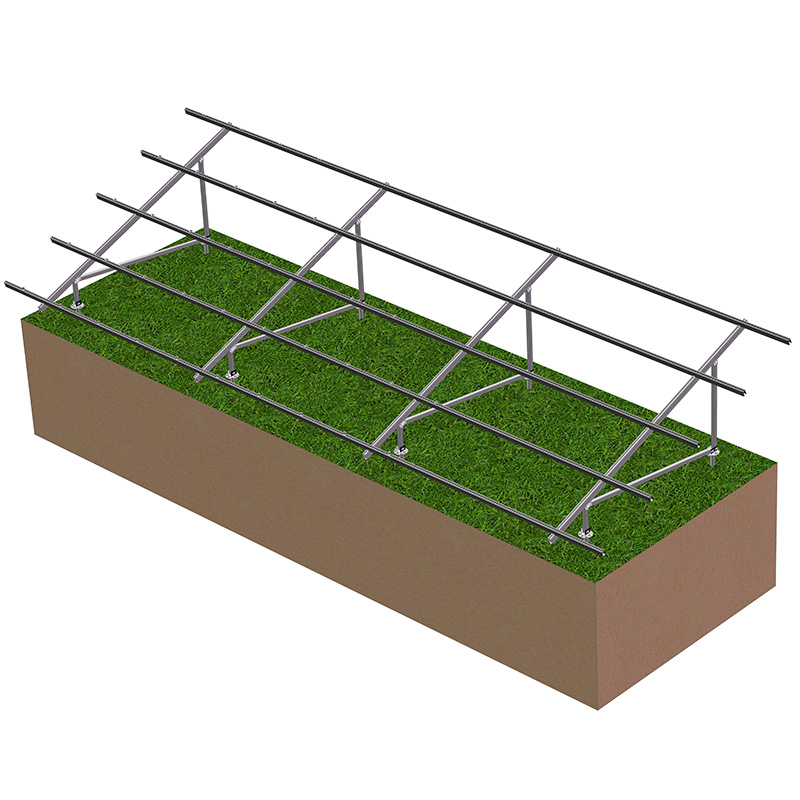

N Type W Type A Type
Different structures are available with different strength requirements.
If you
have a large enough patch of land that isn't covered in shade,
ground-mounted solar panels might be a good option. With Ground Mounted Solar Panels, you can mount solar panels with the ideal tilt and
orientation for maximum sunlight.
Advantages
1. Unique post profile,saving material cost
2. Simple installation,saving labor cost
3. Horizontal and vertical rotation available
4. Tilt IN/OFF Design, easy for installation
