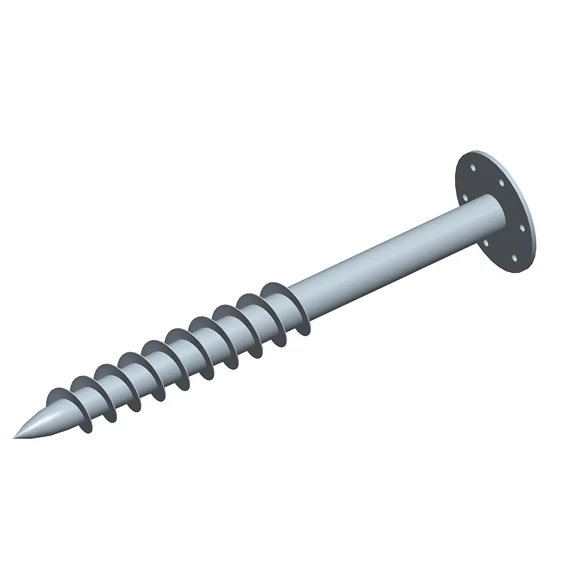

Solar ground screw

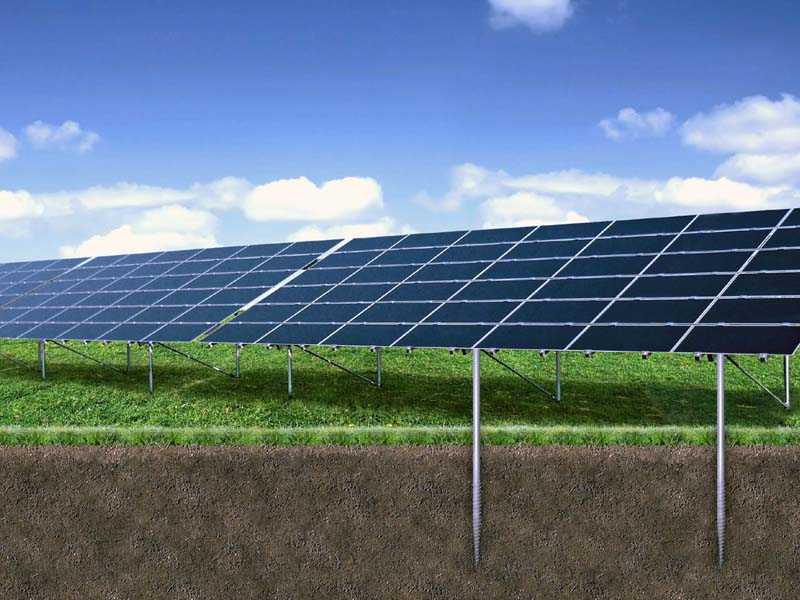

The ground screw foundation allows for a streamlined design and a cost-effective ground mount system. Using less concrete, no excavation, especially useful for sites with restricted access or environmental sensitivity.
High adaptability can be widely used in all kinds of geological conditions, such as foreshore , desert, grassland, etc.
Item No.
|
Length
|
Out Dia.
|
Thickness
|
Flange Out Dia.
|
Material
|
AT76xT3.5x1200
AT76xT3.5x1400
AT76xT3.5x1600
AT76xT3.5x1800
AT76xT3.5x2000
|
1200mm
1400mm
1600mm
1800mm
2000mm
|
76mm
|
3.5mm
|
220mm
|
Hot dipped
galvanized
steel, Q235B
|
AT76xT3x1200
AT76xT3x1400
AT76xT3x1600
AT76xT3x1800
AT76xT3x2000
|
1200mm
1400mm
1600mm
1800mm
2000mm
|
76mm
|
3mm
|
200mm
|
Hot dipped
galvanized
steel,Q235B
|
* Length can be customized
1. Suitable for all terrain including sloping hills and soil types.
2. Significant cost savings through time taken to construct.
3. Fast and accurate insertion of ground screw.
4. Statistically tested and certified by independent testing institutions for load, pull and wind load according to stringent guidelines.
5. Quick installation: a ground screw can be installed every 30 to 75 seconds

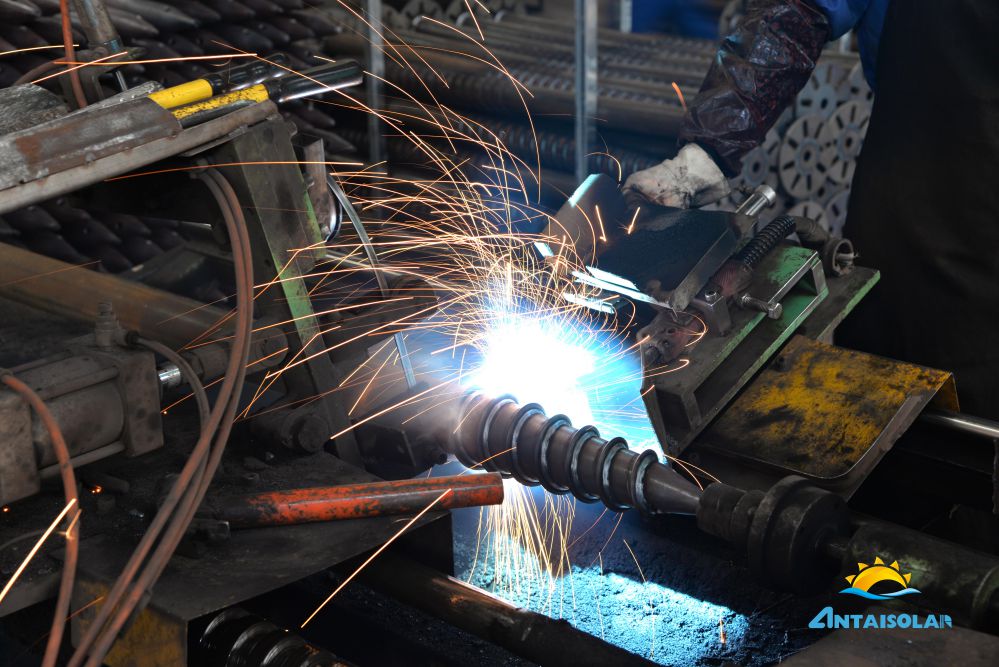

| 100% automatic welding machine
| Strictly in house quality control
|
|
