Grounding product can be used to bond solar
modules to the aluminum rails and the aluminum rails to ground,so that the
entire solar system is grounded and safe,Grounding products inculde the
stainless steel grounding clip and aluminum grounding lup

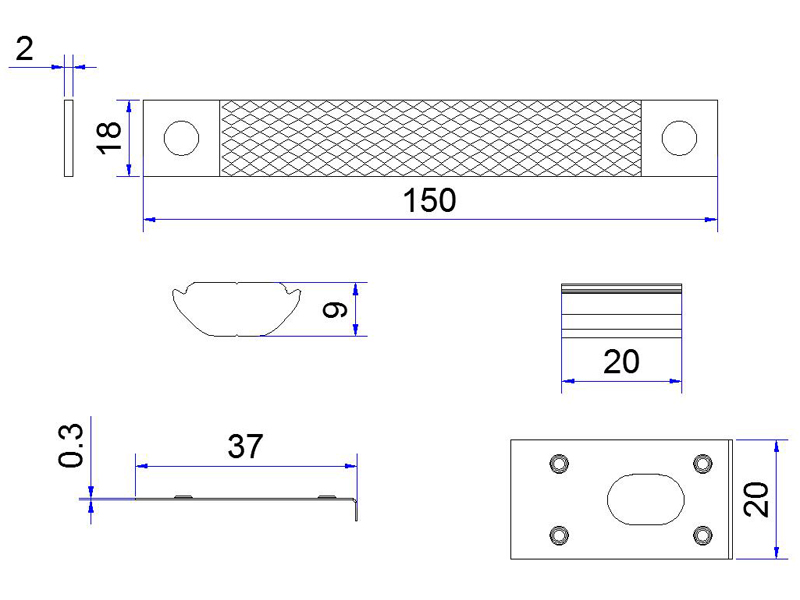

Drawing of component section

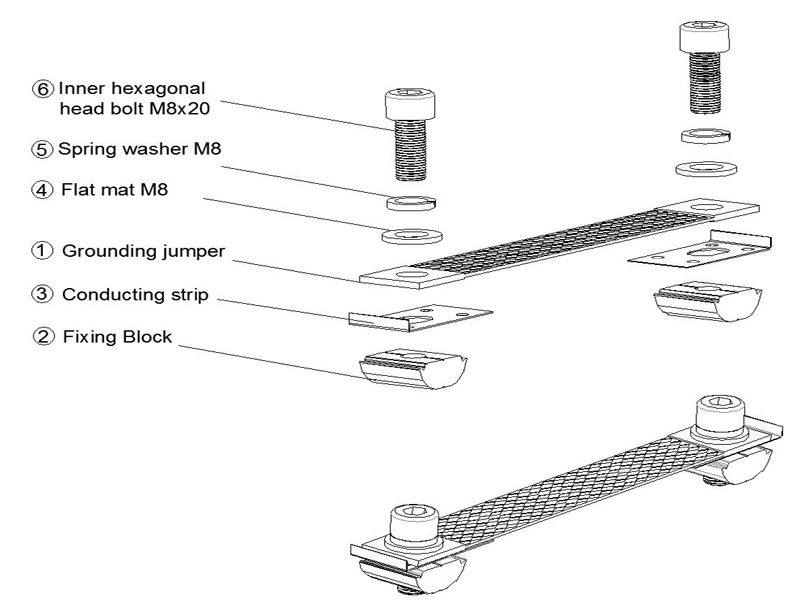

Component composition
|
Item No.
|
GT-GJ
|
|
Item Name
|
Solar grounding jumper
|
|
Component
|
Component name
|
Spec (mm)
|
Qty
|
|
Grounding jumper
|
150
|
1
|
Fixing Block
|
20
|
2
|
Solar conducting strip
|
28
|
2
|
|
Flat mat M8
|
M8
|
2
|
|
Spring washer M8
|
M8
|
2
|
|
Inner hexagonal head bolt M8x20
|
M8*20
|
2
|

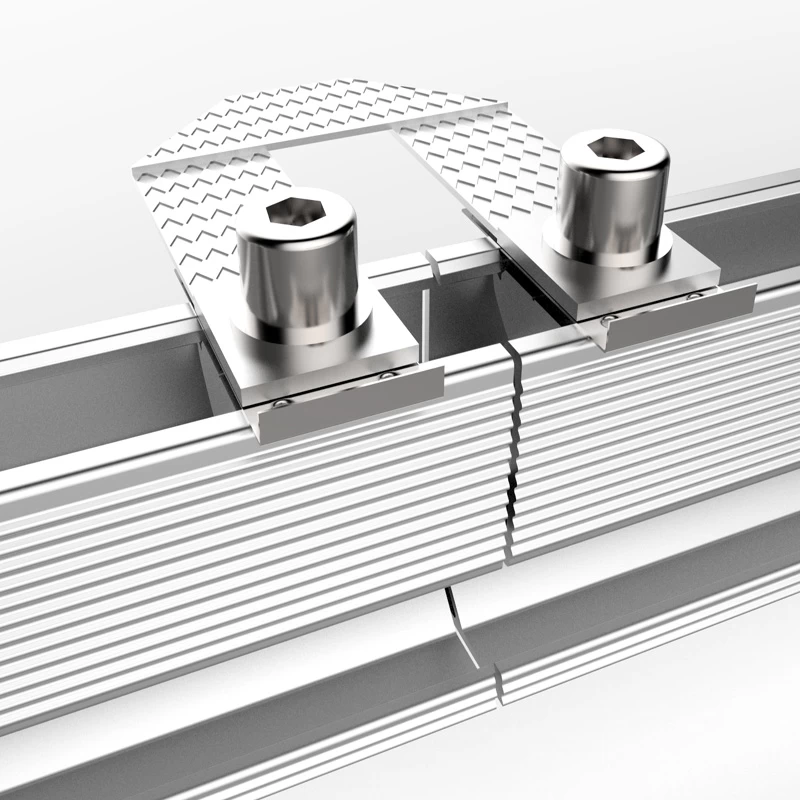

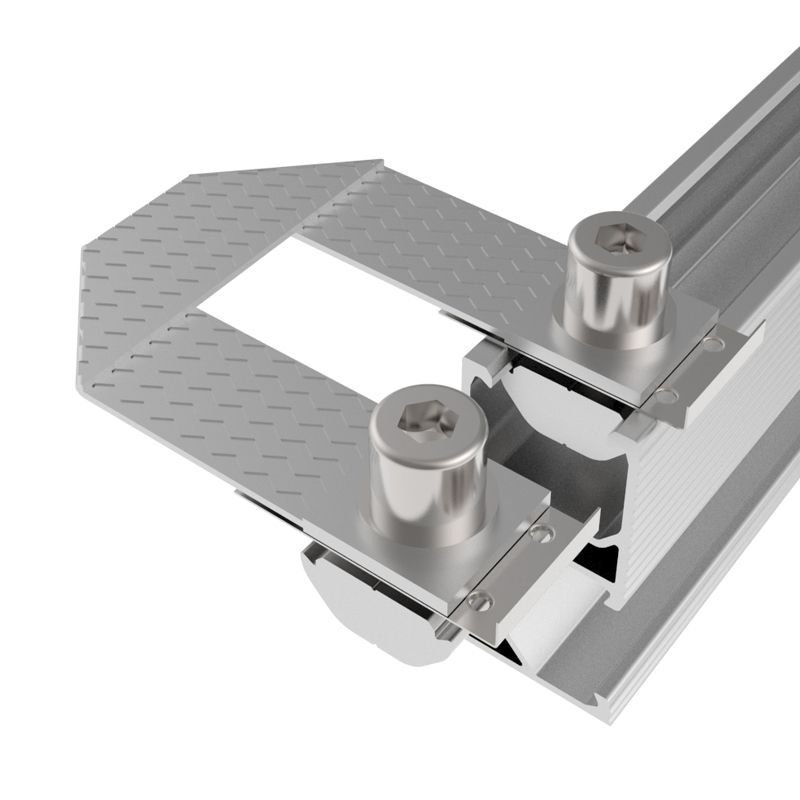

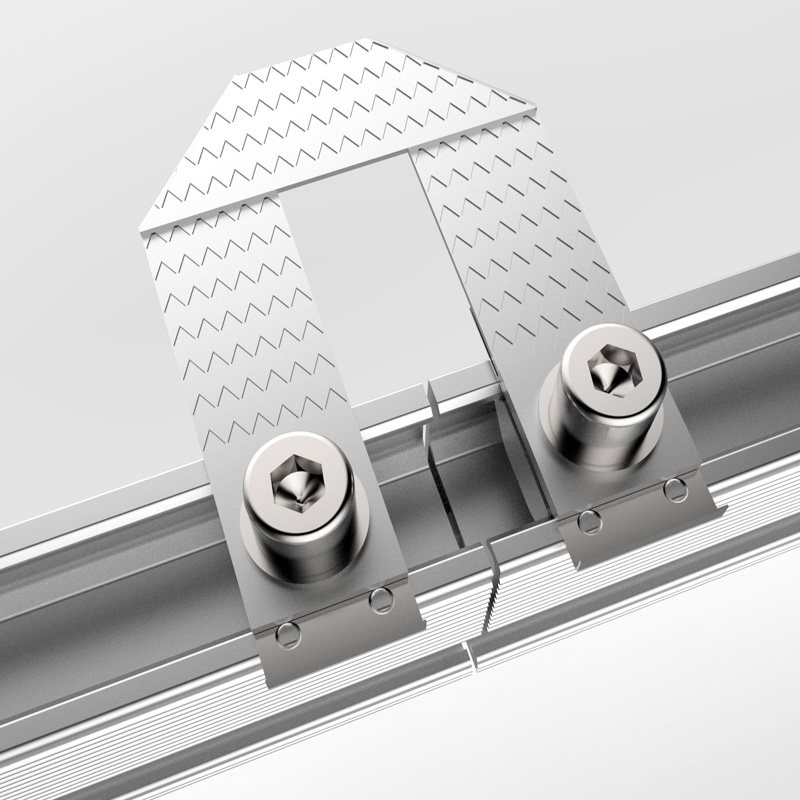

Detail drawing of component installation
