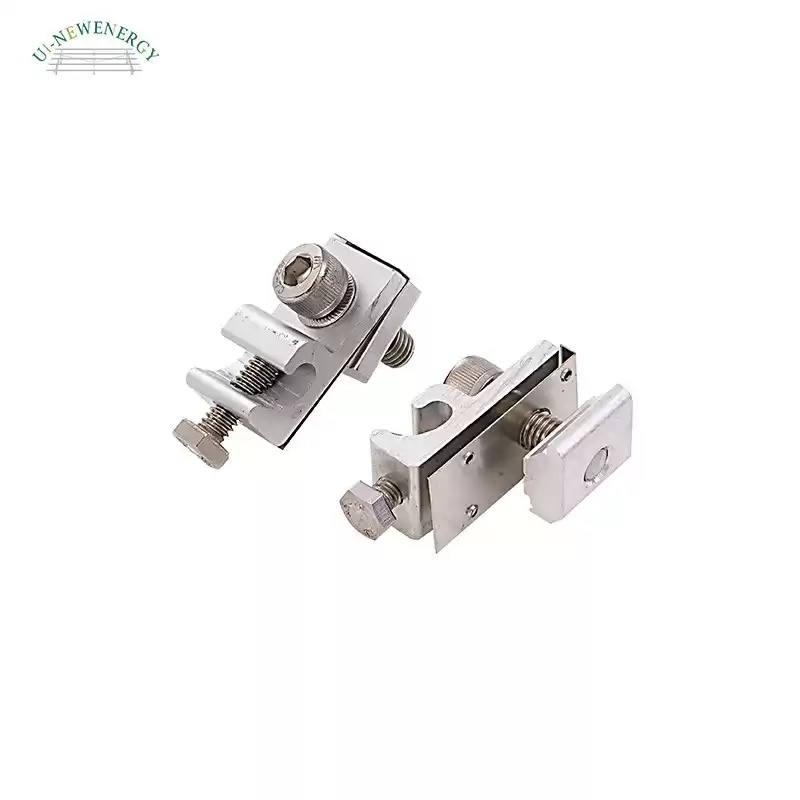

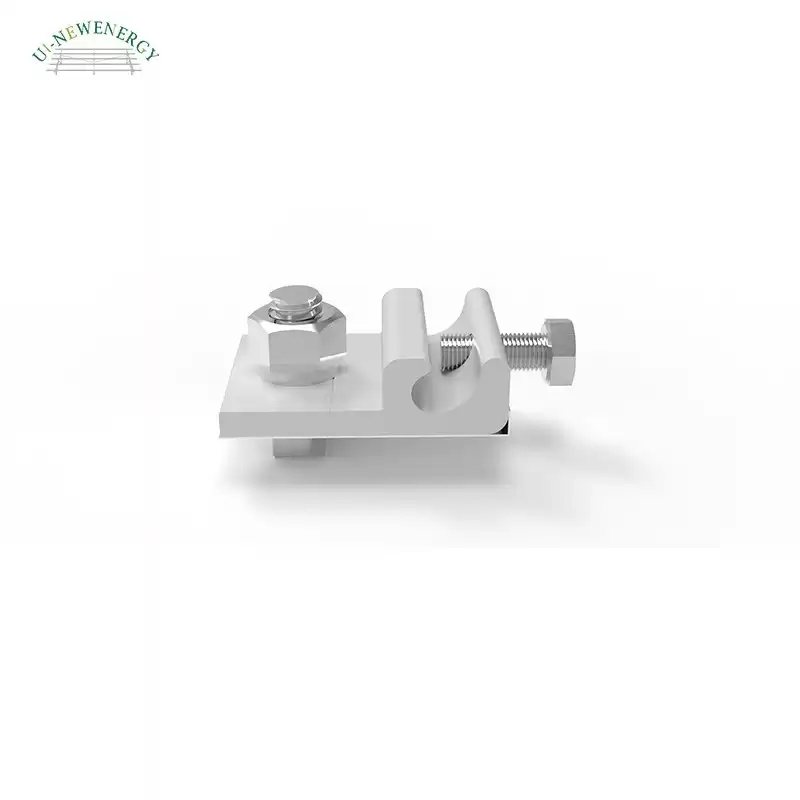

Grounding Lug UN-GL

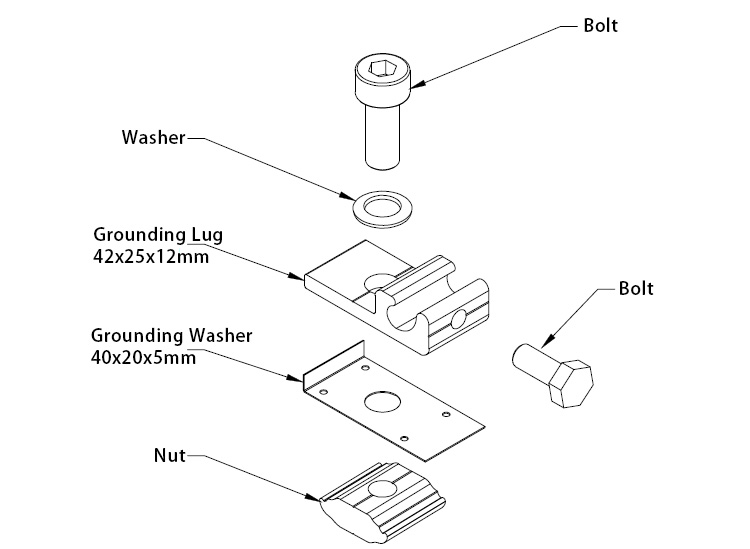

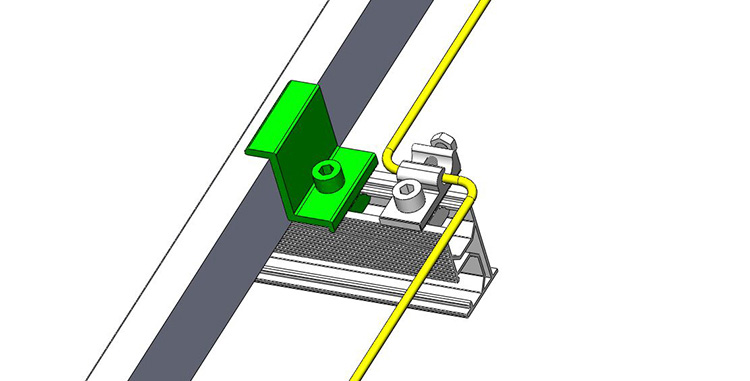

The low profile of the grounding lug allows it to be installed in a variety of positions with one solid or stranded copper wire (14AWG to 6 AWG), or two copper wires (12 AWG to 10 AWG).It is installed using stainless steel mounting hardware. When the hardware is tightened, the conductive plate specialized teeth embed into anodized aluminum or any electrically conductive metal to establish a gas tight electrical connection.
Solar Grounding Lug Features:
Made of corrosion-resistant aluminum and SUS304. Design ensures a quick and easy installation. Multiple equipment ground conductor allowance.
1.With or without conductive plate.
2.Assembled and unassembled.
3.With or without installation hardware.
4.Meet standard of AS/NZS 1170.2 , JIS C 8955：2017 and UL / TUV certification.
5.Custom designs available upon request.
|
Product Parameter
|
|
Product Name
|
Grounding Lug
|
|
Installation Site
|
Solar Mounting System
|
|
Material
|
Stainlesd Steel 304 and Al6005-T5
|
|
Surface
|
Clean
|
|
Color
|
Silver or Customized
|
|
Weight
|
36.6g
|
|
Standard
|
AS/NZS 1170; JIS C8955:2017
|
F A Q
Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.
Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.
Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.
Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.
Q4: How can I get some samples？
A4:We are honored to offer samples according to your inquiry.
