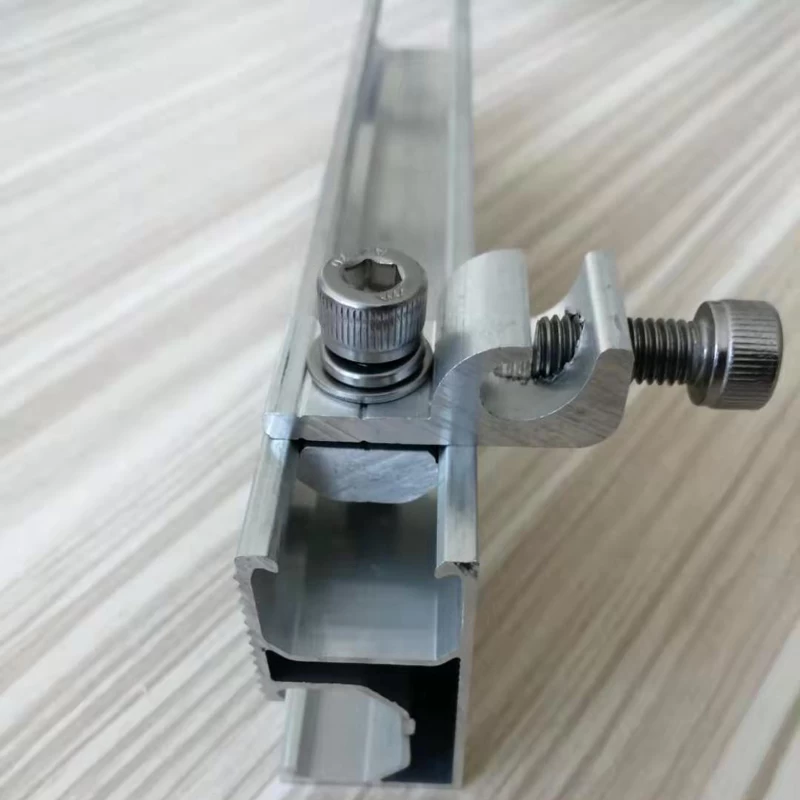

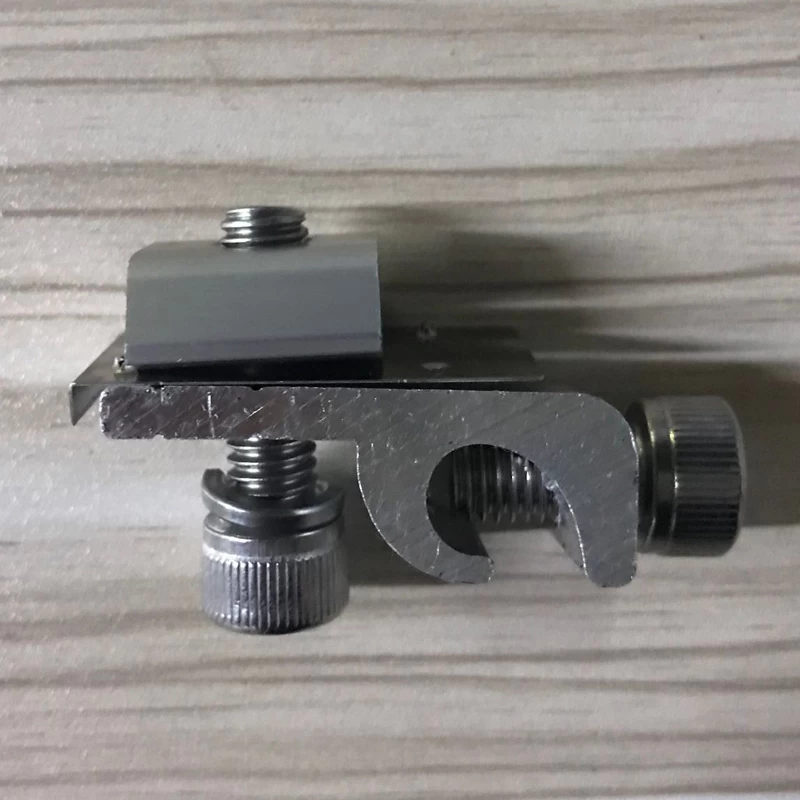

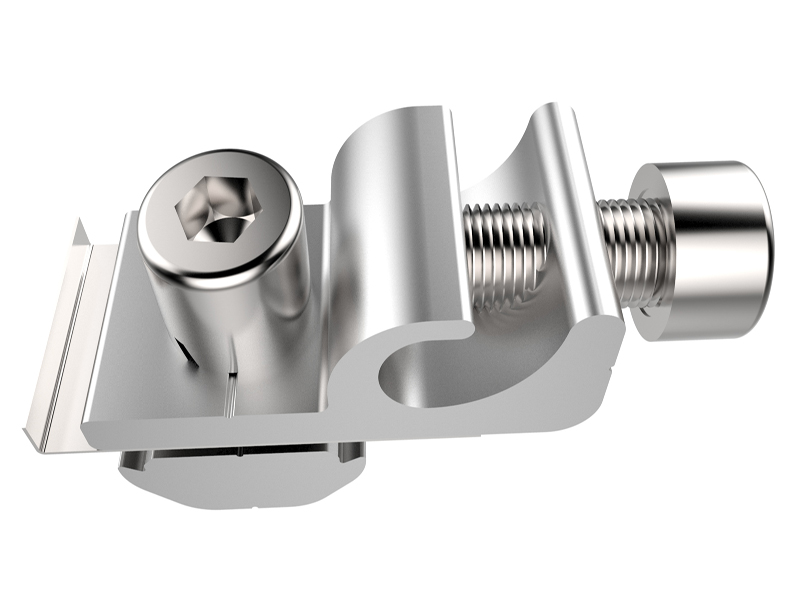

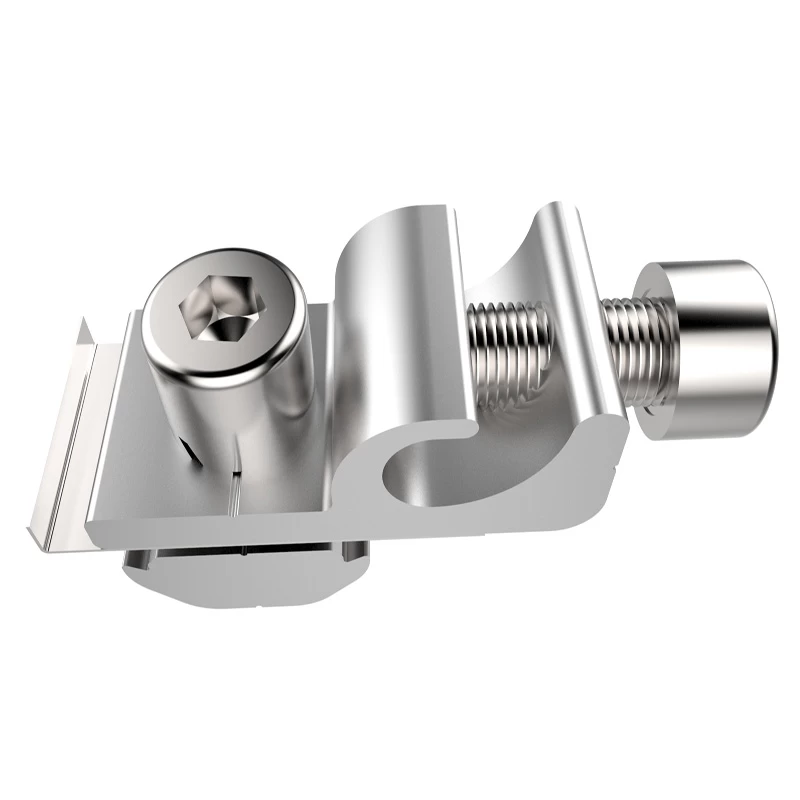

Solar grounding lugs are a great choice for quick installation of one continuous grounding conductor or as a jumper to multiple locations. No need to thread the connector. Just back off the set screw, lay in the cable, and re-tighten. It's also easy to retrofit or repair.
Applications: Attaches and Pierces the Solar Mounting Rails ensuring a Good Earth Bond between Mounting System, Inverter and Earth Stake in the event of a Ground Fault.

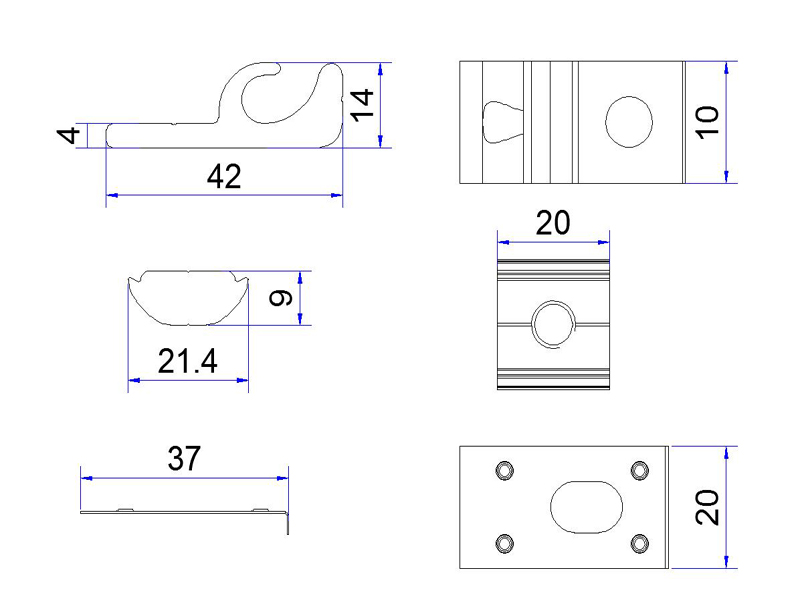

Drawing of component section
Component composition
|
Item No.
|
GT-GL
|
|
Item Name
|
Solar grounding lug
|
|
Component
|
Component name
|
Spec (mm)
|
Qty
|
|
Grounding lup
|
20
|
1
|
Fixing Block
|
20
|
1
|
Solar conducting strip
|
28
|
1
|
|
Spring washer M8
|
M8
|
1
|
|
Inner hexagonal head bolt M8x16
|
M8*16
|
1
|
|
Inner hexagonal head bolt M8x20
|
M8*20
|
1
|

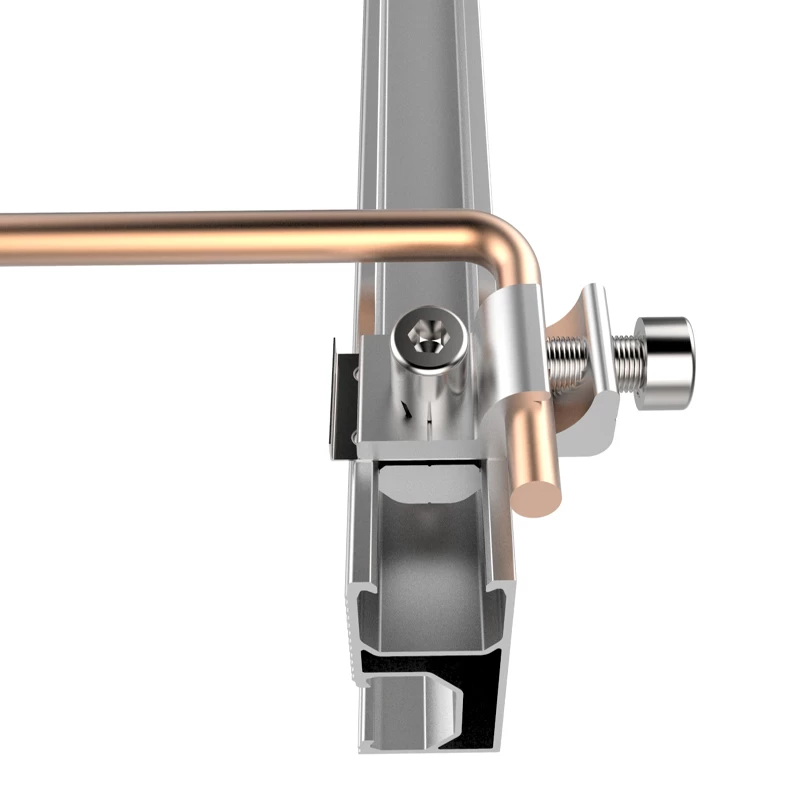

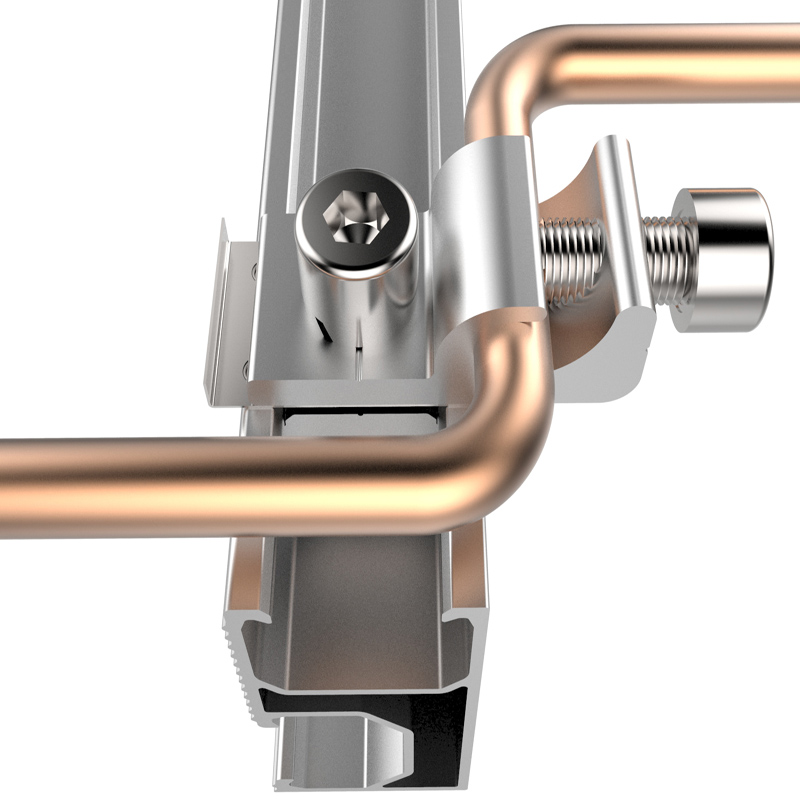

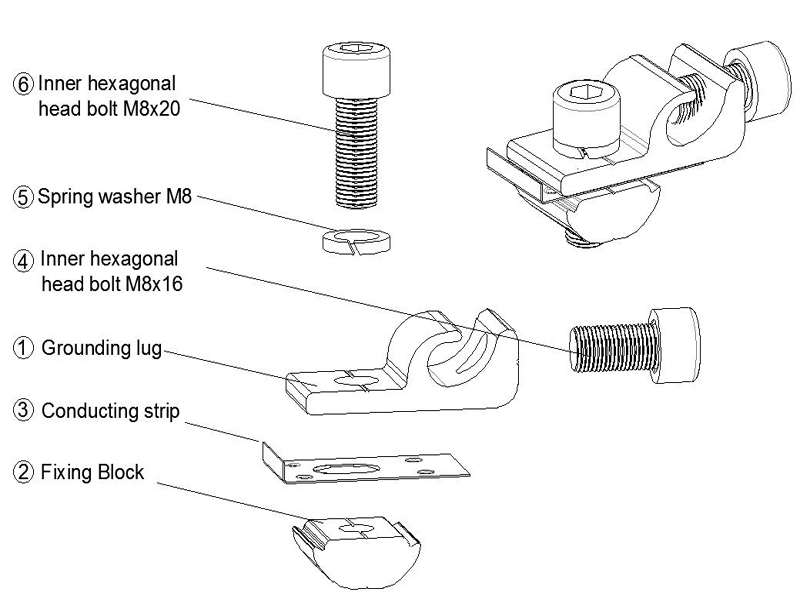

Detail drawing of component installation
