Solar Hanger Bolt for Solar Panels Mounting

solar Hanger Bolts is very commonly used for solar roof mounting system especially metal roofs.



  • Service Life25 years
  • Warranty10 years
  • Materialstainless steel
Facebook Twitter Pinterest LinkedIn 分享

Stainless steel solar panel tile roof hook hanger bolt mounting hook

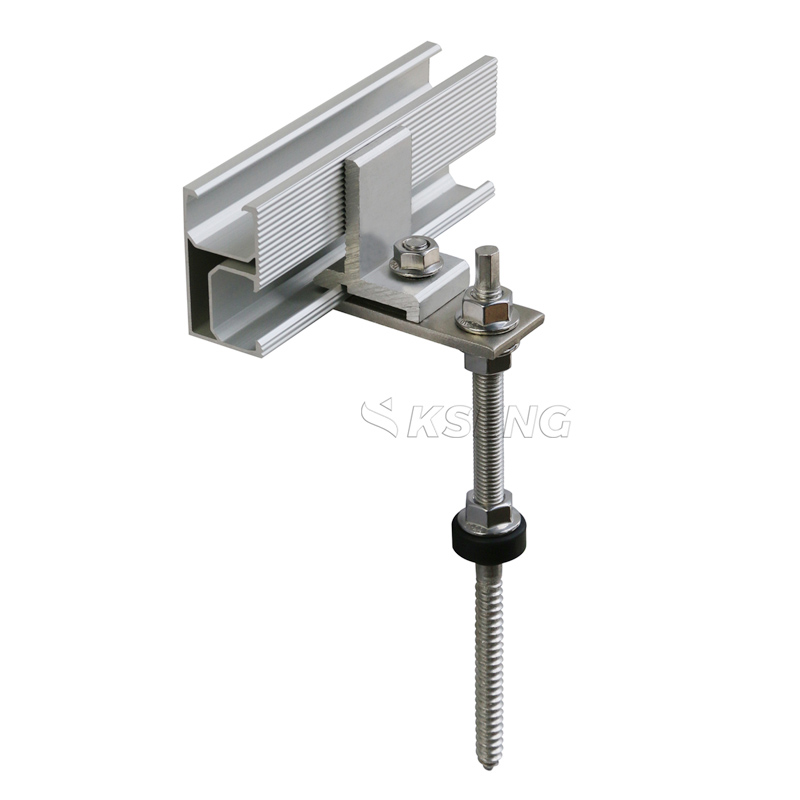

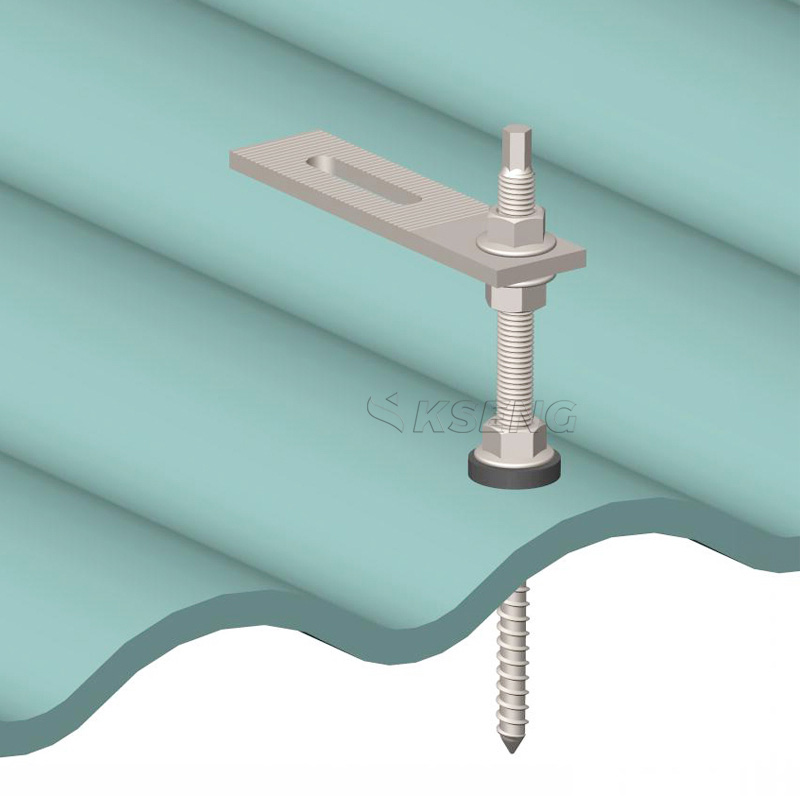

Solar panels Hanger bolt is applied to install on both wooden rafter and steel purlin for trapezoidal / zinc / corrugated / sandwich metal roof profiles . Both types can be applied with L feet and plate.  It can fix the rails and roofing mountings.

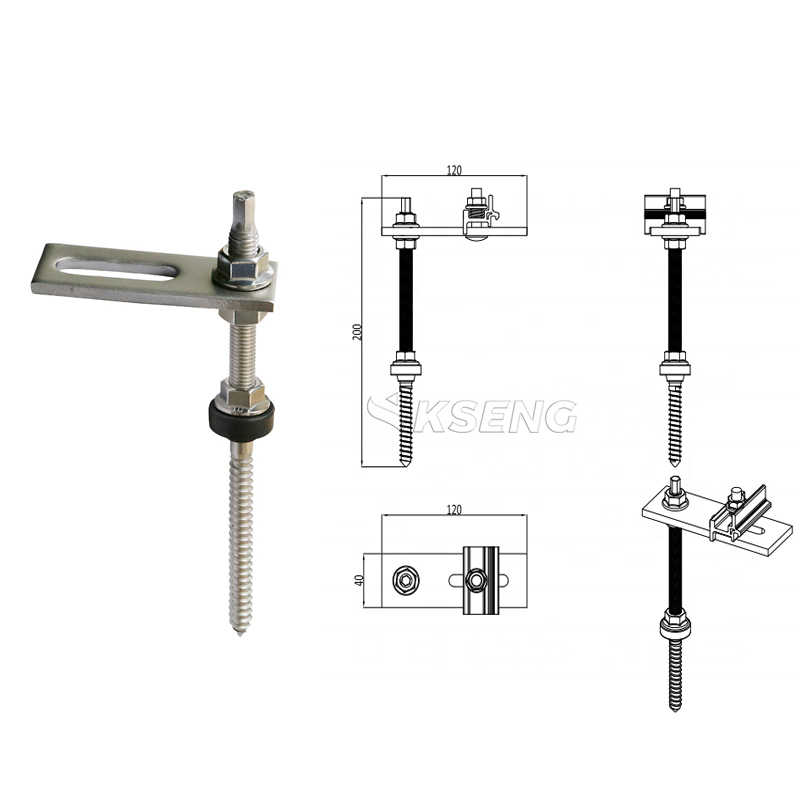

Two length 200mm and 250mm options can be suitable for adjust distance between brackets / L foot rails and metal roofing .

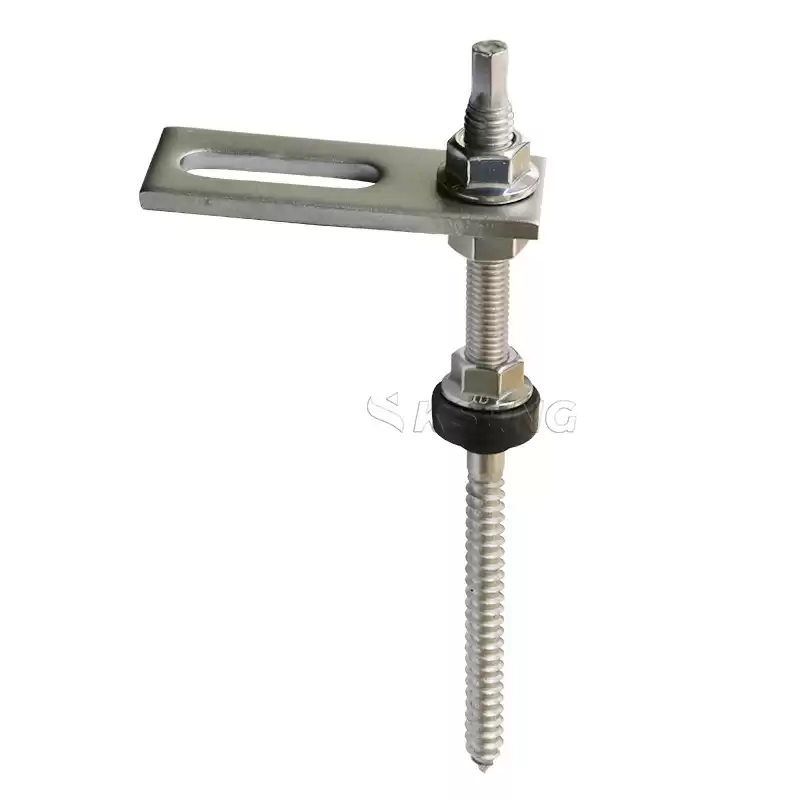

Kseng whole hanger bolt kits includes : stainless steel bolt , nuts, EPDM rubber and fasten L foot / small stainless plate.

L feet01.jpg

Product Name

Solar panels hanger bolts

Model Number

Null

Material

Aluminum 6005-T5 & SUS 304 Stainless Steel

Max Wind Speed

Up to 60 m/s (214KM/H)

Snow Load

Up to 1.4KN/M2

Application

Corrugated Metal Sheet Roof

Warranty

10 Years

Service Life

25 Years

Certification

ISO9001/ CE/ SGS etc.

Standard

AS/NZS 1170
