Why Choose CT Series Inverter？

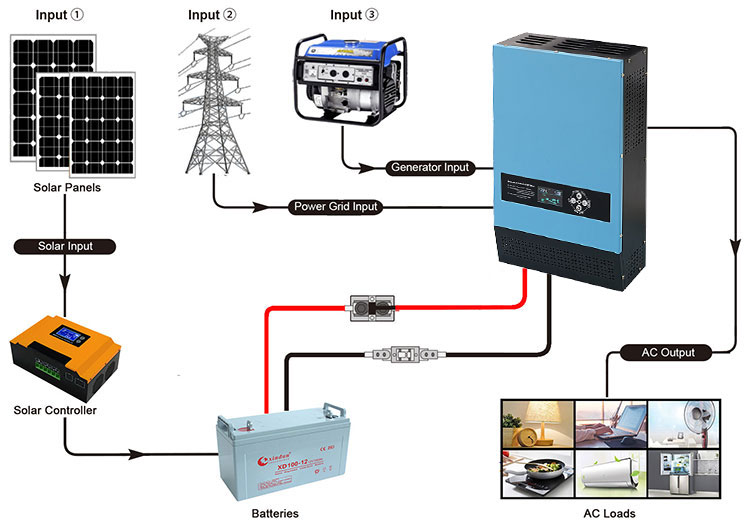

How to use Inverter?
Inverter Technical Parameters
|
Rated Power
|
1000W
|
1500W
|
2000W
|
3000W
|
4000W
|
5000W
|
6000W
|
|
Peak Power(20ms)
|
3000VA
|
4500VA
|
6000VA
|
9000VA
|
12000VA
|
15000VA
|
18000VA
|
|
Start Motor
|
1HP
|
1.5HP
|
2HP
|
3HP
|
3HP
|
4HP
|
4HP
|
|
Battery Voltage
|
12/24/48VDC
|
24/48VDC
|
24/48VDC
|
48VDC
|
|
Size(L*W*Hmm)
|
500*300*140
|
530*335*150
|
|
Packing Size(L*W*Hmm)
|
565*395*225
|
605*430*235
|
|
N.W.(kg)
|
12
|
13.5
|
18
|
20
|
22
|
24
|
26
|
|
G.W.(kg)(Carton Packing)
|
13.5
|
15
|
19.5
|
21.5
|
24
|
26
|
28
|
|
Input
|
DC Input Voltage Range
|
10.5-15VDC(Single battery voltage)
|
|
AC Input Voltage Range
|
85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) / 180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
|
|
AC Input Frequency Range
|
45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
|
|

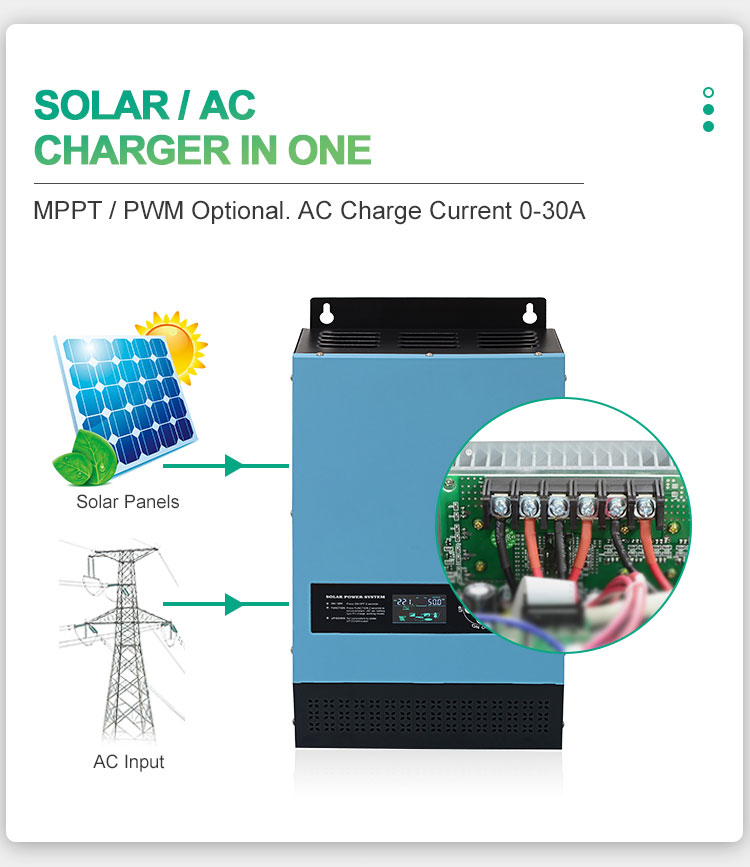

Max AC charging current
|
0~30A(Depends on model)
|
|
AC charging method
|
Three-stage (constant current, constant voltage, floating charge)
|
|
Output
|
Efficiency(Battery Mode)
|
≥85%
|
|
Output Voltage(Battery Mode)
|
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
|
|
Output Frequency(Battery Mode)
|
50/60Hz±1%
|
|

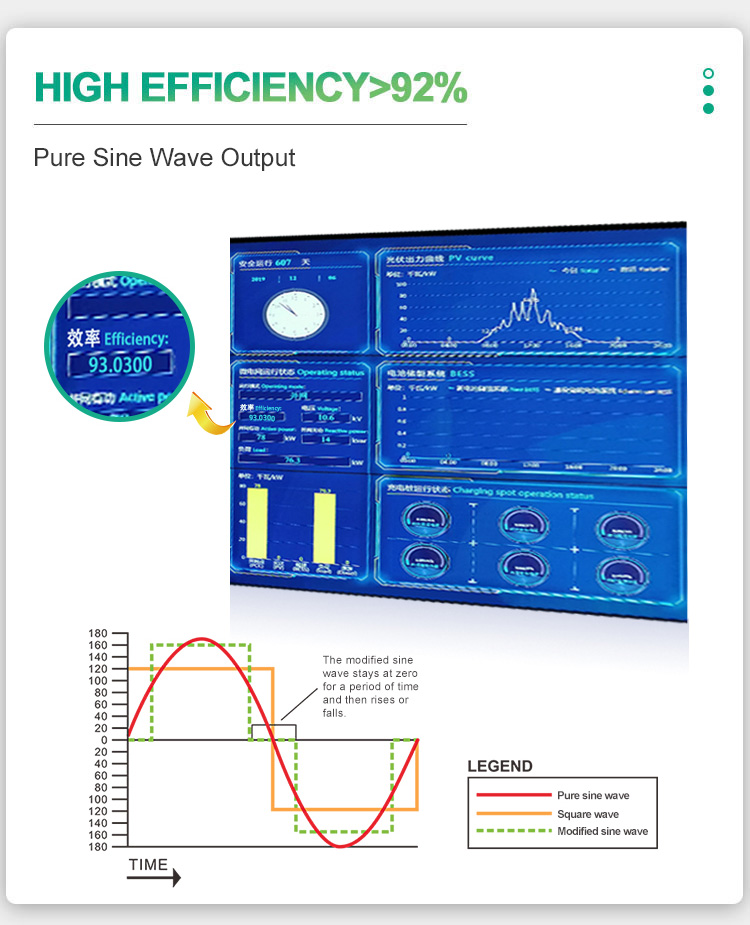

Output Wave(Battery Mode)
|
Pure Sine Wave
|
|
Efficiency(AC Mode)
|
>99%
|
|
Output Voltage(AC Mode)
|
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
|
|
Output Frequency(AC Mode)
|
Follow input
|
Output waveform distortion
(Battery Mode)
|
≤3%(Linear load)
|
|
No load loss(Battery Mode)
|
≤0.8% rated power
|
|
No load loss(AC Mode)
|
≤2% rated power( charger does not work in AC mode)
|
No load loss
(Energy saving Mode)
|
≤10W
|
|
Battery Type
|
VRLA Battery
|
Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
|
|
Customize battery
|
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
|
|
Working Mode
|
Battery First/AC First/Saving Energy Mode
|
|
Transfer Time
|
≤4ms
|
|
Communication
|
RS485/APP(WIFI monitoring or GPRS monitoring)
|
|
Special voltage, power and appearance can be customized according to the users.
Accept OEM/ODM
|
Safe Packaging

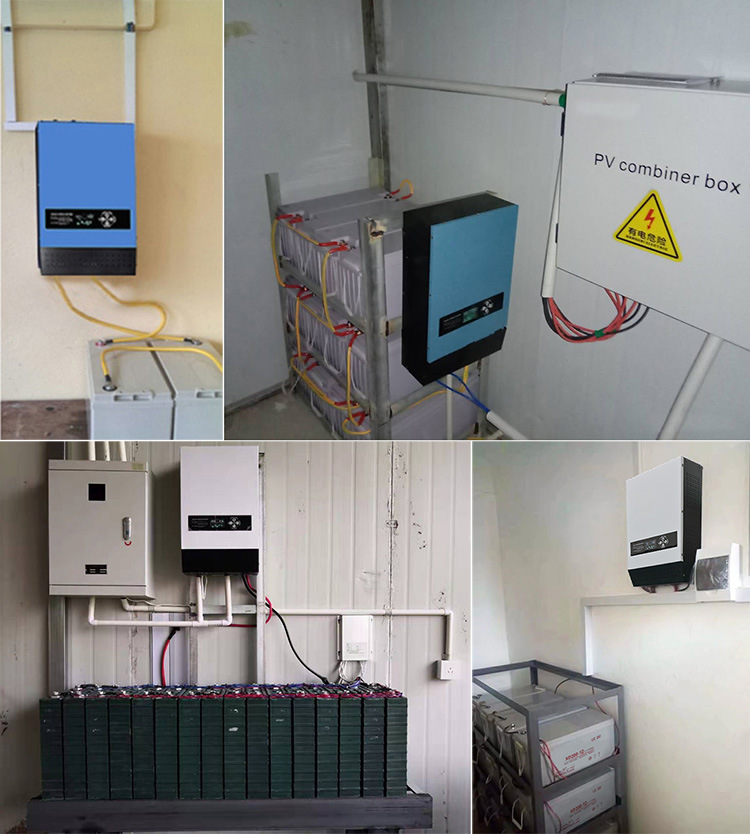

Inverter Application Case
FAQ
Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.
Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.
Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.
Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.
Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.
Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.
Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
