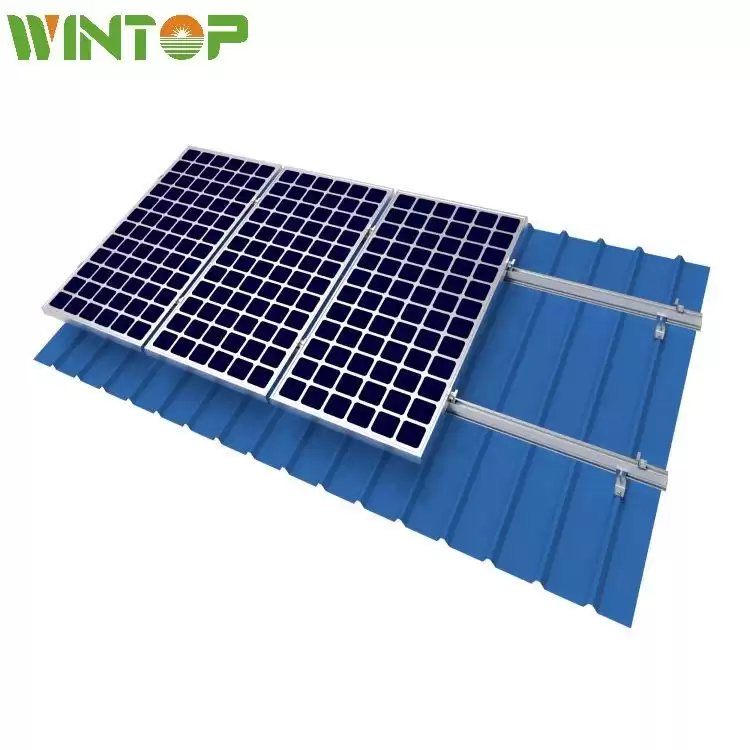

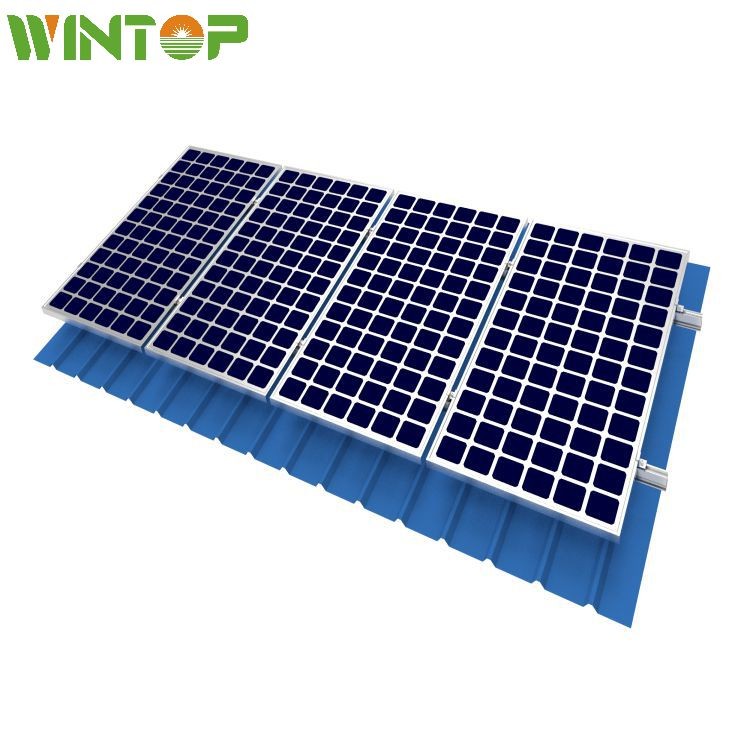

Solar Metal Roof L-feet Hook Mounting Bracket System
Product Description

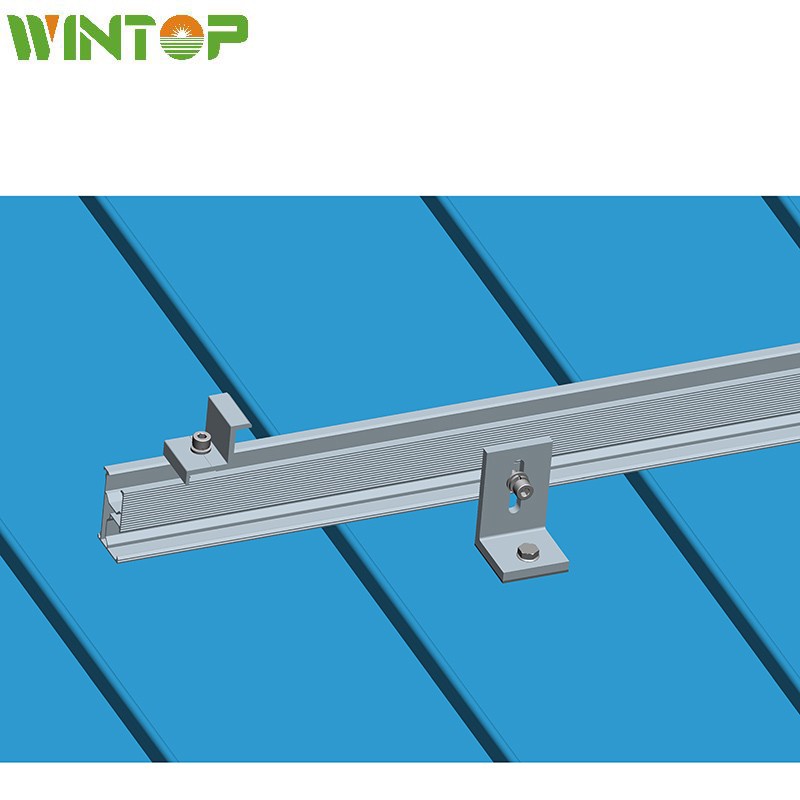

L Feet,hanger bolt both available for foot option, making installation more fat, competitive and reliable. L-feet insert anywhere without sliding. The solar tin roof L foot systems are fully compliant with the Australia and other country standards.This system have various installation methods, suitable for various tin roof.
Technical Parameters
|
Installation location
|
Roof
|
|
Installation foundation
|
Tin roof
|
|
Installation angle
|
0°
|
|
Wind load
|
60m/s（216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Distance from module lowest point to the ground
|
Roof height
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
-
Easy to adapt to most types of tin roof
-
Support high wind and snow load
-
Highly pre-assembled accessories ensure quick and easy installation
-
Can match frame or frameless panel
-
Can be installed vertically and horizontally

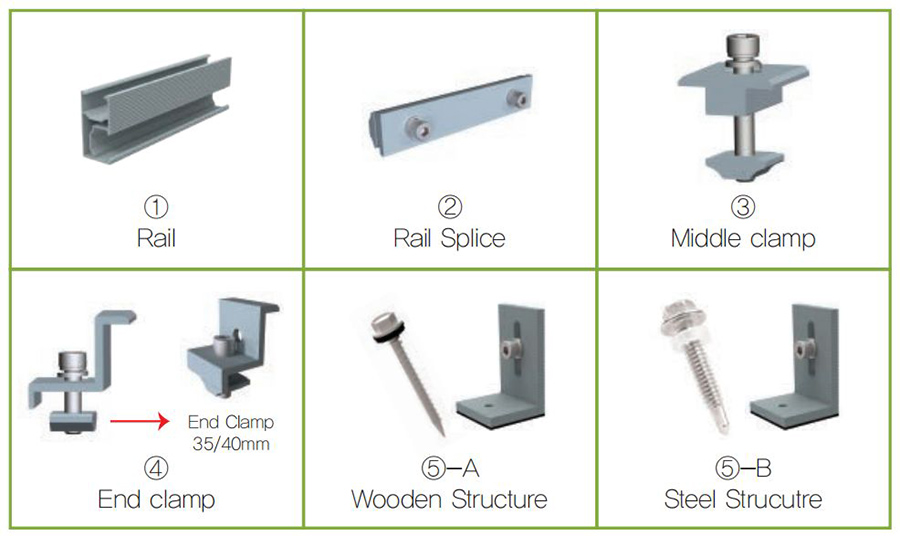

Components

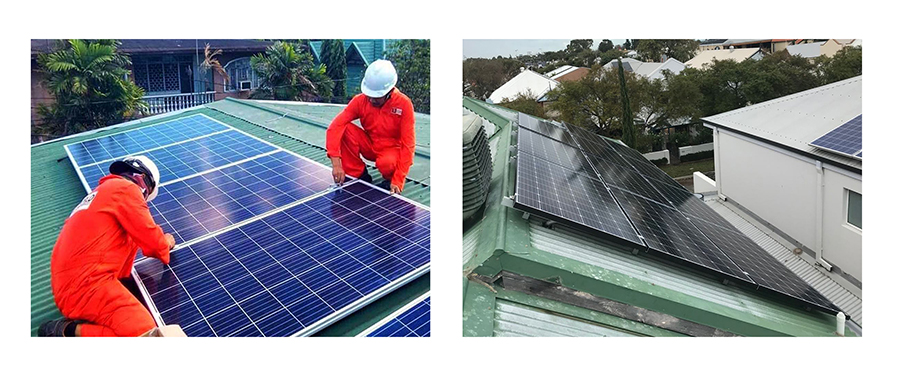

Project
Certificate
QC
WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
FAQ
(1) Will the solar panels cause my roof to leak?
No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.
(2) Where is your factory located?
Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.
(3) How can I get to your factory?
When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.
(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
(5) What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
