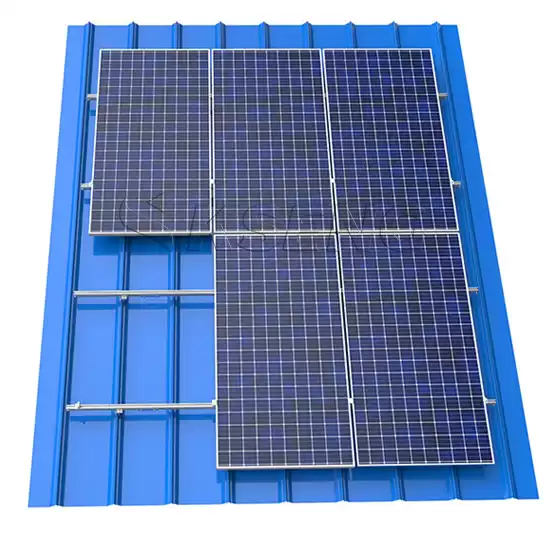

Solar Metal Roof Mounting with Clamps

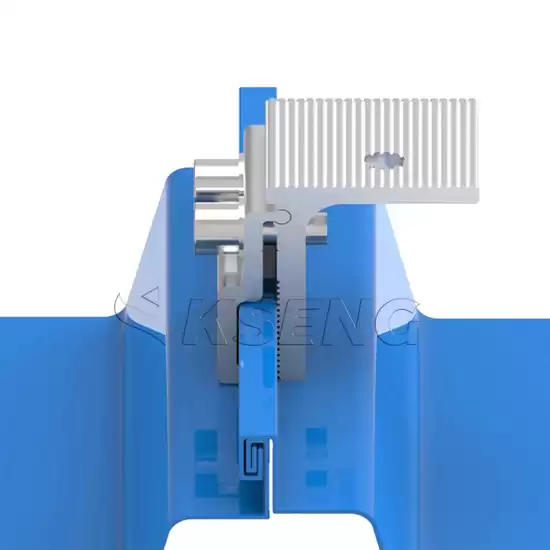

Solar metal roof mounting with clamps are suitable for standing seam metal roofs without drilling. It can speed up the installation speed, improve reliability.
The solar roof mounting system is design to allow the attachment of solar panels or solar mounting rail directly to standing seam metal roof. It is easy system and cost-effective mounting sytem.
|
Material:
|
Aluminum 6005-T5& SUS 304 Stainless Steel
|
|
Application:
|
Standing Seam Metal Roof
|
|
Standard:
|
AS/NZS 1170
|
|
Certification:
|
ISO9001/UL/CE/SGS
|
Pv Modules:
|
Framed or Frameless
|
Anti-Corrosive:
|
Anodized
|
Warranty:
|
10 Years
|
|
Service Life:
|
25 Years
|
|
Components:
|
Standing Seam Clamp, Mid Clamp, End Clamp, Aluminum Rail etc.
|

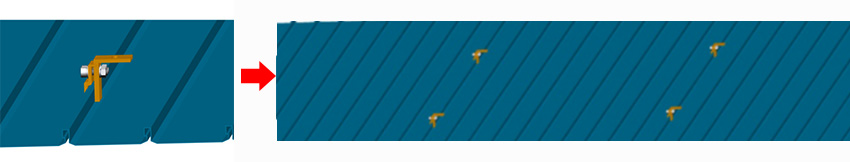

1/step1: Clamp the standing seam roof clamps to metal roof and fasten nut.

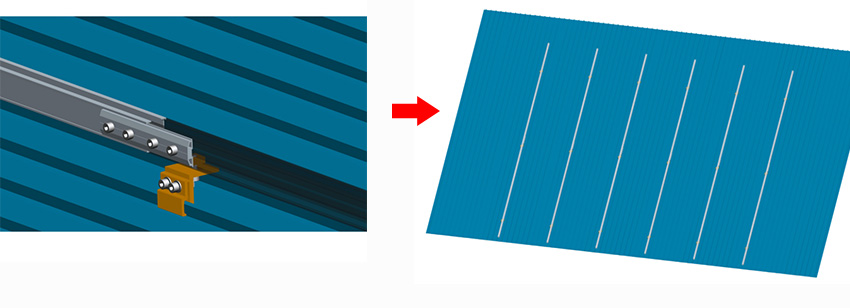

2/step2: The aluminum alloy rail is connected and fixed on stading seam roof clamps by aluminum nut&bolt and rail splice.

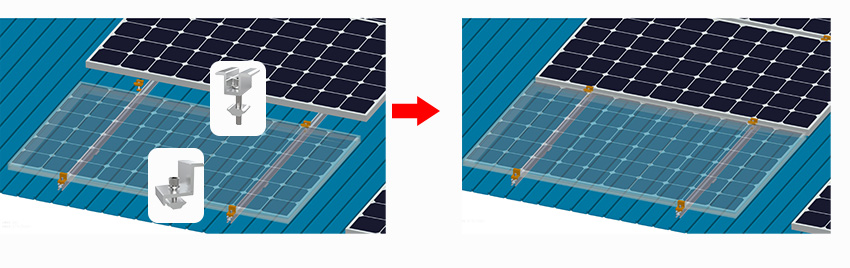

3/step3: The solar panel is installed on the aluminum rail, use mid clamp and end clamp to secure solar panel to solar rail.

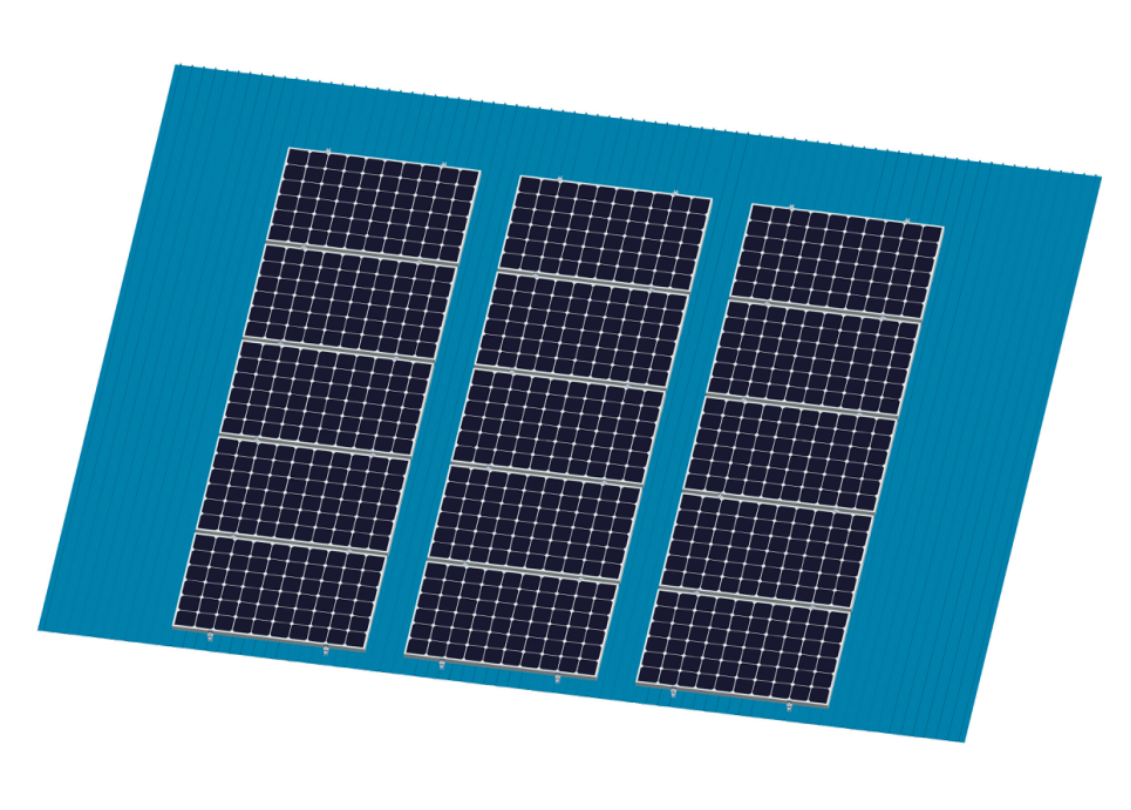

4/step4: Effect picture
