Greatest ground mount solar kit win great reputation all over the world.
Not only because of the solar panel racking structure price,but also the good quality.
Technical Parameters
|
Installation Angle
|
5-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

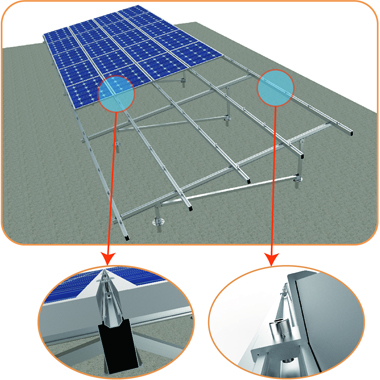

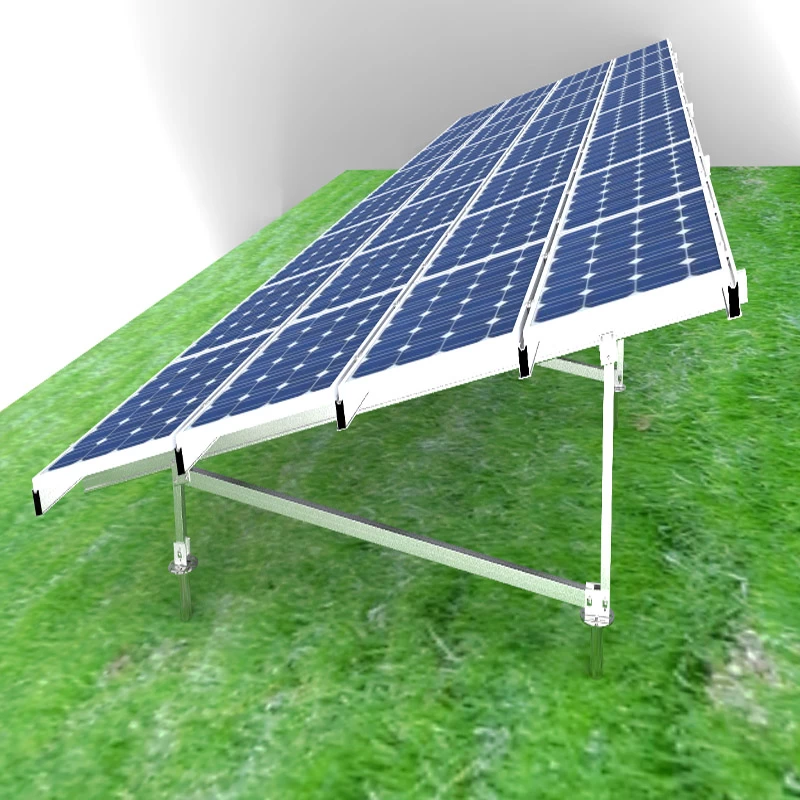

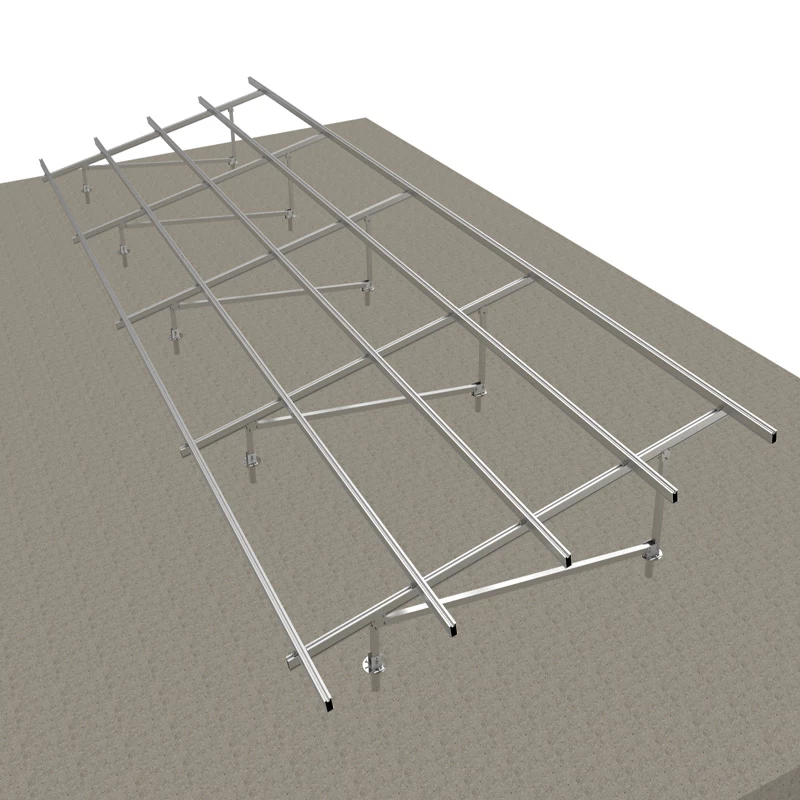

N Type Ground Mounting System
Feature:
1. Ground
clearance of N-type aluminum mount is adjustable, which is often used to
arrange 2-3 rows of vertical panel;
2. The square tube
and the longitudinal beam have a triangular structure shape, so that the entire
mount is stable and strong.
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

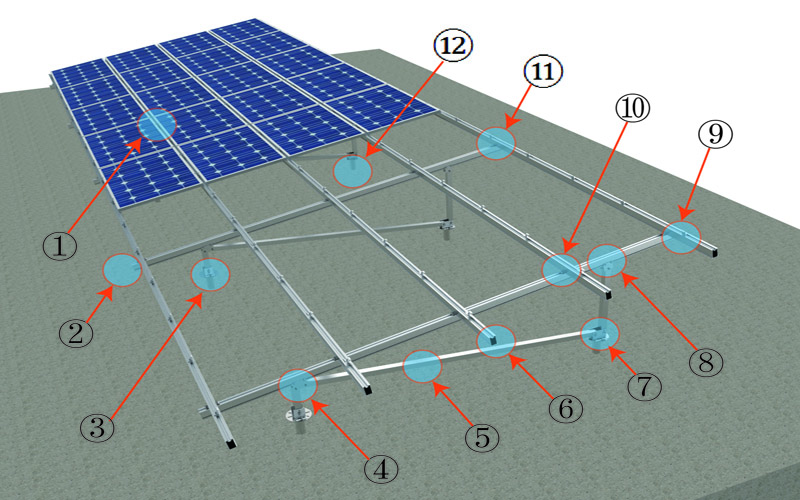

Component photos of N type ground mounting system
1. Solar inter clamp 2. Solar support beam 3. Solar base 90 4. Solar connecter 120
5. Solar aluminum alloy 6. 1# Solar rail 7. Solar base 140 8. Solar connecter 90
square tube
9. Solar end clamp 10. Solar rail clamp 11. Solar rail splice 12. Solar ground screw

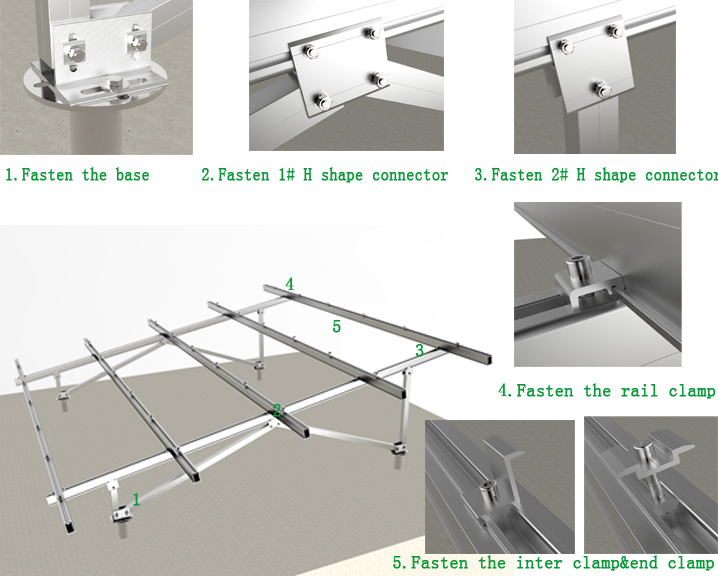

Installation steps of N type ground mounting system

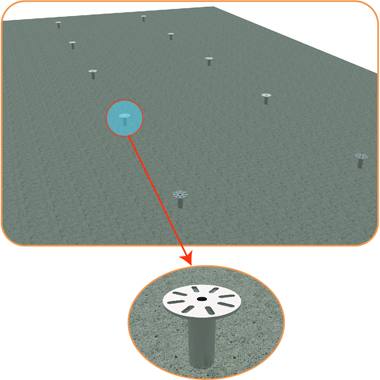

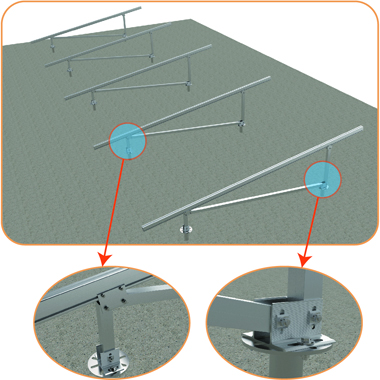

Step1：Install ground screw according to Step2： Install the pre-assembled
distance marked in drawing support beam on the ground screw
Install ground screw Solar connecter 120 Solar base140

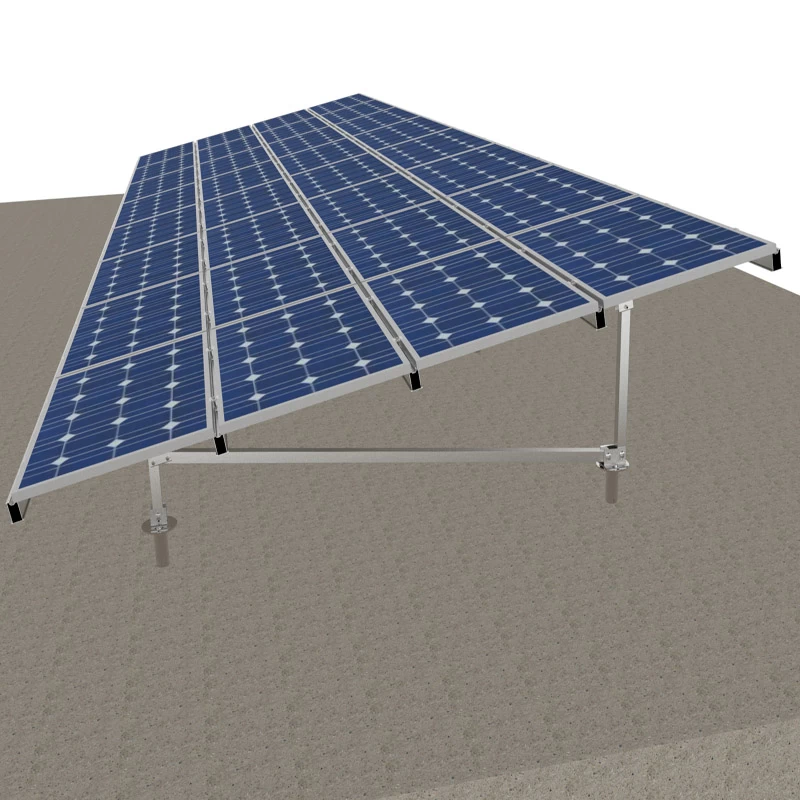

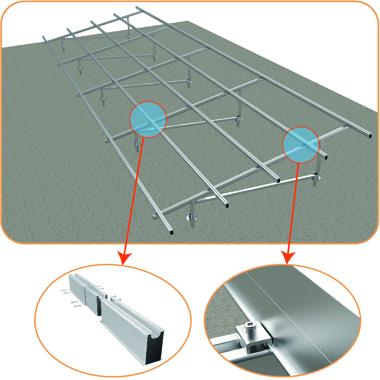

Step3：Install rails and rail splices Step4： Fasten panel by inter clamp and end clamp
Rail splice Rail clamp Inter clamp End clamp

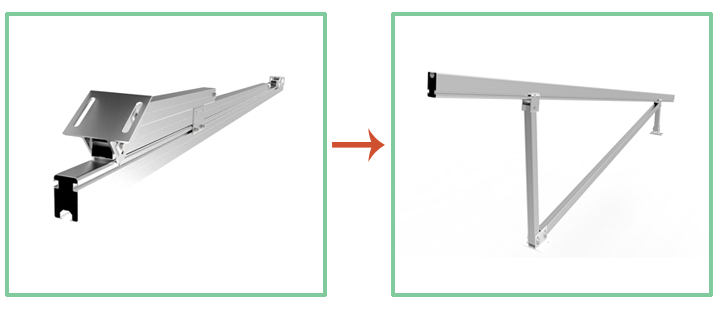

Highly pre-assembled
Installation steps

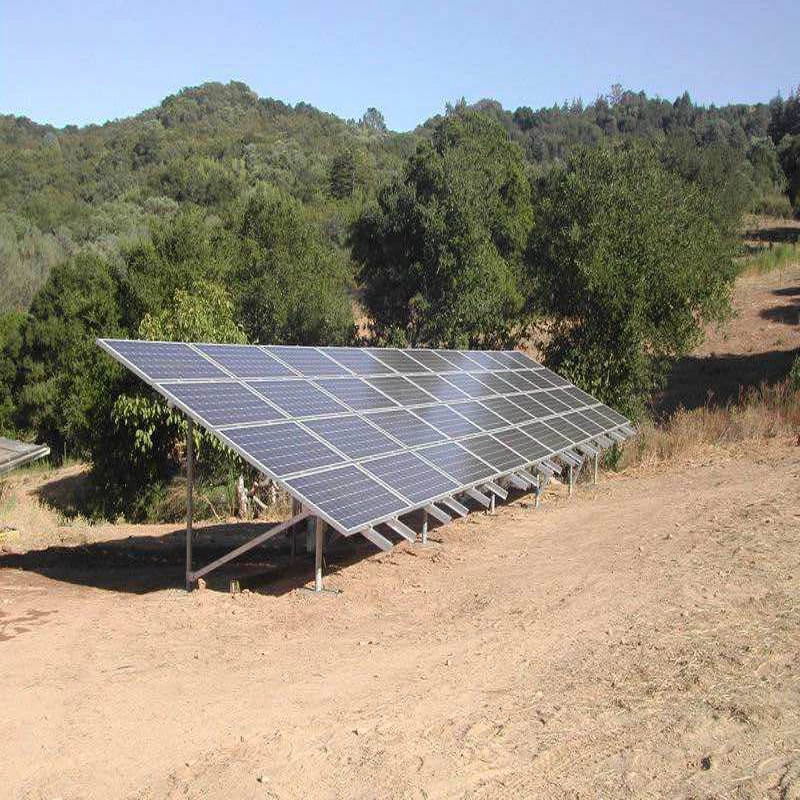

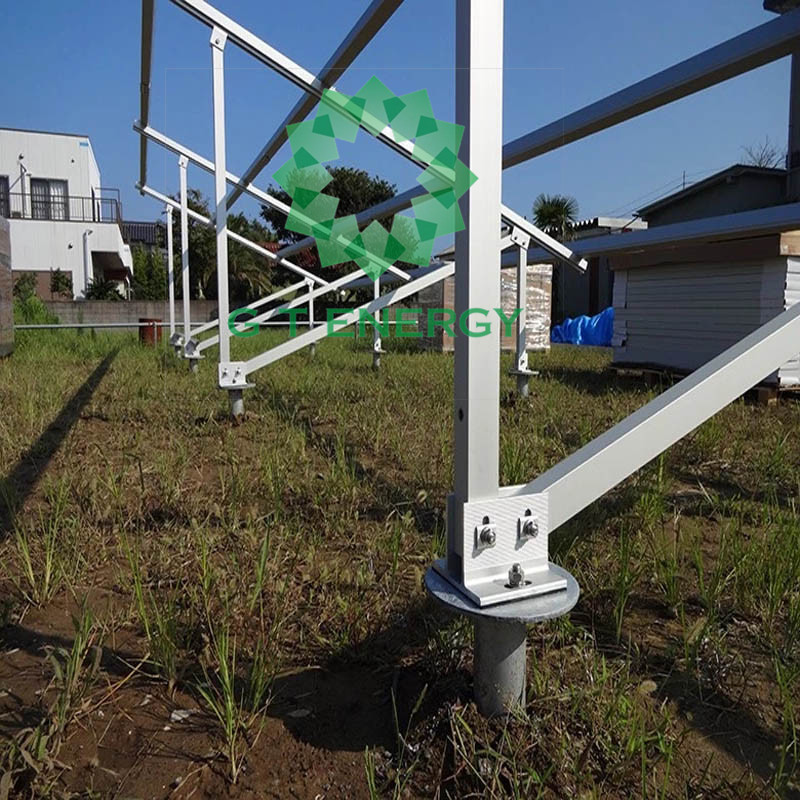

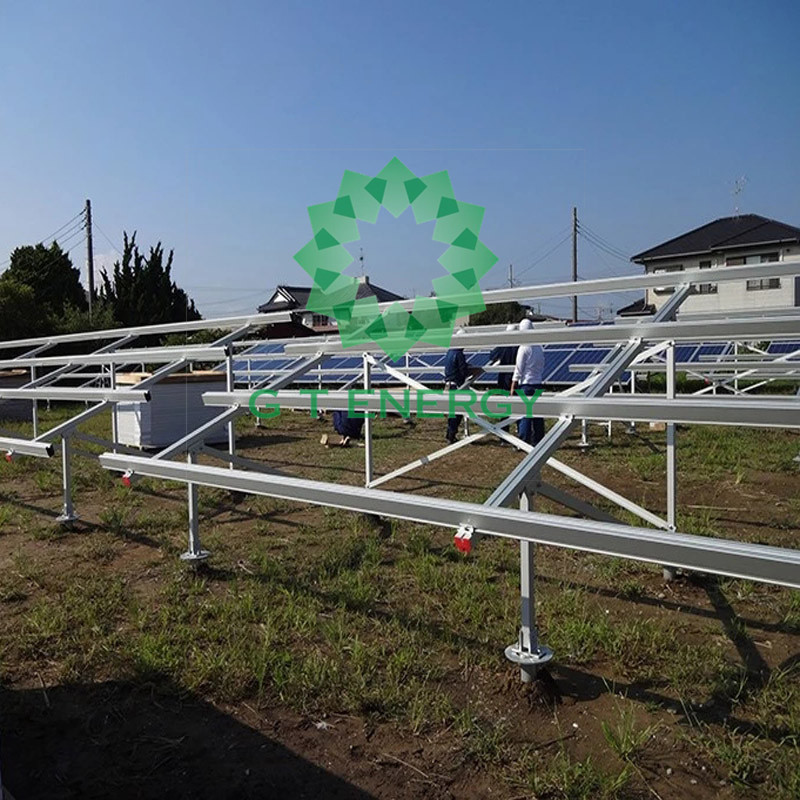

Project photos
