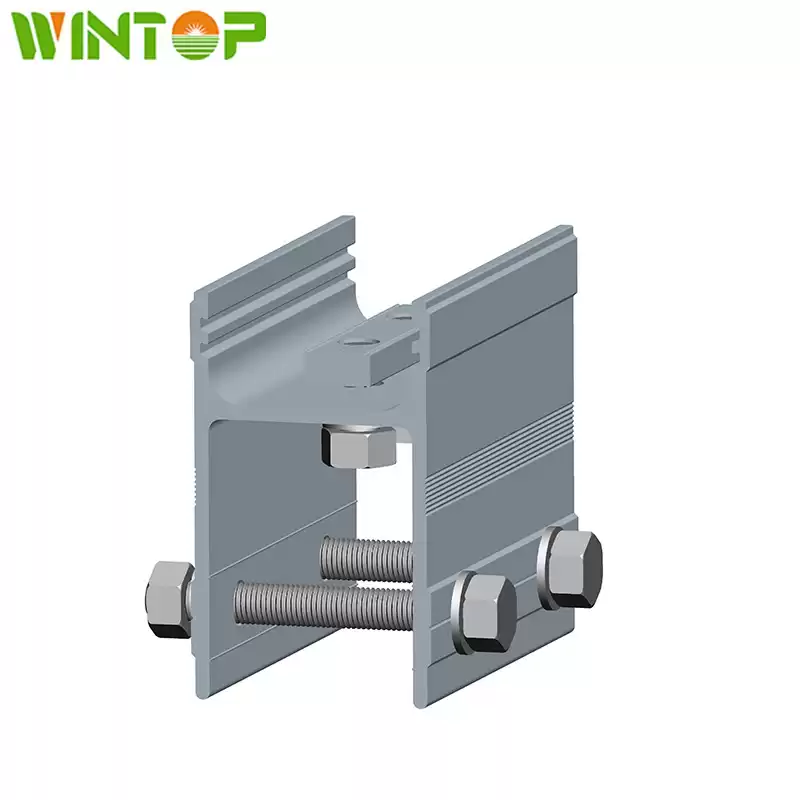

Solar Mounting Component H Shaped Aluminum Connector

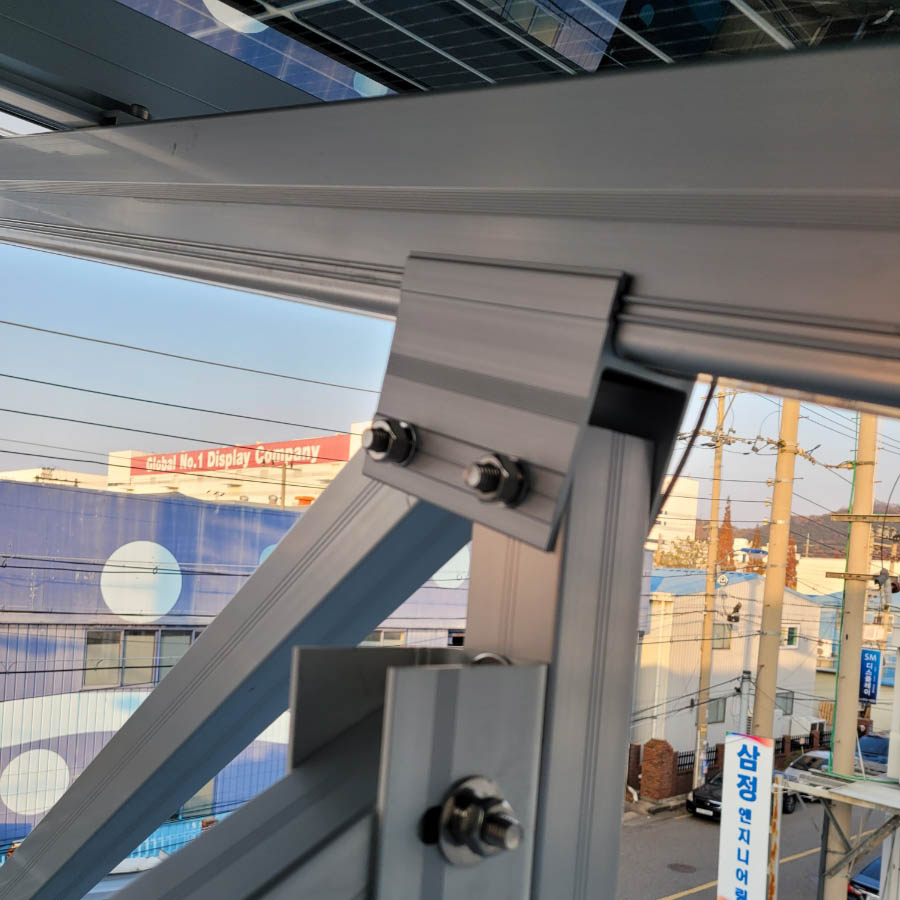

The function of the H shaped aluminum connector component is to connect the load-bearing beam and the pillar or connect the pillar and the guide rail, making the entire solar support structure more stable and firm.
|
Name
|
Connector
|
Guide slider
|
flat washer
|
Hex bolts
|
Hexagon nut
|
spring washer
|
|
Size
|
120mm
|
75mm
|
M10
|
M10*20/M10*80
|
M10
|
M10
|
|
Quantity
|
1
|
1
|
1
|
2
|
1
|
1
|
Material
|
Aluminium
|
Aluminium
|
SUS304/316
|
SUS304/316
|
SUS304/316
|
SUS304/316
|
