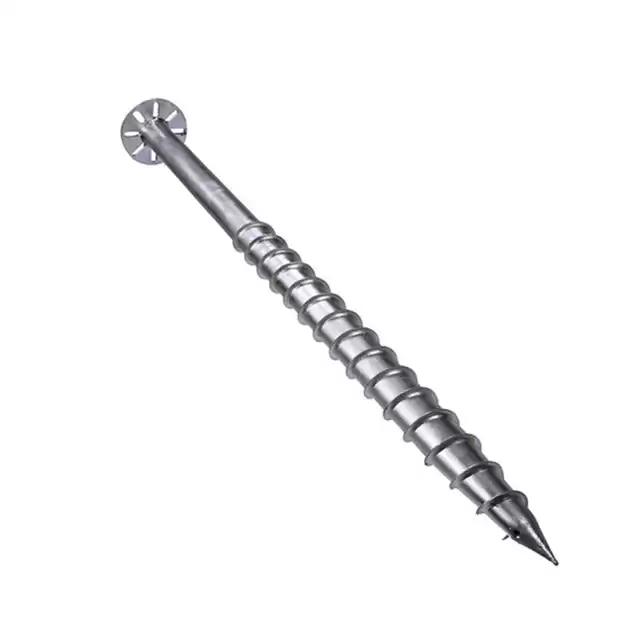

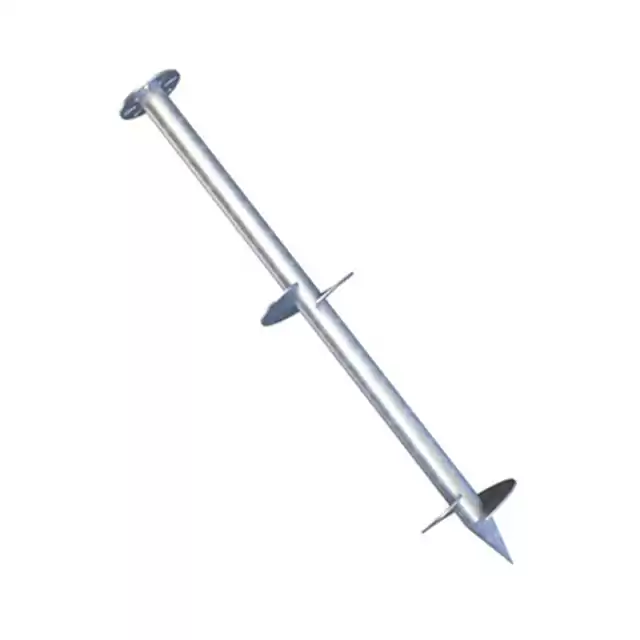

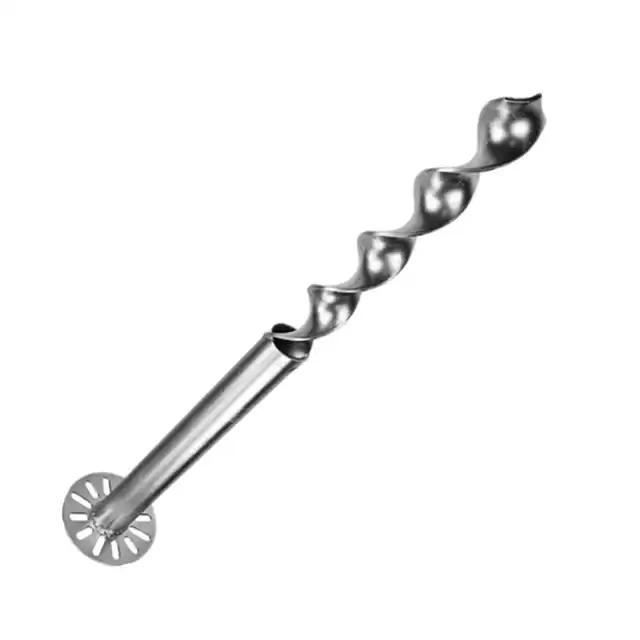

Solar Mounting Foundation ; Q235B Ground Screw Piles
Q235B Ground Screw Pile is a modern foundation system.Using the drilling machine can easily put the screw into the earth in minutes, which makes it the most efficient and cost-saving footing solution.
Wanhos Q235B Ground Screw Pile is designed according the strength test,can be widely applied to different soil conditions.
Technical Data:
|
Product Name
|
Galvanized Carbon Steel Q235B Spiral Ground Screws
|
|
Land Type
|
Ordinary Ground,Uneven Land,Mellow or Sandy Ground,Hard Soil
|
|
Material
|
Q235B
|
|
Color
|
Natural
|
|
Certificate
|
ISO9001:2008,DIN,SGS,TÜV
|
|
Max Wind Speed
|
60m/s
|
|
Max Snow Load
|
Up to 1.4KN/㎡
|
|
Module Angle
|
0-30 Degree
|
|
Panel Orientation
|
Portrait/Landscape
|
|
Warranty
|
12 Years
|
|
Duration
|
More than 25 Years
|
Specification:
|
Item No.
|
Length
|
Diameter
|
Flange
|
Material
|
|
WN-76-1200
|
1200mm
|
76mm
|
200mm
|
Q235B
|
|
WN-76-1400
|
1400mm
|
76mm
|
200mm
|
Q235B
|
|
WN-76-1600
|
1600mm
|
76mm
|
200mm
|
Q235B
|
|
WN-76-1800
|
1800mm
|
76mm
|
200mm
|
Q235B
|
|
WN-76-2000
|
2000mm
|
76mm
|
200mm
|
Q235B
|
|
WN-76-2500
|
2500mm
|
76mm
|
200mm
|
Q235B
|
Application:
Company Informations:
Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.
Management Concept:
Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.
