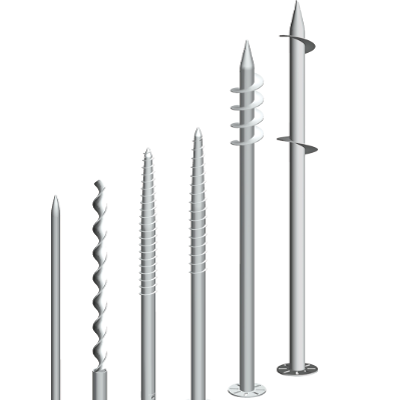

Solar Mounting Ground Screw
Overview
1 Comprehensive protection:fully protect the ground screw by hot galvanized layer.
2 Reliable: according to JISC8955，the galvanized thickness is HXZ35，antirust period is anticipated.
3 Quality guarantee: strictly inspect and test the hole position，galvanized thickness.
Parameter
|
Specificalion
|
Customized Design Service
|
Material
|
|
T3*φ76*1200mm
|
Thickness 3. 0-4. 0mm ground screw
Hot dip galvanized surface treatment ，ensure the product anti-rust property, durability.
The average thickness of galvanized layer is 80-100um
as per instaiiation geological condition
foiiowing required length diameter，thickness，thickness of thread
shape of flange and size.
|
Hot-dip Galvanized
Steel Q235
|
|
T3*φ76*1600mm
|
Hot-dip Galvanized
Steel Q235
|
|
T3*φ76*3000mm
|

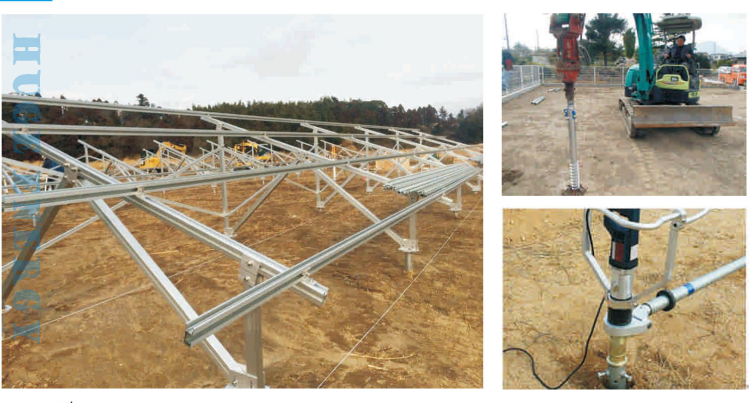

Project
Why Huge Energy
Reliability
Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years.
Quality Control
With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system.
Quality Assurance
Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer.
We have a 15 year quality guarantee on Huge products.
After-sales Service
Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.
Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
