Solar Mounting Mid Clamp

Mid Clamp is design to clamp solar panels among the solar module, it is

compatible 30-50mm solar panels.




Mid Clamp(also known as middle clamp) is one of important solar mounting accessories, which used for to clamp solar panels between two solar modules.It’s assembled with bolt and nut together,by fixing with rail to firmly clamping panels from wind and any other shaking. Mid Clamp is made of aluminum 6005 T5 with anodized. It comes with 30/35/40/45/46/50mm to compatible various different solar panels.


Technical Information

Item Name:

Mid Clamp / Inner Clamp /Middle Clamp

Material:

Aluminum 6005-T5 + SS304 bolt

Installation Site:

Solar Mounting Rail, Roof rail, Ground Rail.

Colour:

Silver or Black

Surface Settlement:

Anodized

Wind Speed:

Up to 60m/s

Snow Load:

Up to 1.4KN/m2

Application:

30-50mm thickness solar module

Warranty:

12 years in material with 25 year lifespan

Standard:

AS/NZS 1170.2, JIS C 8955:2011

mid clamp



Composition

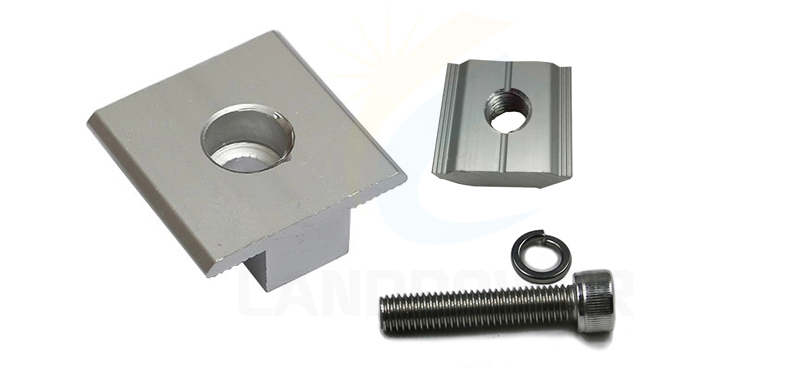

It comes with mounting aluminum base,stainless steel hexagon bolt and Landpower T module, it can be came with customized nut and bolt if requested.

solar mid clamp

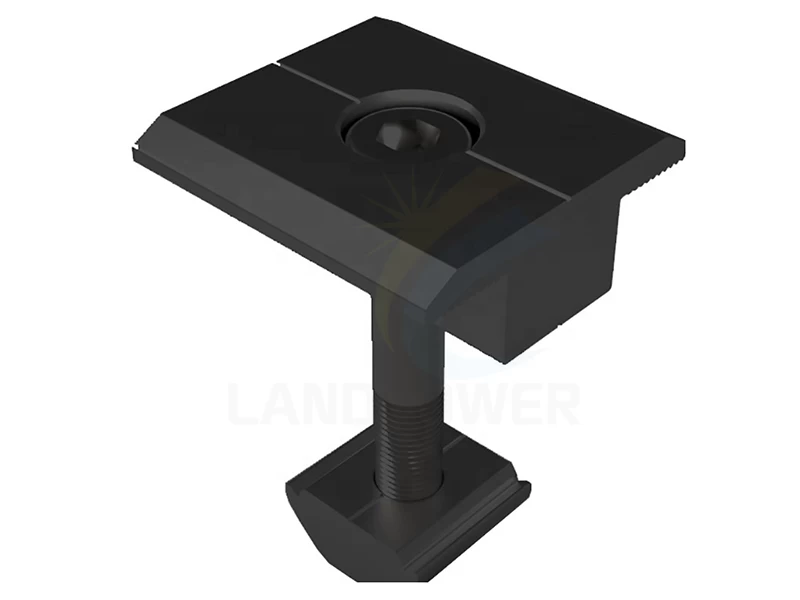

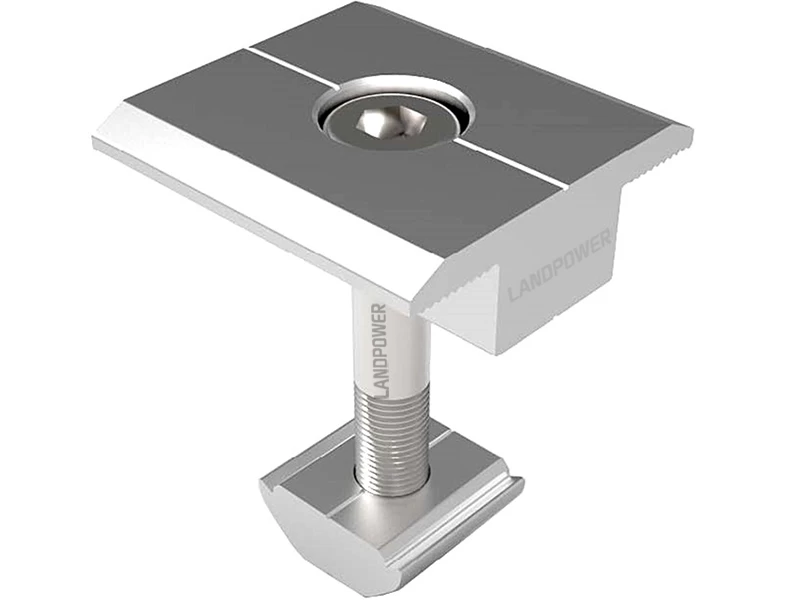

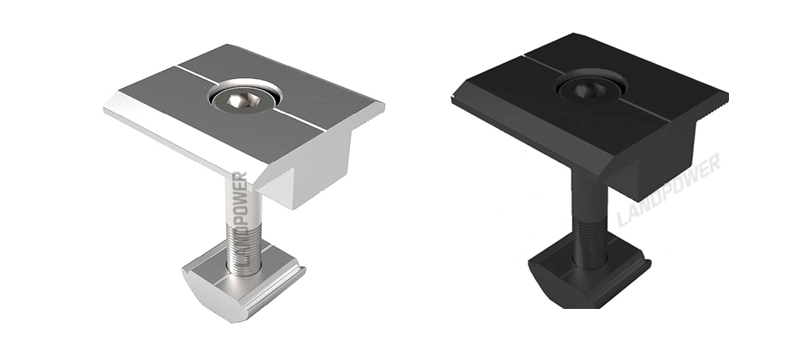

Normally mid clamp is anodized on surface finish, some time as request, it can be mill finish.We can also do black anodized on the surface to meet with black framed solar panels.

solar pv mid clamp

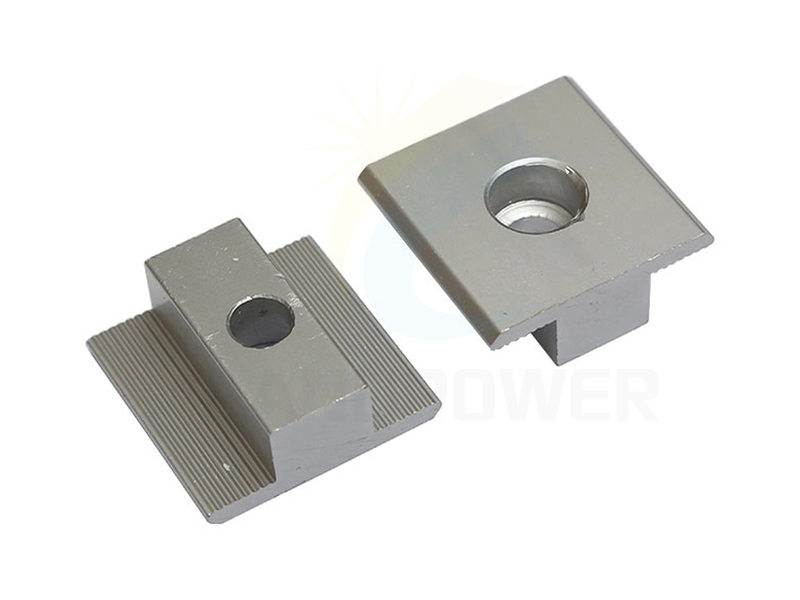

It is quite common the mid clamp come with standard T-module(aluminium nut),but some time there are steel ground mounting with C shape rail, we need to make some change on nut, see below photo:

solar middle clamp

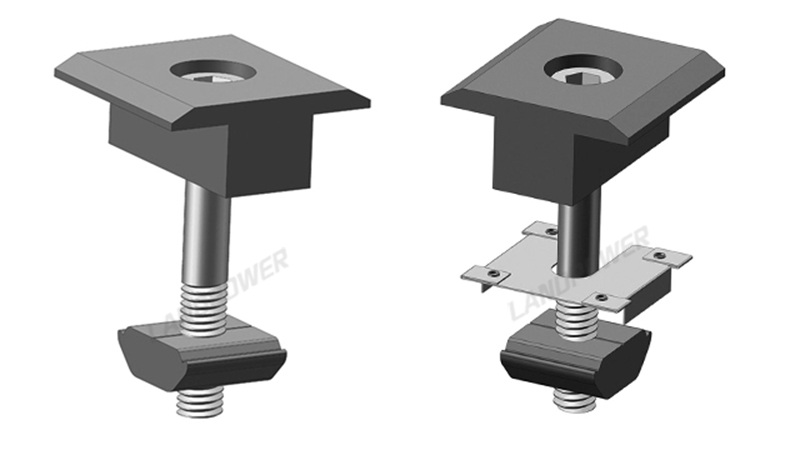

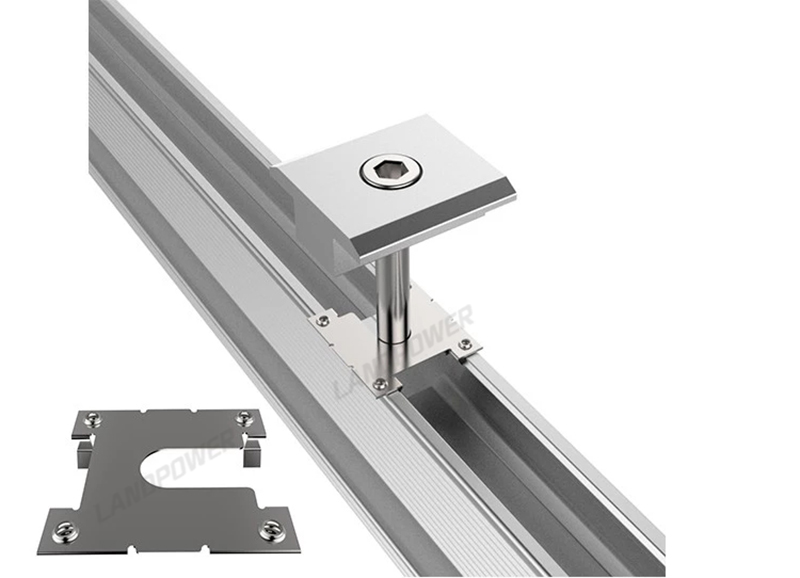

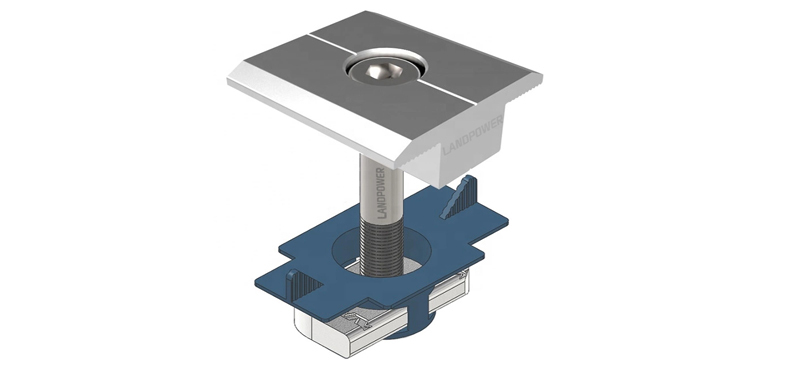

It also can equip with earthing clip to fix into mounting rail to reach grounding purpose,for the further earthing information, please refer to : Solar Mounting Earthing Systems




Solar pv inner clamp


We design different mid clamp for different rail, please feel free to contact us for customized mid clamp,we offer OEM service!
