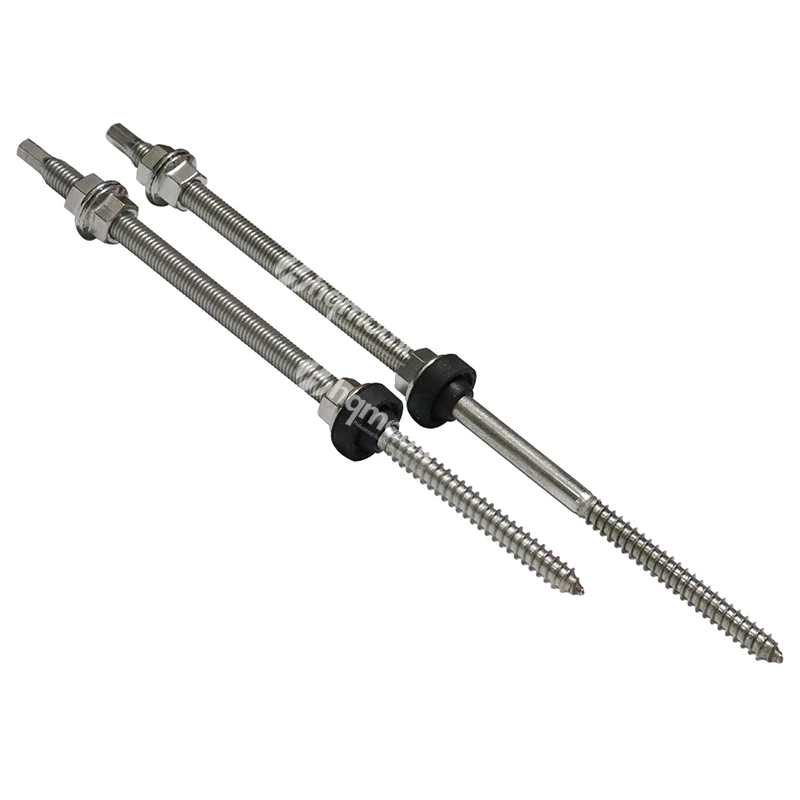

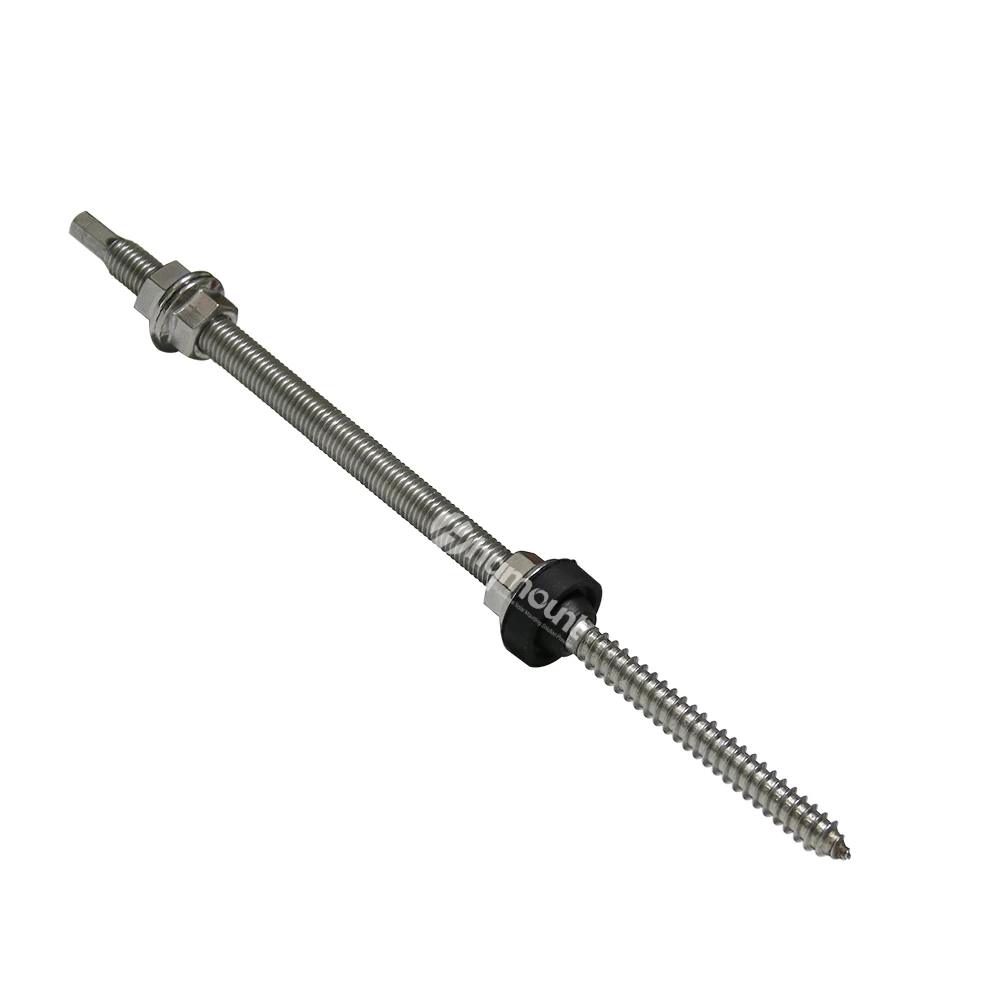

Solar Mounting System Wood Thread Hanger Bolt M10
Hanger bolt applies to install on both wooden rafter and steel purlin. Both types can be applied with L feet and plate.
It can support the rail on the roof.
Advantages as follows:
1. Easy and fast to install.
2. SUS 304 Material
3. Highly corrosion resistant surface treatment
4. EPDM rubber can be effective waterproofing.
5. Wooden beam and steel beam both are available.
|
Material
|
Carbon steel, Stainless steel
|
|
Surface Finish
|
Plain, zinc plated
|
|
Grade
|
SS304,SS316, 4.8, 6.8, 8.8
|
|
Size
|
M8*200, M10*150， M10*200， M10*250， M10*300， M10*350， M12*350 and cutomized sizes.
|
|
Color
|
Silver or customized
|
|
Accessories
|
3pcs flange nut and rubber pad
|
More Metal Roof Solar Mounting Solutions
Our engineers design and plan to provide the maximum flexibility possible for various metal roof solar mounting systems installation.
It can be applied to install the usual module to flush with the pitched roof.
High pre-assembled components make the installation easy & quick to save your labor cost and time.
This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs
Solar hanger bolt is used for fixing to steel purlins or urns on trapezoidal and corrugated roofs. Solar hanger bolt is usually combined with l feet or stainless steel plate to solar mounting rails.
