Overview

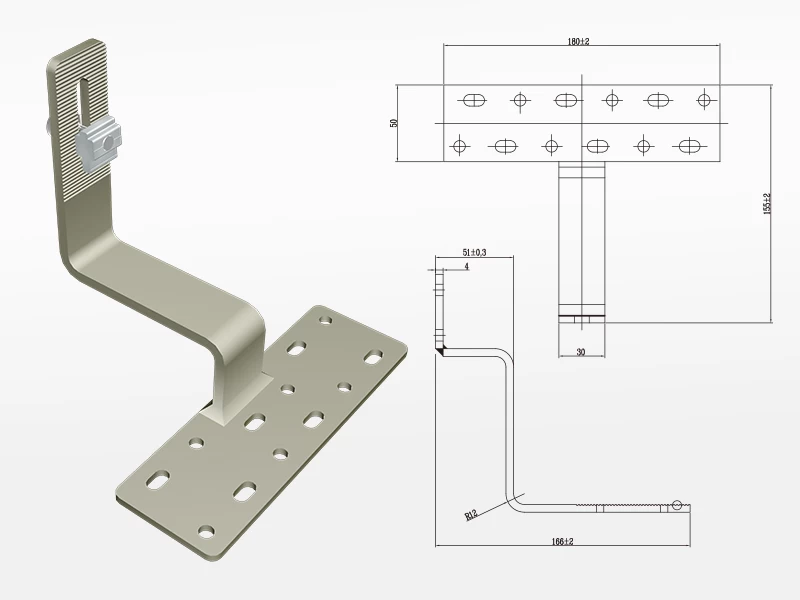

MRac Tile Roof Hook Solar PV Mounting System is applied tile roof
residential and commercial solar projects. The system can achieve
stable and strong connection between the roof support structure
and solar modules with modular Patented design. Pre-assembled
kits save the installation time and cost onsite.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
Rammed Post, Concrete Foundation or Ground Screw
|
|
Tilt Angle
|
10-60°
|
|
Wind Load
|
32m/s
|
|
Snow Load
|
1.3KN/㎡
|
|
Ground Clearance
|
200-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)
|
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Applicable for Different Metal Roofs
Design project by project, selecting configuration of mounting
system components flexibly
Save Installation Time and Cost
Pre-assembled components and clear installation manuals are
supplied to save the onsite installation time and cost, lead to
better RoI.
Compatible to Different Types of Solar Modules
Compatible to most kinds of framed 60-cell, 72-cell, half-cut
cells modules and frameless modules.
Technology Certification
