Overview

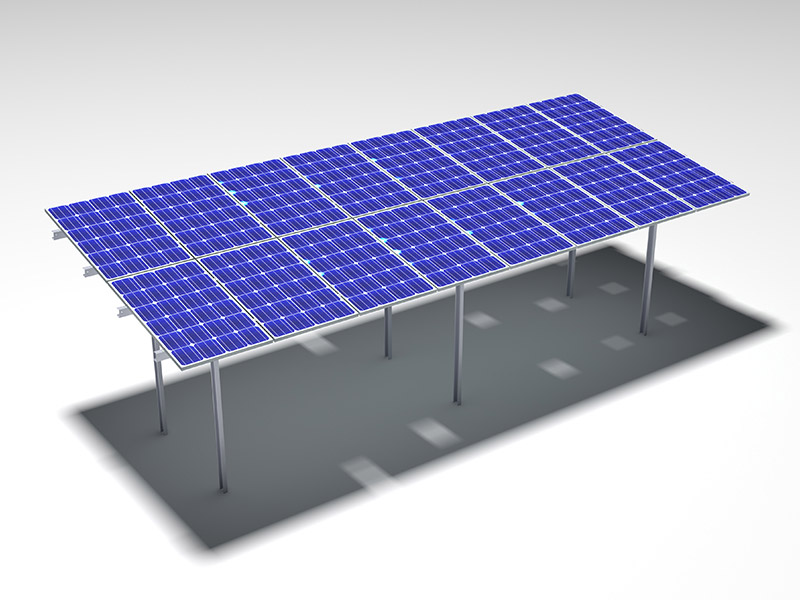

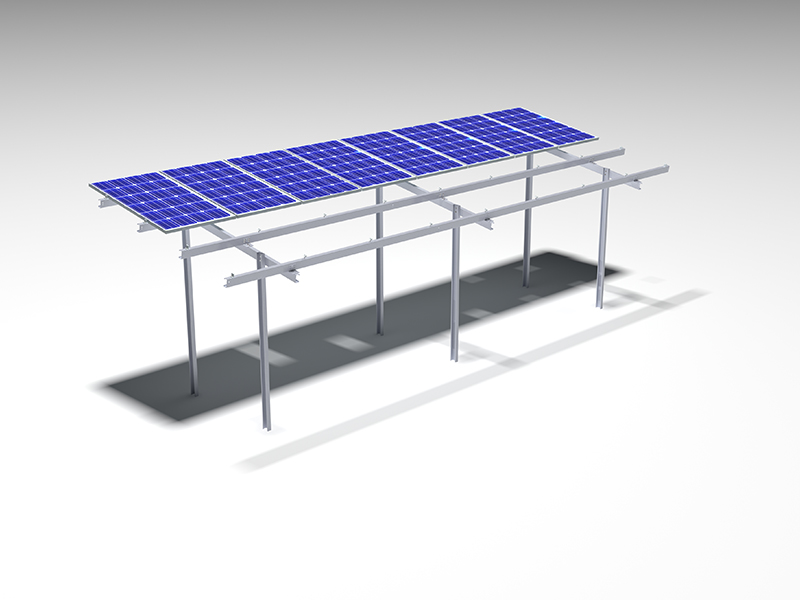

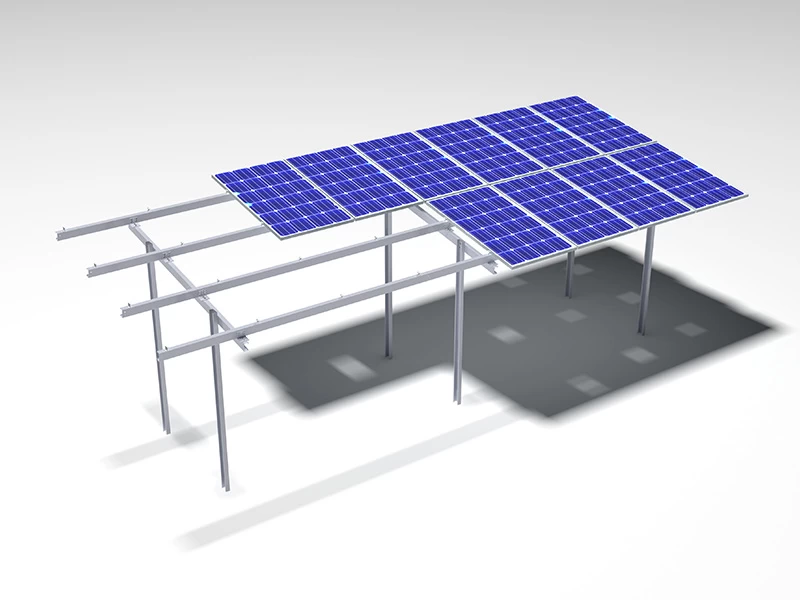

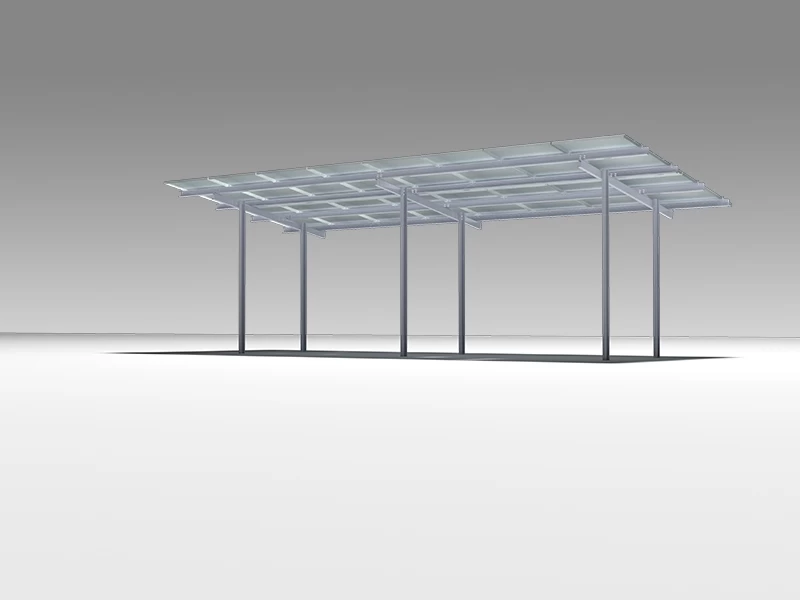

MRac Ground Solar PV Mounting System GT7 is applied for the
installation of large-scale and utility-scale solar PV power plant. Main
components are made of hot-dip galvanized steel, with good
performance of structure strength, stability, and anti-corrosion.
Compatible with varied solar modules. Unique piles and structure
design save installation time and cost.
|
Technical Parameter
|
|
Installation Site
|
Ground
|
|
Foundation
|
C-shape, I-shape, 几-shape Piles
|
|
Tilt Angle
|
0-60°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/㎡
|
|
Ground Clearance
|
500-2000mm
|
|
Applicable Solar Module
|
Framed or Frameless
|
|
Panel Layout
|
Portrait or Landscape
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 , JIS C 8955：2017,
|
|
International Building Code IBC 2009,
|
|
California Building Code CBC 2010
|
|
Material
|
Q235B(Hot-Dip Galvanized)
|
|
Fastener
|
SUS304 & Hot Dip Galvanized
|
|
Small Components
|
Al6005-T5(Anodized)
|
|
Color
|
Silver or Customized
|
|
Warranty
|
10-Year Warranty
|
Features
Unique Pile Design
Unique post design suitable for varied soil conditions and
strengthen the whole structure stability.
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled
in factory, no onsite cut and drill request, saving the onsite
installation time and cost.
Flexibility and Adjustability
The structure can be adjusted with some tolerance with
east-west, west-south and south-north directions, assuring
flexible on-site installation to achieve best yield for solar
modules.
Compatible to Varied Solar Modules
With MRac module clamps, the system compatible with most
kinds of framed 60-cell, 72-cell, half-cut cells modules and
frameless modules.
