Solar Panel Mounting Mid Clamp

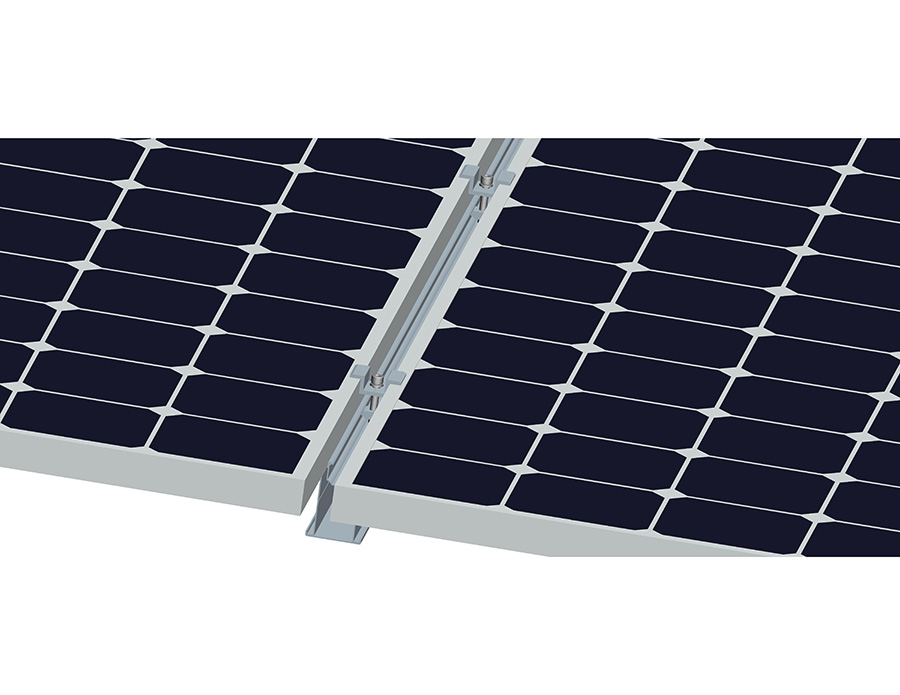

Solar mounting mid clamp is used between the two panels to connect the rail to the panel.
- BrandWintop
- Installation location
- Installation foundation
- Installation angle
- Wind load60m/s（216kmh/133mph)
- Snow load1.4KN/m²
- Distance from module lowest point to the ground
- Applicable module type
- Module Orientation
- Design standard
- Bracket materialAL6005-T5(Anodized Oxidation)
- Fastener MaterialStainless steel SUS304
- Warranty10 years
- Service Lifemore than 20 years
Solar Panel Mounting Mid Clamp

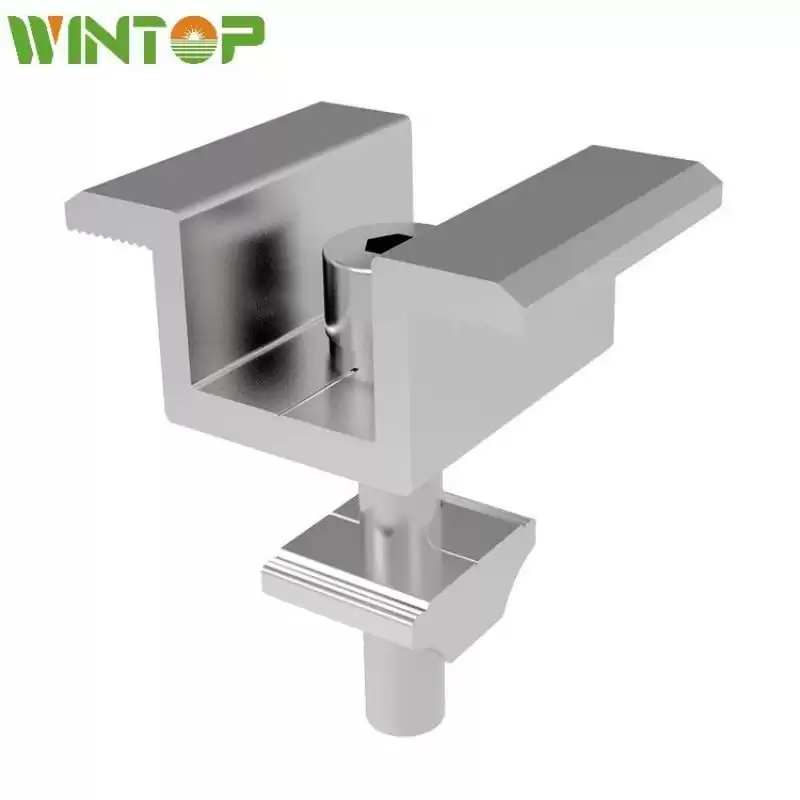

Wintop solar mid clamp is used between the two panels to fix the panel on the rail. Make the two panels and the rail more firm.The middle clamp is made of aluminum, which is corrosion resistant and has a long service life. It is well received by the majority of solar installers.
| Product Name | Aluminium Solar Panel Mounted End Clamp |
| Material |
AL6005-T5(Anodized Oxidation) |
| Size | 30mm\40mm\45mm or Customized |
| Application |
Solar Mounting Structure |
| Color | Nature or Customized |
