Description

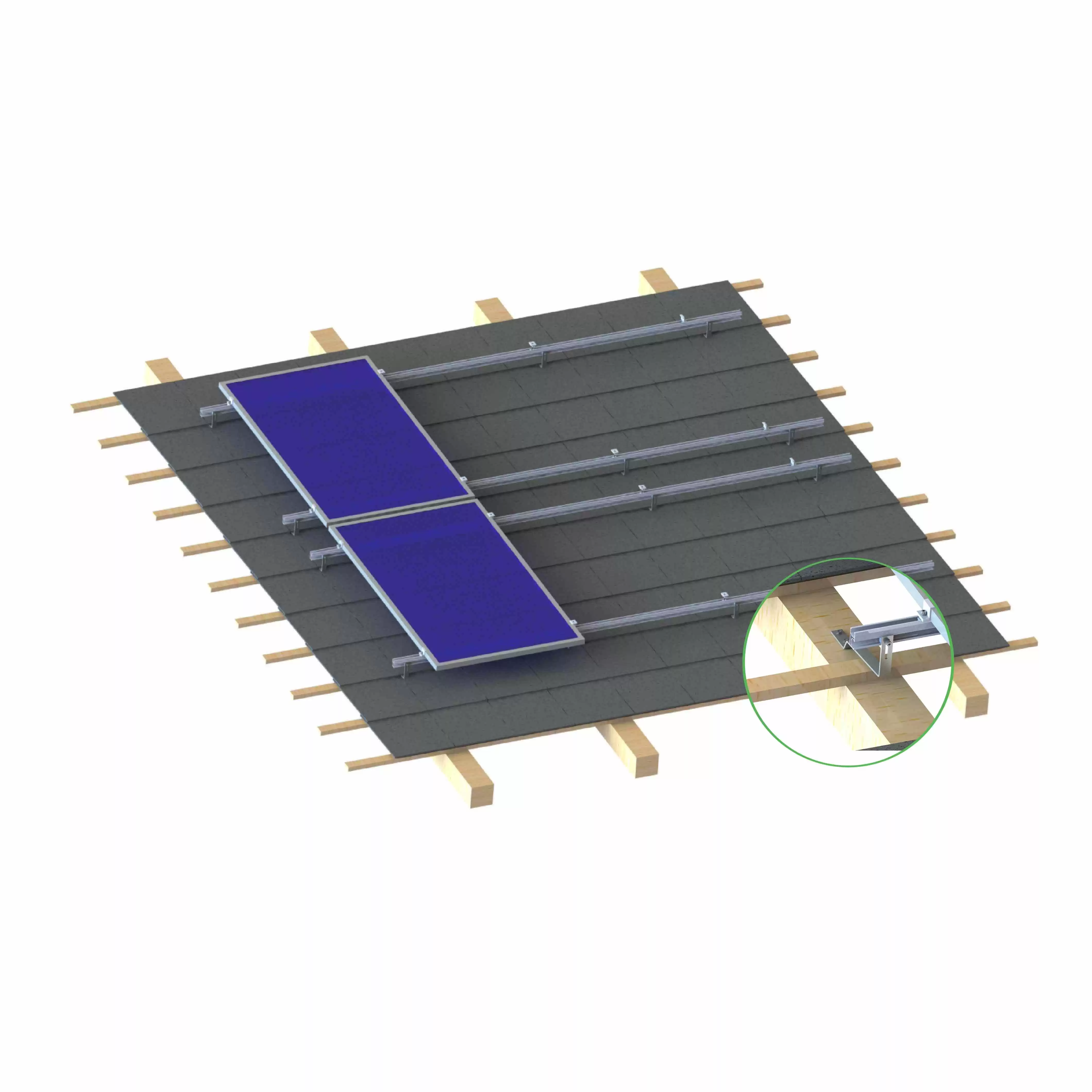

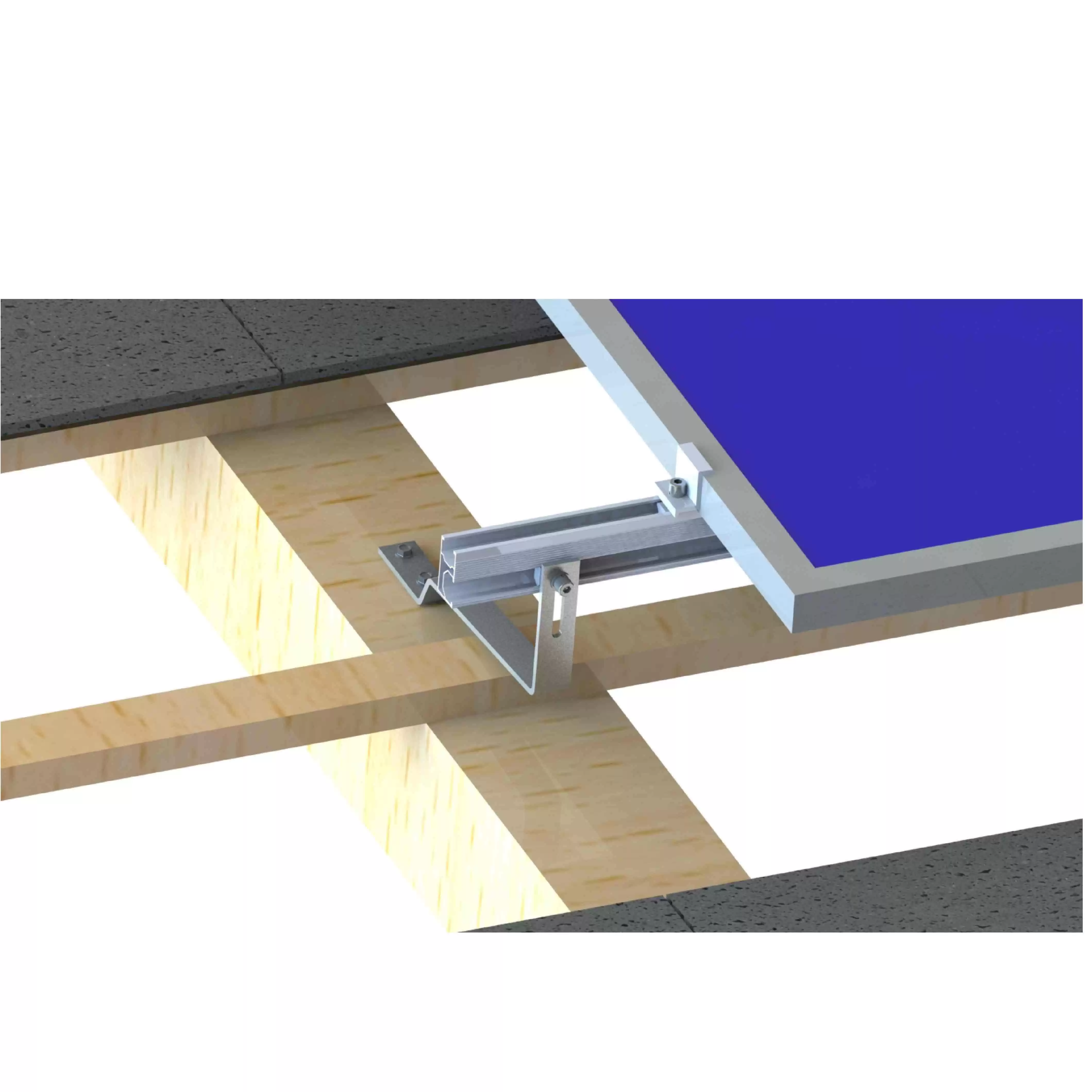

Solar panel mountingsystem for slate tile roof is suitable for residential and commercial applications.Hooks are fixed on rafters.
Features
√Components are pre-assembled and installation is easy, which save your on-site installation time and costs
√All sides of components are anodized, which provides you with better anti-corrosion and good-looking
√Ownmold,melting and casting, aluminumextrusion,surface treatment and deep processing factories,ensuring prompt delivery
√Suitable for different size modules
√For all common rafter distances
Components
Rail Rail Splice Kit Middle Clamp End Clamp Hook
Technical Specifications
|
Installation site
|
Slate tile rooftop
|
|
Max. wind speed
|
≤60m/s
|
|
Snow load
|
≤1.4kn/㎡
|
|
Tilt angle
|
Zero
|
|
Module
|
Frame or frameless
|
|
Design standards
|
AS/NZS 1170, ASCE 7-10, JIS2017
|
|
Material
|
AL6005-T5, SUS304
|
|
Finish
|
Anodized,hot-dip galvanized
|
|
Color
|
Silver or customized
|
|
Warranty
|
12-year warranty,25-year service life
|

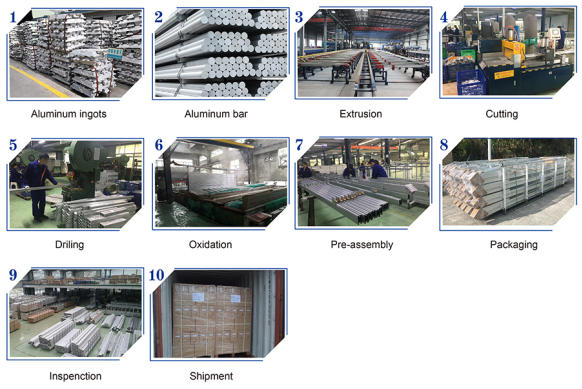

Integrated Production
