Description

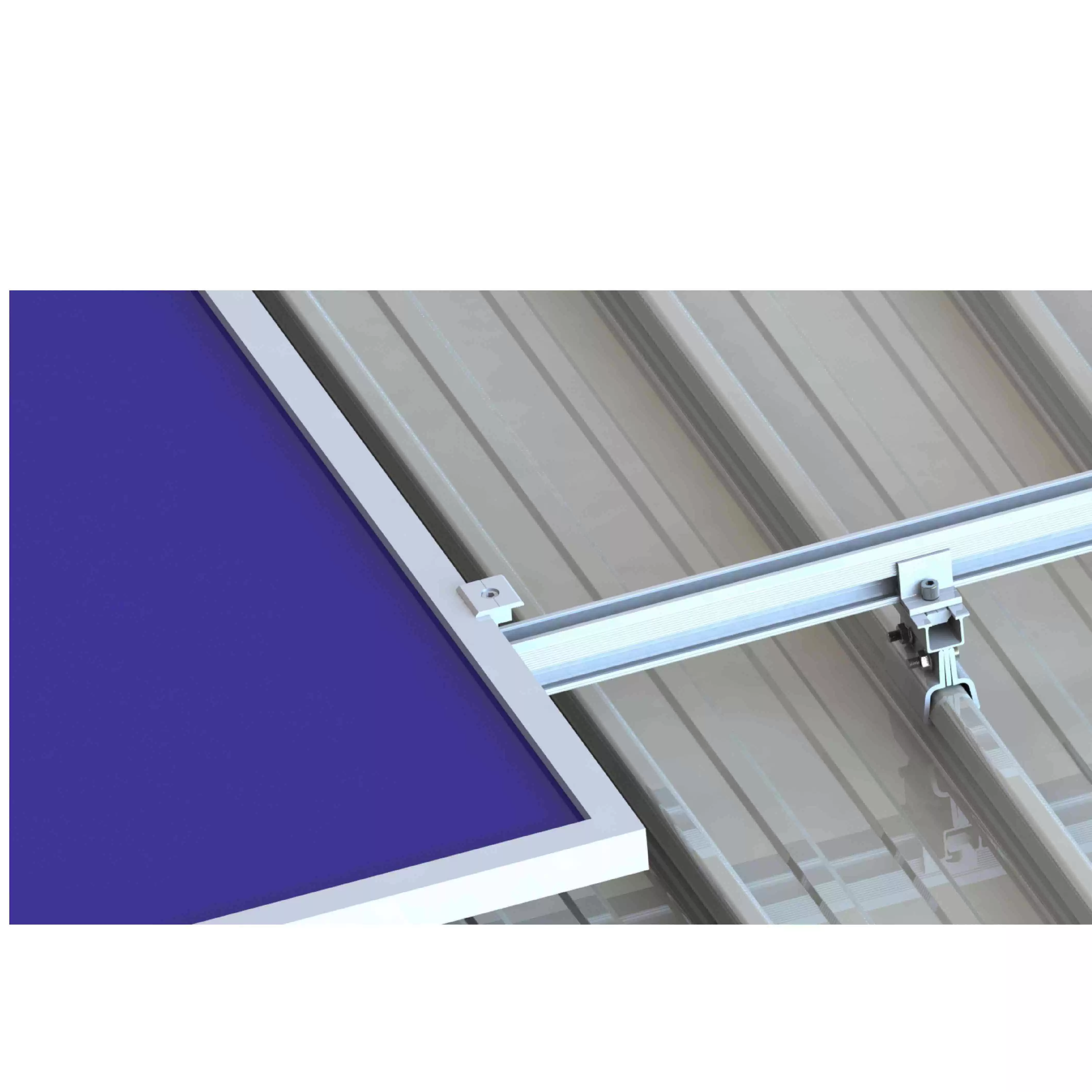

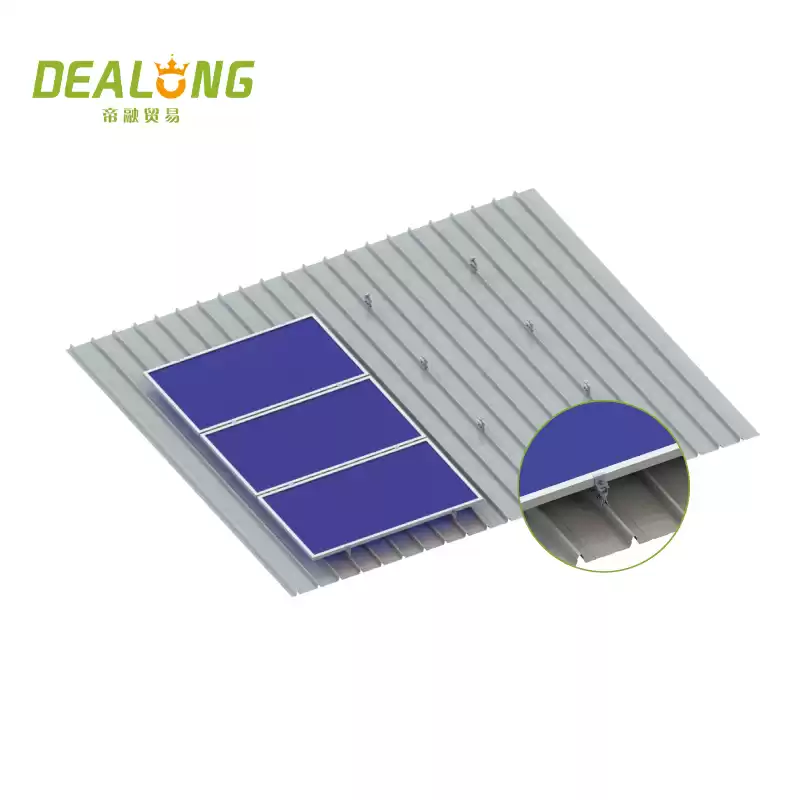

The aluminum standing seam clamps are easily fixed firmly onto metal roof without penetrating roof sheet.
Features
√Component is pre-assembled and installation is easy, which save your on-site installation time and costs
√All sides of components are anodized, which provides you with better anti-corrosion and good-looking
√Own mold,melting and casting, aluminum extrusion, surface treatment and deep processing factories,ensuring prompt delivery
√No penetrating,without damage to roof sheet

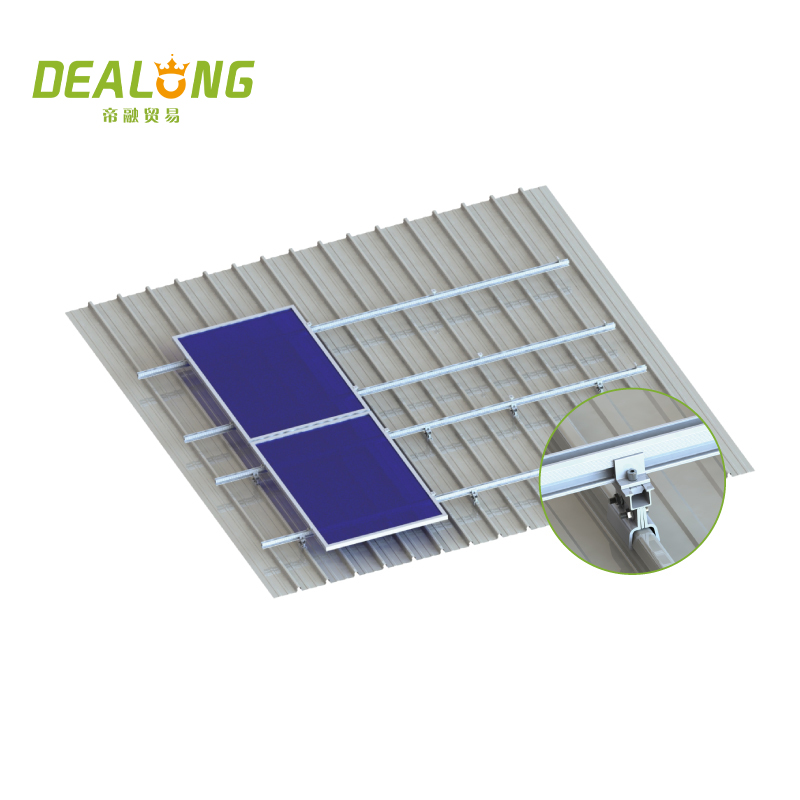

√No raill is needed for landscape placement
Components
Rail Rail Splice Kit Middle Clamp End Clamp Rail Clamp
DL-HK-S09 DL-HK-08 DL-HK-05 DL-HK-03 DL-HK-04
Technical Specifications
|
Installation site
|
Standing seam metal rooftop
|
|
Max. wind speed
|
≤60m/s
|
|
Snow load
|
≤1.4kn/㎡
|
|
Tilt angle
|
Zero
|
|
Module
|
Frame or frame-less
|
|
Design standards
|
AS/NZS 1170, ASCE 7-10, JIS2017
|
|
Material
|
AL6005-T5, SUS304
|
|
Finish
|
Anodized,hot-dip galvanized
|
|
Color
|
Silver,black or customized
|
|
Warranty
|
12-year warranty,25-year service life
|

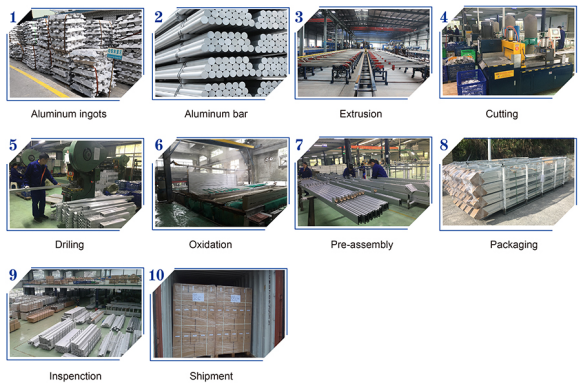

Integrated Production
