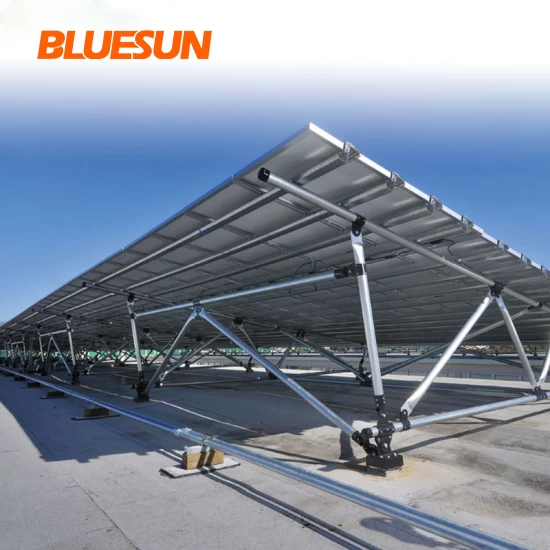

Solar Panel Roof Mount and Rack System

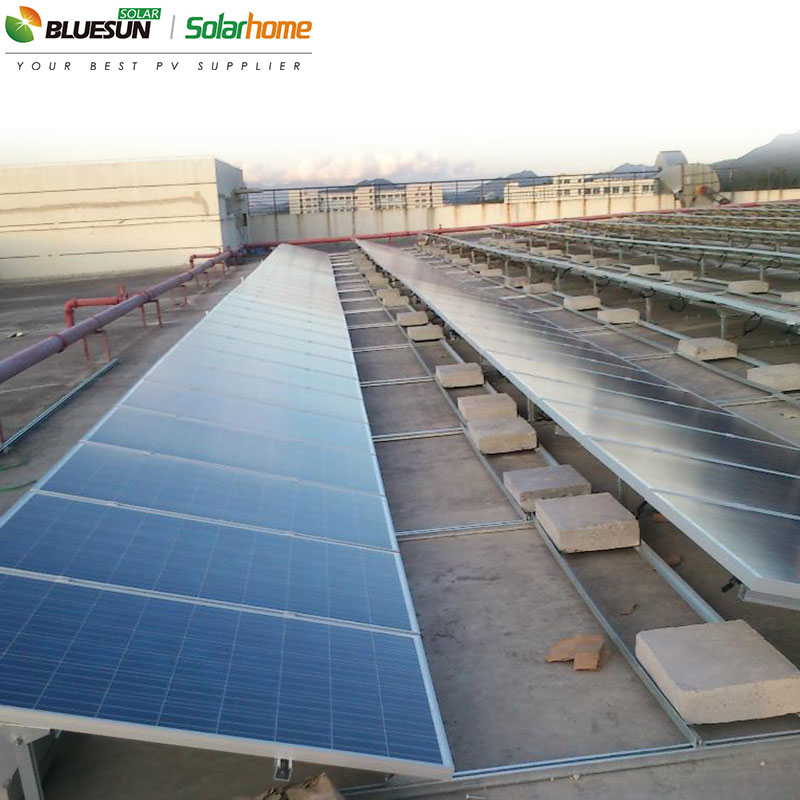

Ballasted Solar Panel Roof Mounting and Rack System .

FLAT ROOF

SPECIFICATIONS

▶ Installation site                               Flat roof.

▶ Installation angle                           5°,10°

▶Wind speed                                        <45m/s.

▶Snow load                                           <1.2KN/m².

▶Build height                                       <20m.

▶Material                                                 AI 6063-T5 & SUS304.

▶Surface treatment                         Anodizing.

▶Refer to standard                          GB50009,DIN1055,DIN 1055

▶Warranty                                             15-year warranty , 25-year service life.

SOLAR MOUNTING HARDWARES

▶  Bluesun Solar Panel Tilt Kit hihgly engineered solution which can effectively reduce the influence of wind on the photovotaic system, with Q235B steel bracket as main body material,HDG surface treatment, service life is more than 25 years.

▶  Solar Panel Adjustable Mounting Brackets can secure the array without damaging the flat roof .Solar Panel Fixing Kits is compatible with the usual framed modules and typically does not require roof penetrations.

▶  Flat Roof Solar Panel Fixing Brackets designed according to the actual installation angle and no need to break the waterproof layer.

PACKING

TO HELP YOU GET THE RIGHT SYSTEM,PLEASE KINDLY OFFER THE FOLLOWING NECESSARY INFO:

1. Dimension of solar panels(length*width*thickness)?

2. Quantity of solar panels?

3. Where to install : rooftop (flat roof or pitched roof ) or ground ?

4. Tilt angle?

5. Any requirements about wind load and snow load?

6. Any minimum height requirement(distance from ground to panel)?
