Solar Panel Roof Mounting Bracket Adjustable Angle Mounting System

Solar panel roof mounting bracket adjustable angle installation system, adjustable angle between 5°-60°, can be installed on metal roofs, flat ground, or on a separate wall


  • MaterialStainless steel 304, Al6005-T5
  • Service Life25 Years
  • Tilt angle10° - 15°,15° - 30°,0° - 60°.;
  • Warranty10Years
  • Shipping PortXiamen China
  • Project SiteFalt Roof/Metal Roof
  • PaymentT/T, L/C

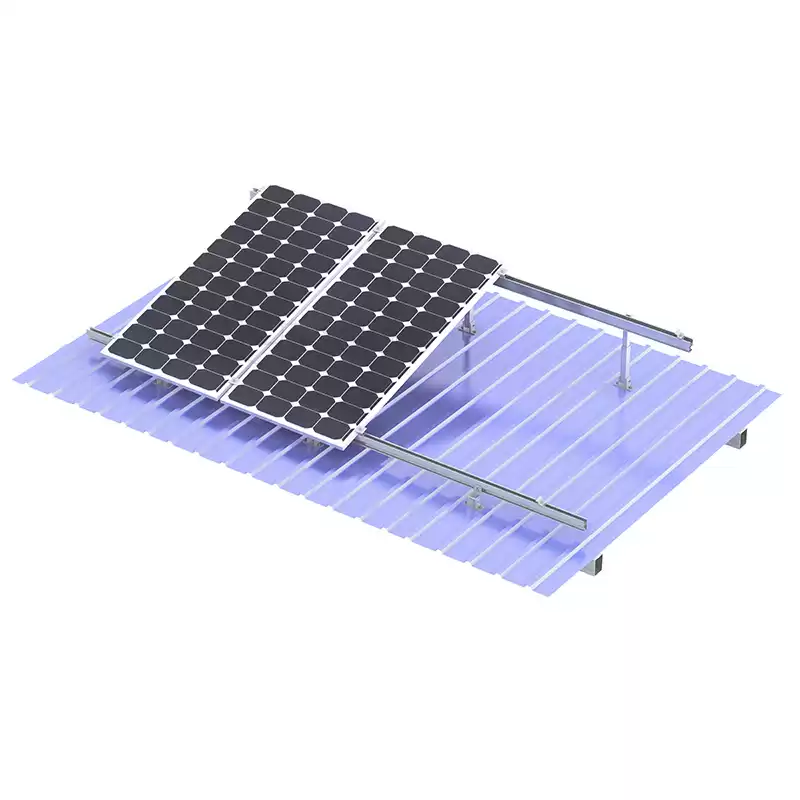

Adjustable Angle Mounting System

The adjustable angle mounting system allows for optimizing the solar panel's tilt angle based on factors such as the latitude of the installation site, the season, and the desired energy production. By adjusting the angle, the panels can capture more sunlight throughout the day, improving energy output and maximizing the system's efficiency.

When installing an adjustable angle mounting system, it's important to follow the manufacturer's instructions and consult with a professional solar installer for proper system design and installation. They can assess your specific needs and recommend an adjustable angle mounting system that is compatible with your solar panels and structural requirements.



Technical Data

Product Name

Solar Panel  L Feet For Roof  Mount

Material Aluminum & Stainless Steel
Standard AS/NZS 1170, ASCE 7-10, JIS2017
Wind Load 60 m/s
Snow Load 1.4 Kn/m2
Applicable Module Framed or Frameless
Module Orientation Portrait or Landscape
Surface Treatment Anodized
Application Asphalt shingle roofs, shingle roofs, and metal roofs
Dimensions Customized
Color Natural or Black Anodizing



 Details

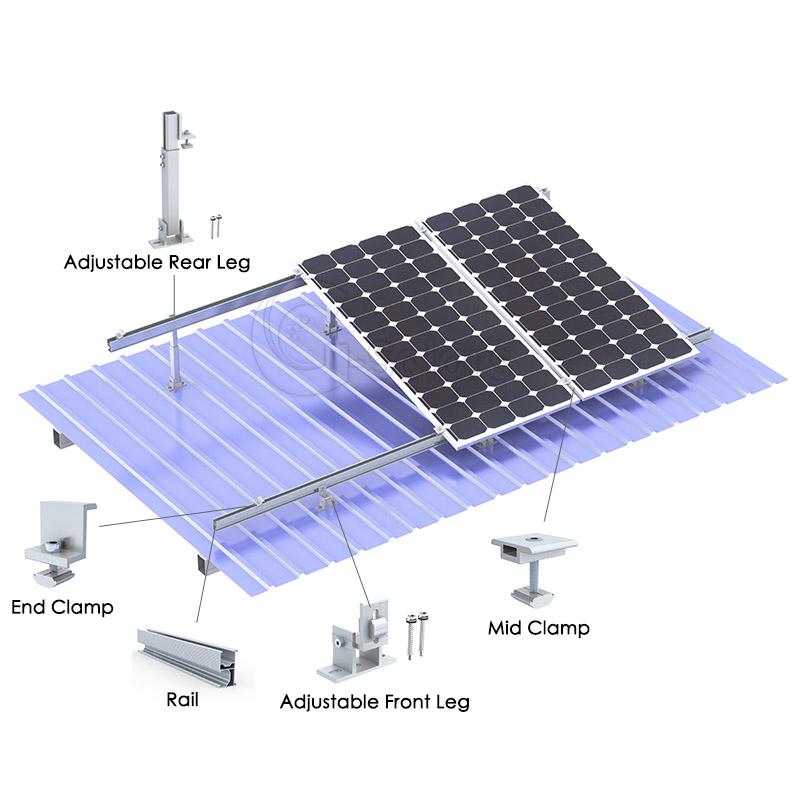

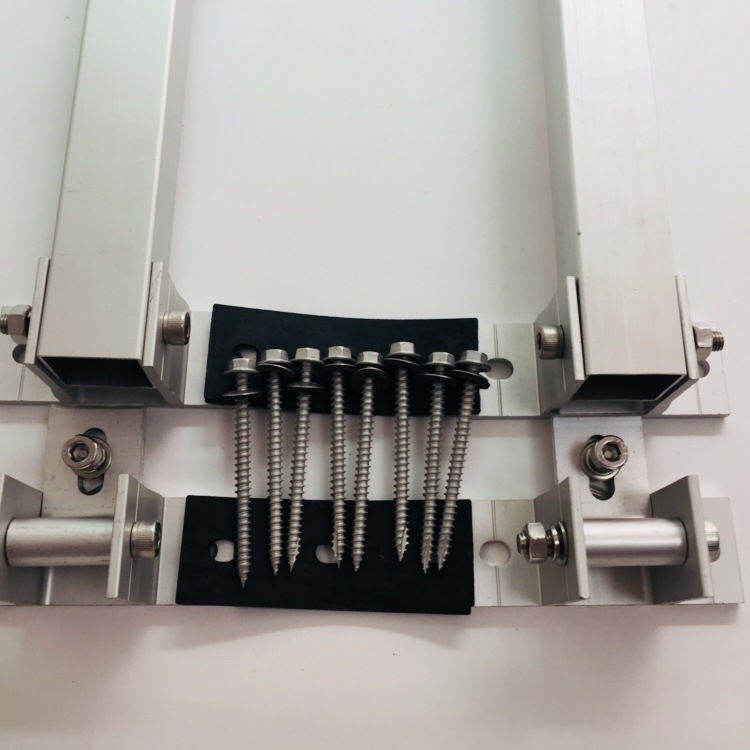

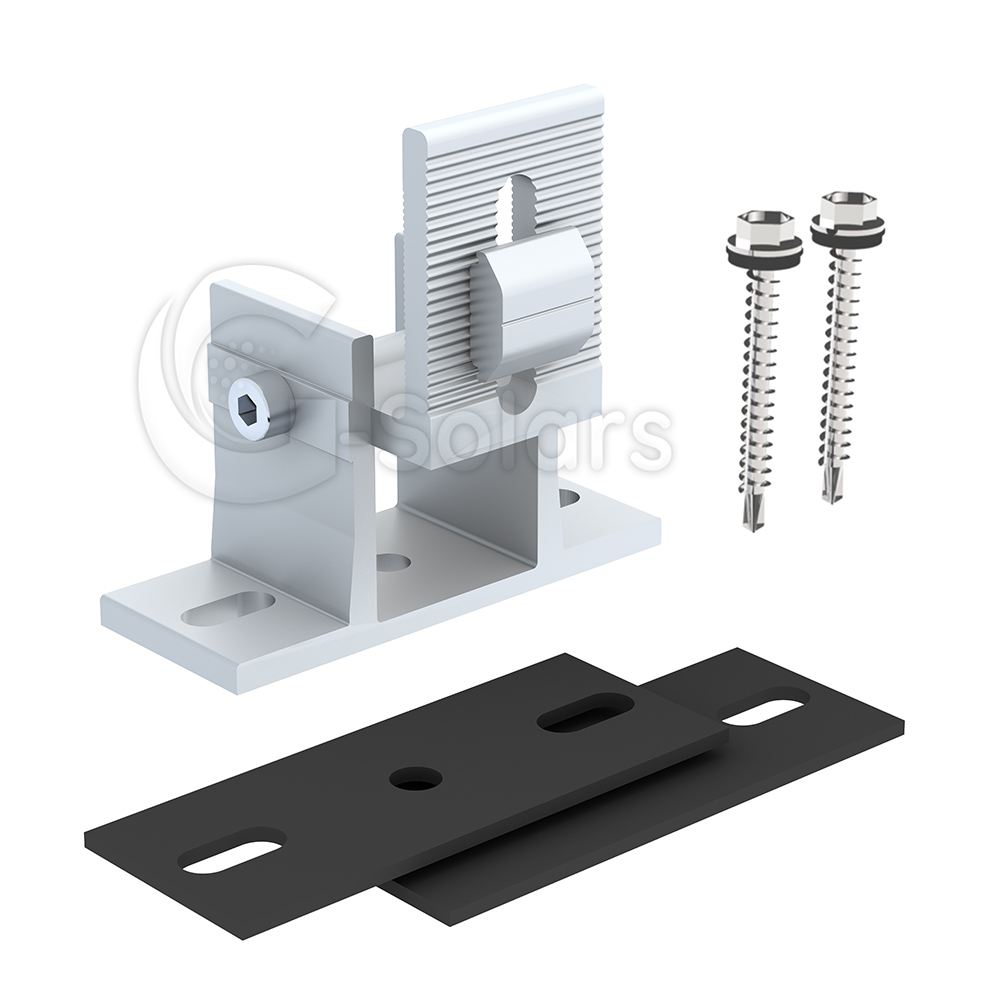

Components

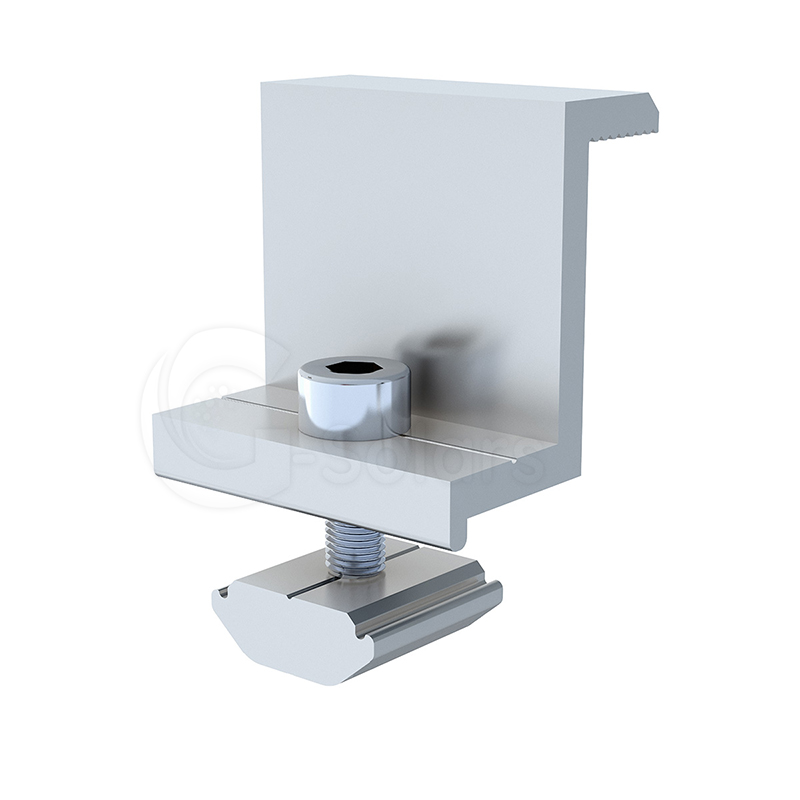

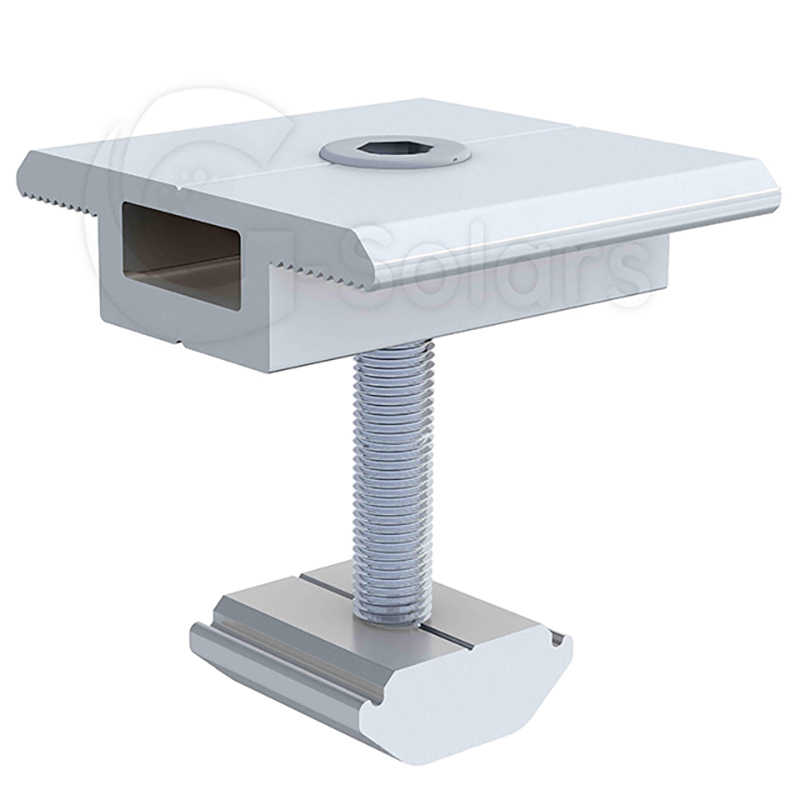

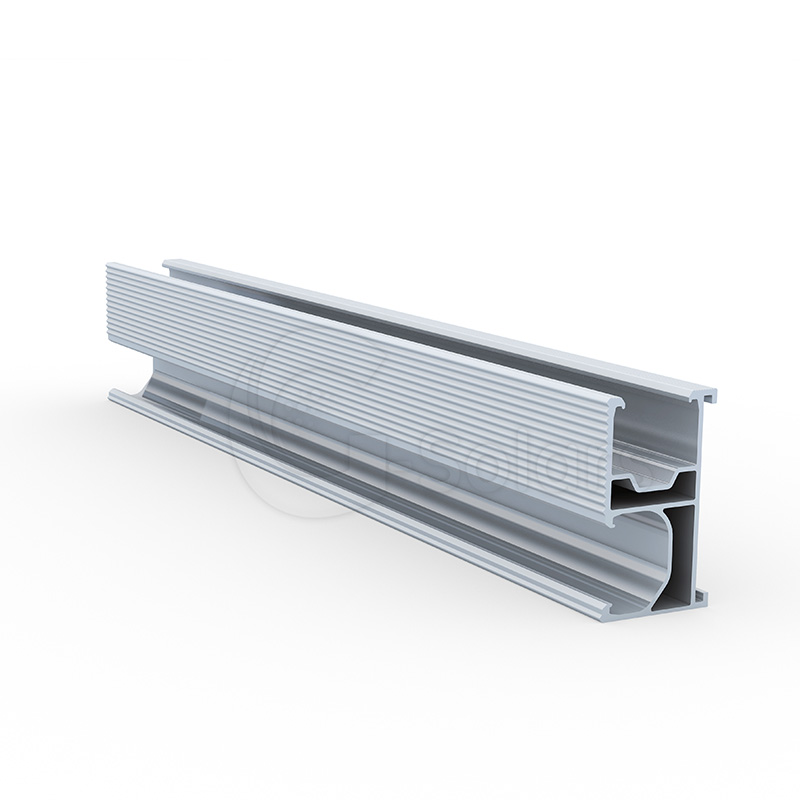

         Rail GS-Rail-01              Mid Clamp GS-MC-01              End Clamp GS-EC-01

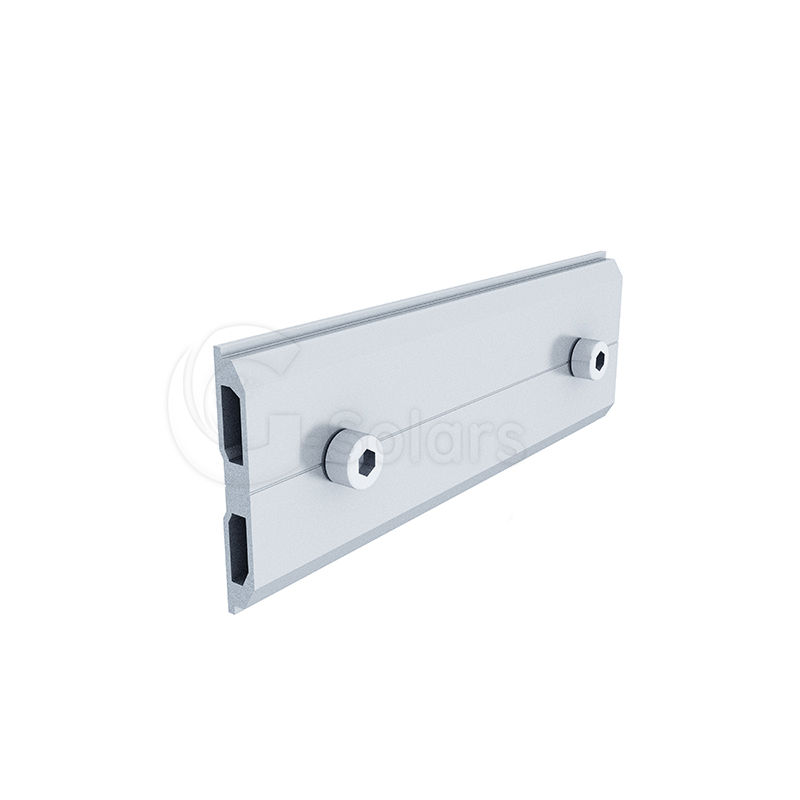

                 Rail  GS-Rail-01                           Mid Clamp  GS-MC-01                    End Clamp  GS-EC-01            Rail Connector GS-RC-01

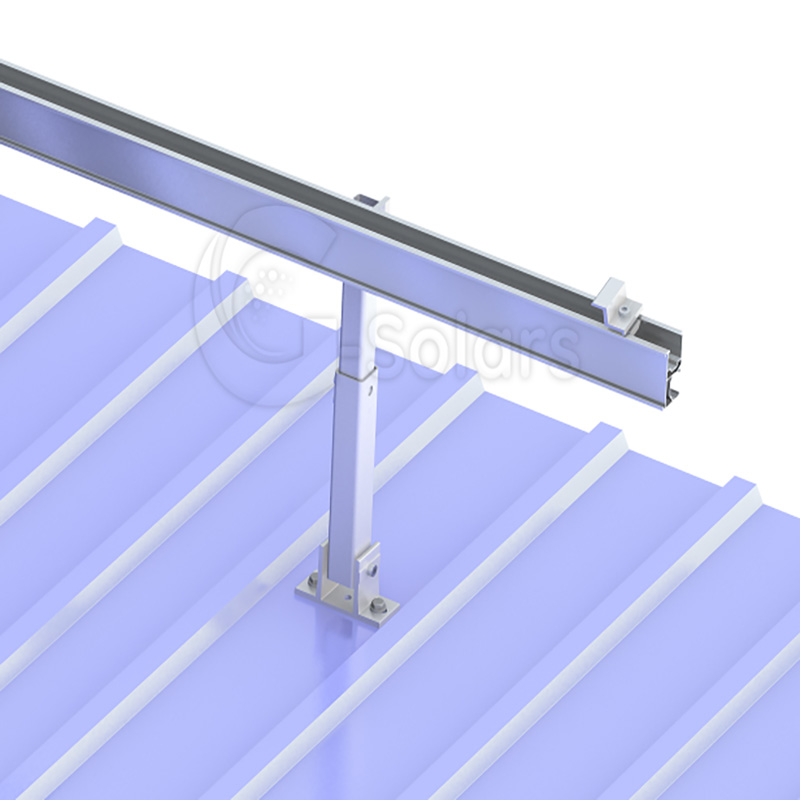

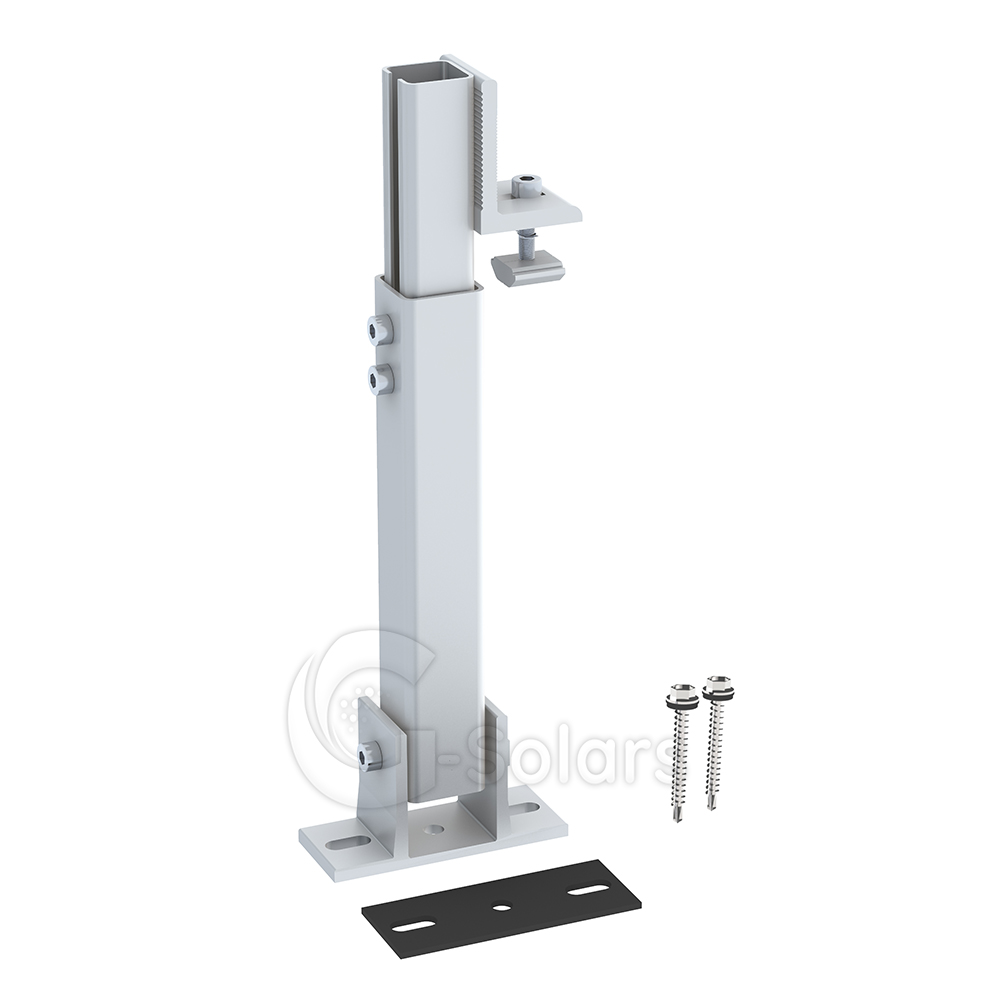

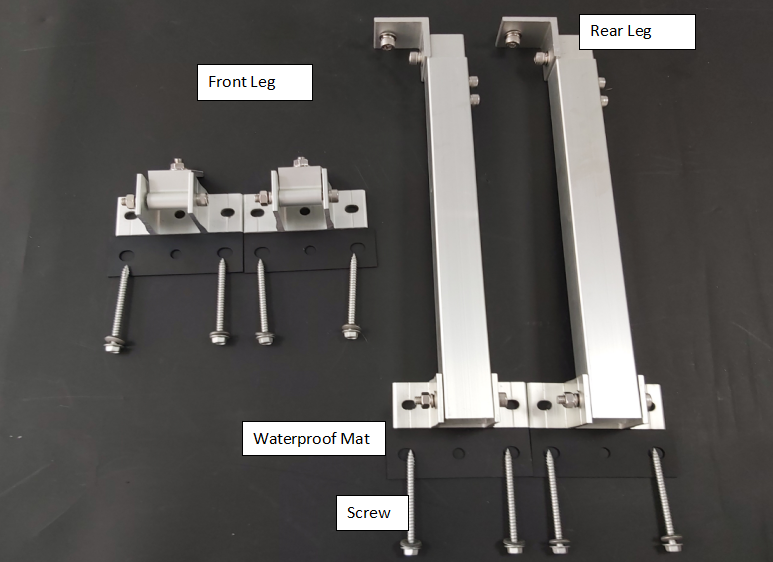

      Adjustable Rear Leg GS-AR-01                 Adjustable Front Leg GS-AF-01

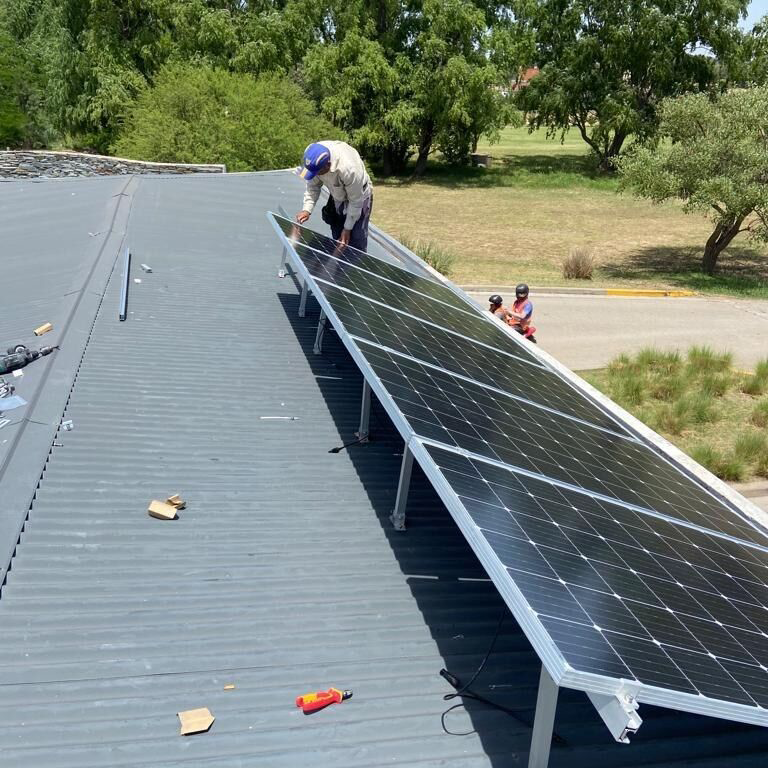

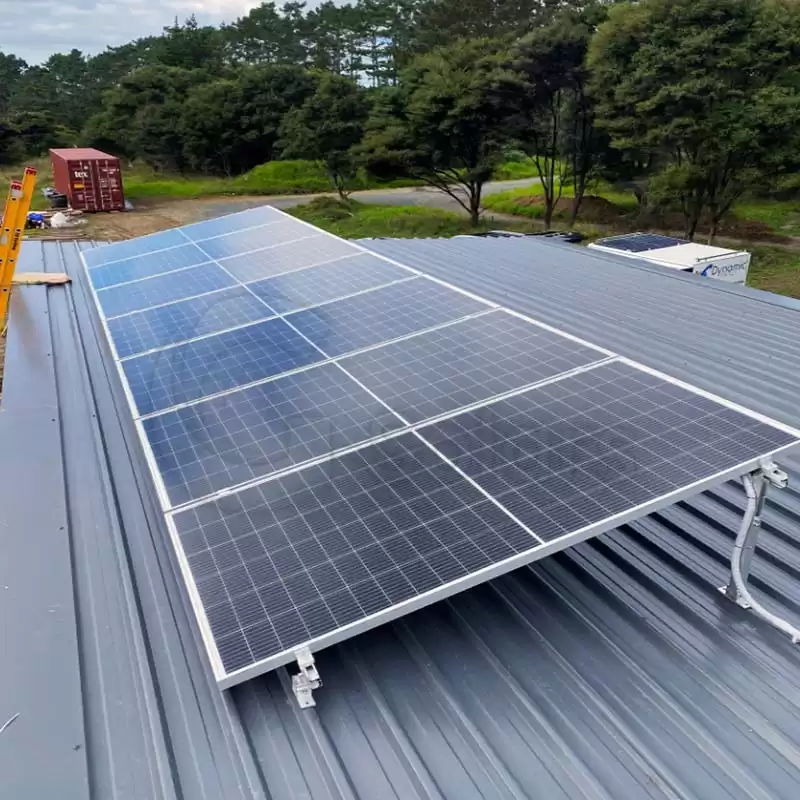

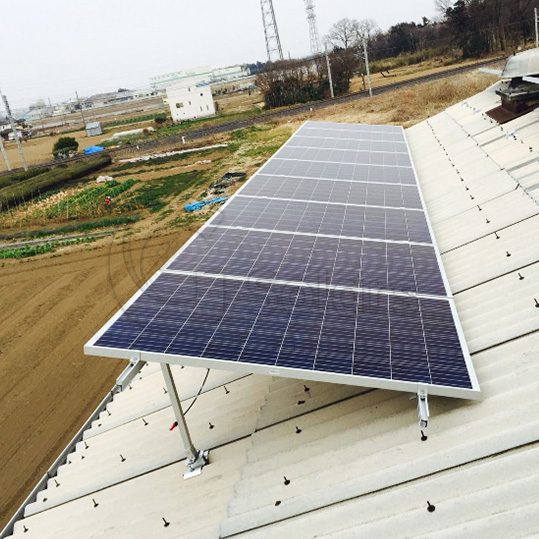

Project Cases





Production Process





  Reasons to choose G-Solars?



1. We can support OEM and distribute our products at preferential prices. We are one of the top 5 integrated manufacturers of aluminum solar brackets in China.



2. All parts are anodized – Comes with a 10-year warranty and 25-year service life.



3. We have more than 10 years of experience in the field of solar brackets and will continue to innovate and design better products.



4. We also have a manufacturing factory in Malaysia, which brings more convenience to customers in anti-dumping countries.
