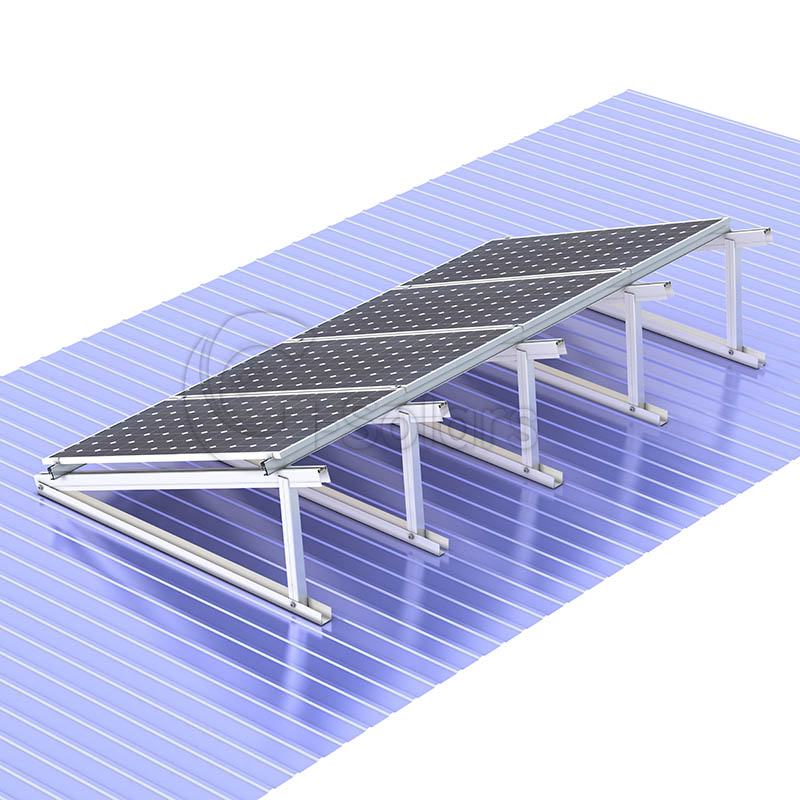

Solar Panel Roof Mounting Bracket Tripod Metal Roof Mounting System

Solar panel roof mounting bracket tripod roof mounting system, can be installed on metal roof, or flat ground


  • PaymentT/T, L/C
  • MaterialStainless steel 304, Al6005-T5
  • Tilt angle5° ~60°;
  • Service Life25Years
  • Warranty10Years
  • Shipping PortXiamen China
  • Project SiteFalt Roof/ Metal Roof



Solar Panel  L Feet For Roof  Mount

L-feet solar mounting systems are widely used to install solar panels on pitched trapezoidal roofs. They consist of L-shaped brackets that provide a secure and adjustable base for mounting the panel. Use a waterproof material such as rubber or EPDM (ethylene propylene diene monomer) around the L-foot bracket. Flashing is installed above brackets and below shingles or other roofing materials to prevent water intrusion.



Technical Data

Product Name

Tripod  Roof Mounting System

Material Aluminum & Stainless Steel
Standard AS/NZS 1170, ASCE 7-10, JIS2017
Wind Load 60 m/s
Snow Load 1.4 Kn/m2
Applicable Module Framed or Frameless
Module Orientation Portrait or Landscape
Surface Treatment Anodized

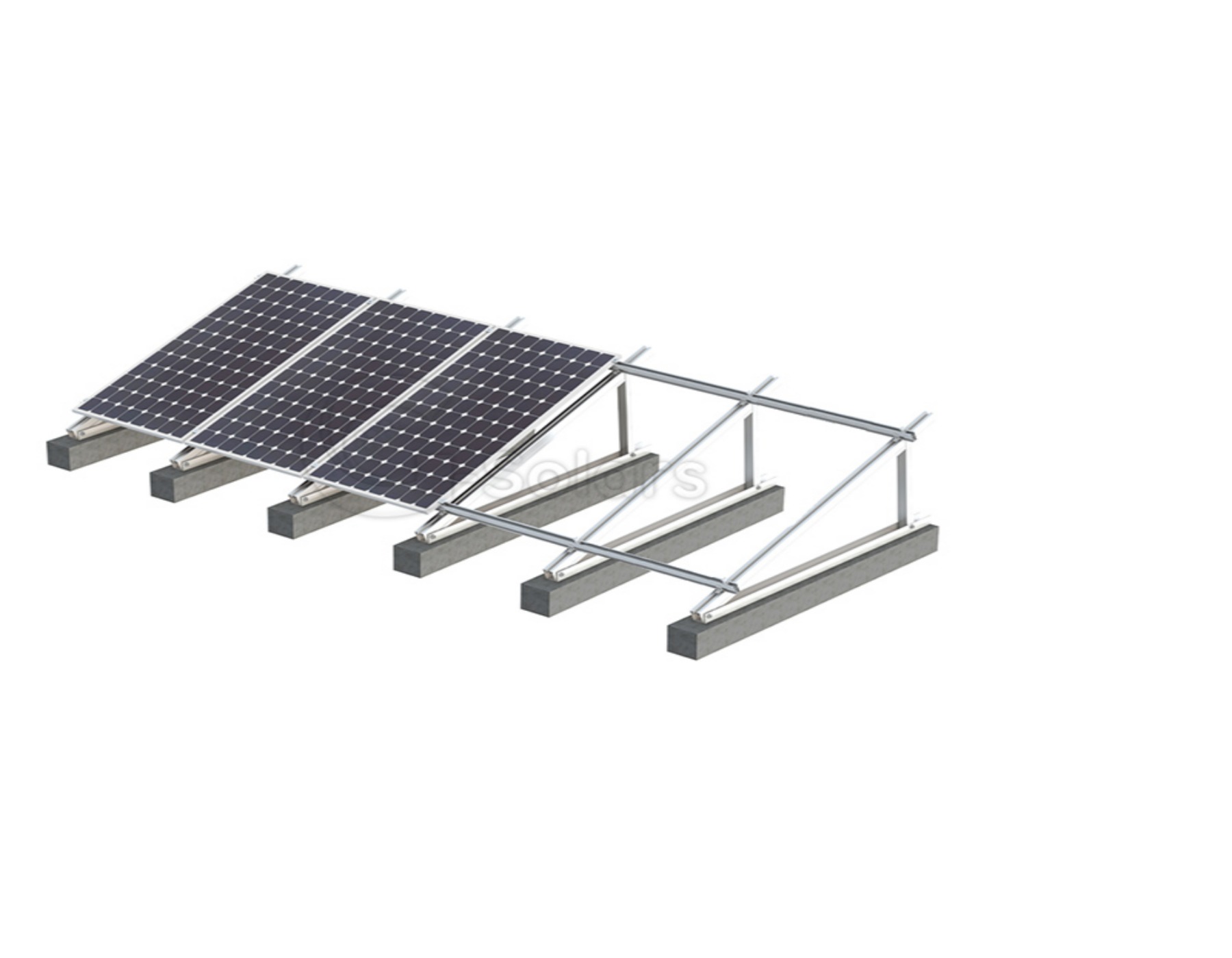

Application Flat roof, metal roof, flat ground
Dimensions Customized
Color Natural or Black Anodizing

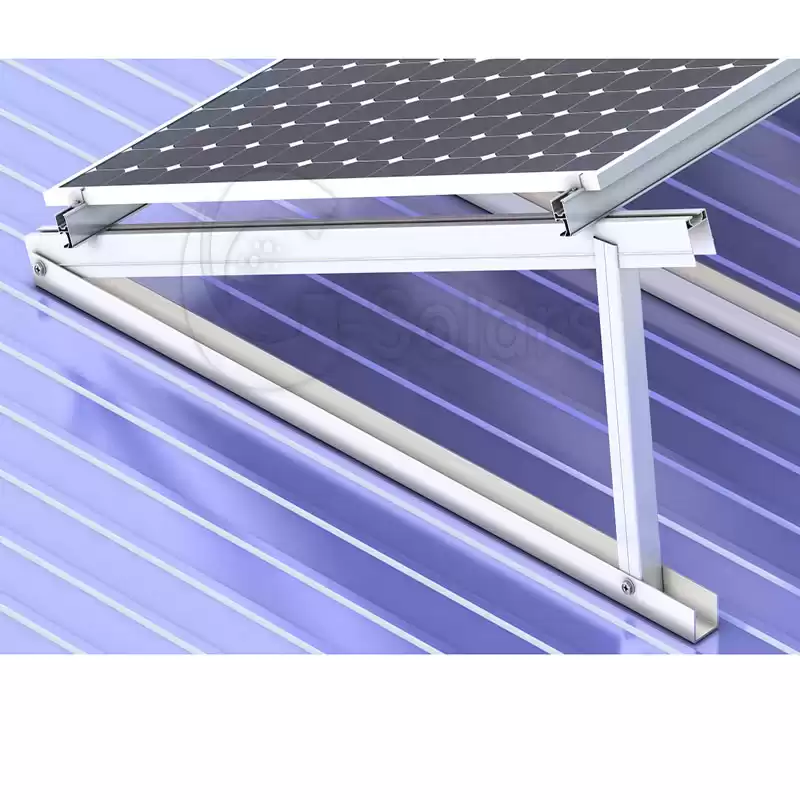

 Details

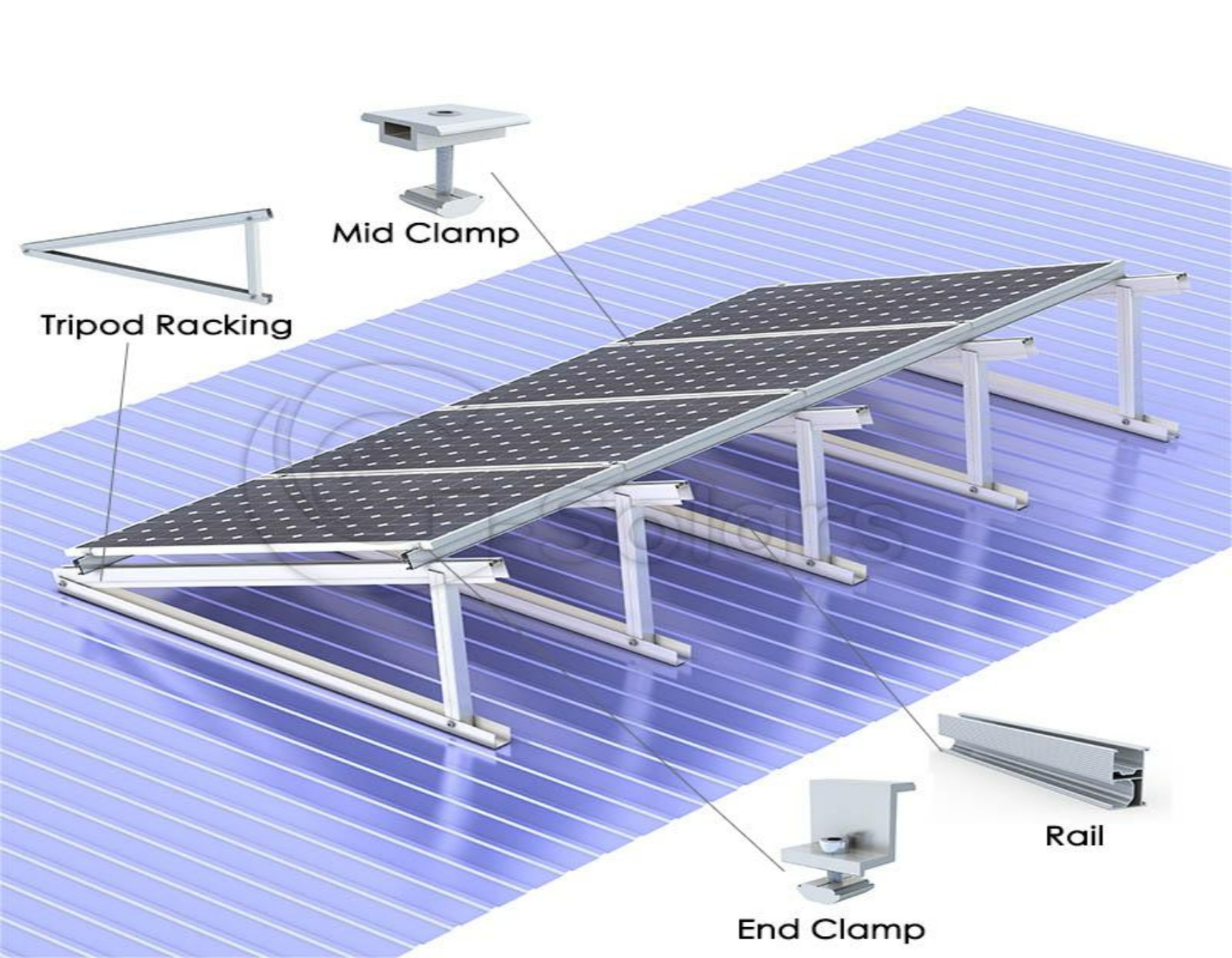

Components

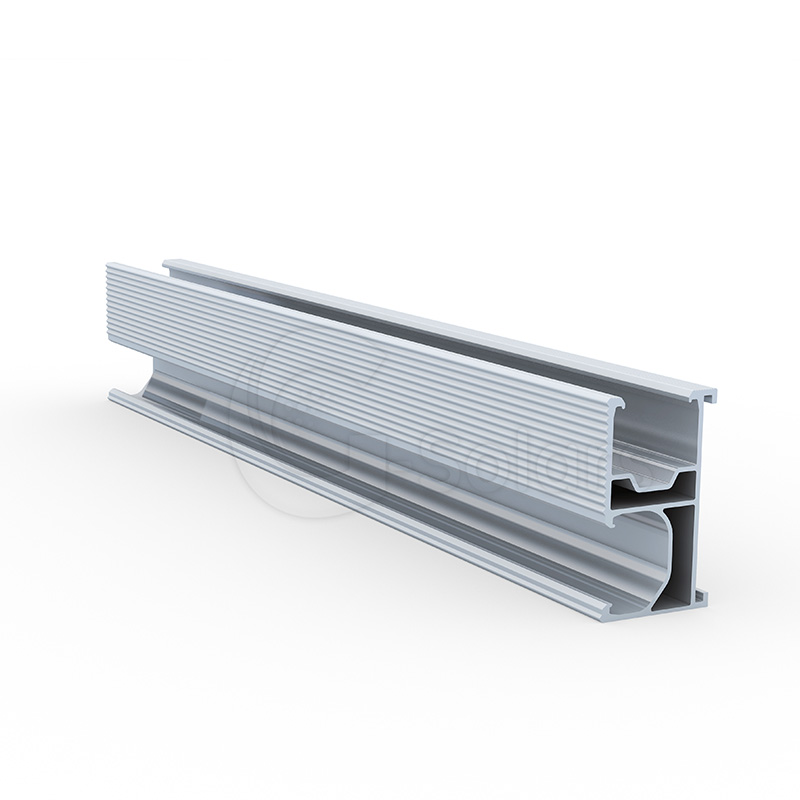

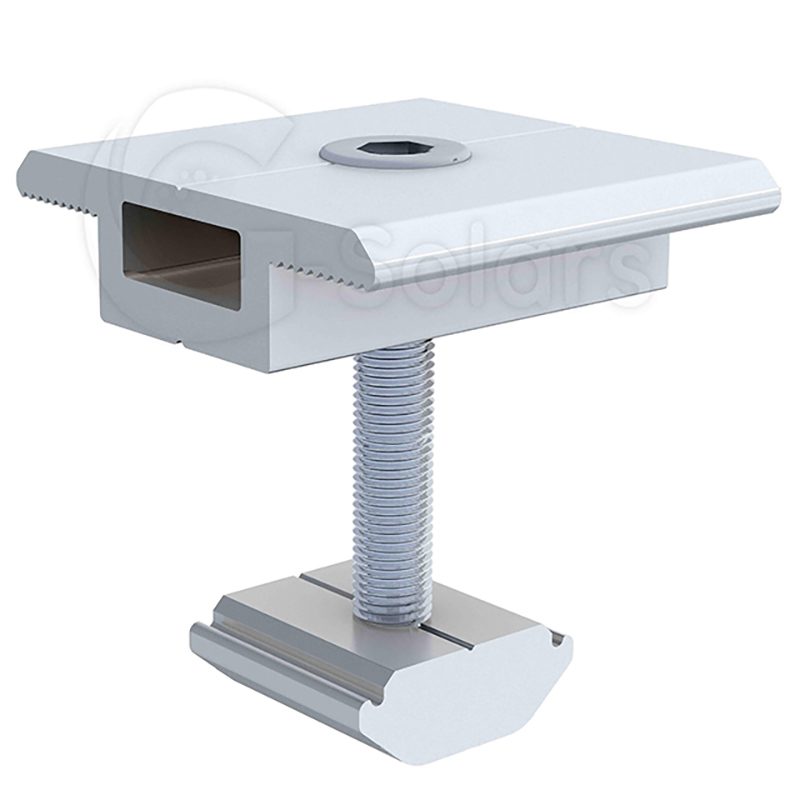

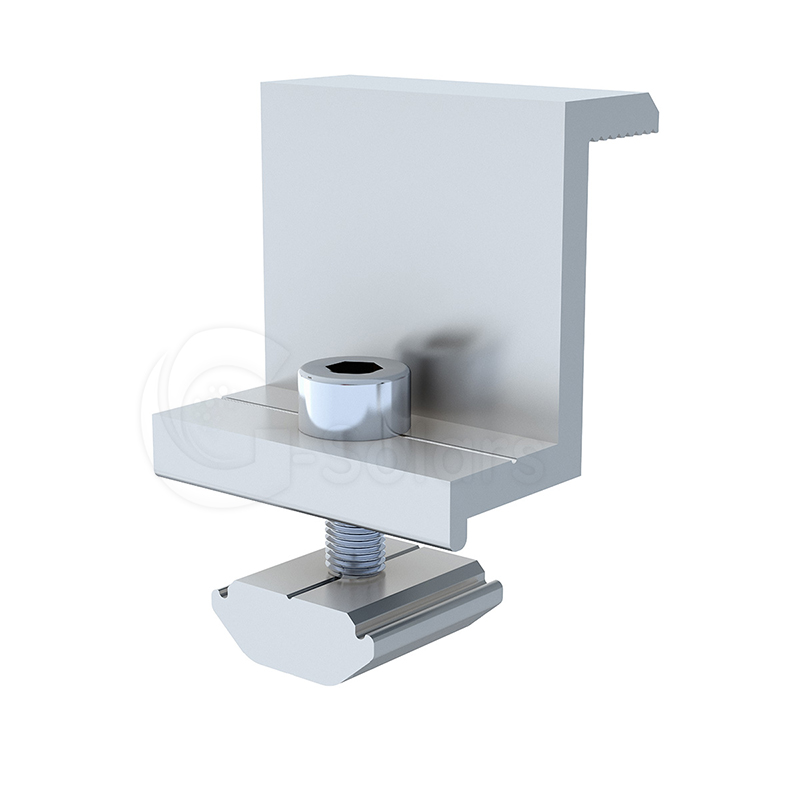

 Rail GS-Rail-01             Mid Clamp GS-MC-01                      End Clamp GS-EC-01

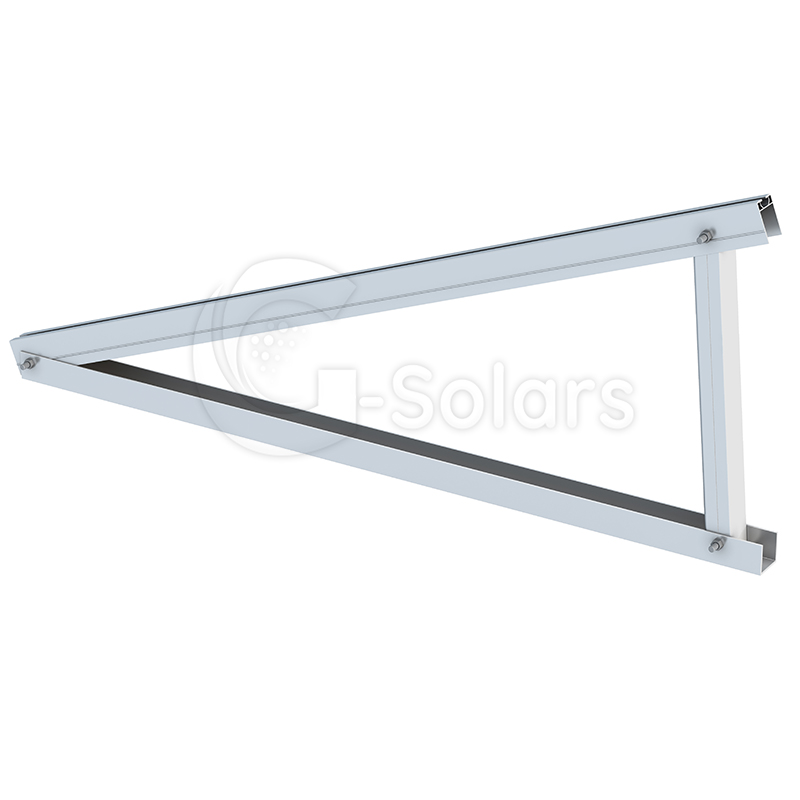

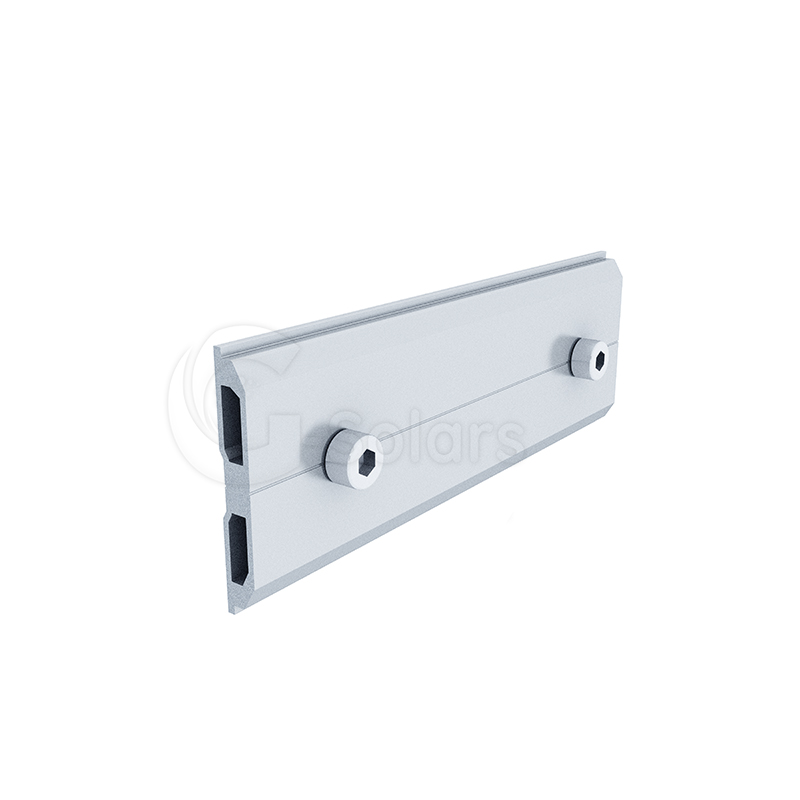

    Rail  GS-Rail-01       Mid Clamp  GS-MC-01          End Clamp  GS-EC-01           Rail Connector GS-RC-01     Tripod Racking GS-TR-01

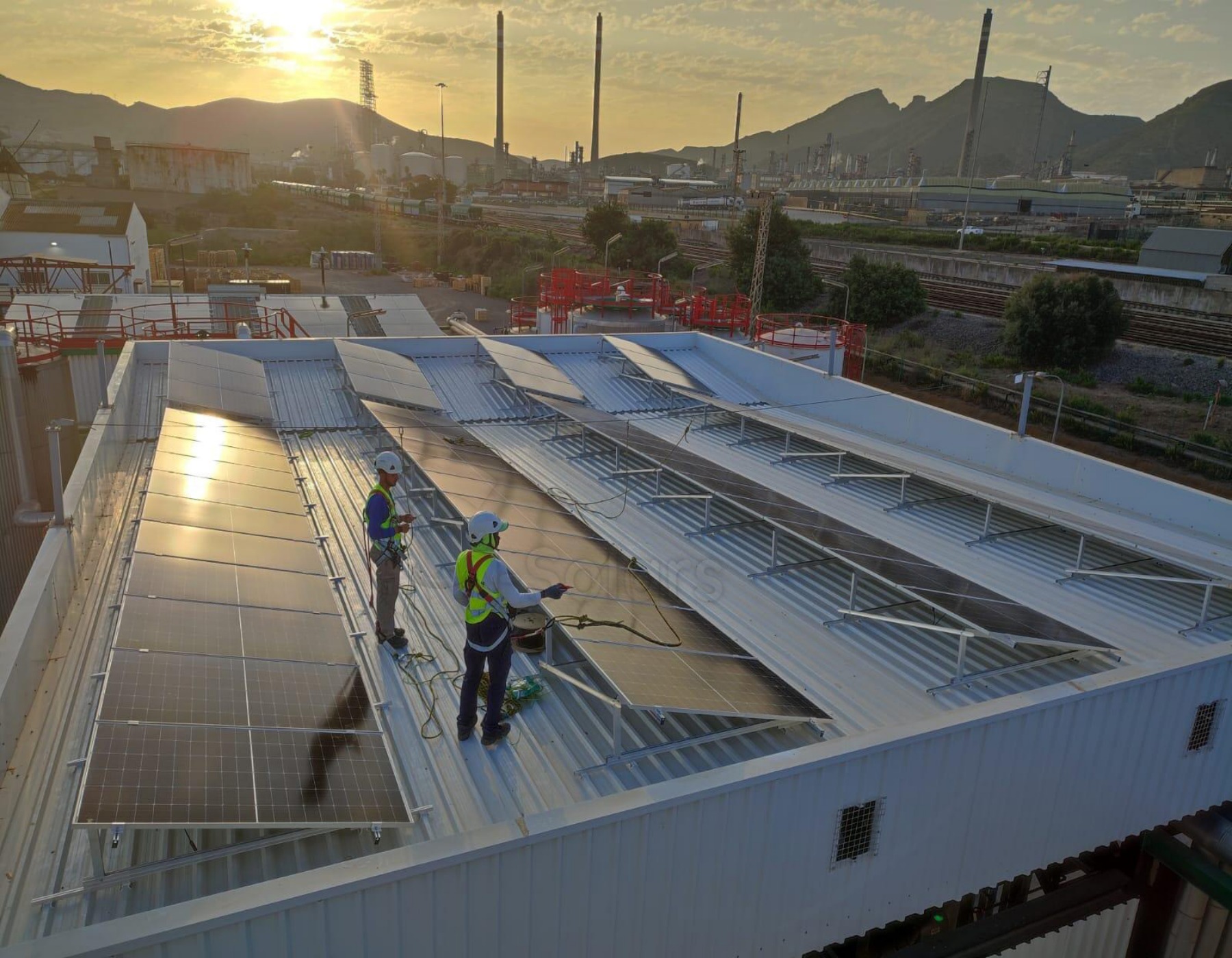

Project Cases

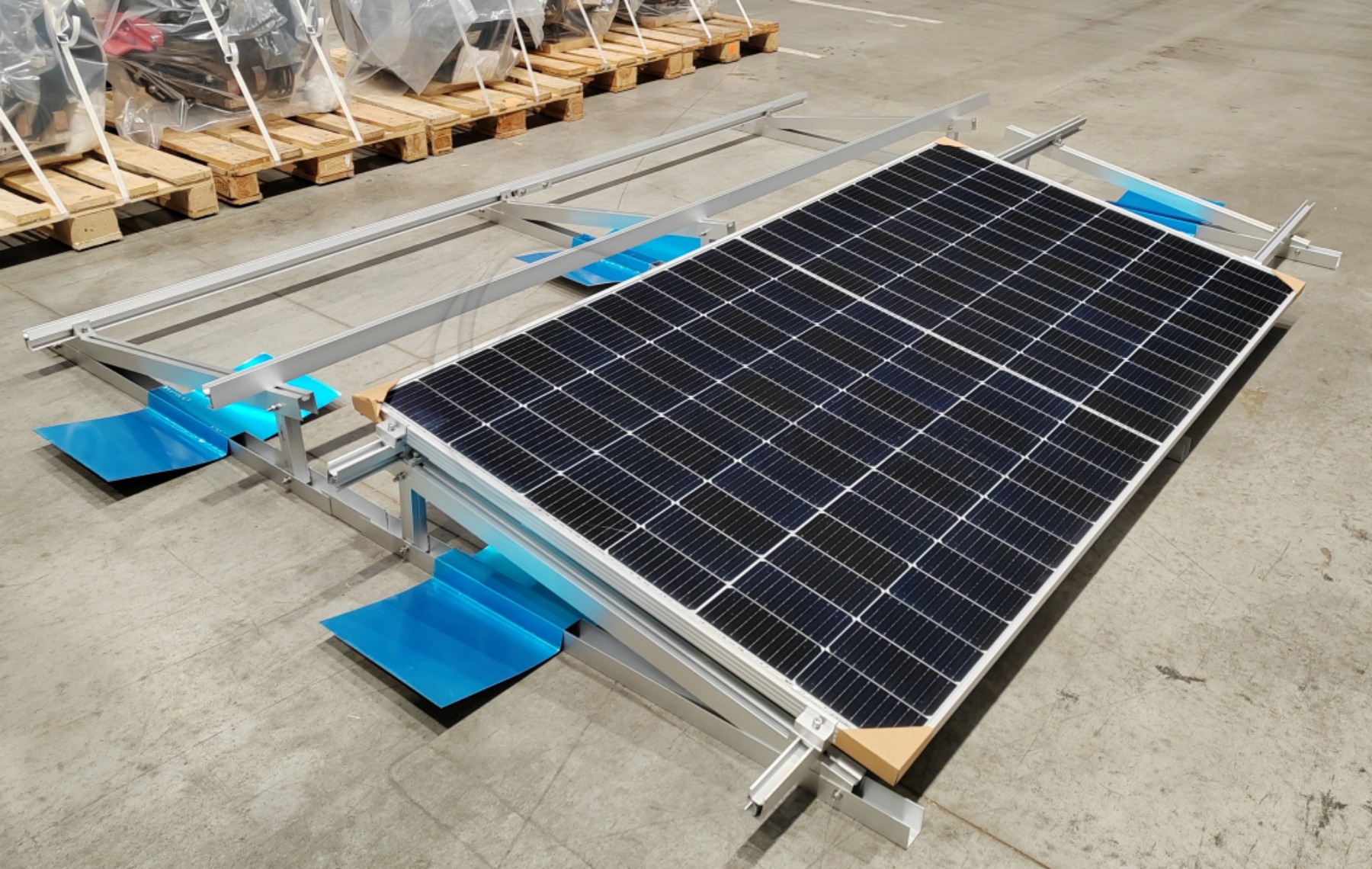

Production Process

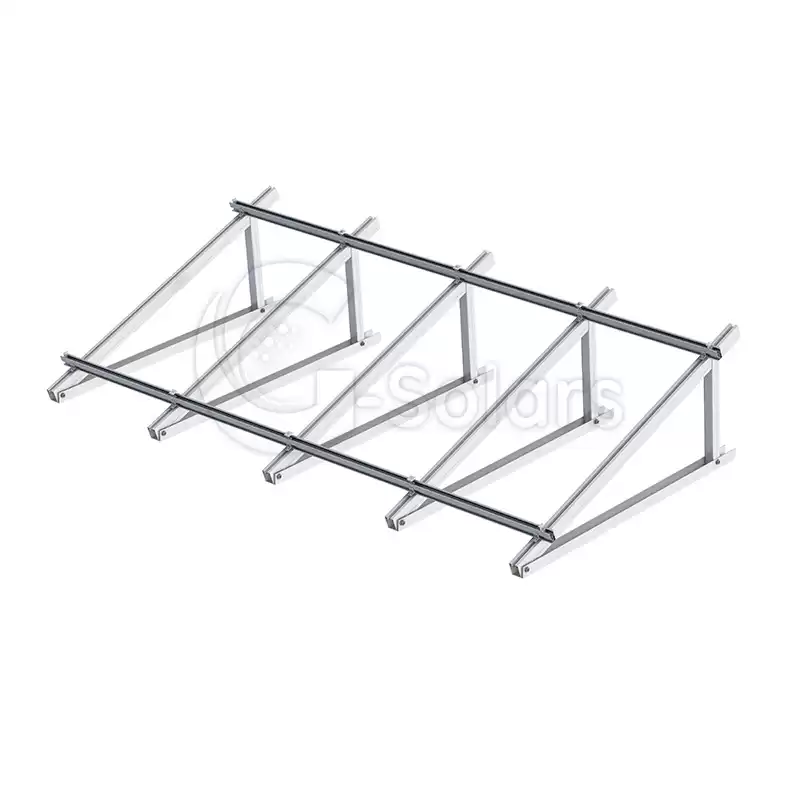

   Tripod solar system



  Reasons to choose G-Solars?



1. We can support OEM and distribute our products at preferential prices. We are one of the top 5 integrated manufacturers of aluminum solar brackets in China.



2. All parts are anodized – Comes with a 10-year warranty and 25-year service life.



3. We have more than 10 years of experience in the field of solar brackets and will continue to innovate and design better products.



4. We also have a manufacturing factory in Malaysia, which brings more convenience to customers in anti-dumping countries.
