We can customize the special fixture according to the shape of the color steel tile roof to ensure that the clamp can be tightly clamped on the color steel tile. This fixture is suitable for round color steel tile roof.
Technical Parameters
|
Installation Angle
|
Flat
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
PV Modules
|
Framed,unframed
|
|
Module Orientation
|
Landscape
|
|
Standards
|
AS/NZS 1170
|
|
|
DIN 1055
|
|
|
JIS C 8955：2017
|
|
|
International Building Code IBC 2009
|
|
|
California Building Code CBC 2010
|
|
Material
|
Al6005-T5(Anodized)
|
|
Color
|
Silvery or according to customer requirements
|
|
Warranty
|
12 years
|

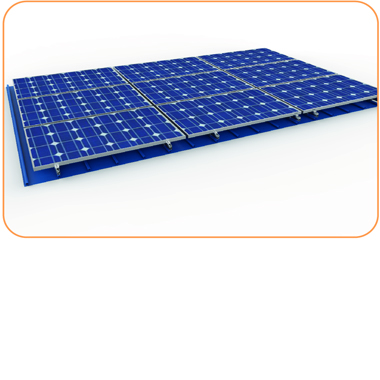

Solar panel roof rack systems
Feature:

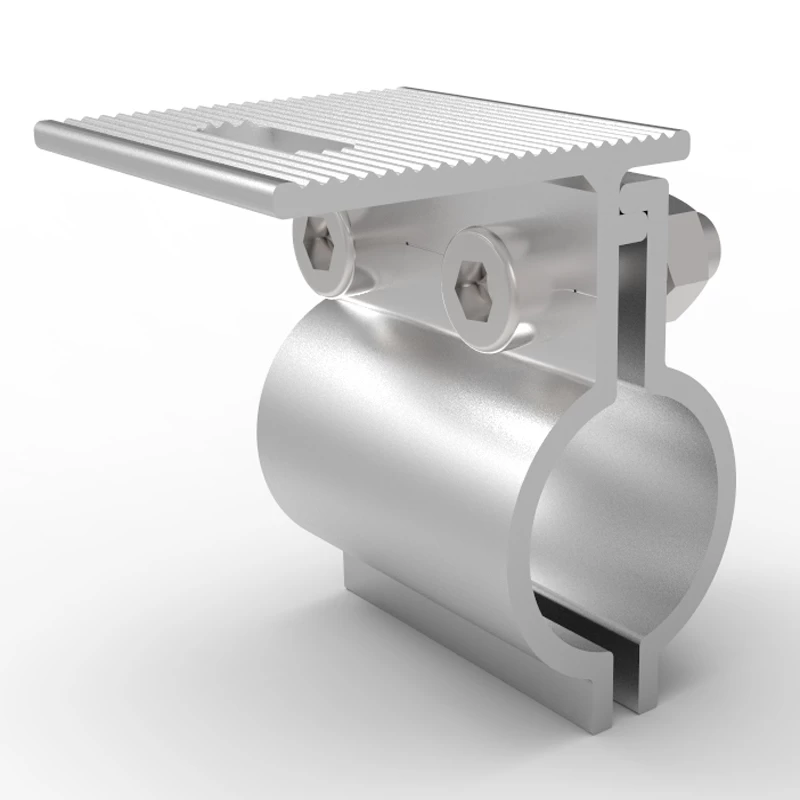

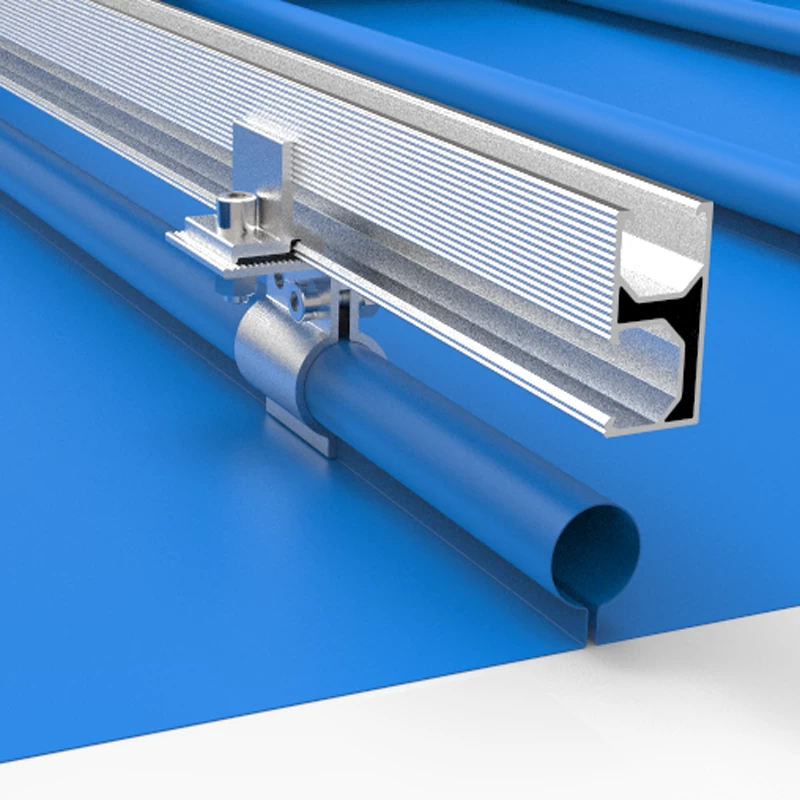

1. The circular
color steel tile fixture is suitable for a specific circular raised color steel
tile.
The colored steel tile of this type has a circular convex portion,
which
is fixed by the two semi-circular clamps clamped on the convex portion;
2. The clamp
clamps the two semi-circular clamps on the color steel tile by bolts,
so it
will not damage the original color steel tile.
3. Light weight
and easy installation
Advantage
1.Easy installation;
2.High strength,anti-uv,high frequency insulation(design standard:IS C 8955:2017,GB 50009-2012,IBC 2009,CBC 2010);
3.Chemical resistance&weatherability(certificate:AS/NZS 1170,MCS,CSA etc);
4.Max wind speed:up to 60m/s;
5.Anti-corrosive:anodized;
6.Duration:25 years.

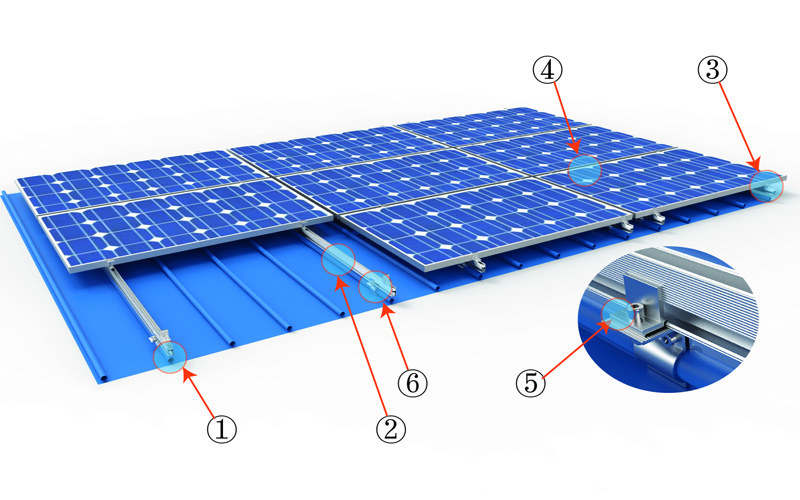

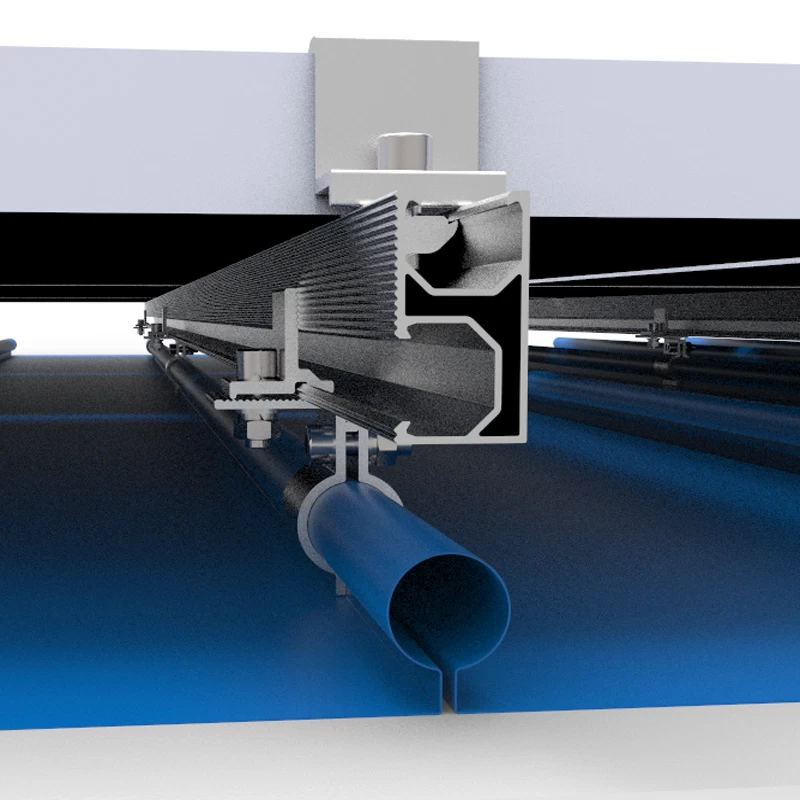

Installation drawing of solar panel roof rack systems
1. Solar roof rail 2. Solar roof rail splice 3. Solar end clamp 4. Solar inter clamp
5. Solar rail clamp 6. Galvanized roof hook for
circular color steel tile

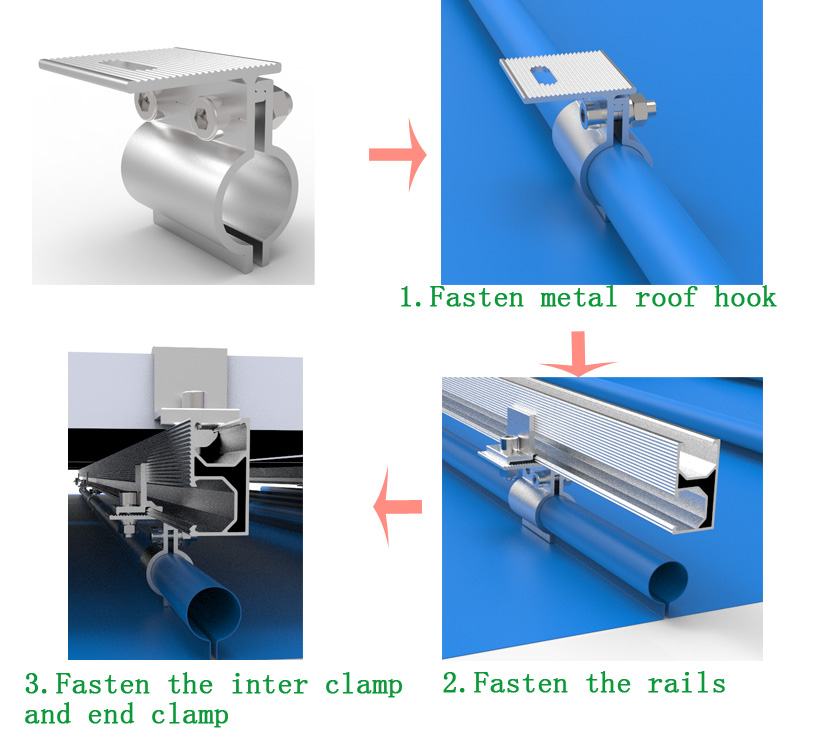

Installation steps of solar panel roof rack systems

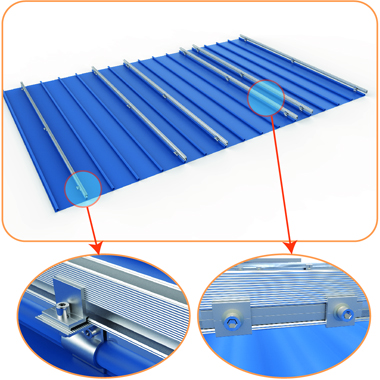

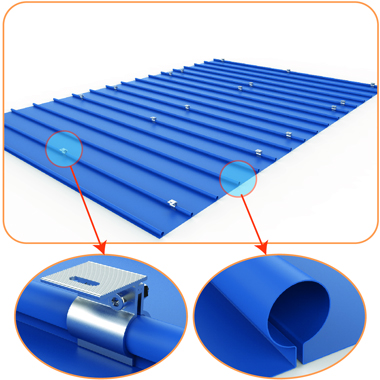

Step1：Install galvanized roof Step2：Install roof rails and rail splices
hook according to the drawing
Install galvanized Shape of galvanized roof Rail clamp Rail splice
roof hook

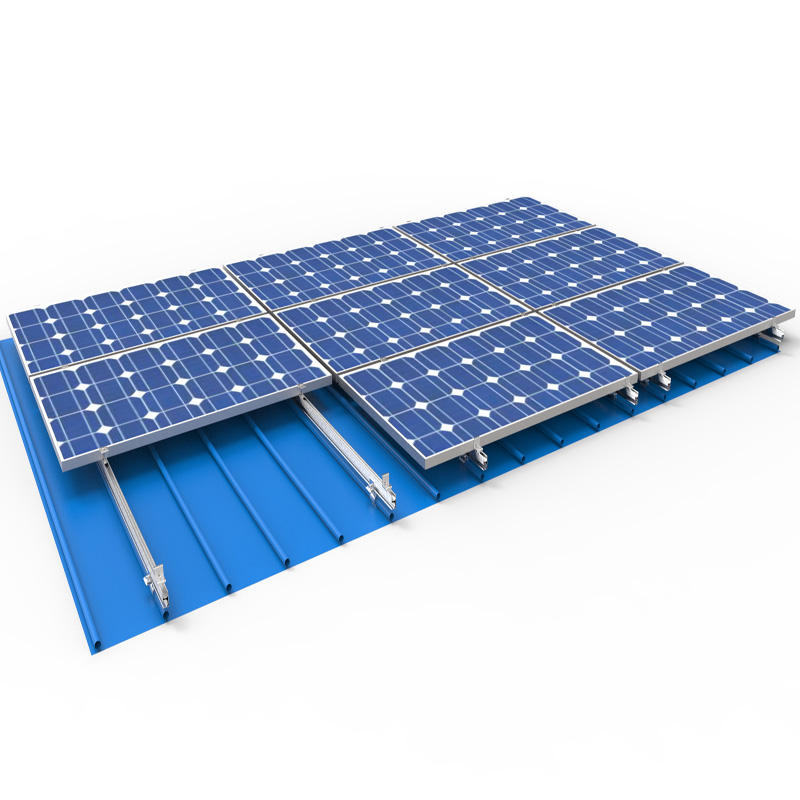

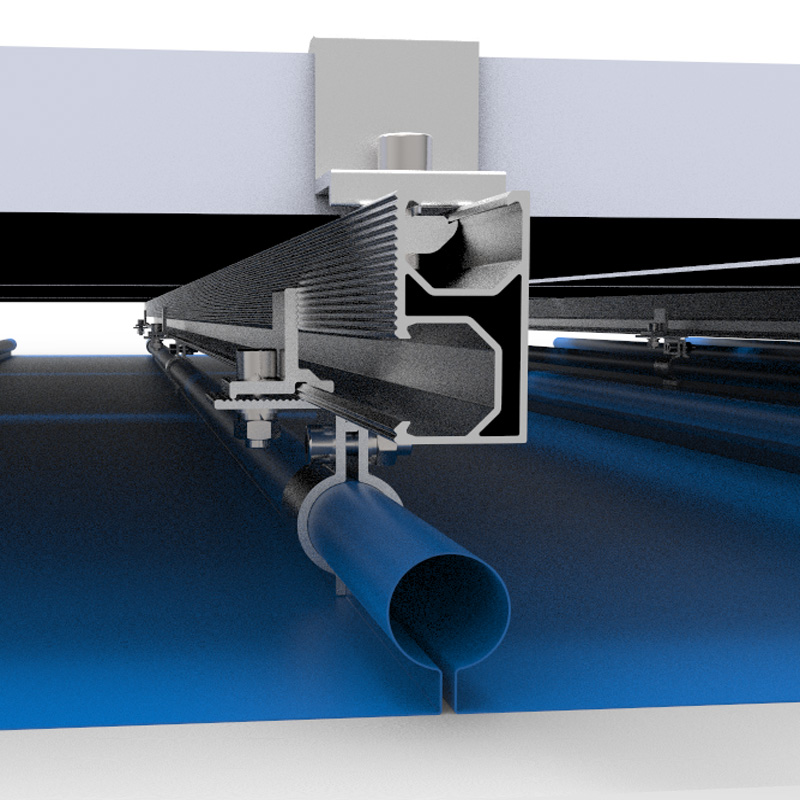

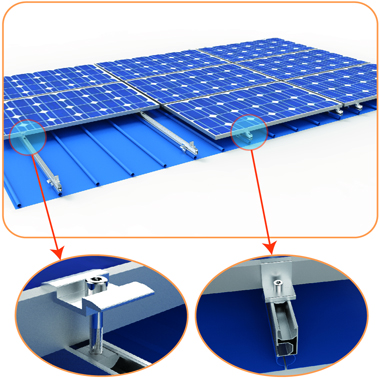

Step3：Fasten panel by inter clamp Step4：Installation completion diagram
and end clamp
Inter clamp End clamp
Component photos-multiple design
Installation steps

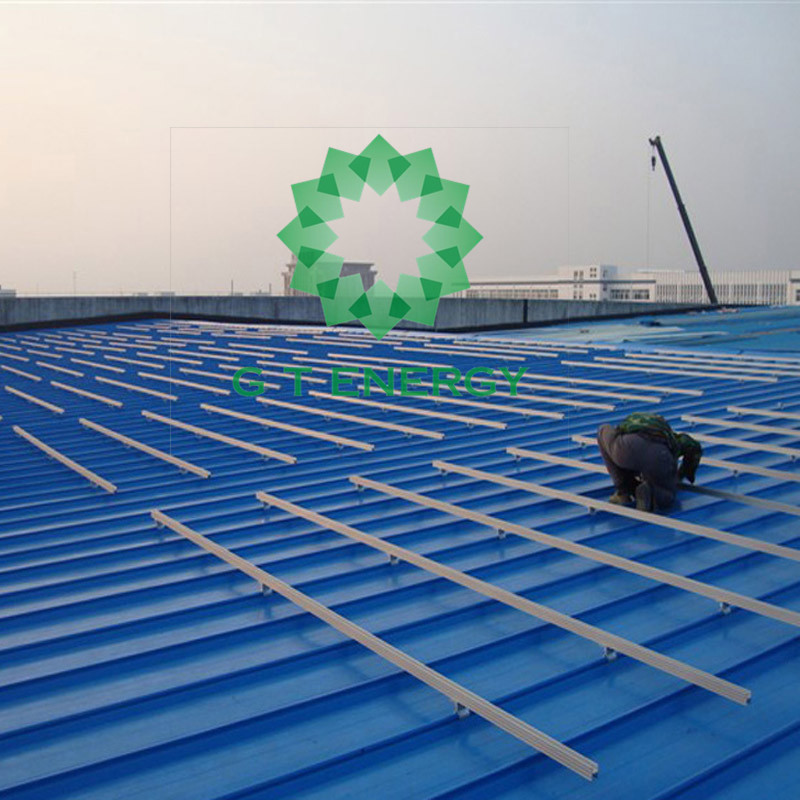

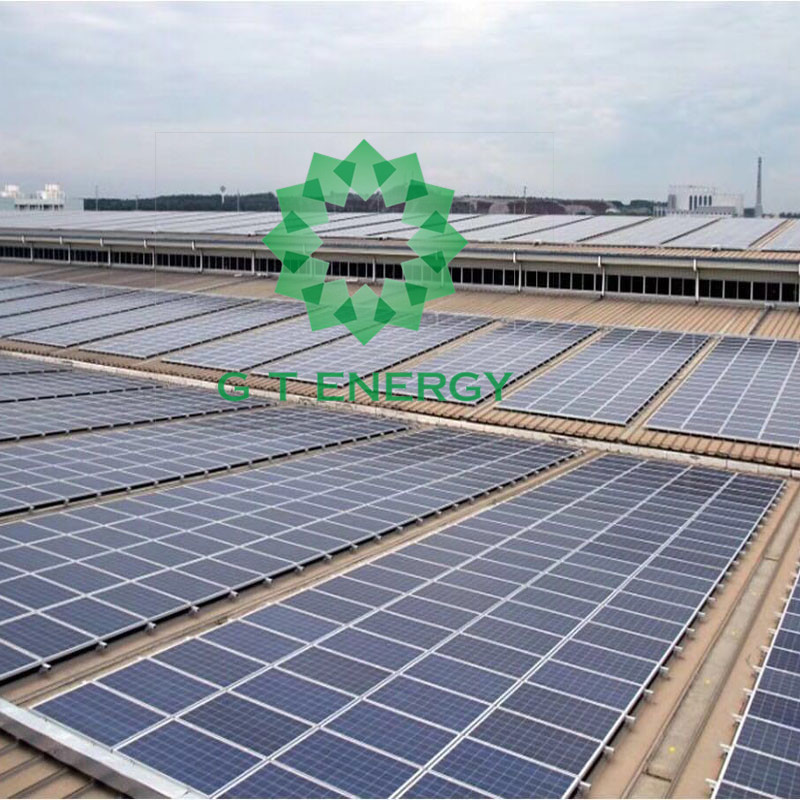

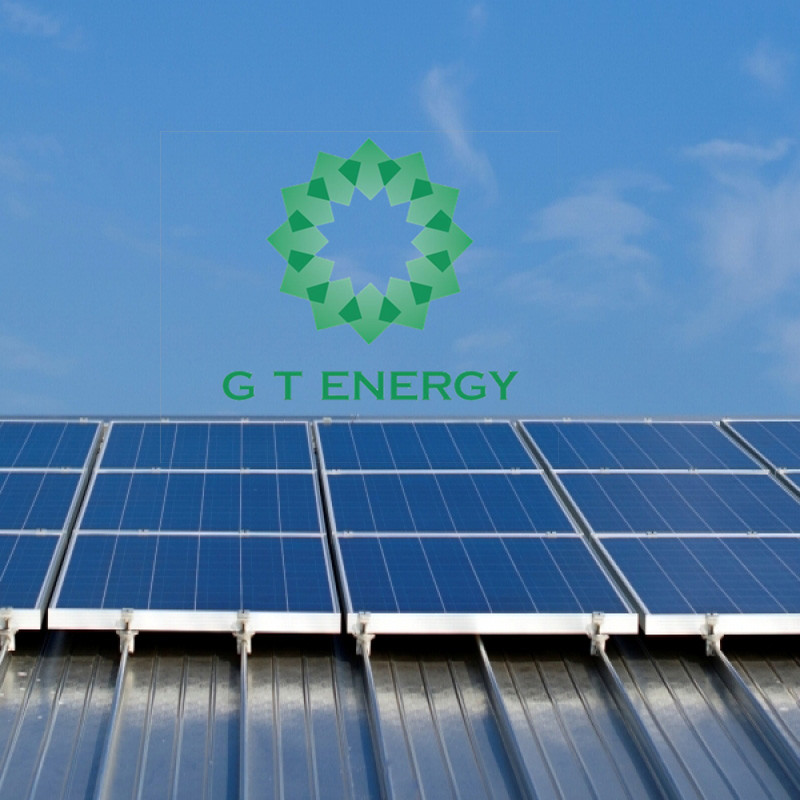

Project photos
