Aluminum solar panel mini rail kit for tin roof solar mounting system

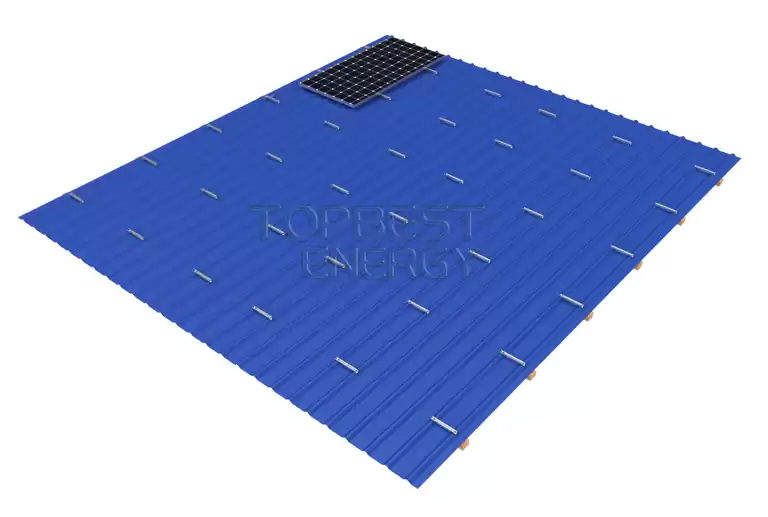

Mini Rail Mounting System is simple,easy and cost-effective solution for trapezoidal roof, corrugated roof and other metal roof.

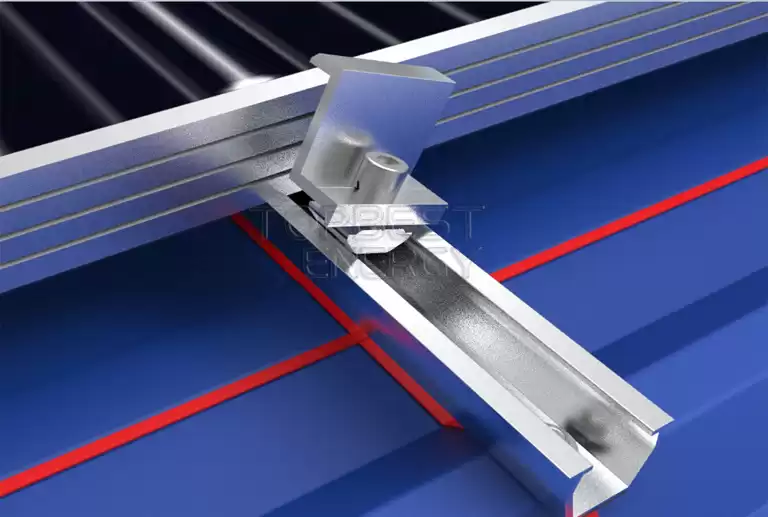

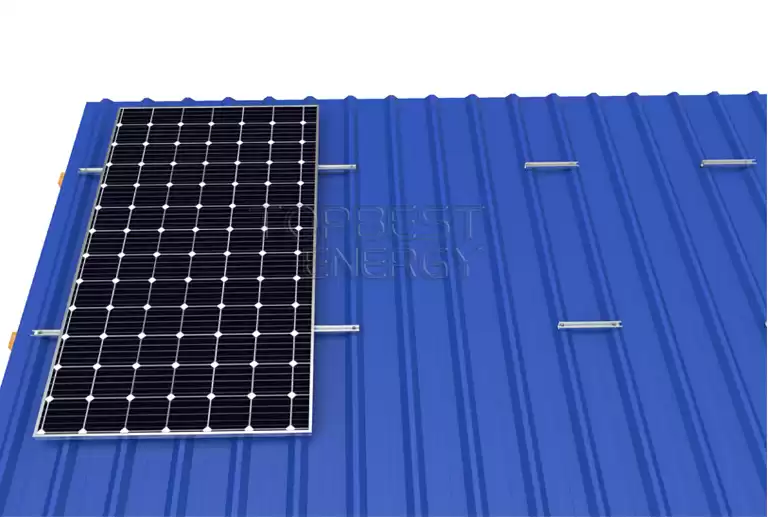

It allow solar panel orientation with landscape or portrait, flexible on roof installation. It come with other solar mounting components like mid clamp, end clamp. and mini rail,very easy to install.

ADVANTAGES

Easy installation

High class anodized
Universal on roof mount system
The length and hole can be customized for you.
In usually, the length is 20cm, 2 or 3 pcs of 6.5mm hole

Specification & features:

– Cost effective ;
– Waterproof for outdoor roofing application ;
– 6005-T5 aluminum made, anti-corrosion;
– Suitable for trapezoid / corrugated roofing type ;
– Fast installation ;
– Easy / fast to anchor brackets on flat / sloping roof frame ;

Our trapezoid Metal roofing bracket kit includes :

1) one piece of aluminum rail clamp (250 mm in length) ;
2) two pieces of EPDM pads ( Pre-adhered on the back of clamp) ;
3) two sets of screws, rubber washer;
Additional components :

1) mid clamps
2) end clamps
3) grounding lugs
4) cable clips
5) grounding clips
