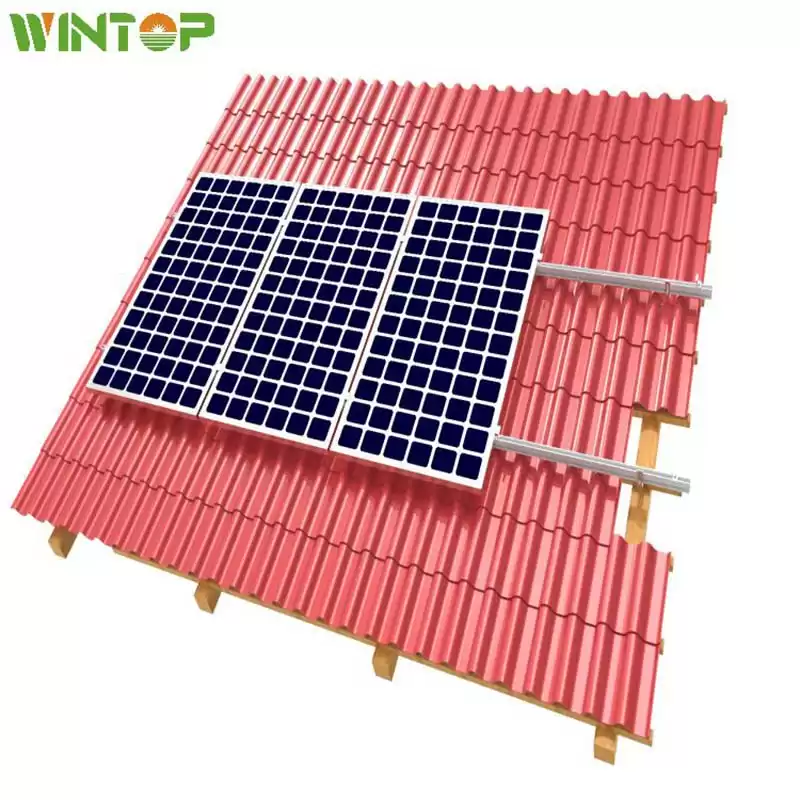

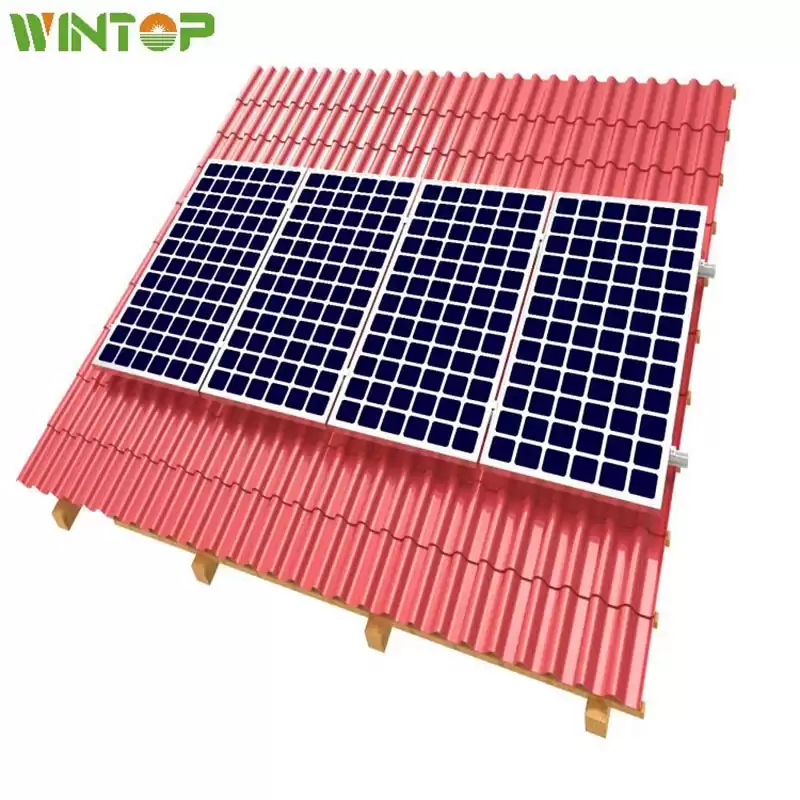

Solar Pitched Tile Roof Mounting System
Product Description

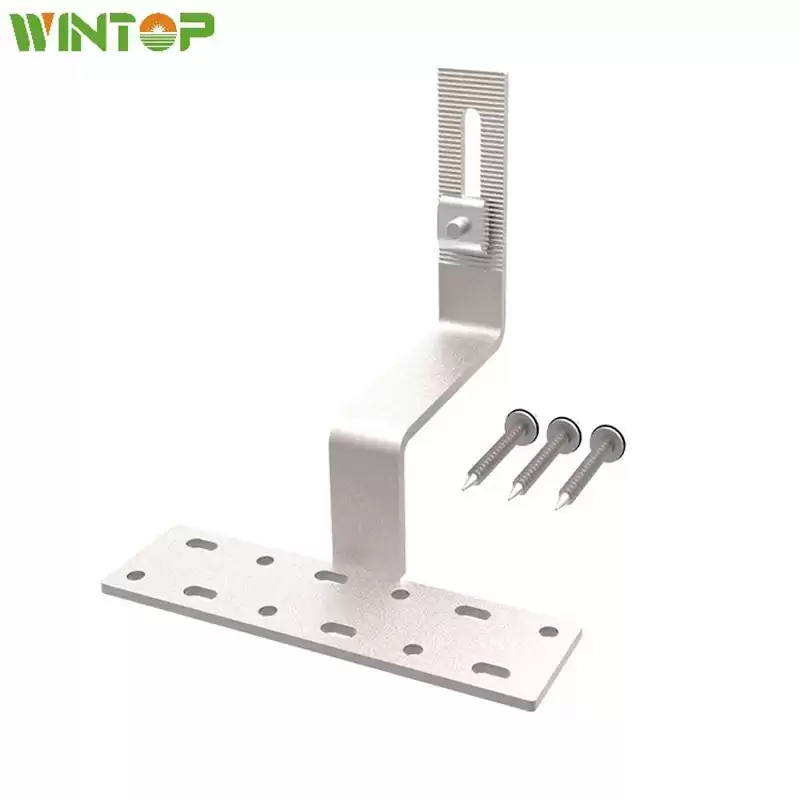

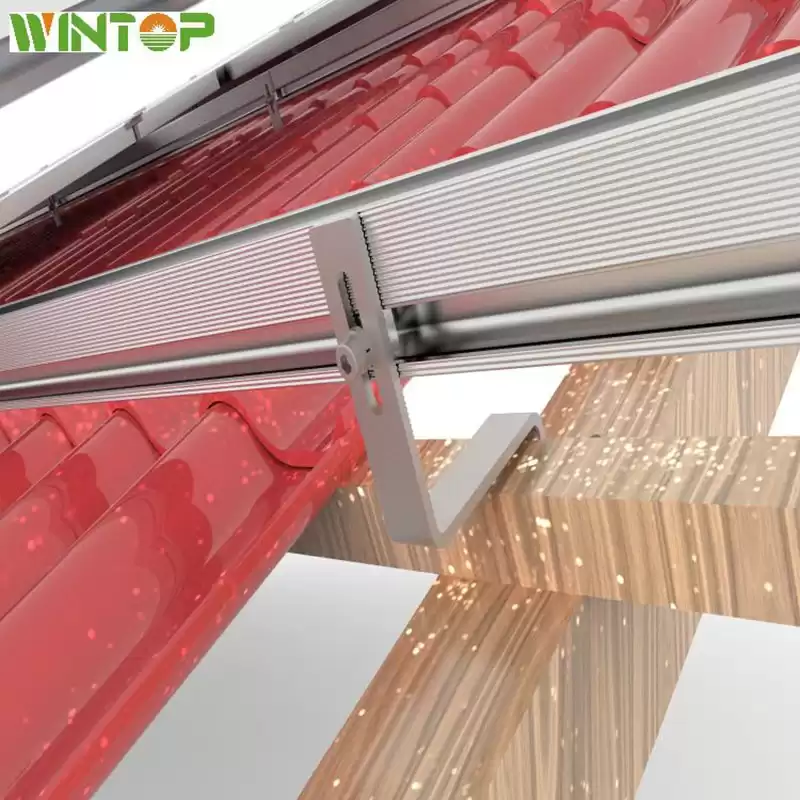

Tile roof solar mounting system offers perfection solution for installation on tile roofing, the roof fastening is done using highly-resistant stainless steel roof hooks,which is suitable for nearly all coverings, this include pantile,plain tiles,slate tiles.System are fully compliant with the Australia and other international standards on wind&snow load,making it suitable for a wide variety of climatic zones.
Technical Parameters
|
Installation location
|
Pitched tile roof
|
|
Installation foundation
|
Magnetic tile, flat tile, slate tile, asphalt tile
|
|
Installation angle
|
0°-60°
|
|
Wind load
|
60m/s（216kmh/133mph)
|
|
Snow load
|
1.4KN/m²
|
|
Distance from module lowest point to the ground
|
Roof height
|
|
Applicable module type
|
Mono-crystalline, Poly-crystalline, Double wave and Thin film
|
|
Module Orientation
|
Horizontal, Vertical
|
|
Design standard
|
AS/NZS1170,JIS C 8955-2017
|
|
Bracket material
|
AL6005-T5(Anodized Oxidation)
|
|
Fastener Material
|
Stainless steel SUS304
|
|
Warranty&Duration
|
10 years&More than 20 years
|
Features & Benefits
-
Suitable for variety of pitched tile roof;
-
pre-assembled in the factory to save your installation time;
-
Wide range of roof hook for actual use;
-
Available to variety of PV modules.
-
Modules can be placed in rails from any position;
-
Rails and accessories can be mounted with the strongest panels on different conditions.

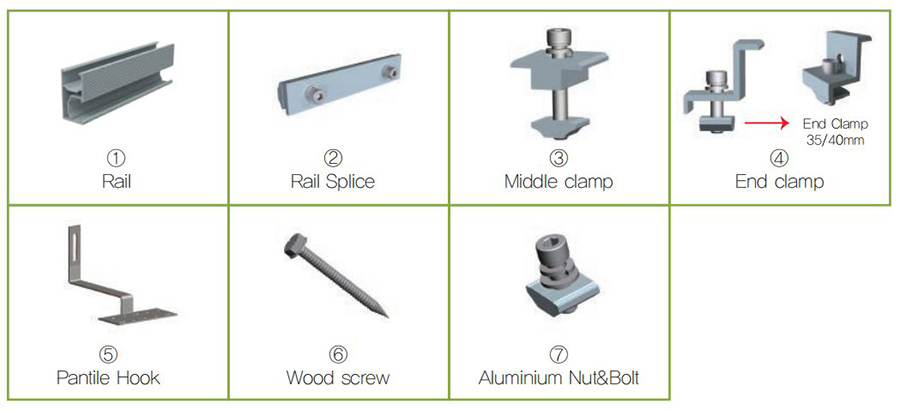

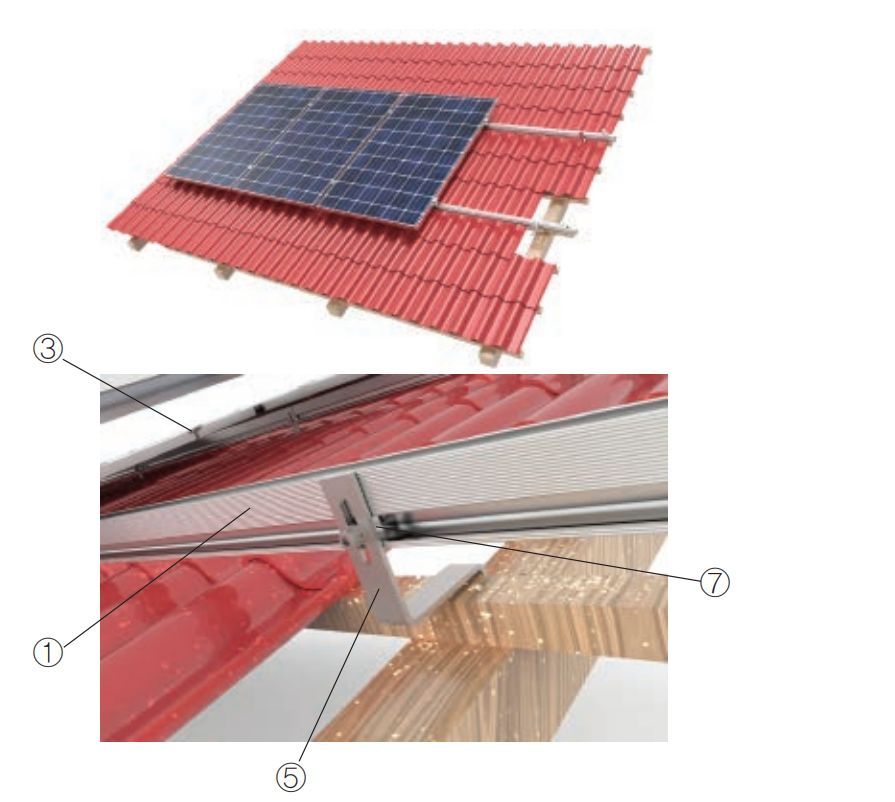

Components

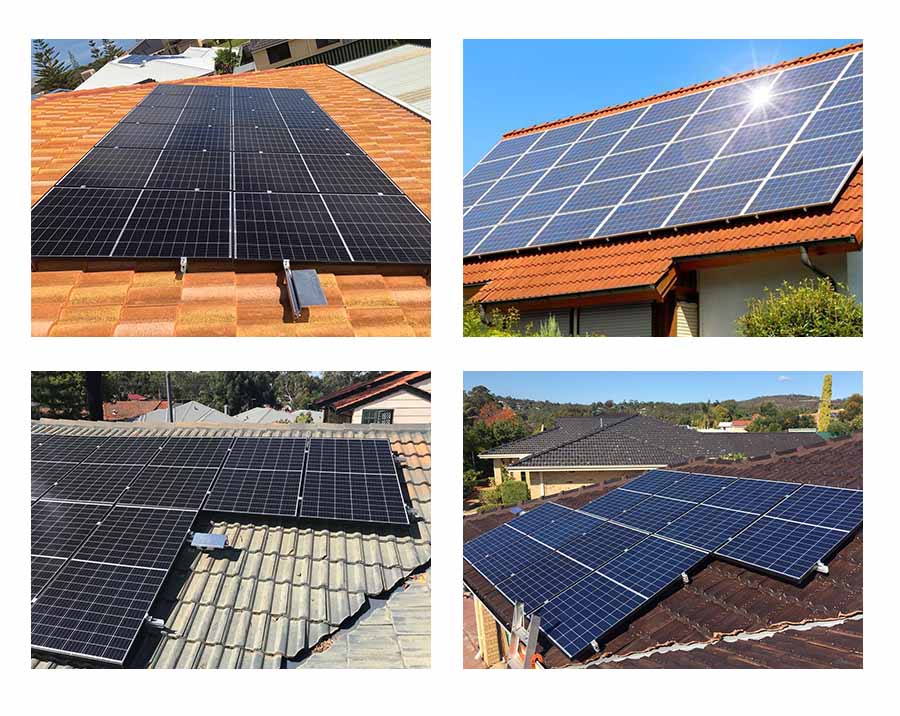

Project
Certificate
QC
WinTop Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.We have strictly quality control 6S for all our products.
FAQ
(1) Will the solar panels cause my roof to leak?
No, all of our mounting solutions are professionally engineered, guaranteed to ensure the integrity of your roof.To prevent water intrusion on shingled roofs, we use metal flashing kits that create a watertight seal every time.
(2) Where is your factory located?
Our factory address is : No.585, HongTang Road, TongAn District,Xiamen,City,Fujian,P.R.China.
(3) How can I get to your factory?
When you arrive in the Xiamen International Airport,then we can pick you up there,and next visit our head office and factory.
(4) If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
(5) What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, and Yes it is acceptable to send you samples if you need,then you just need to pay the shipping fee of the samples.If you need,please feel free to send your inquiry to me.
